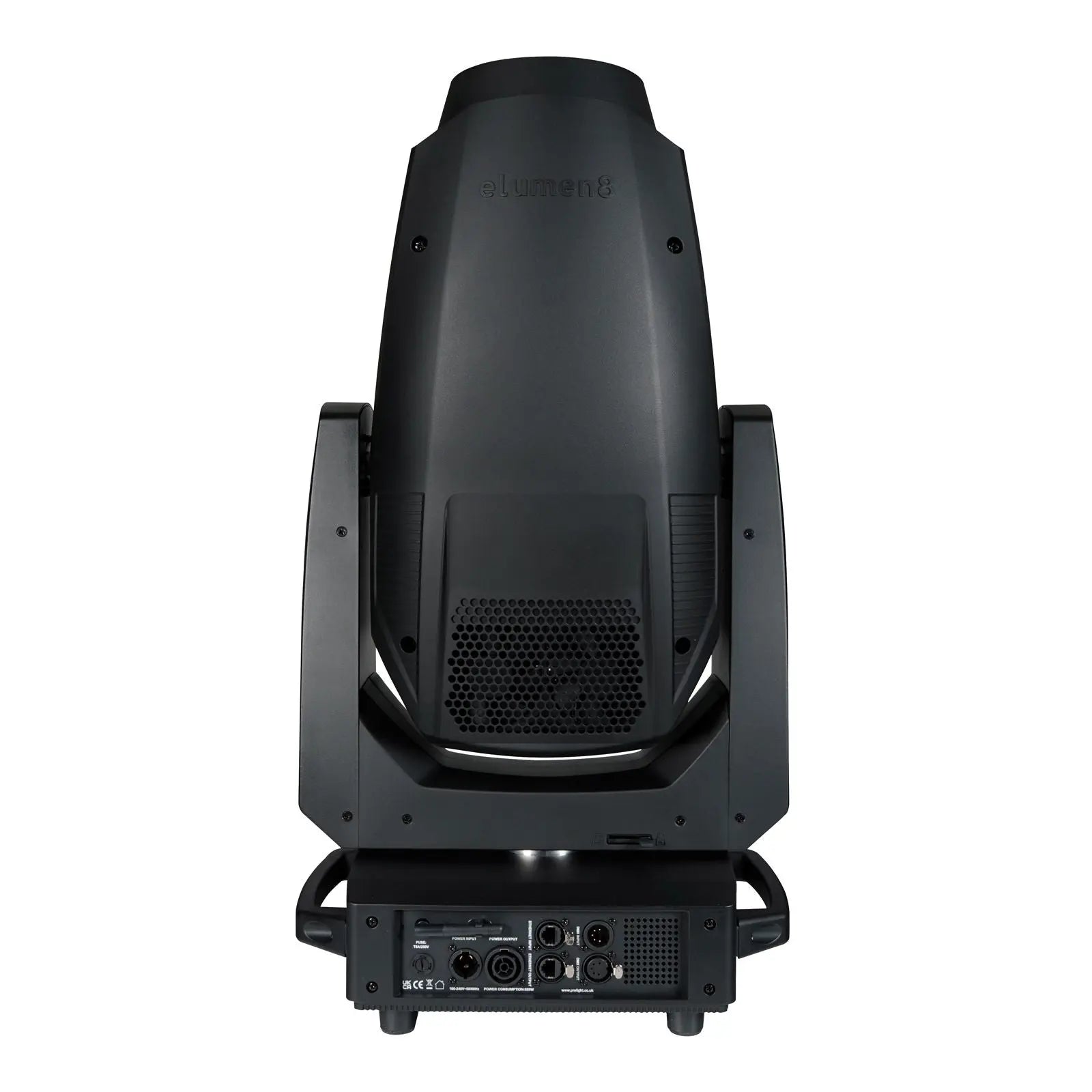

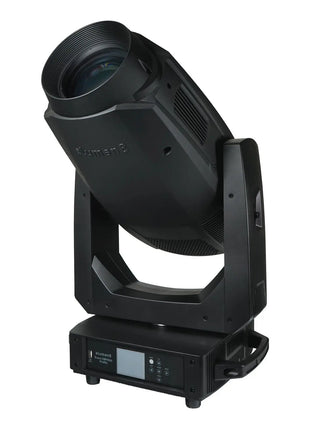

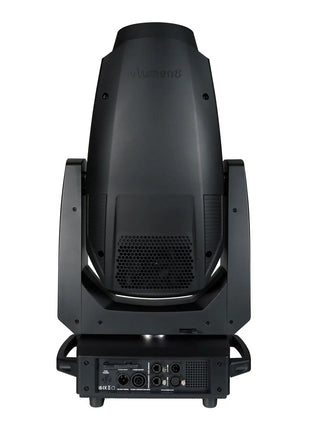

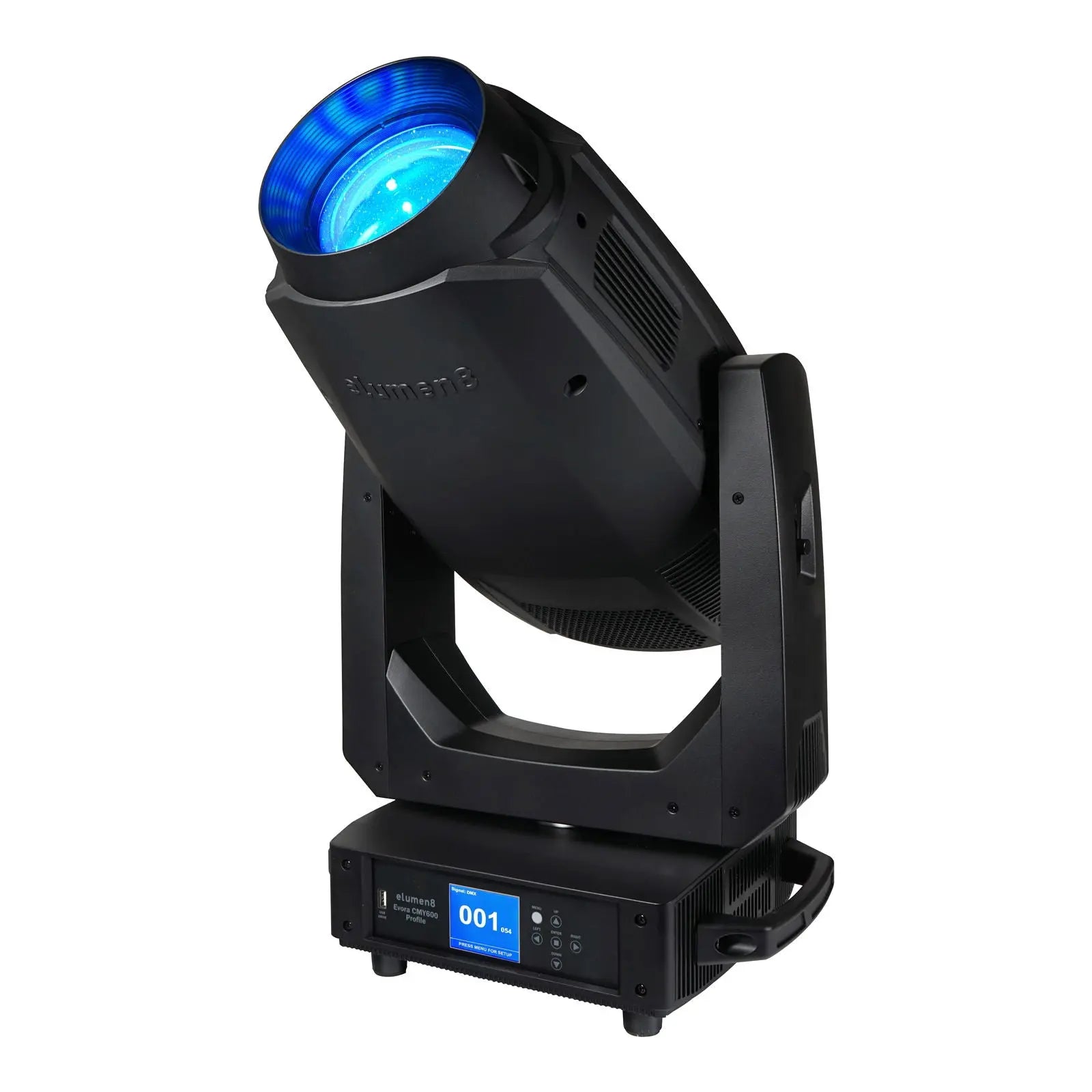

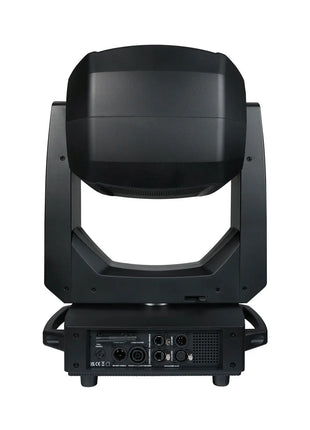

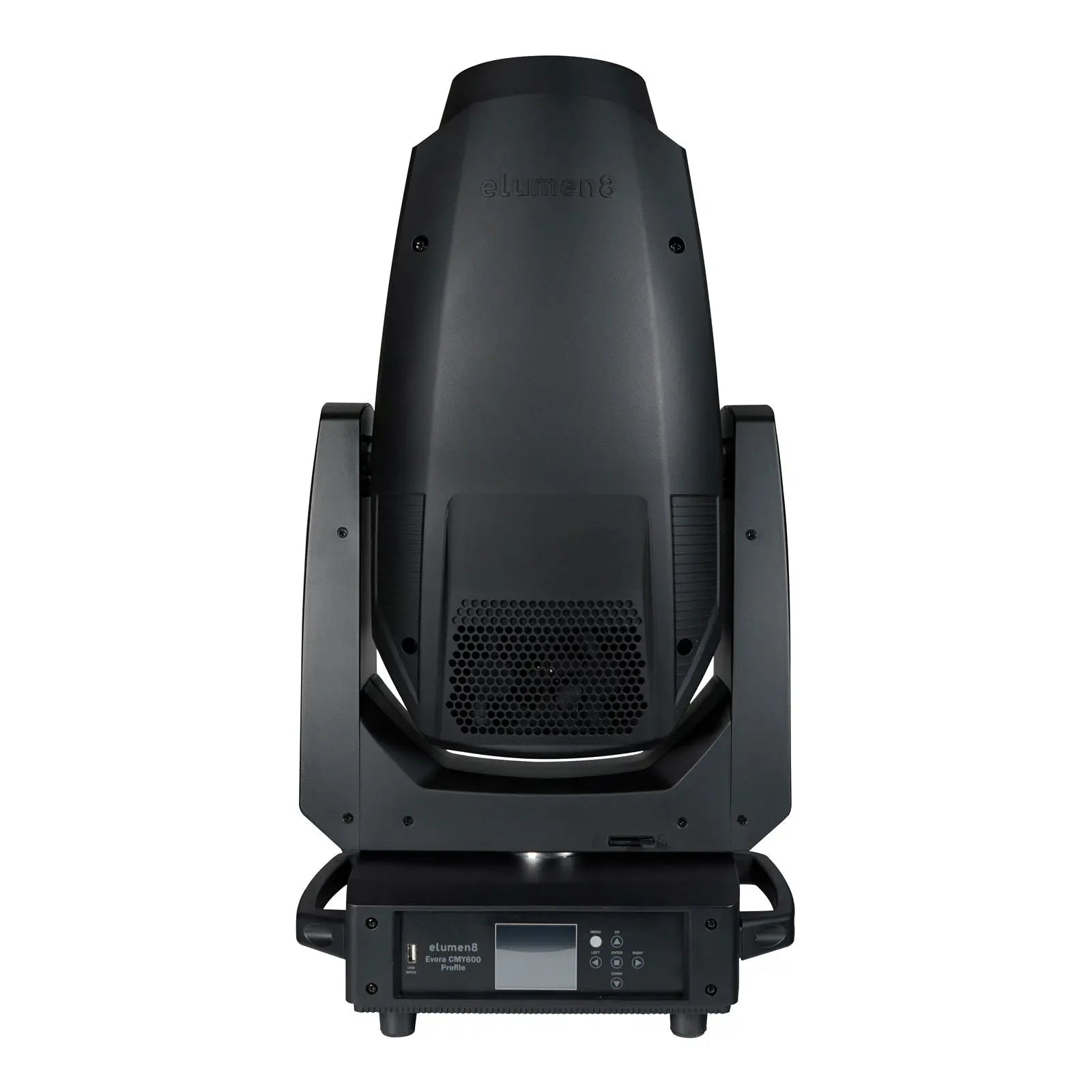

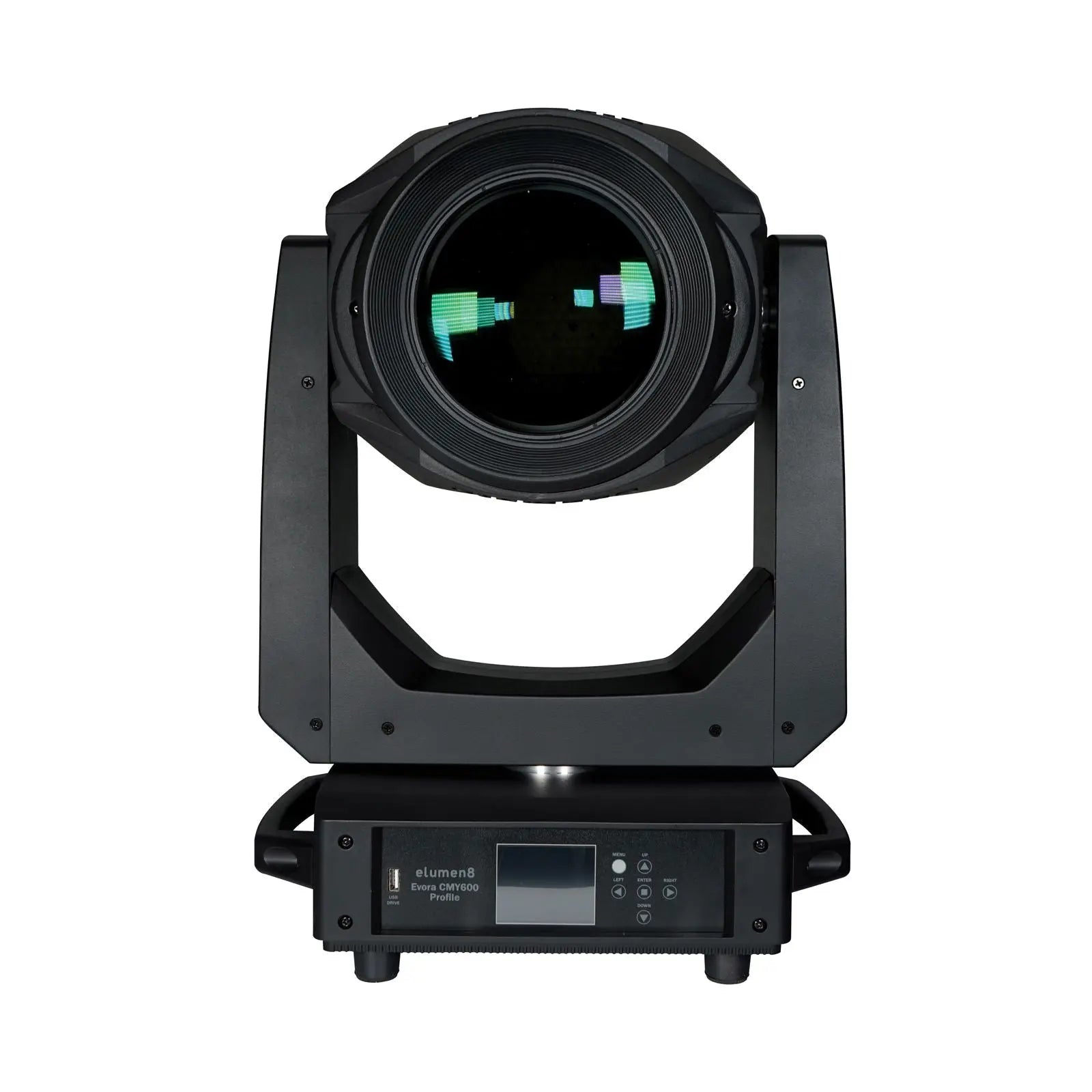

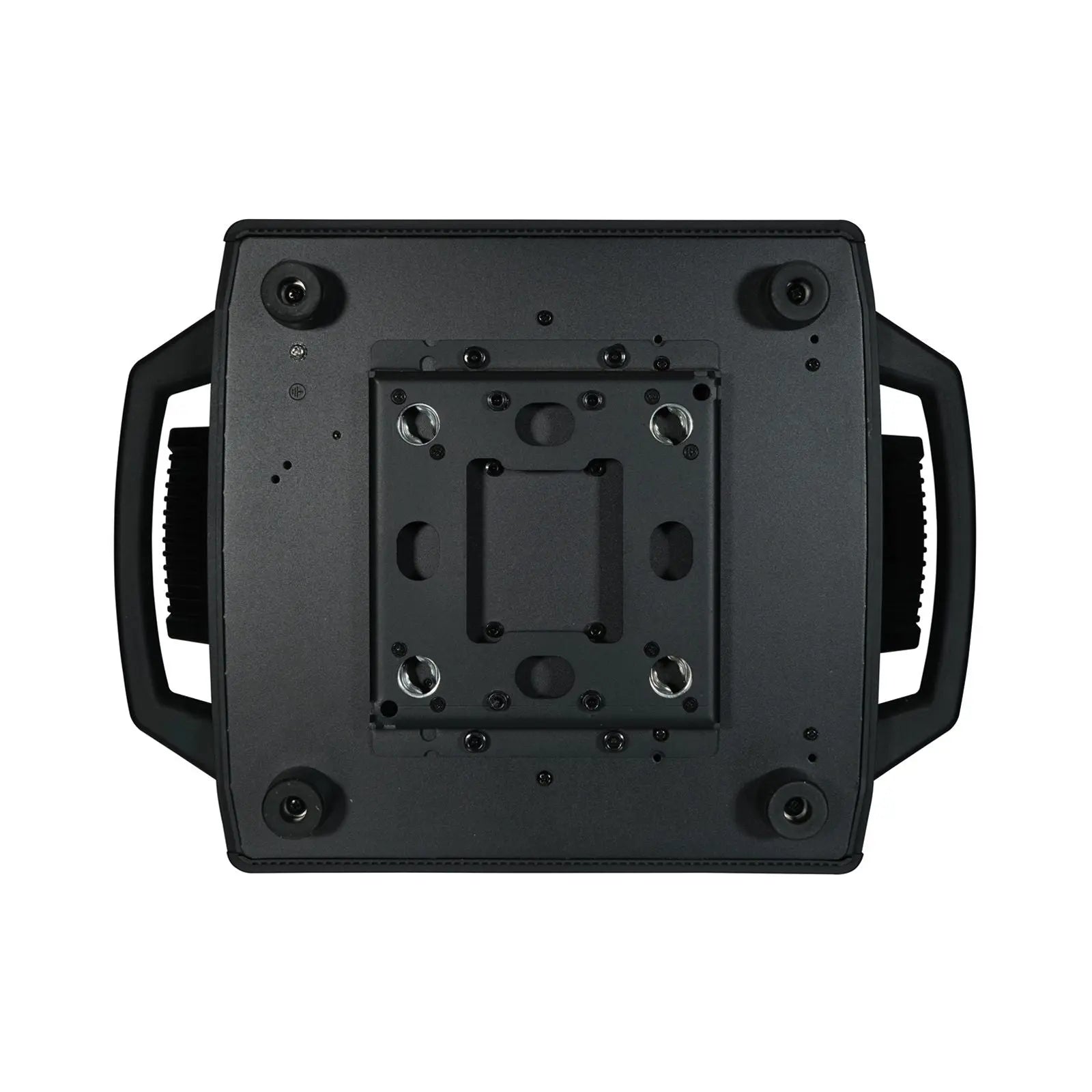

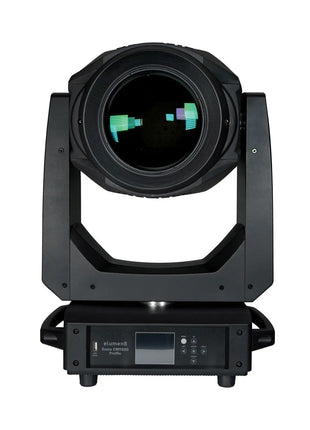

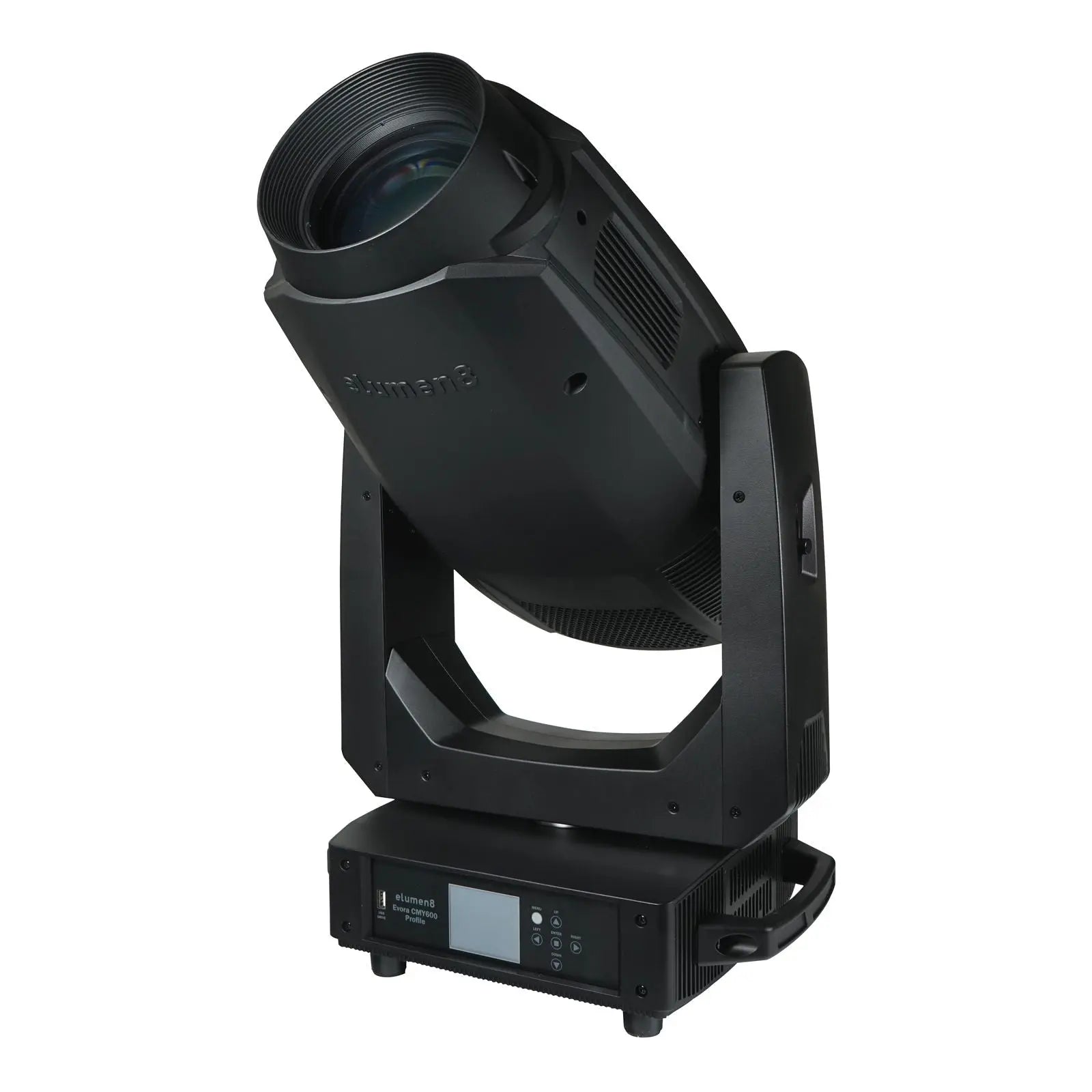

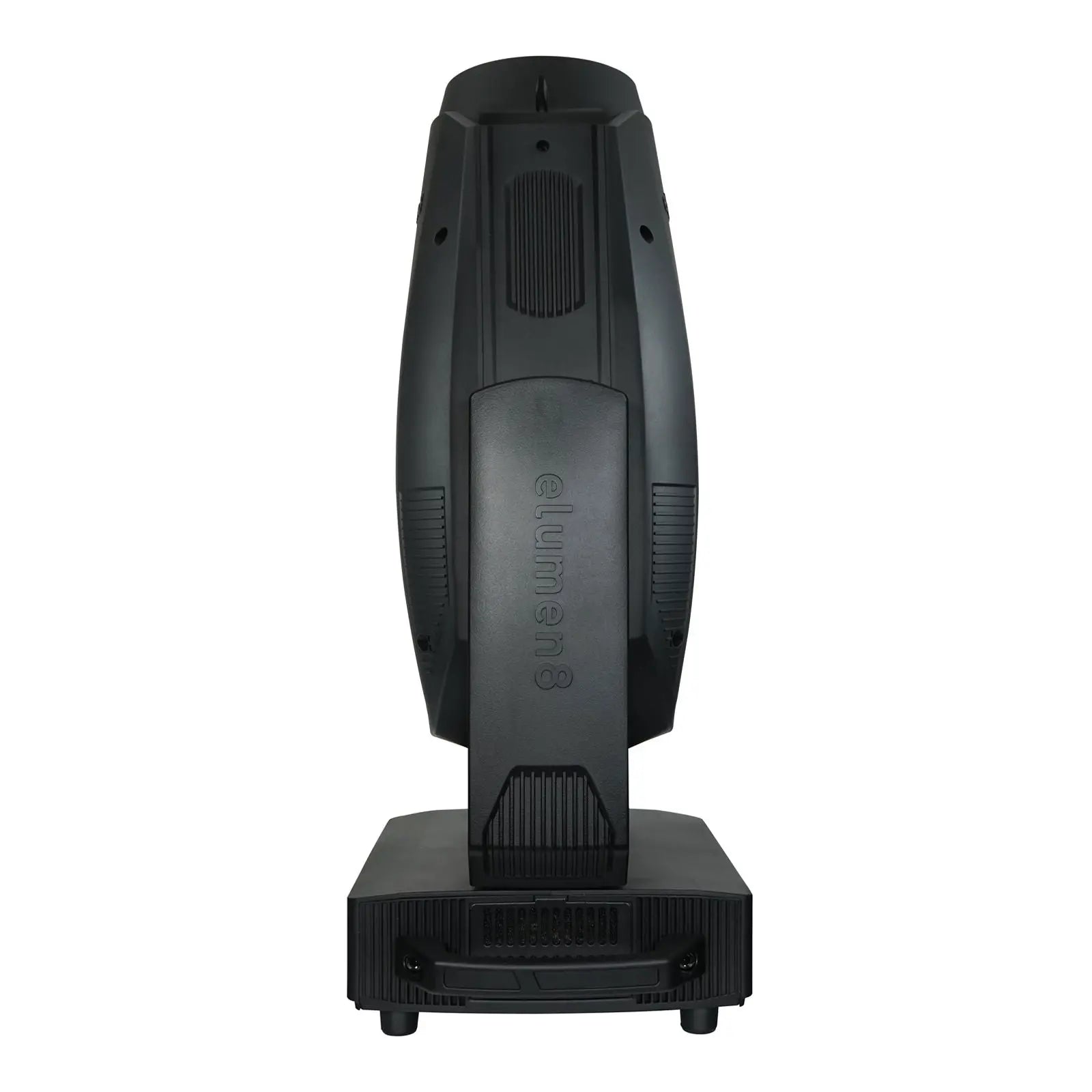

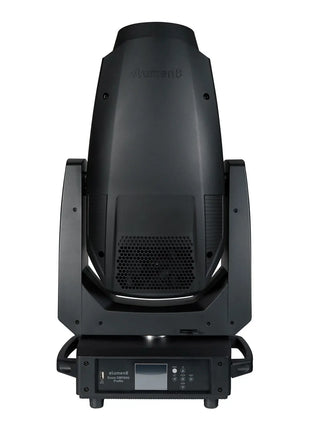

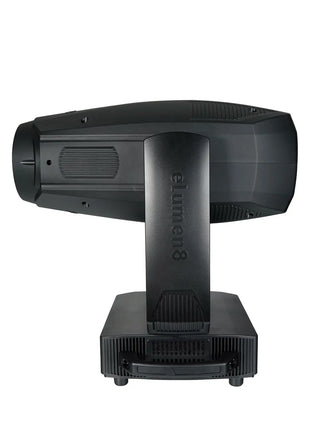

The Evora CMY600 Profile is a powerful tour-grade moving head which features a comprehensive array of effects. The impressive 600W LED provides an immense output whilst the 4-blade rotatable framing system 9°- 46° motorised zoom focus and iris allow precise beam adjustment. The CMY600 offers replaceable static and rotating gobos 5 facet linear and 4 facet circular prisms and a variable frost filter. Endless colours can be achieved with CMY colour mixing along with its colour wheel and variable CTO flag.Suited to rental stage and touring the LED is flicker-free with an adjustable refresh rate. Control is via DMX RDM Kling-Net Art-NET and sACN protocols and for further convenience wireless DMX is onboard via W-DMX Sweden. 2 year warranty 1 x 600W white LED (6500K) Adjustable beam angle: 9°-46° Lumens – Source: 46000 Lumens – Output: 19165 9° - 9755 Lux @ 10m 46° - 421 Lux @ 10m CRI: 72 Refresh rate: 14 selectable presets between 900Hz-25kHz Motorised zoom focus and iris 4 rotating framing shutters +/-45° plus shape rotation 4 facet circular rotating indexable prism plus 5 facet linear rotating indexable prism Variable frost filter (0-100%) Gobo wheel 1: 7 rotating indexable replaceable gobos + open Gobo wheel 2: 8 static replaceable gobos + open Animation wheel CMY colour mixing: Cyan 0-100% Magenta 0-100% and Yellow 0-100% Variable CTO flag (0-100%) Colour wheel: 7 colours + open Control protocols: DMX Kling-net Art-net and sACN DMX channels: 33/40 or 54 selectable Wireless control (W-DMXSweden transceiver) Manual control and master/slave modes plus built-in programs RDM (Remote Device Management) Pan/tilt transit lock and auto correction 16-Bit pan/tilt positioning Pan: 540° or 630° selectable Tilt: 270° 0 – 100% dimming 5 dimming modes: Standard stage TV architectural and theatre Variable strobe Supplied with quick release omega clamps 6 button menu with 2.7” LCD display Display battery backup for offline configuration USB port (firmware updates) powerCON TRUE1 input/output 5-Pin XLR input/output etherCON input/output Temperature controlled fans
