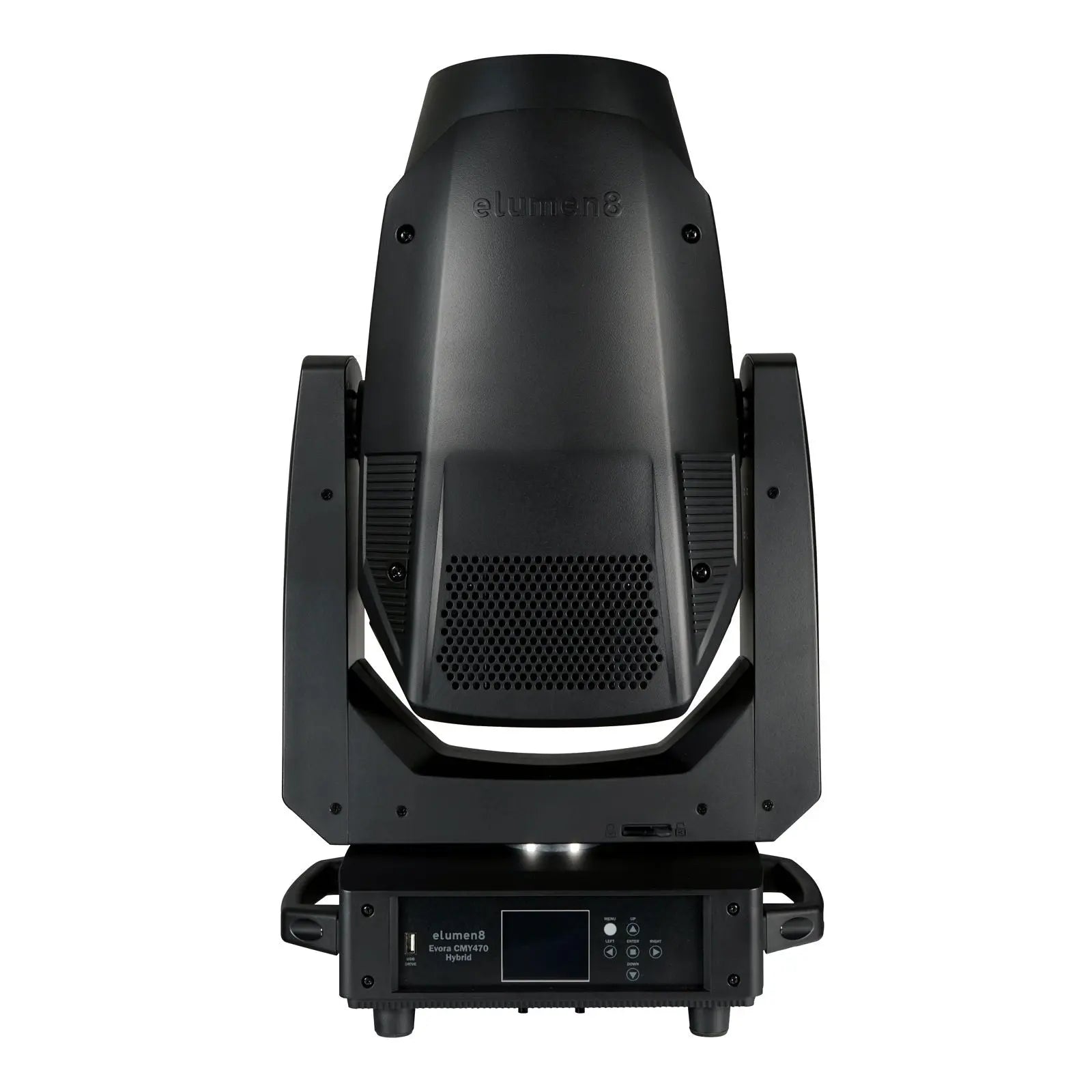

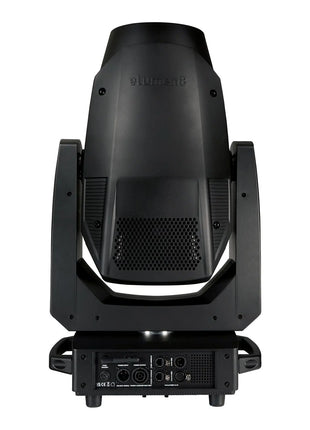

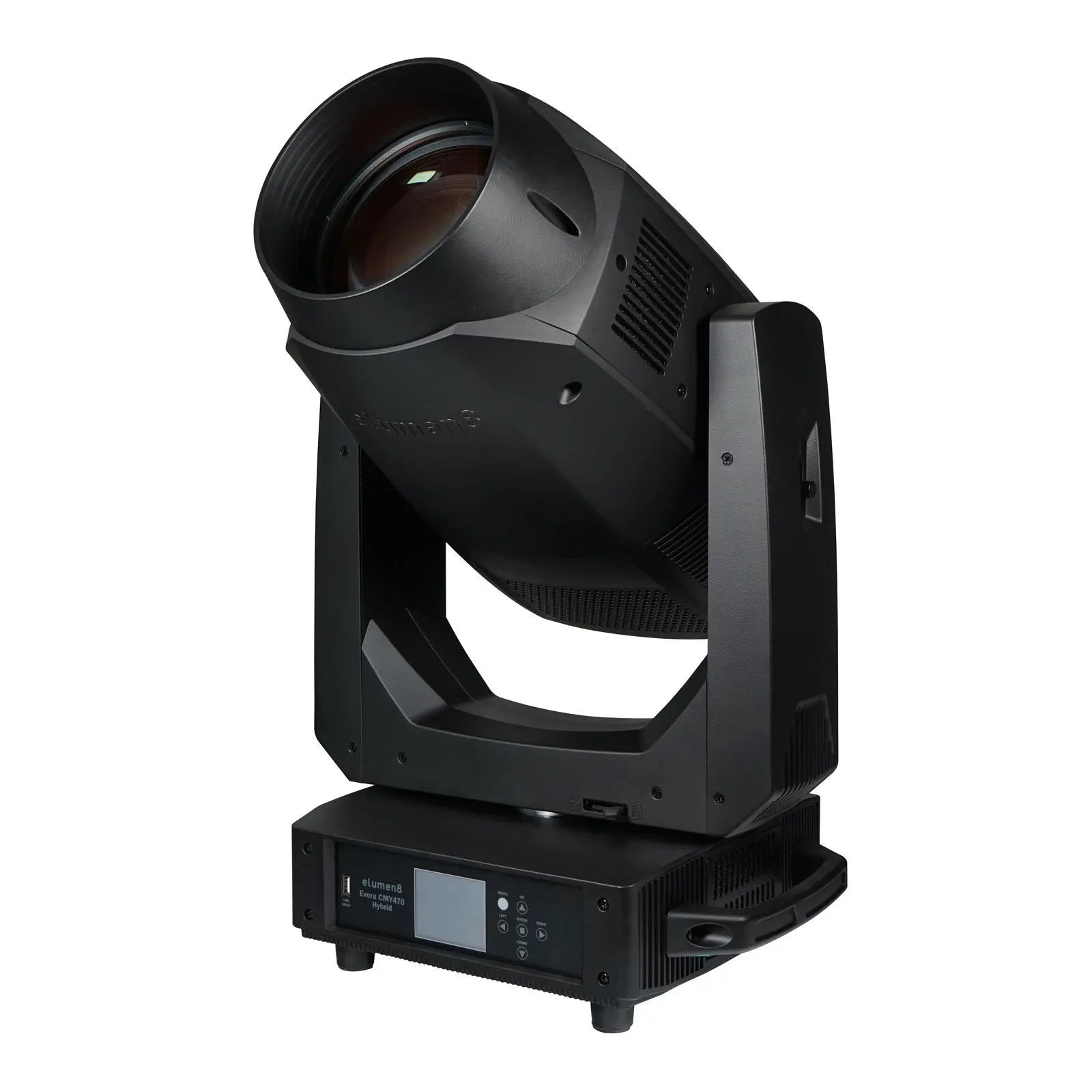

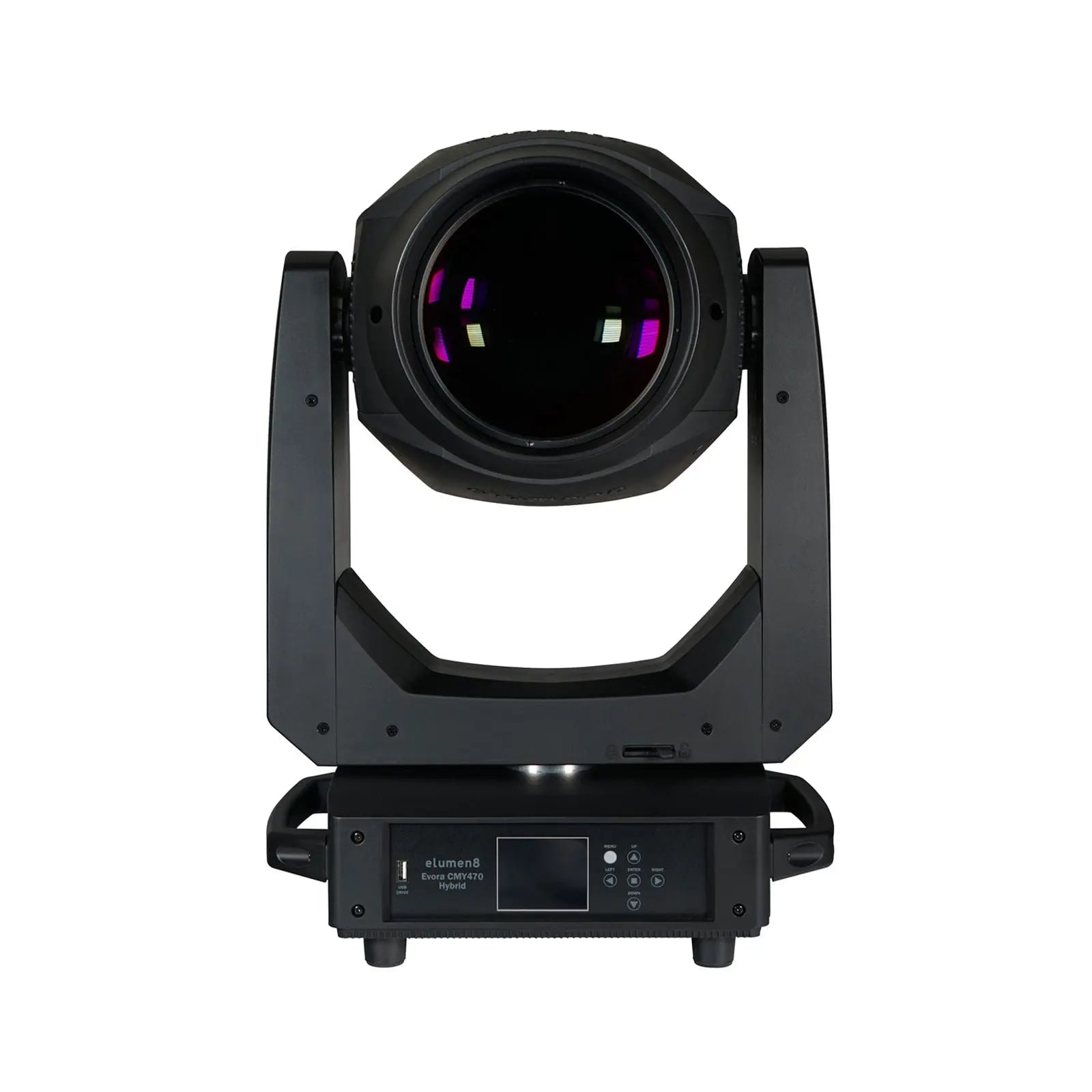

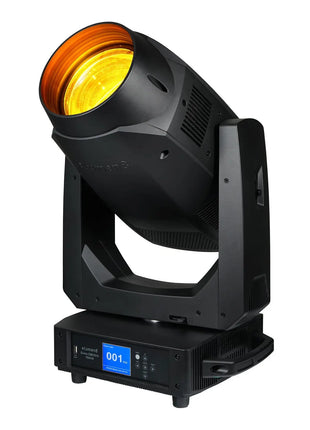

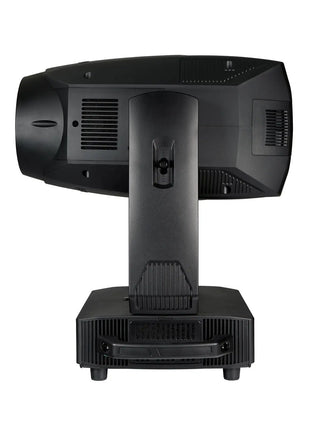

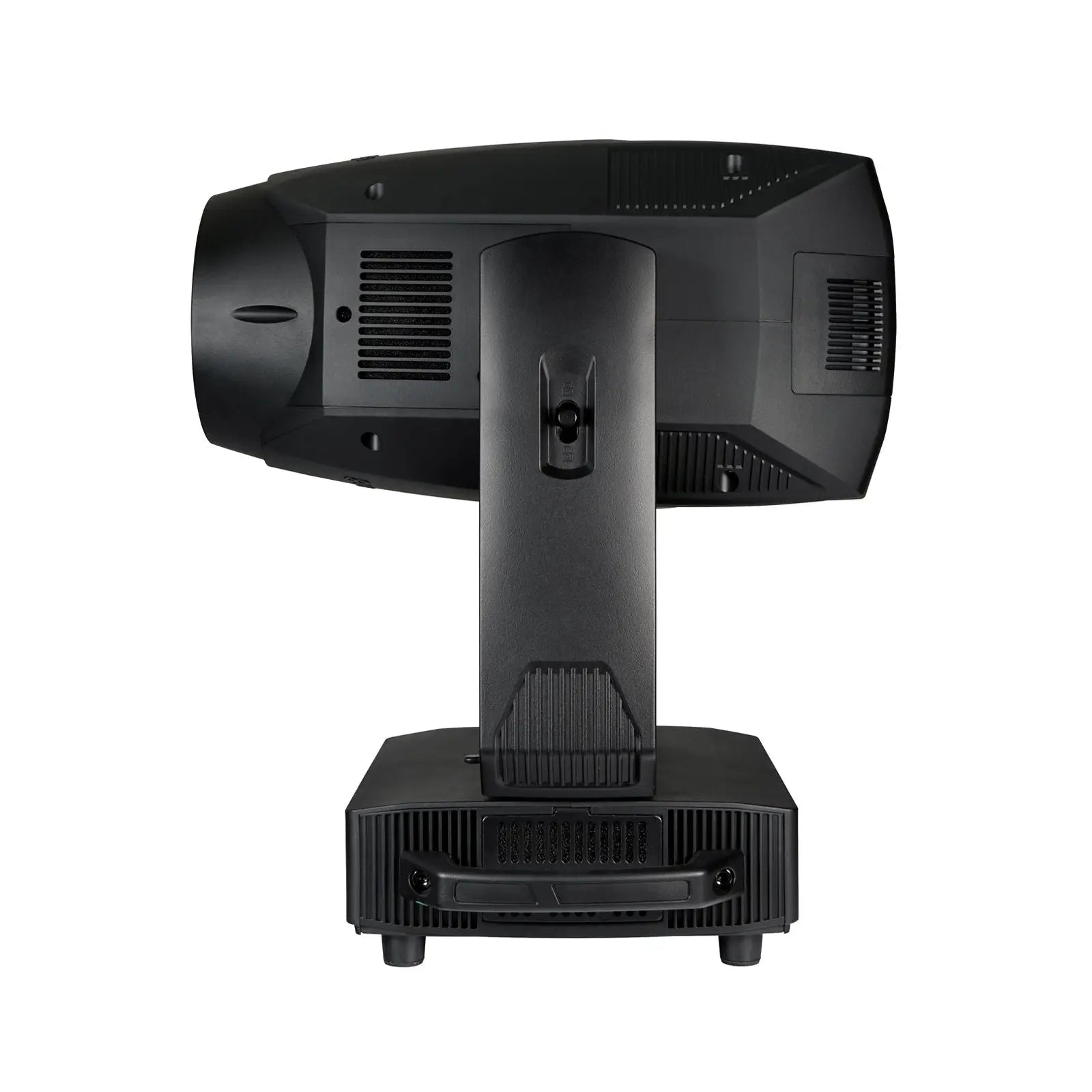

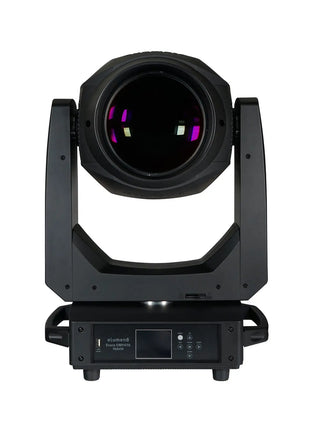

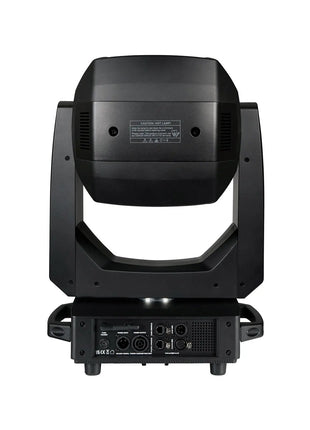

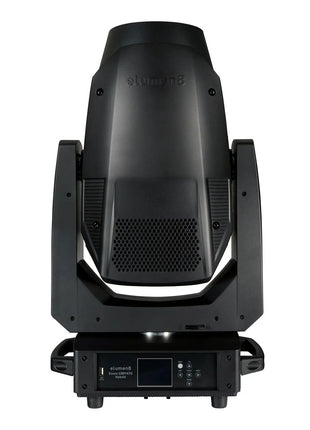

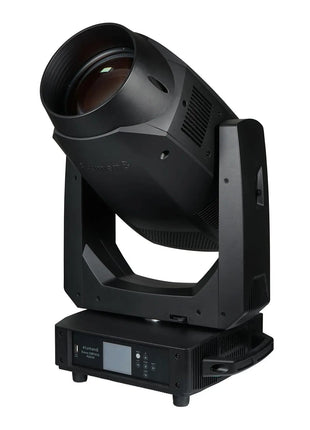

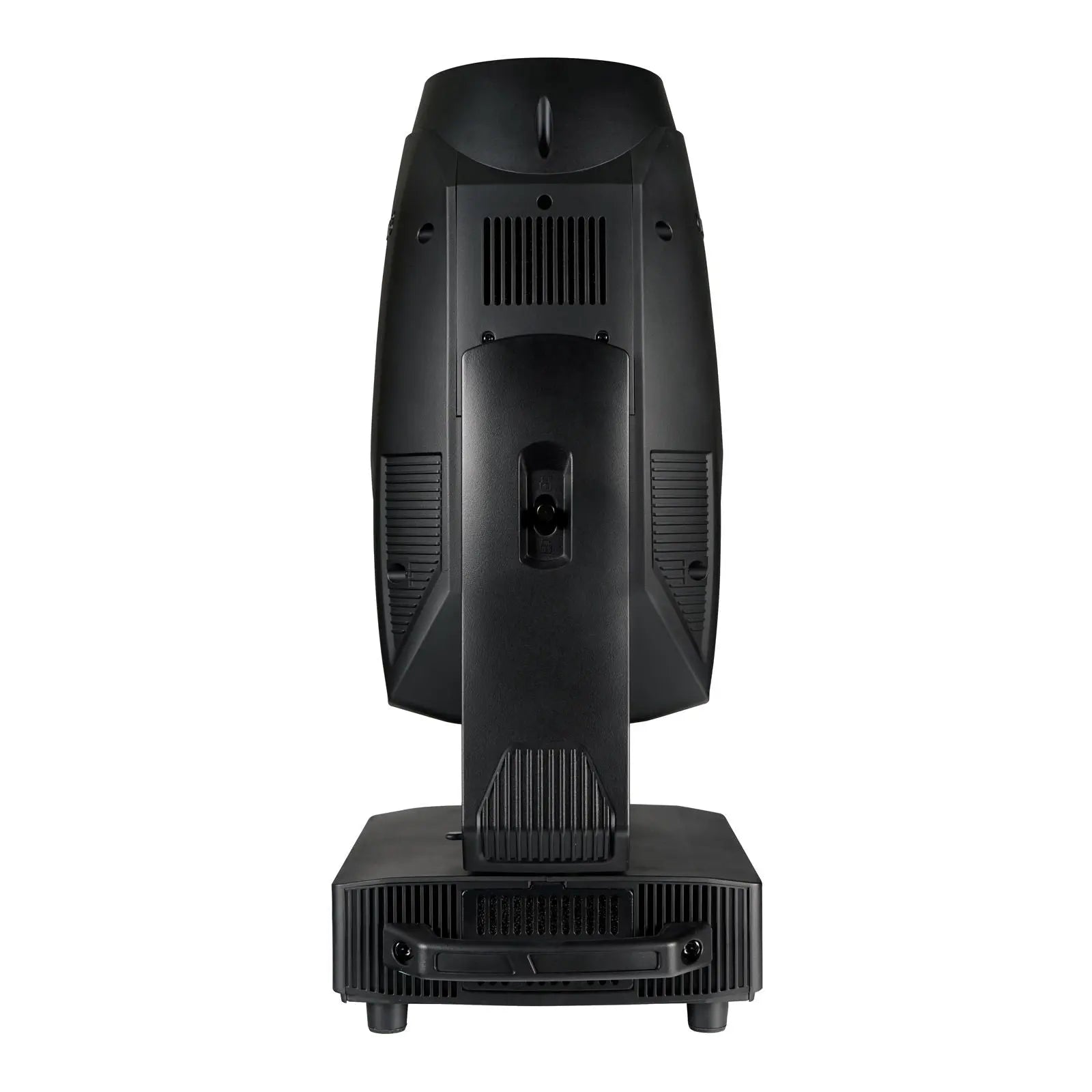

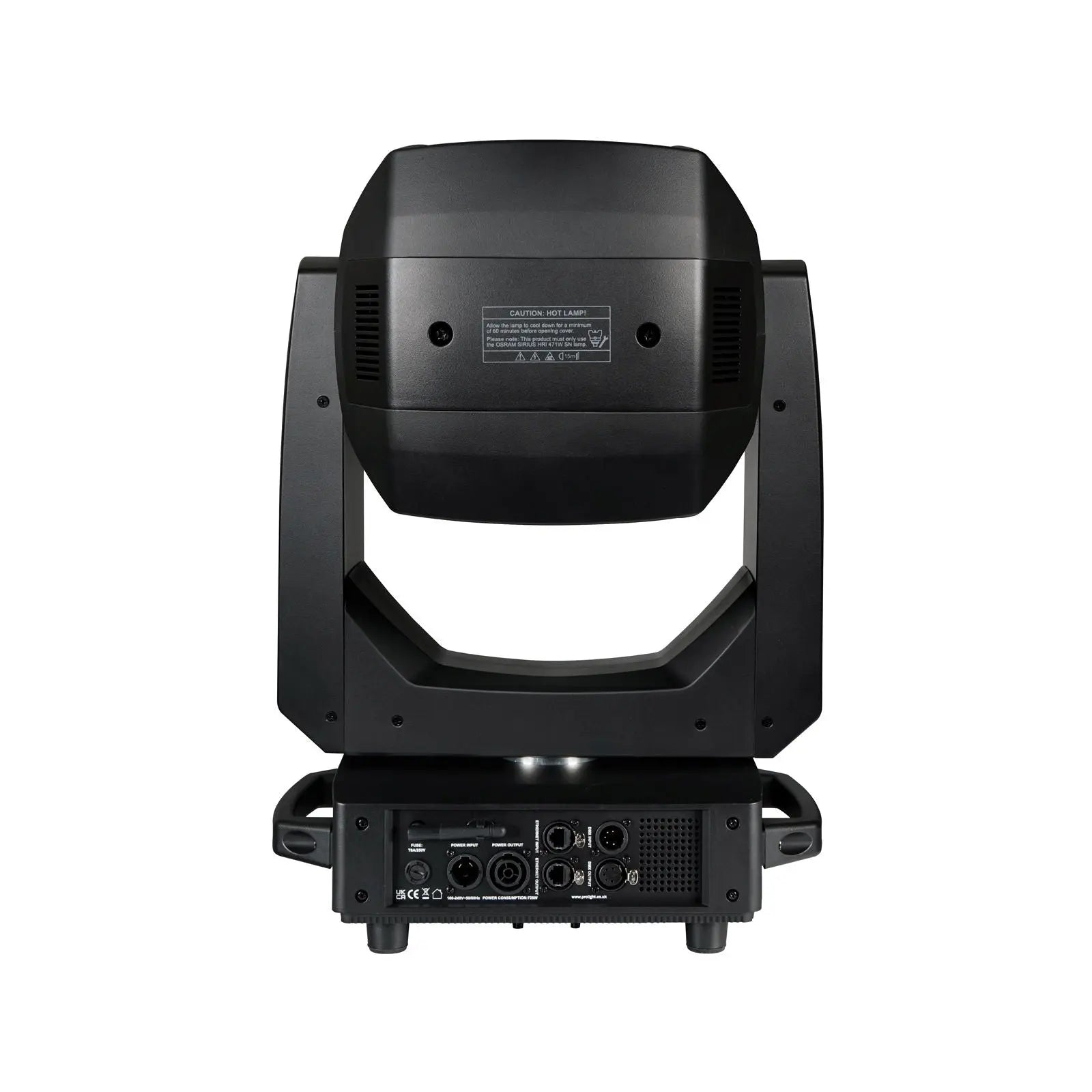

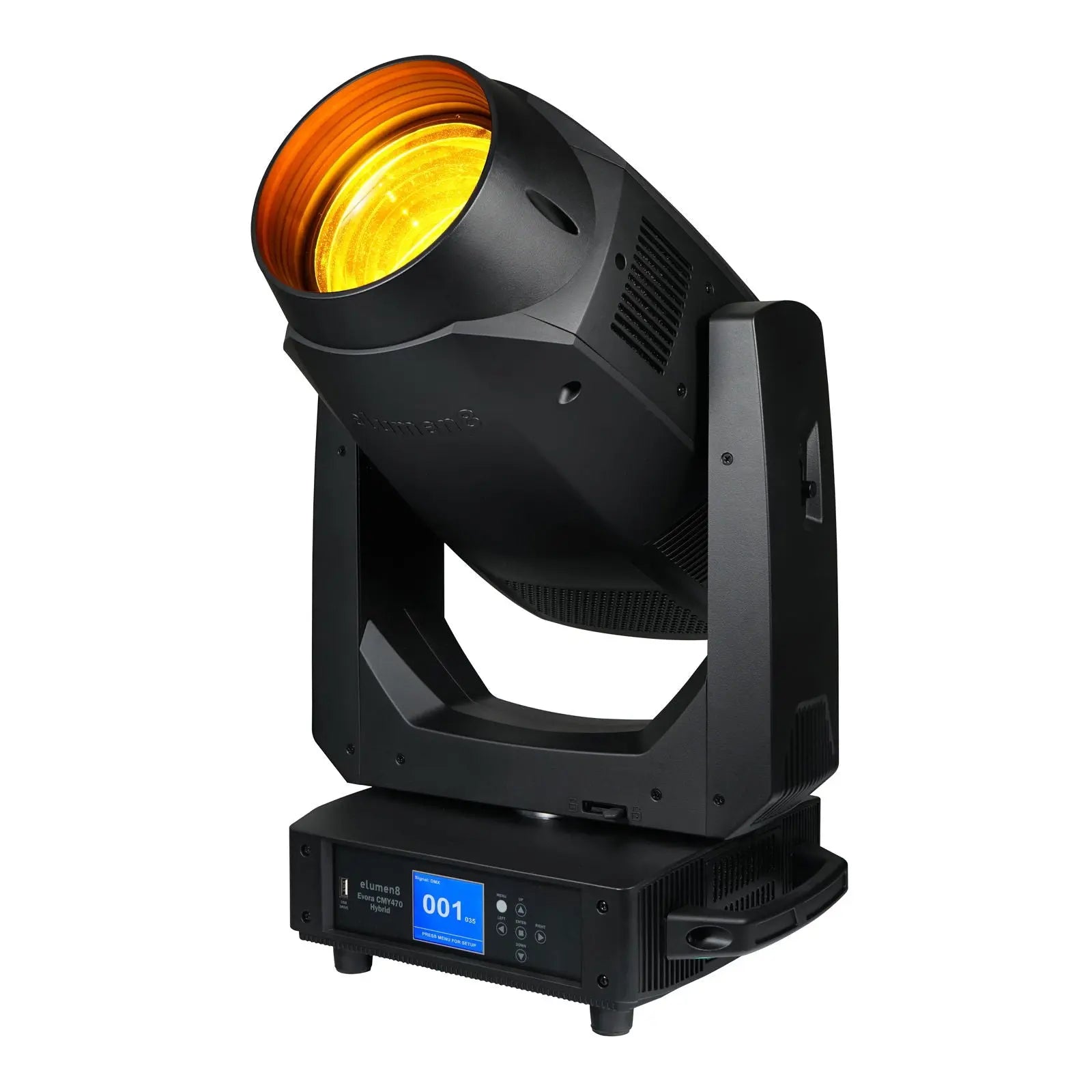

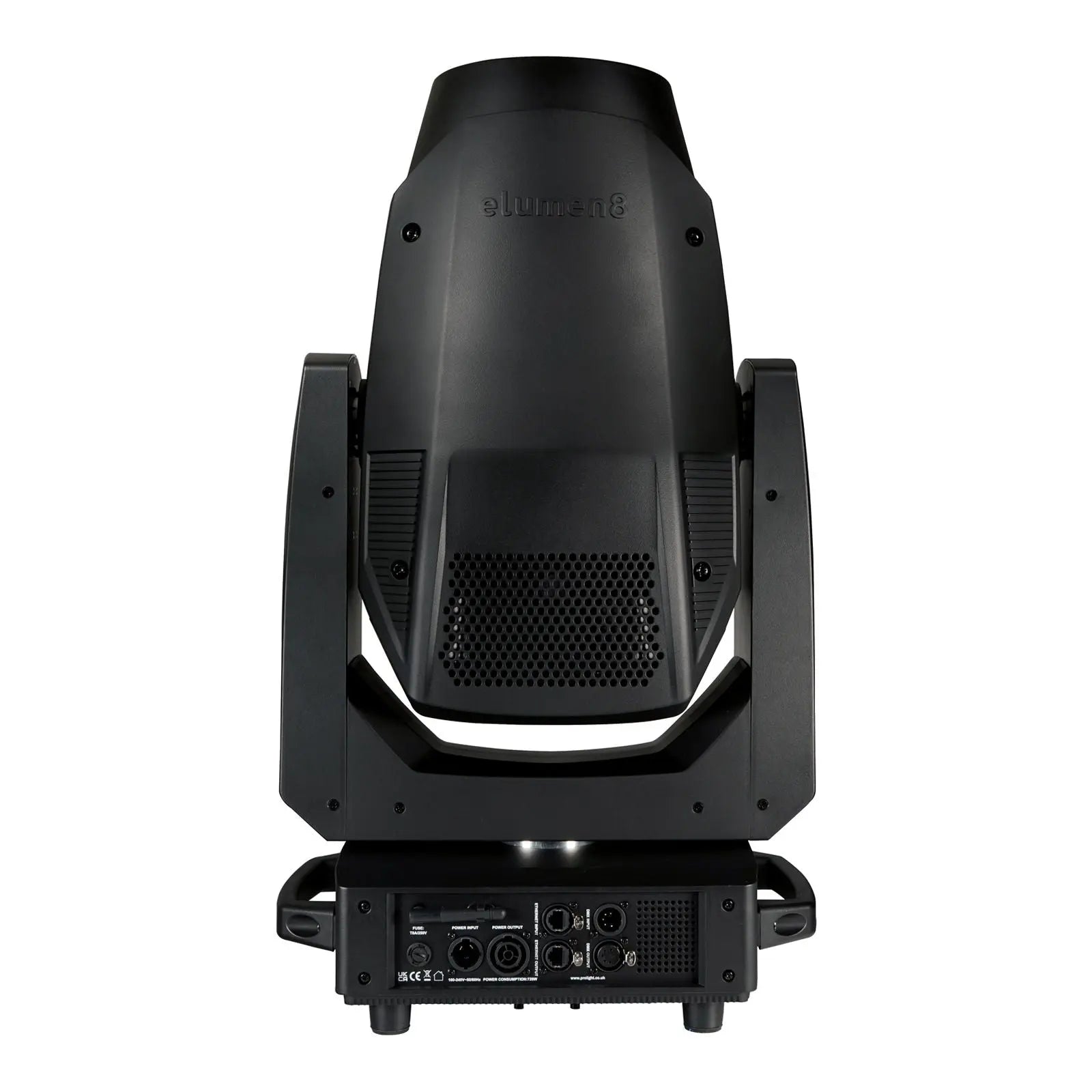

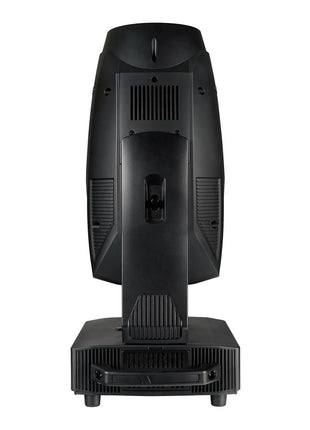

The Evora CMY470 Hybrid is a feature packed 3-in-1 moving head boasting an intense Osram® SIRIUS HRI 471W discharge lamp. Crystal clear optics paired with an adjustable zoom from 1.8° to 46° allows super tight beams and wide washes to be achieved. The CMY470 offers both static and rotating gobo wheels 8 rotating prisms 2 variable frost filters animation wheel and motorised focus. Endless colours can be achieved with CMY colour mixing along with its colour wheel and CTO filter. Suited to rental stage and touring the fixture is equipped with TRUE1 connections and has battery backup for offline configuration. Control is via DMX RDM Kling-Net Art-NET and sACN protocols and for further convenience wireless DMX is on-board via W-DMX Sweden. 2 year warranty 1 x Osram® SIRIUS HRI 471W SN discharge lamp (7500K) Adjustable beam angle: 1.8° - 46° Lumens – Source: 23900 Lumens – Output: 12699 Beam mode: 1.8° - 431000 Lux @ 10m 21° - 3620 Lux @ 10m Spot mode: 3° - 180000 Lux @ 10m 42° - 840 Lux @ 10m Wash mode: 7° - 12000 Lux @ 10m 46° - 608 Lux @ 10m Motorised zoom and focus 8 rotating indexable prisms situated across 2 wheels Wheel 1: dynamic effects prism 6 facet circular prism 5 facet linear prism and 4 facet circular prism Wheel 2: 6 facet linear prism 8 facet circular prism 16 facet circular prism and 24 facet circular prism Frost 1: Medium variable frost filter (0-100%) Frost 2: Heavy variable frost filter (0-100%) CRI: 80 High CRI filter (CRI: 90) Gobo wheel 1: 9 rotating indexable replaceable gobos + open Gobo wheel 2: 13 static gobos + open Animation wheel CMY colour mixing: Cyan 0-100% Magenta 0-100% and Yellow 0-100% Colour wheel: 12 colours + CTO filter + open Control protocols: DMX Kling-net Art-net and sACN DMX channels: 35 Wireless control (W-DMX Sweden transceiver) Manual control and master/slave modes plus built-in programs RDM (Remote Device Management) Pan/tilt transit lock and auto correction 16-Bit pan/tilt positioning Pan: 540° or 630° selectable Tilt: 270° 0 – 100% dimming Variable strobe Supplied with quick release omega clamps 6 button menu with 2.7” LCD touch screen display Display battery backup for offline configuration USB port (firmware updates) powerCON TRUE1 input/output 5-Pin XLR input/output etherCON input/output Temperature controlled fans
