Powerful 350W White LED Source: Equipped with a high-output 350W white LED (6,900K), delivering immense brightness and exceptional clarity for all your lighting needs.
-
Precise 4-Blade Rotatable Framing System: Features an advanced 4-blade, rotatable framing system (+/-45° rotation), allowing for precise control over the beam's shape and size, and creating stunning profile effects.
-
Motorized Zoom, Focus, and Iris: A comprehensive set of motorized controls provides a broad 3°- 53° zoom range, precise focus adjustment, and a fully controllable iris for sharp, well-defined beams or wide washes.
-
Versatile Color Mixing & Effects:
-
CMY Color Mixing: Achieve an endless spectrum of colors with CMY (Cyan, Magenta, Yellow) color mixing (0-100%).
-
Variable CTO Flag: A dedicated variable CTO flag (0-100%) allows for continuous color temperature adjustment, from cool to warm whites.
-
Color Wheel: Includes a separate color wheel with 7 colors plus a High CRI filter (CRI: 84) and open, for quick color changes and enhanced color rendering.
-
Dual Rotating Prisms & Frost Filters:
-
Prisms: Features a 6-facet circular rotating indexable prism and a 6-facet linear rotating indexable prism, for creating mesmerizing multi-beam effects.
-
Frost Filters: Includes two variable frost filters for softening the beam and transitioning from a hard-edge profile to a wash effect.
-
Dynamic Gobo & Animation Wheels:
-
Gobo Wheel: Offers a gobo wheel with 7 rotating, indexable, replaceable gobos plus open, providing a versatile range of patterns and textures.
-
Animation Wheel: Includes a dedicated animation wheel for creating dynamic, flowing visual effects.
-
Comprehensive Control Protocols: Supports DMX, RDM, Kling-Net, Art-NET, and sACN protocols, ensuring seamless integration into any modern lighting network.
-
Onboard Wireless DMX: Features on-board wireless DMX via W-DMX Sweden transceiver. This allows the fixture to not only receive a wireless DMX signal but also relay it via the XLR output to other DMX fixtures, simplifying your cabling. An integral Art-Net node facilitates Art-Net to DMX conversion for downstream control.
-

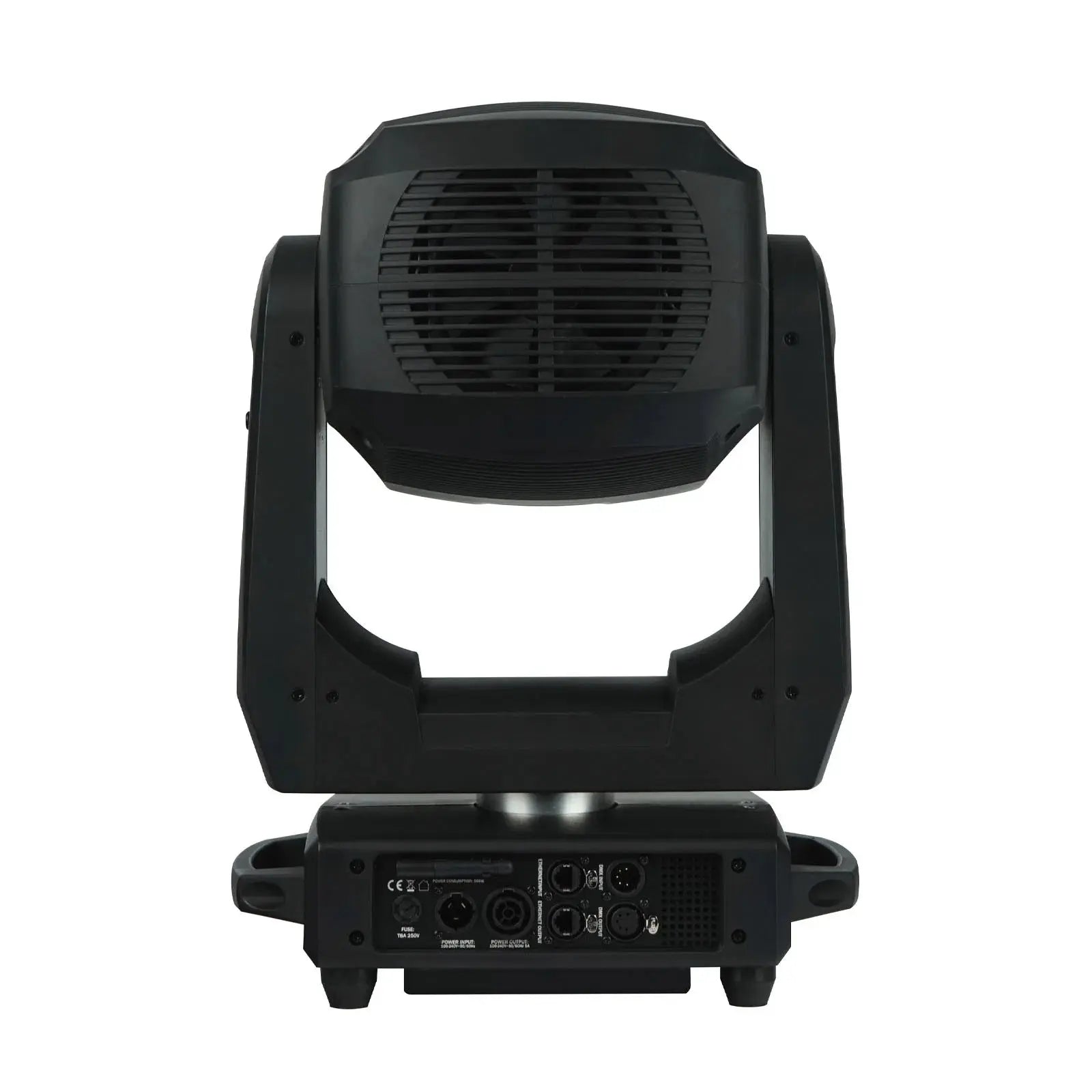

High-Performance Build: The LED is flicker-free with an adjustable refresh rate (14 selectable presets between 900Hz-25kHz), making it perfect for broadcast and film. It is fitted with temperature-controlled fans for efficient and quiet cooling, and a Pan/tilt transit lock and auto correction for reliable operation.
-
Warranty: Comes with a 2-year warranty.
-
LED Source: 1 x 350W white LED (6,900K)
-
Adjustable Beam Angle: 3°- 53° (motorized zoom)
-
Framing Shutters: 4 rotating, +/-45° with shape rotation
-
Lumens – Source: 20,500 lm
-
Lumens – Output: 13,000 lm
-
Lux @ 10m: 3° - 21,200 Lux, 53° - 310 Lux
-
CRI: 71 (Color wheel includes a High CRI filter with a rating of 84)
-
Prisms: 6-facet circular, 6-facet linear
-
Gobo Wheel: 7 rotating, indexable, replaceable gobos + open
-
Color Mixing: CMY (0-100%), variable CTO flag (0-100%), color wheel (7 colors + High CRI filter)
-
Control Protocols: DMX, RDM, Kling-Net, Art-net, sACN, Wireless DMX (W-DMX Sweden)
-
DMX Channels: 34/41 or 55 selectable
-
Pan: 540° or 630° selectable
-
Tilt: 270° (16-Bit positioning with auto correction)
-
Dimming: 0 – 100% (5 dimming modes)
-
Power Consumption: 608W
-
Power Supply: 100~240V 50/60Hz
-
Fuse: T8A 250V
-
Noise Level: ≤40dBA @ 1m (low), ≤50dBA (auto), ≤55dBA (high)
-
Dimensions (H x D x W): 594 x 362 x 232mm
-
Weight: 22kg
