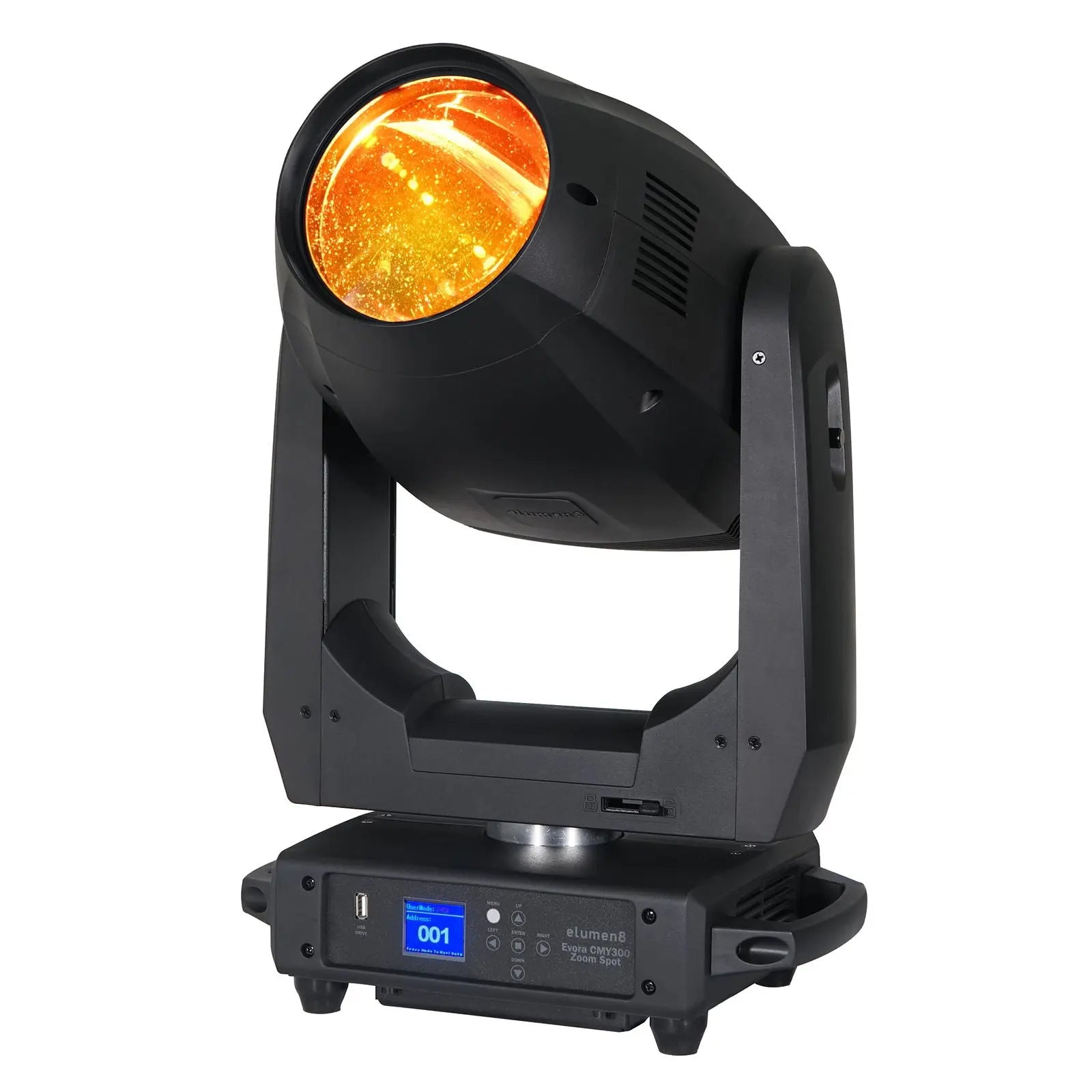

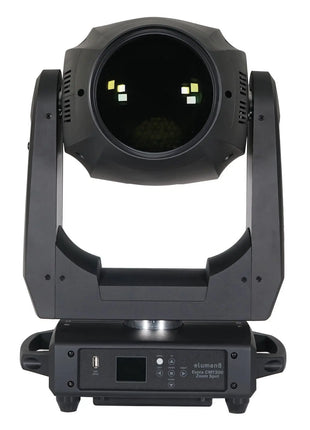

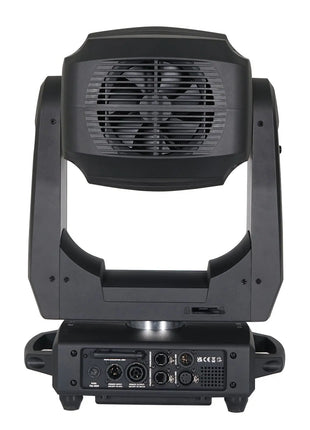

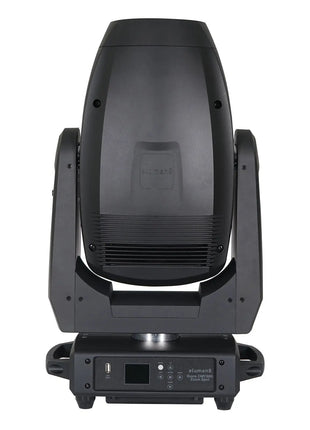

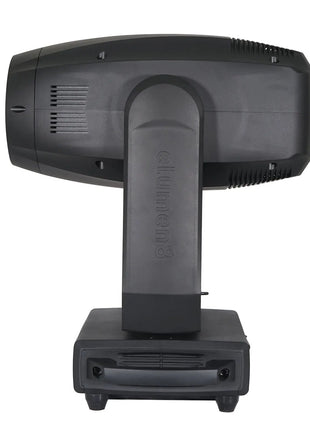

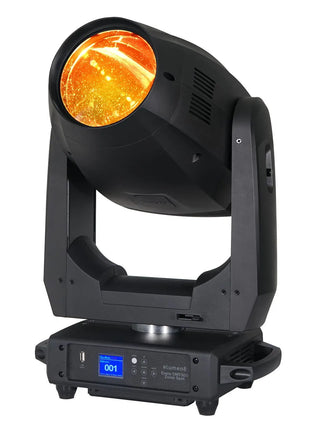

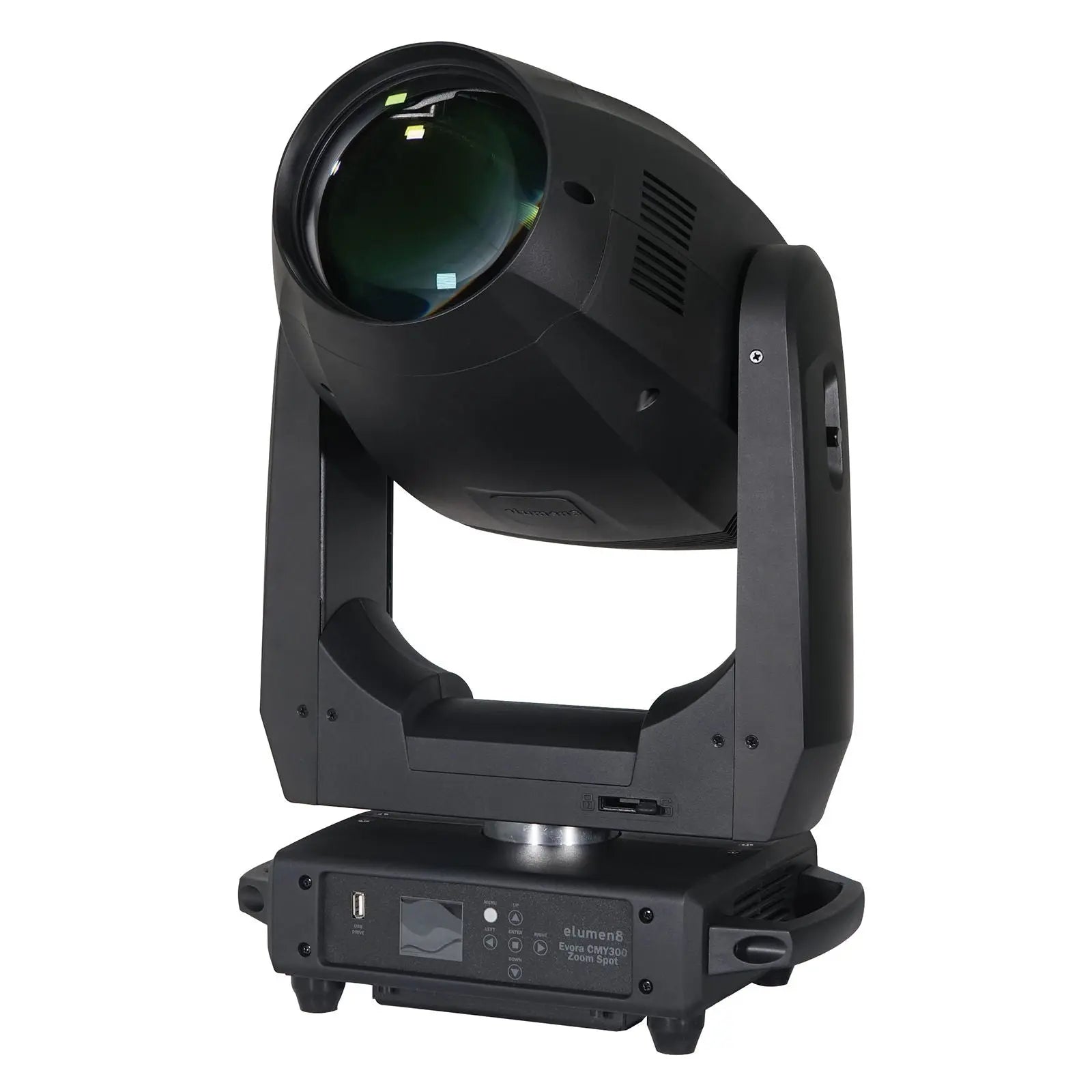

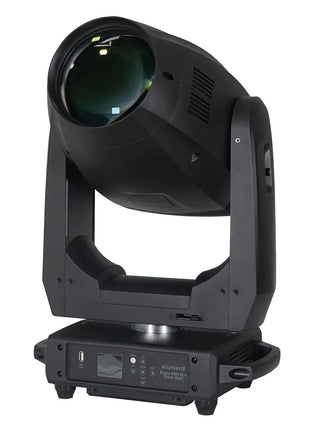

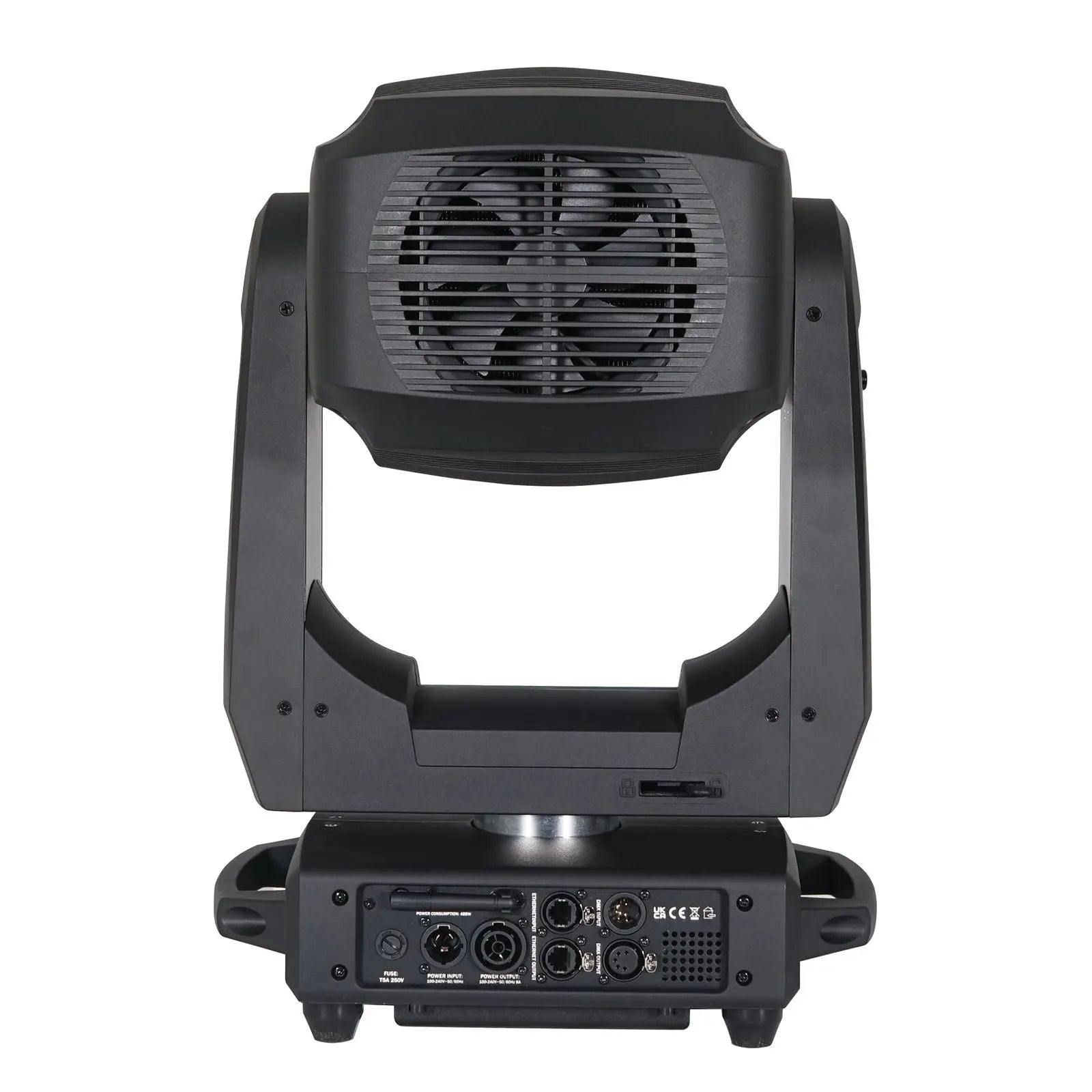

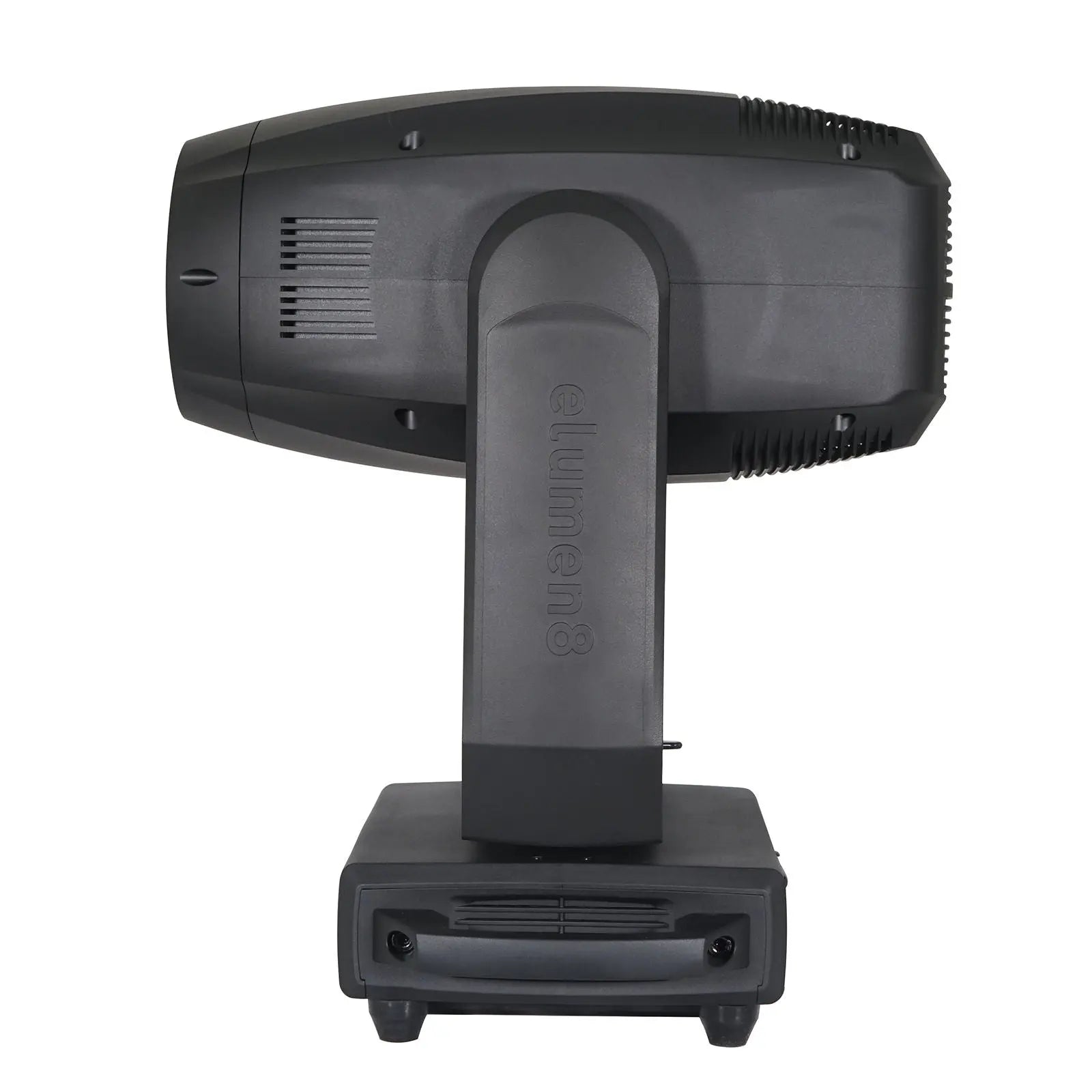

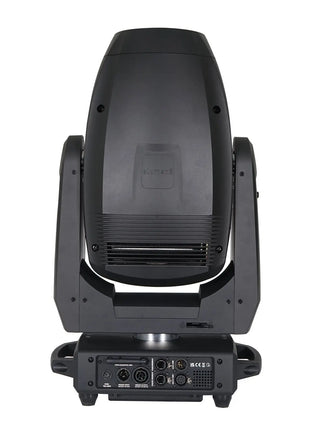

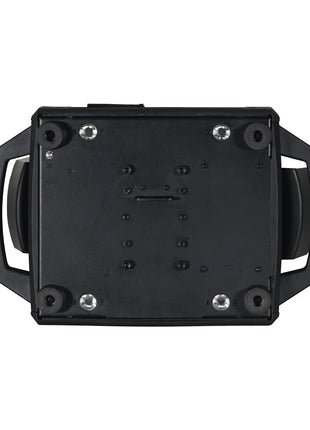

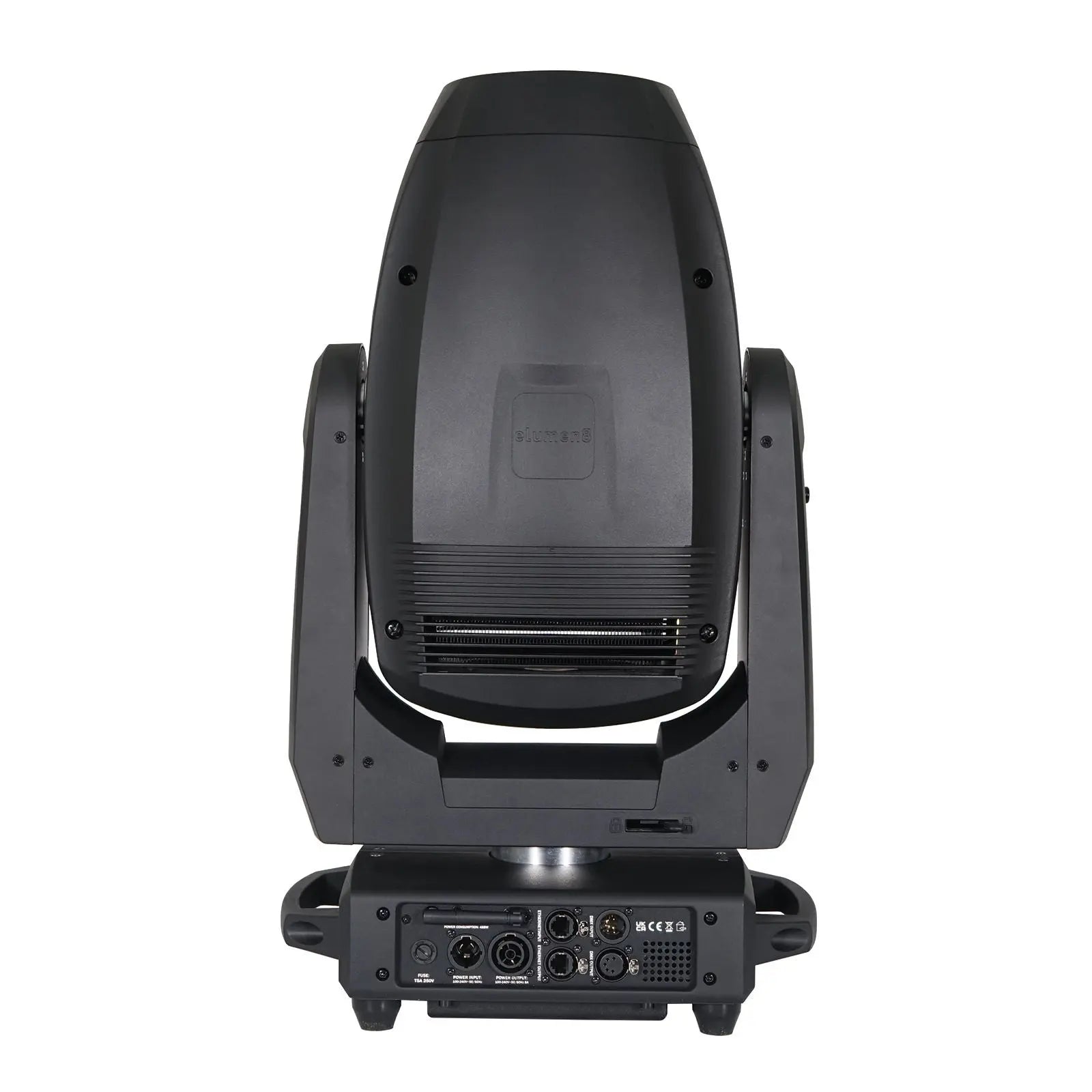

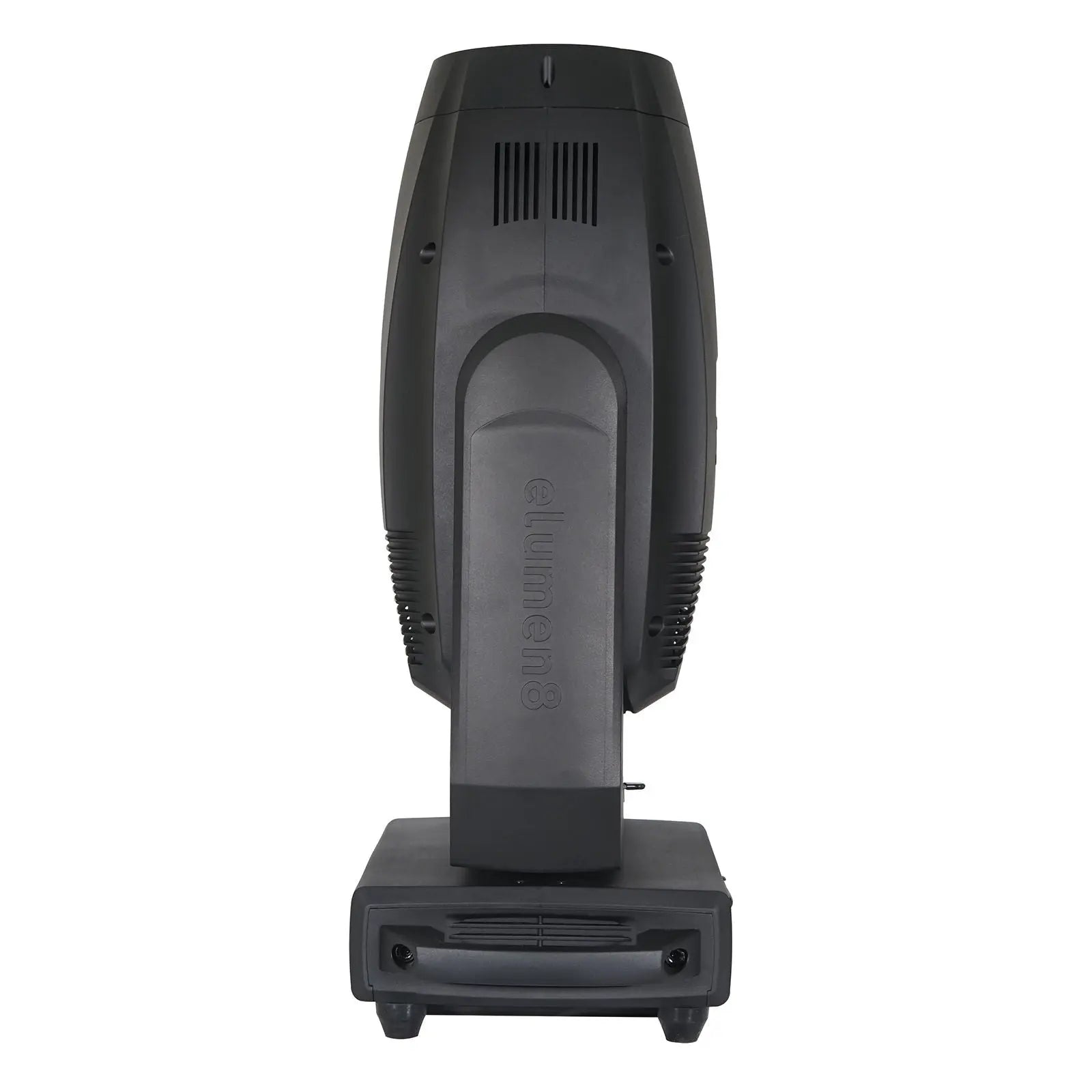

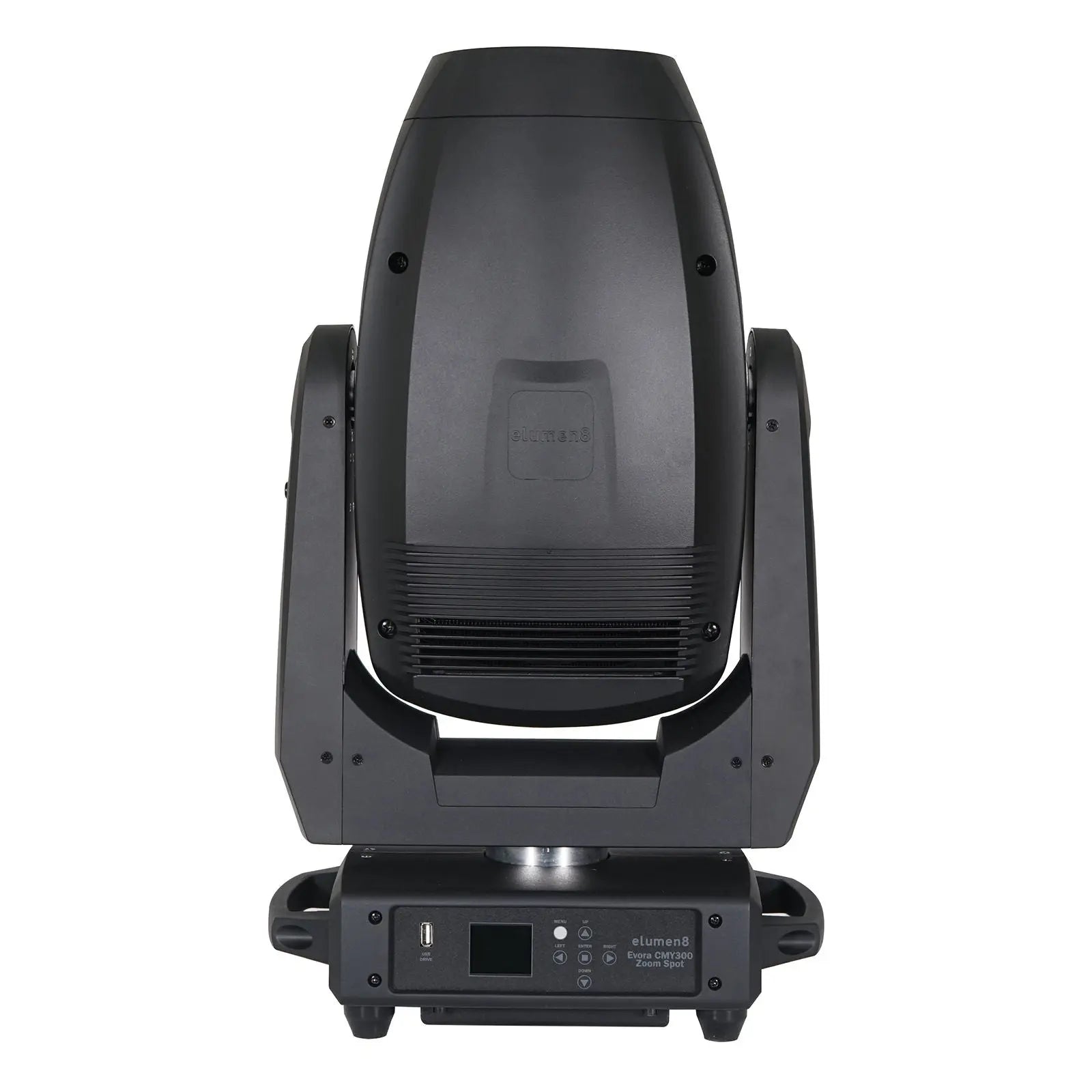

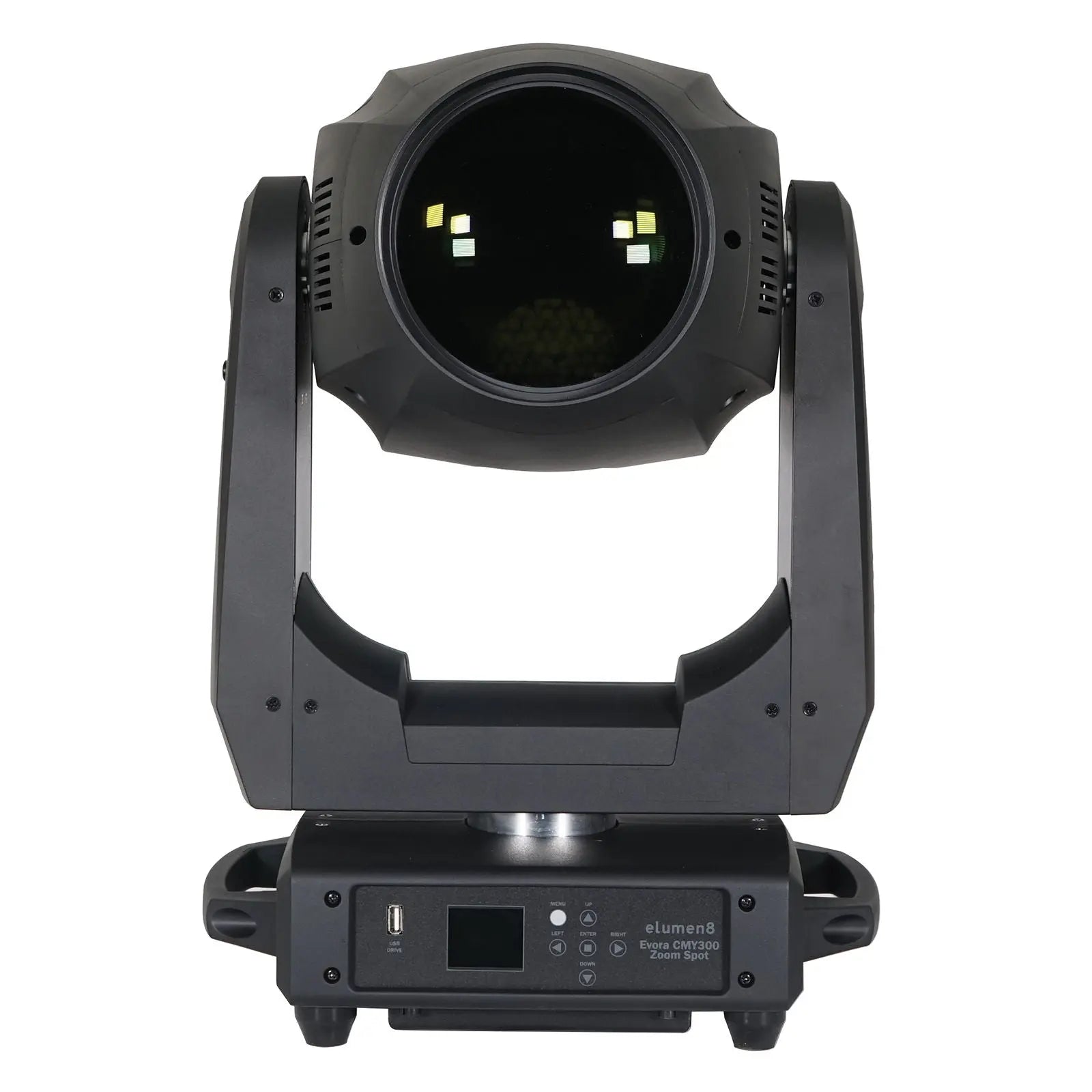

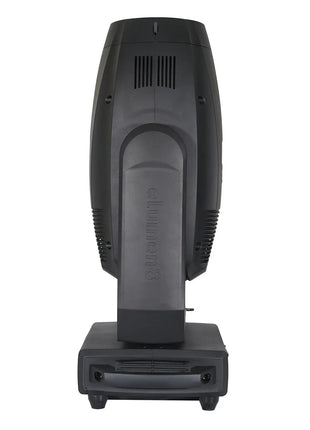

The Evora CMY300 Zoom Spot boasts an immensely bright 300W LED with crystal clear optics and with an adjustable beam angle from 4.5° to 38° it can achieve tight beams through to wide washes. This feature packed head offers both static and rotating gobo wheels linear and circular prisms variable frost filter high CRI filter along with motorised zoom focus and iris. Endless colours can be achieved with CMY colour mixing along with a colour wheel and CTO filter. Suited to rental stage and touring the LED is flicker-free with an adjustable refresh rate. Control is via DMX RDM Kling-Net Art-NET and sACN protocols and for further convenience wireless DMX is on-board via W-DMX Sweden. 2 year warranty 1 x 300W white LED (6700K) Adjustable beam angle: 4.5°- 38° Lumens – Source: 19500 Lumens – Output: 12012 4.5° - 16750 Lux @ 10m 38° - 340 Lux @ 10m CRI: >68 Refresh rate: 14 selectable presets between 900Hz-25kHz Motorised zoom focus and iris 6 facet circular rotating indexable prism plus 6 facet linear rotating indexable prism Variable frost filter Gobo wheel 1: 8 rotating indexable replaceable gobos + open Gobo wheel 2: 10 static gobos + open CMY colour mixing: Cyan 0-100% Magenta 0-100% and Yellow 0-100% Colour wheel: 7 colours + CTO filter + open High CRI filter (CRI: 84) Control protocols: DMX Kling-net Art-net and sACN DMX channels: 32 Wireless control (W-DMX Sweden transceiver) Can be used to receive wireless DMX and relay the DMX signal via the XLR output Features an integral Art-Net node for internal conversion from Art-Net to DMX for control of DMX fixtures downstream on the same universe Manual control and master/slave modes plus built-in programs Pan/tilt transit lock and auto correction 16-Bit pan/tilt positioning Pan: 540° or 630° selectable Tilt: 270° 0 – 100% dimming 5 dimming modes: Standard stage TV architectural and theatre Variable strobe powerCON TRUE1 input/output 5-Pin XLR input/output etherCON input/output RDM (Remote Device Management) 6 button menu with 1.8” LCD display Display battery backup for offline configuration Supplied with quick release omega clamps USB port (firmware updates) Temperature controlled fans Supplied with an additional 8 rotating gobos
