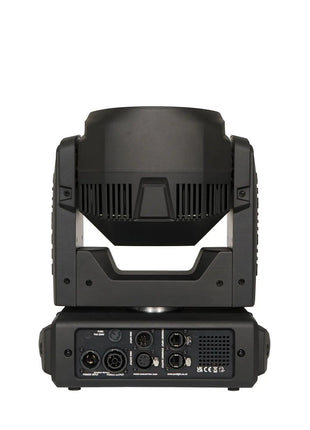

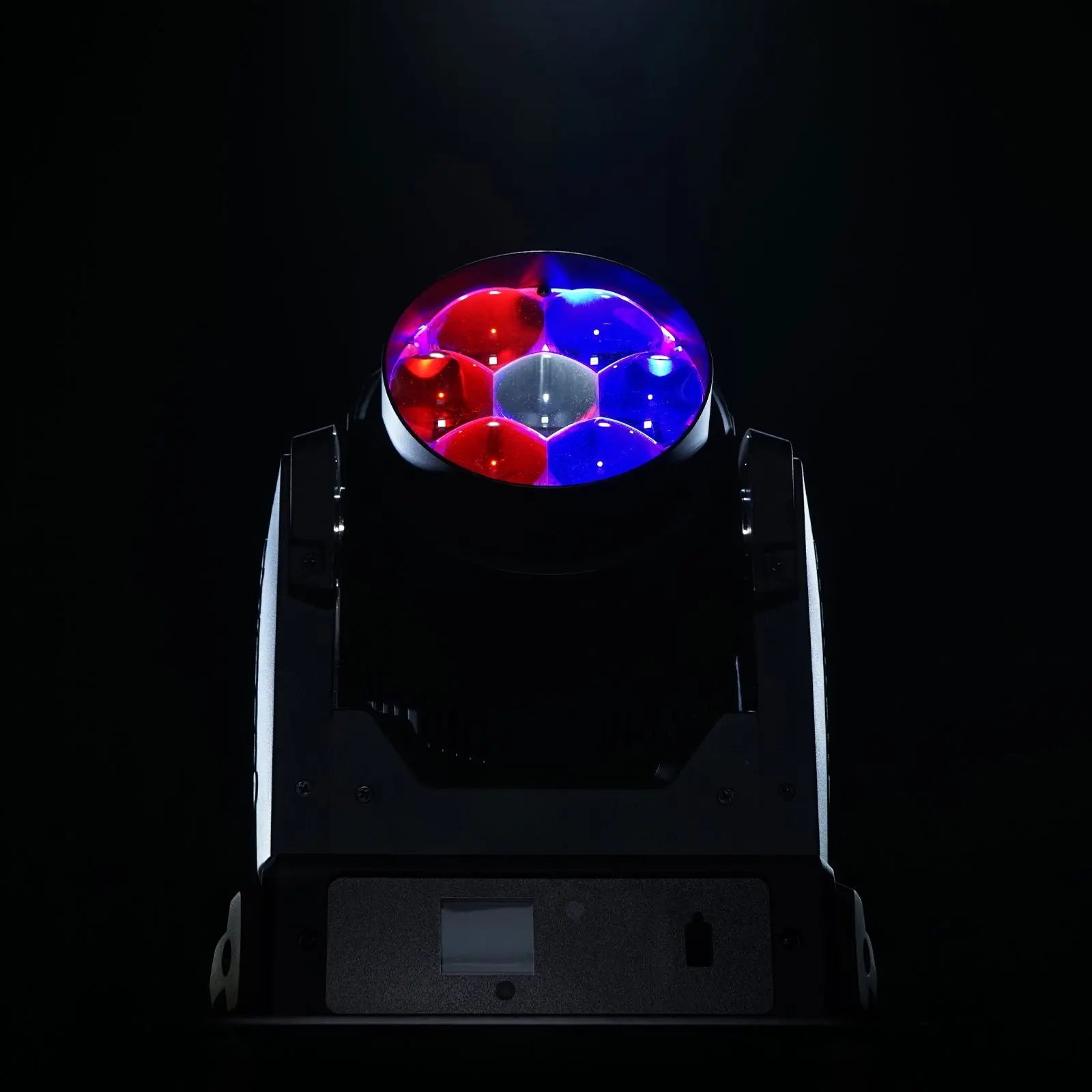

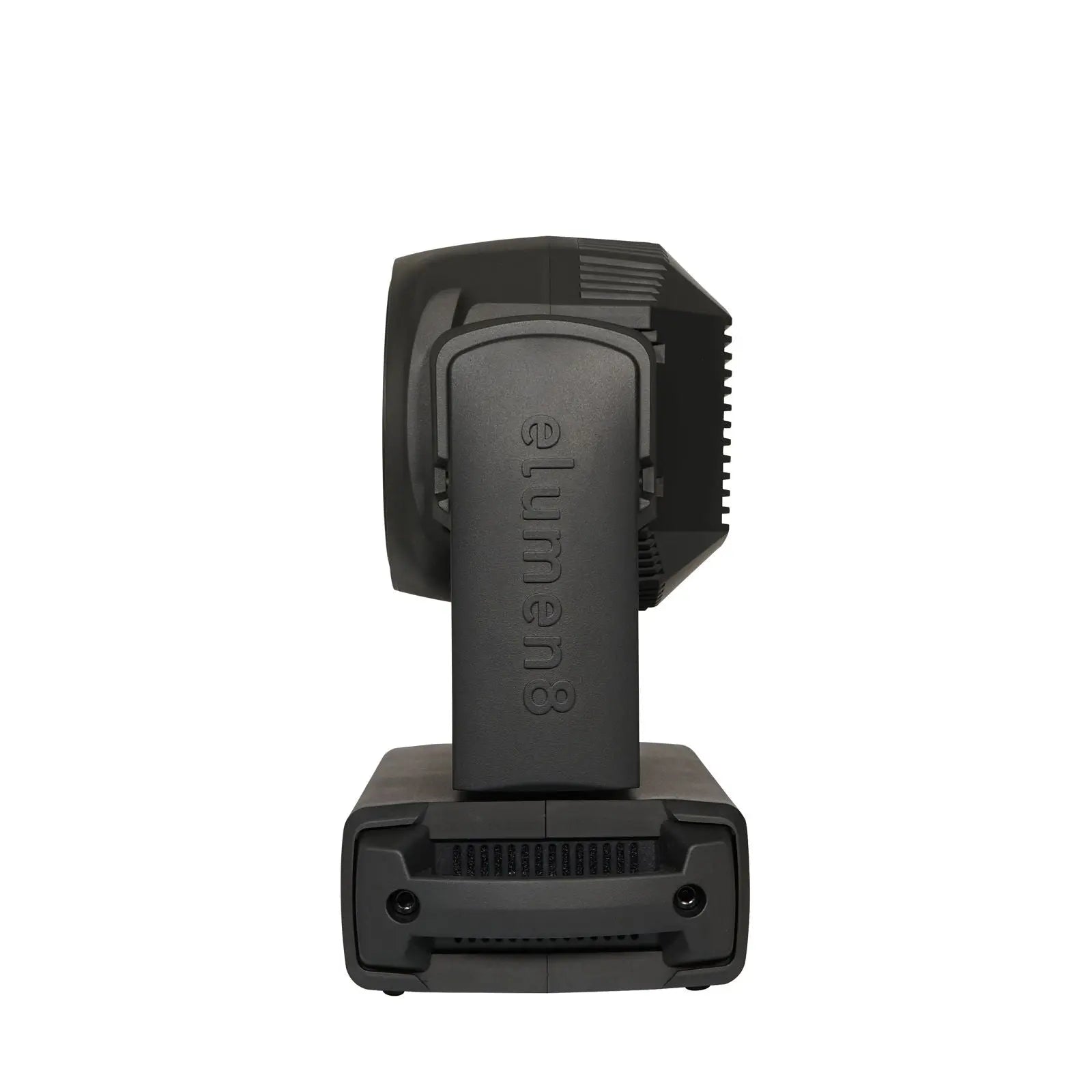

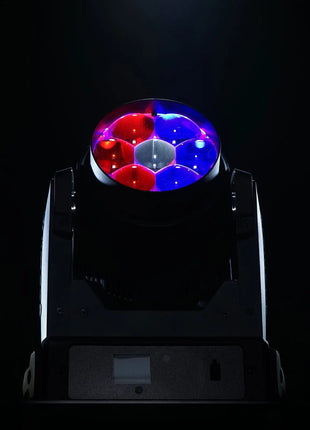

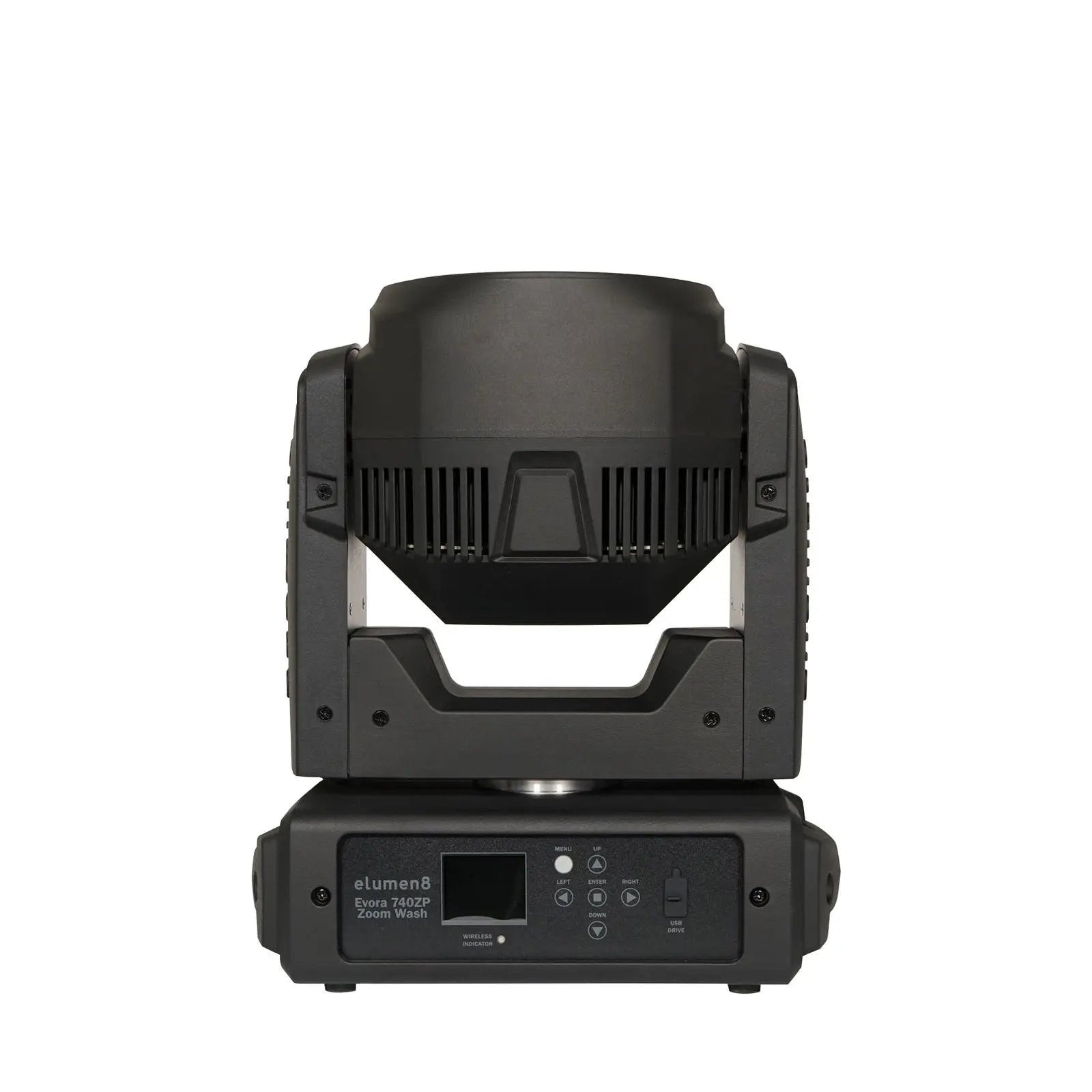

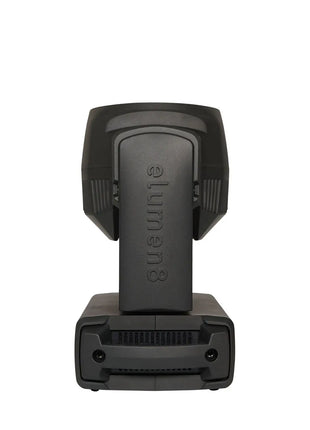

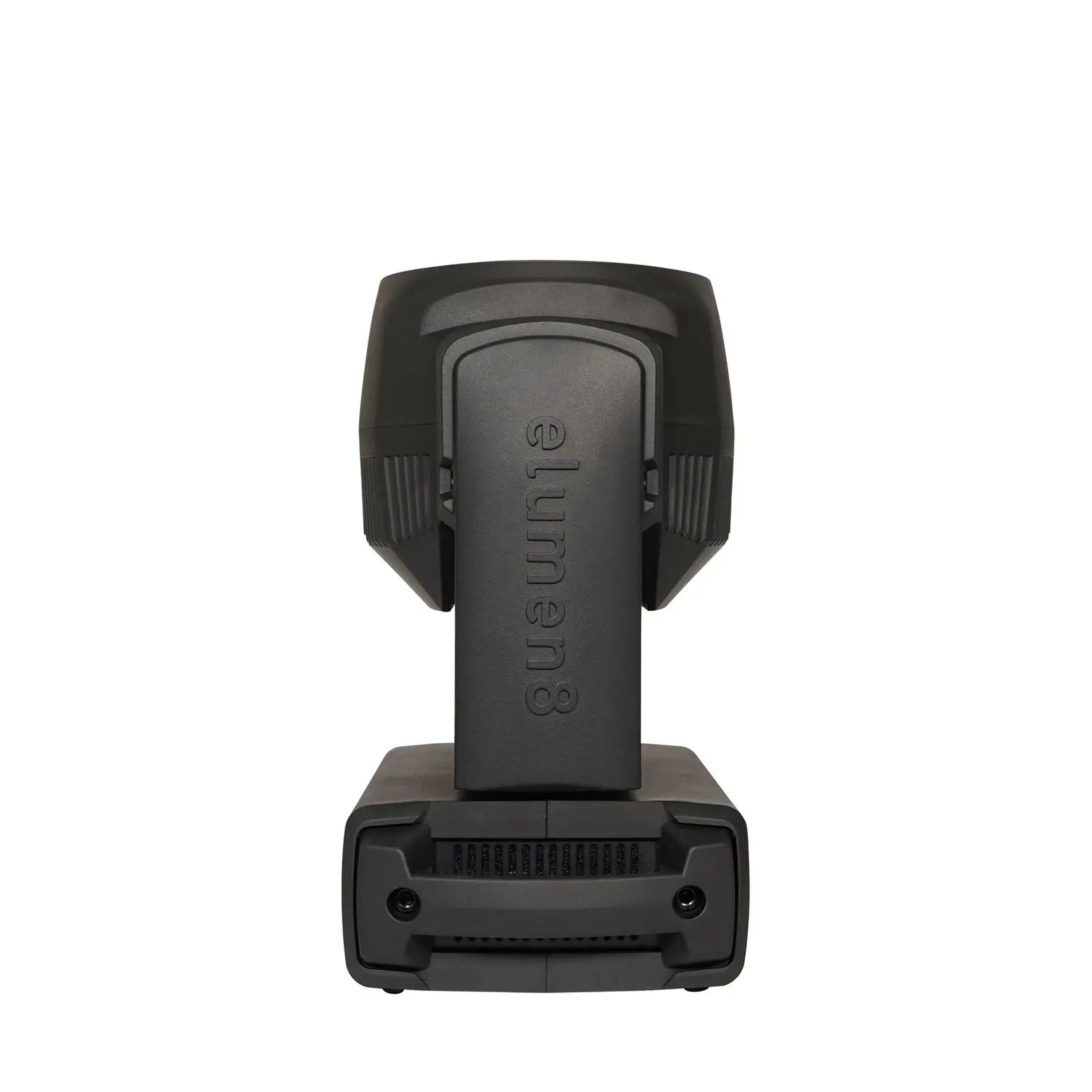

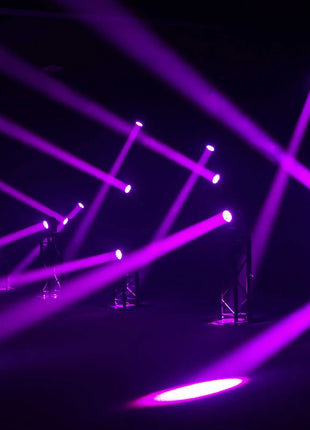

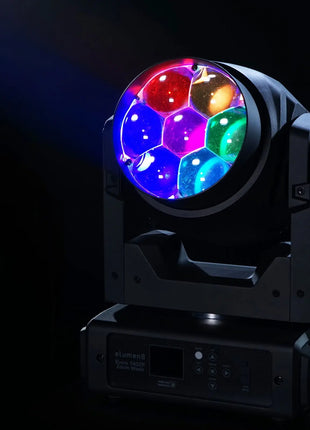

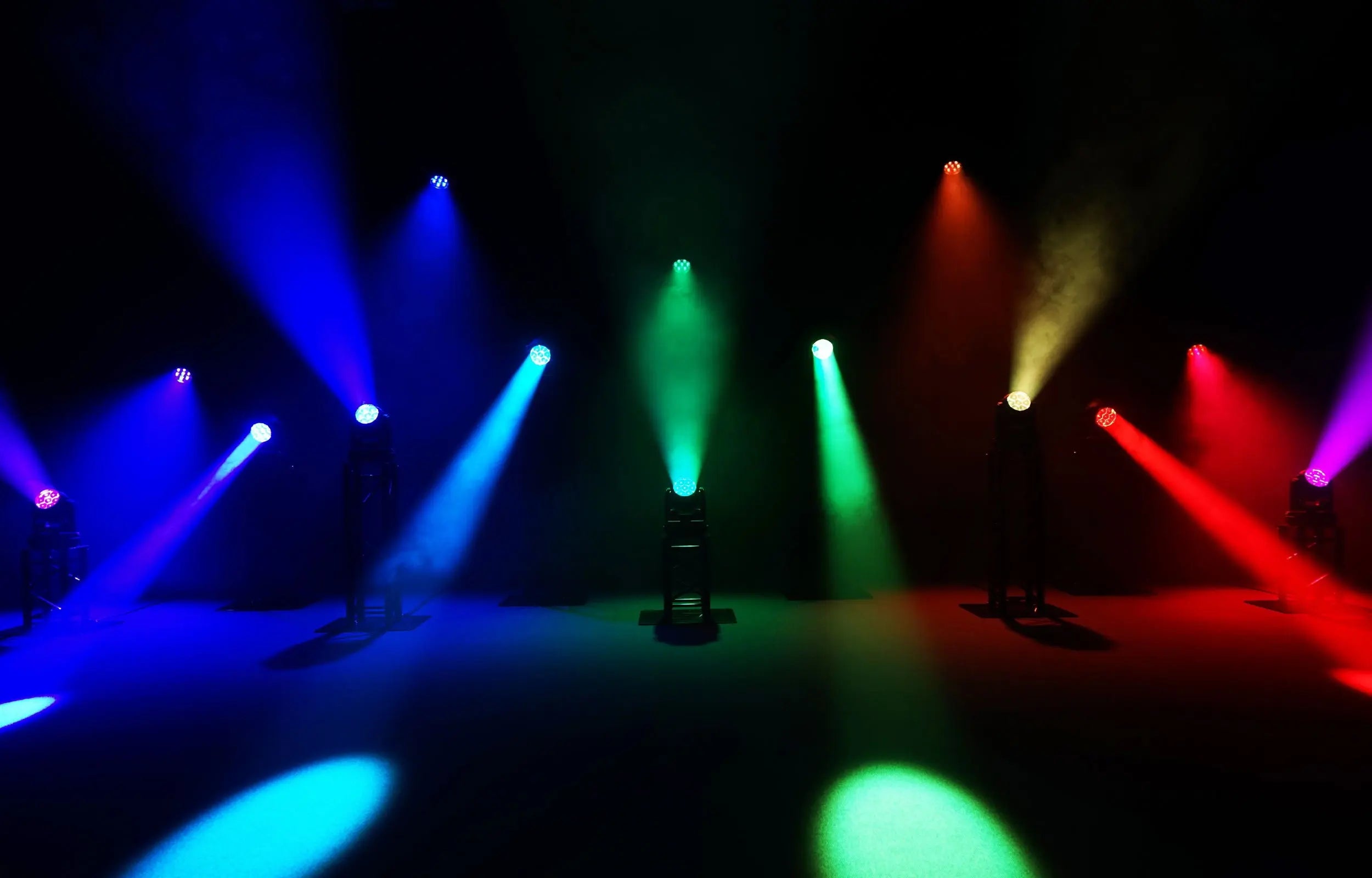

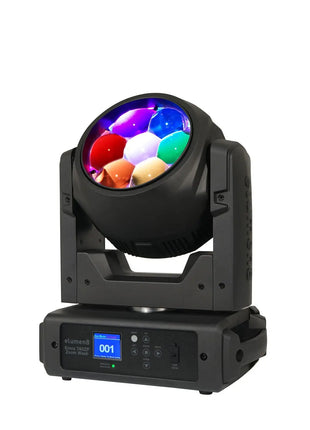

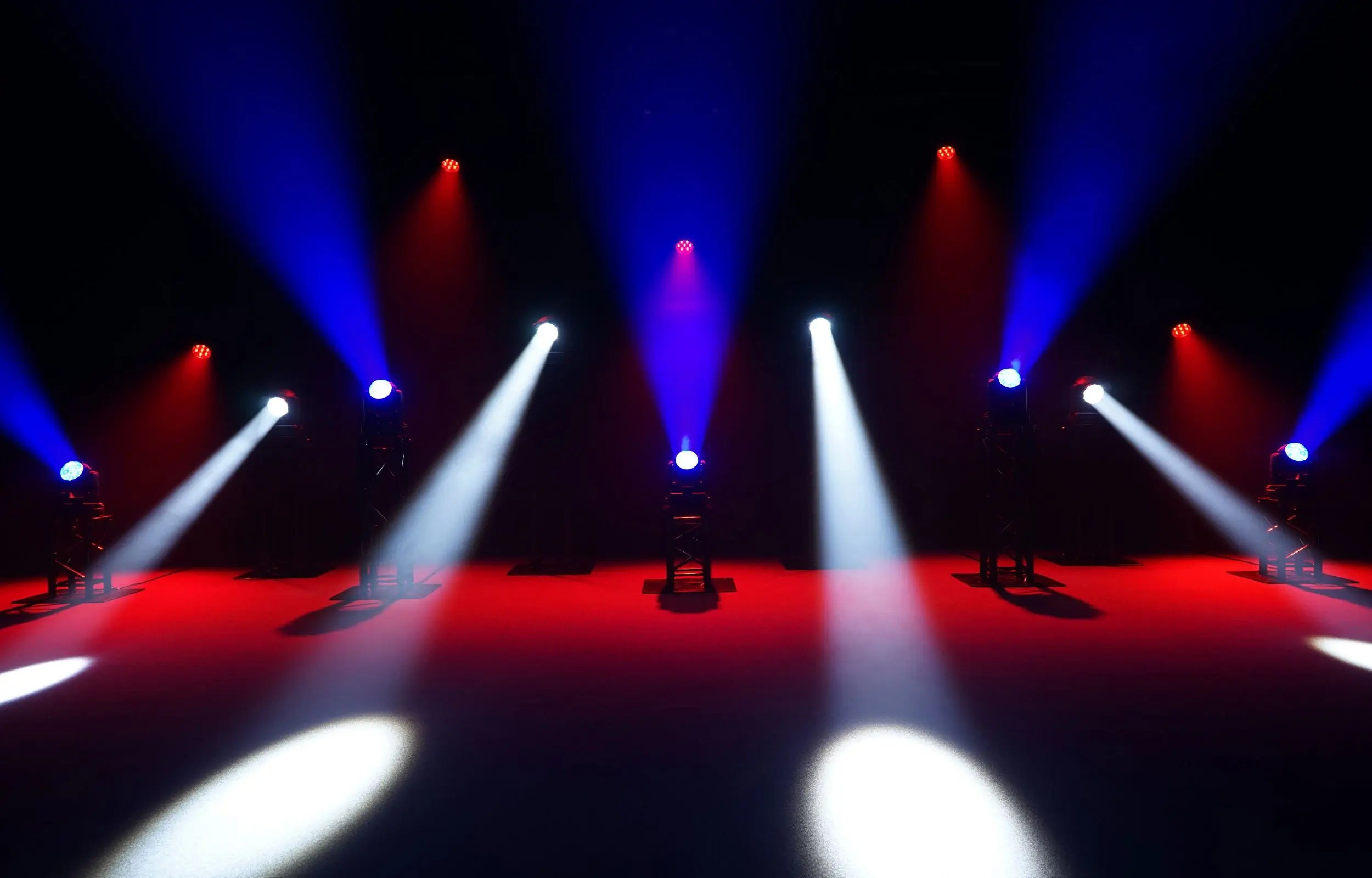

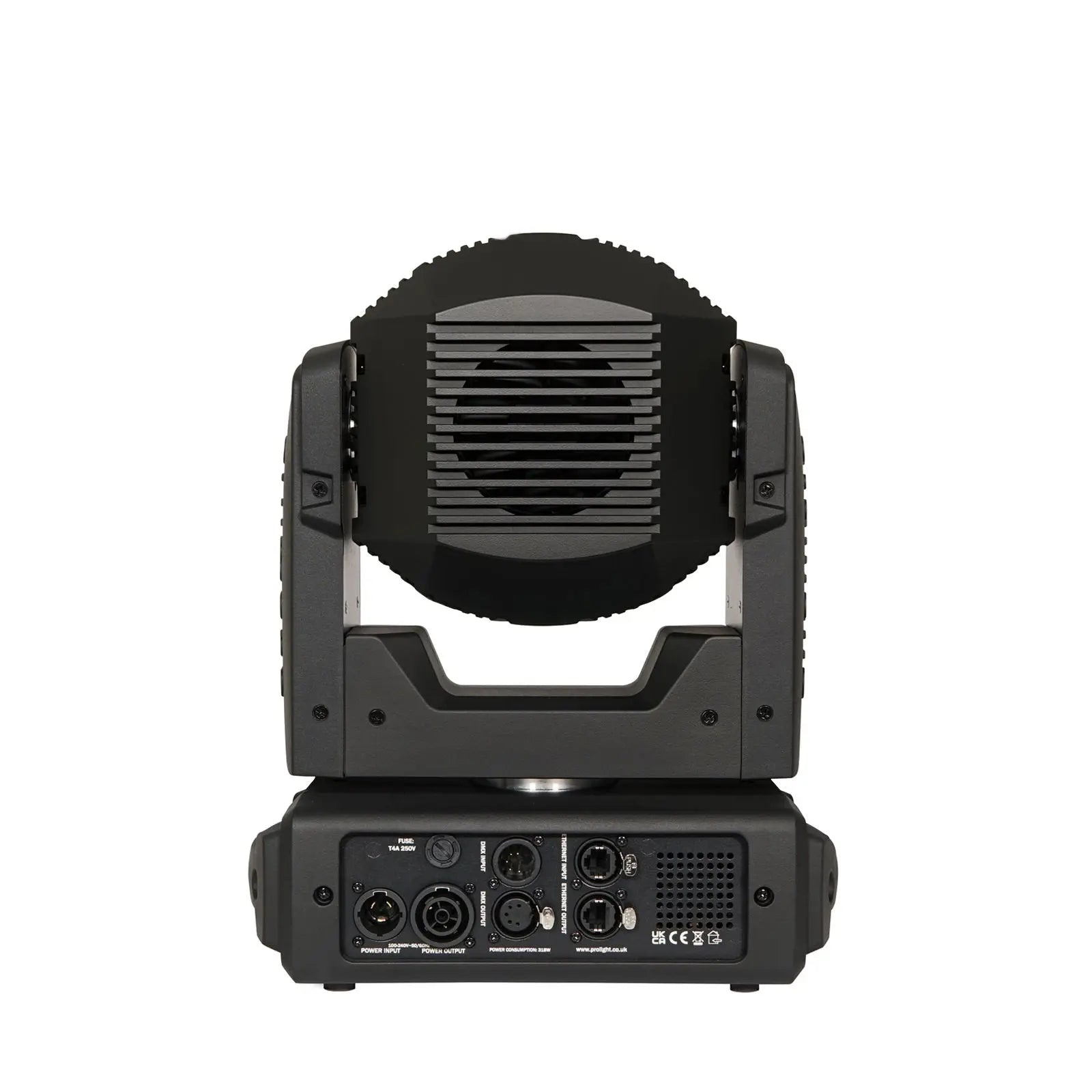

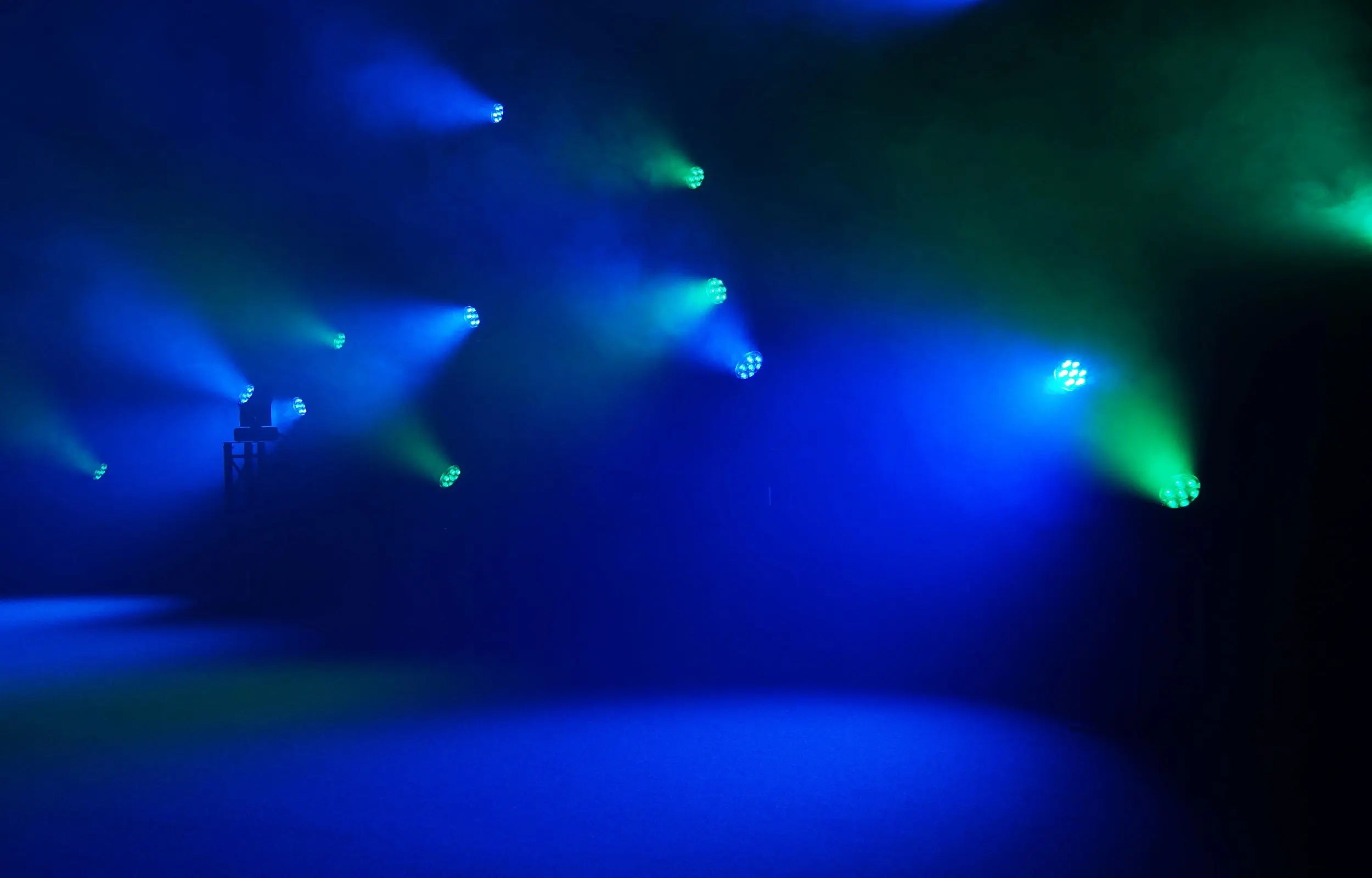

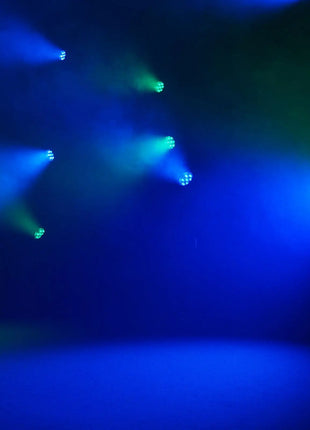

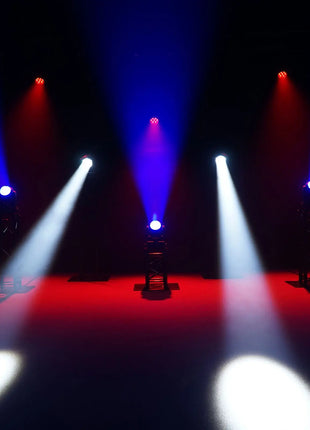

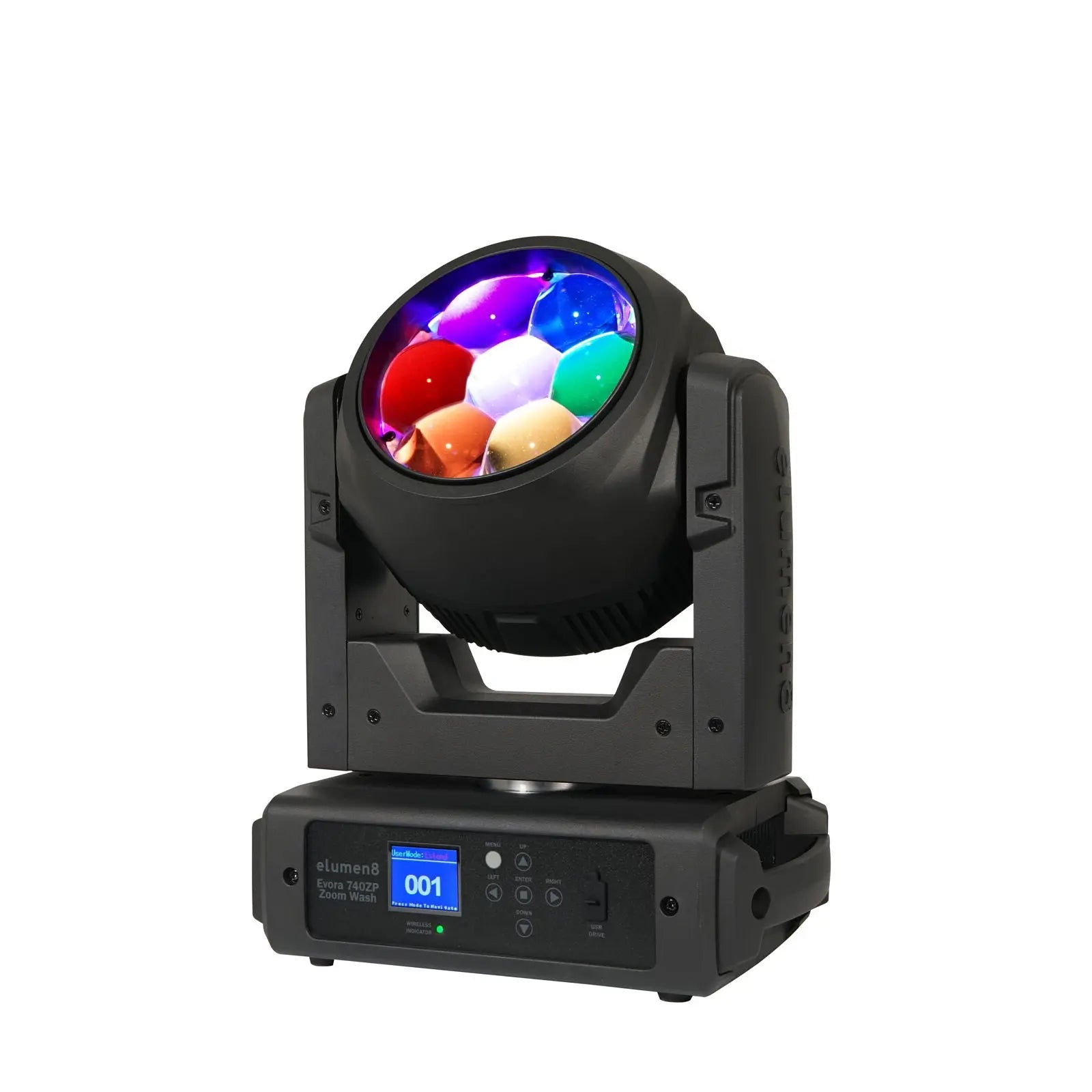

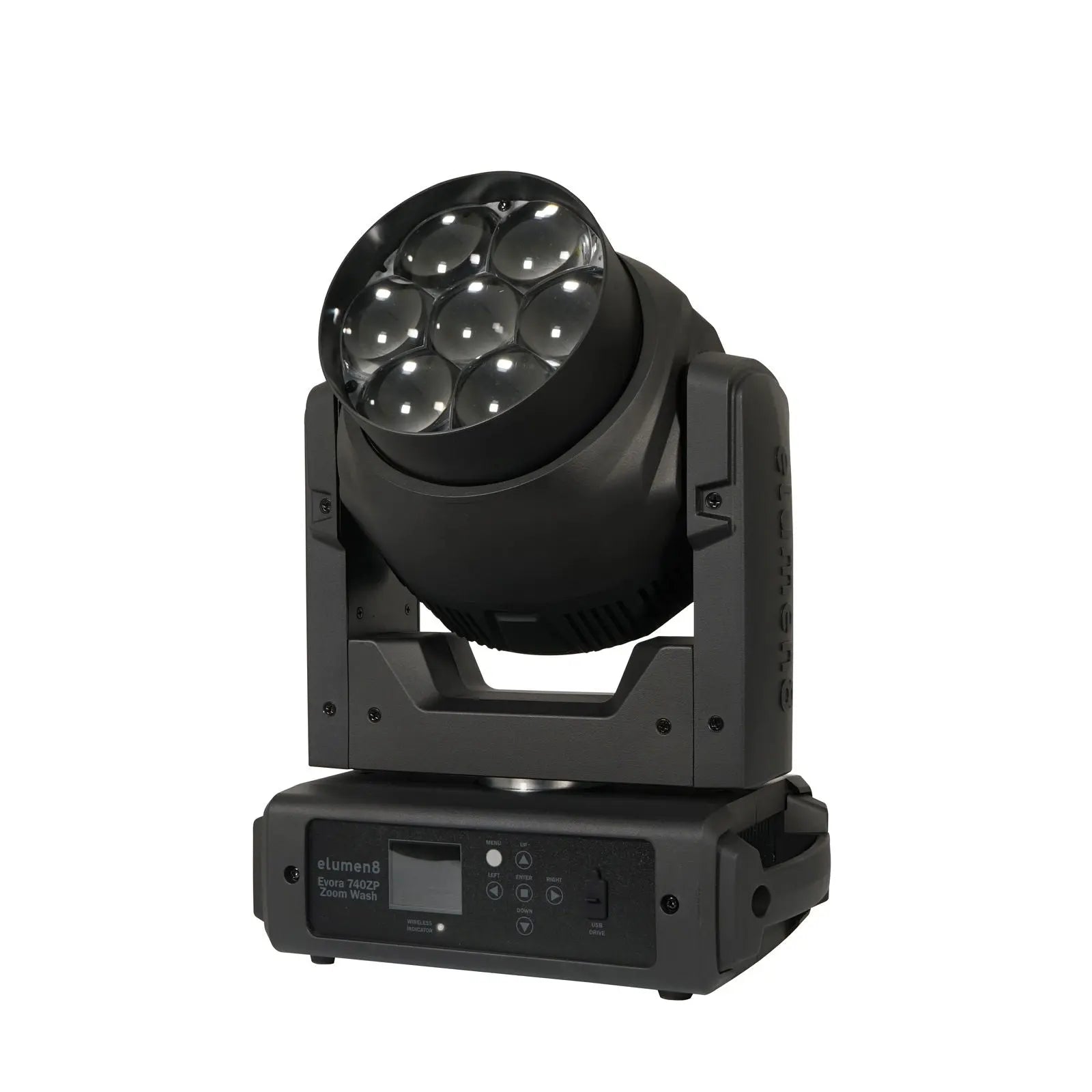

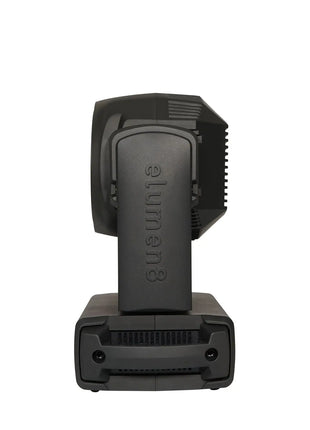

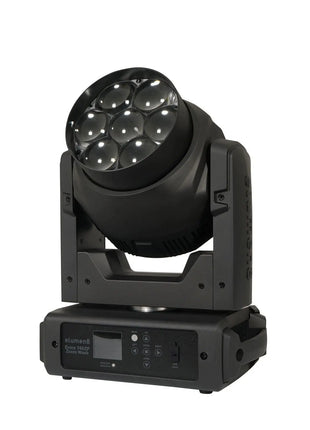

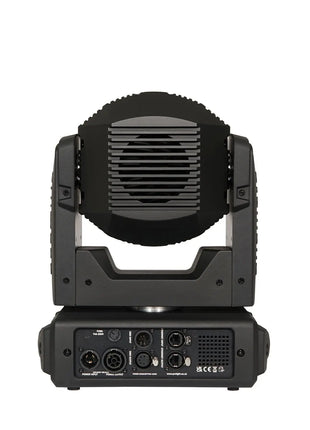

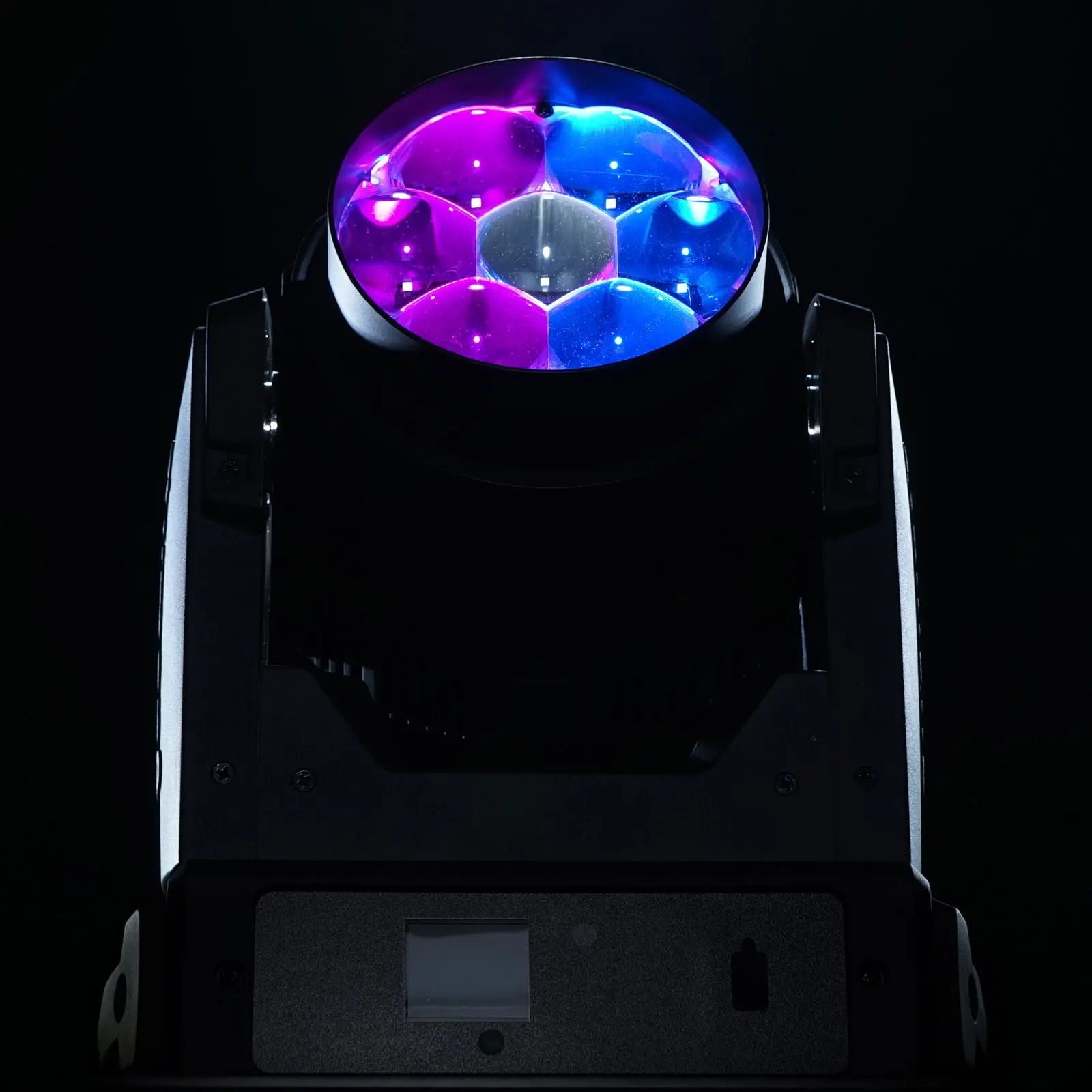

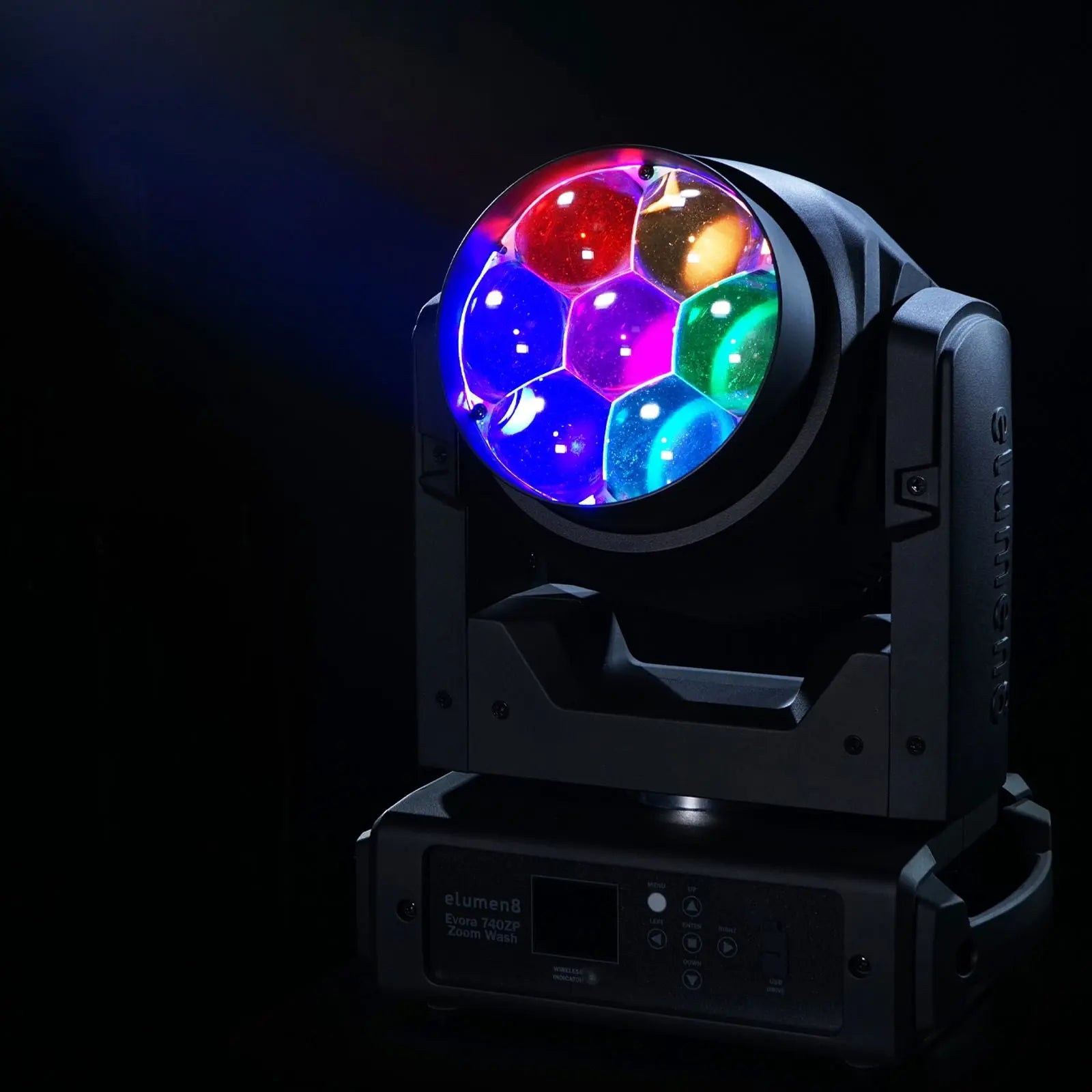

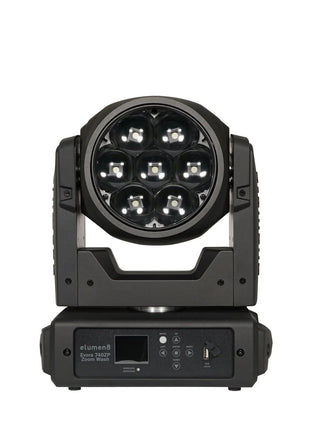

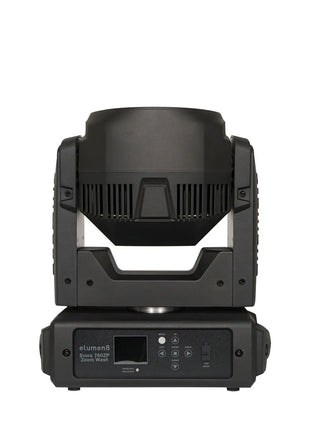

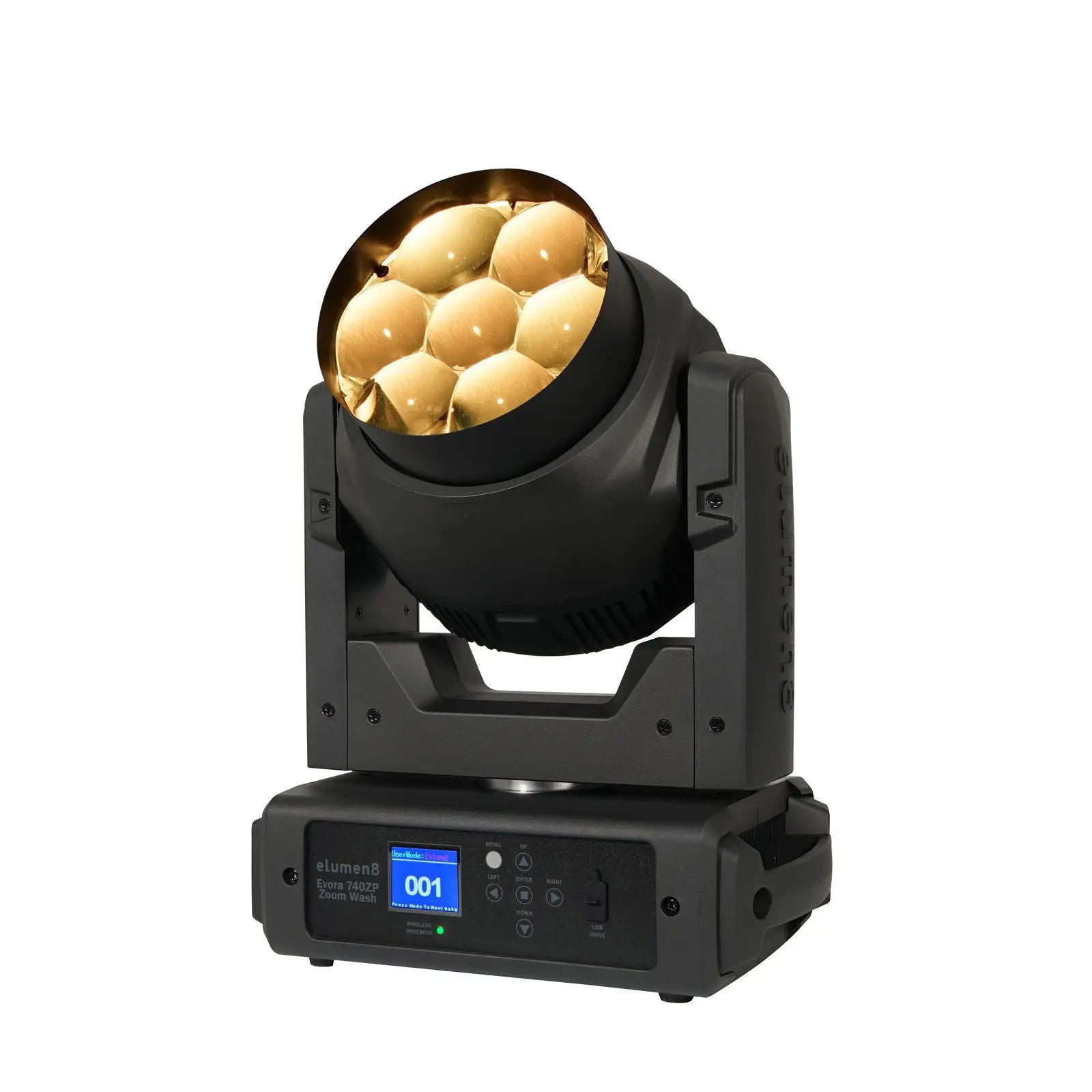

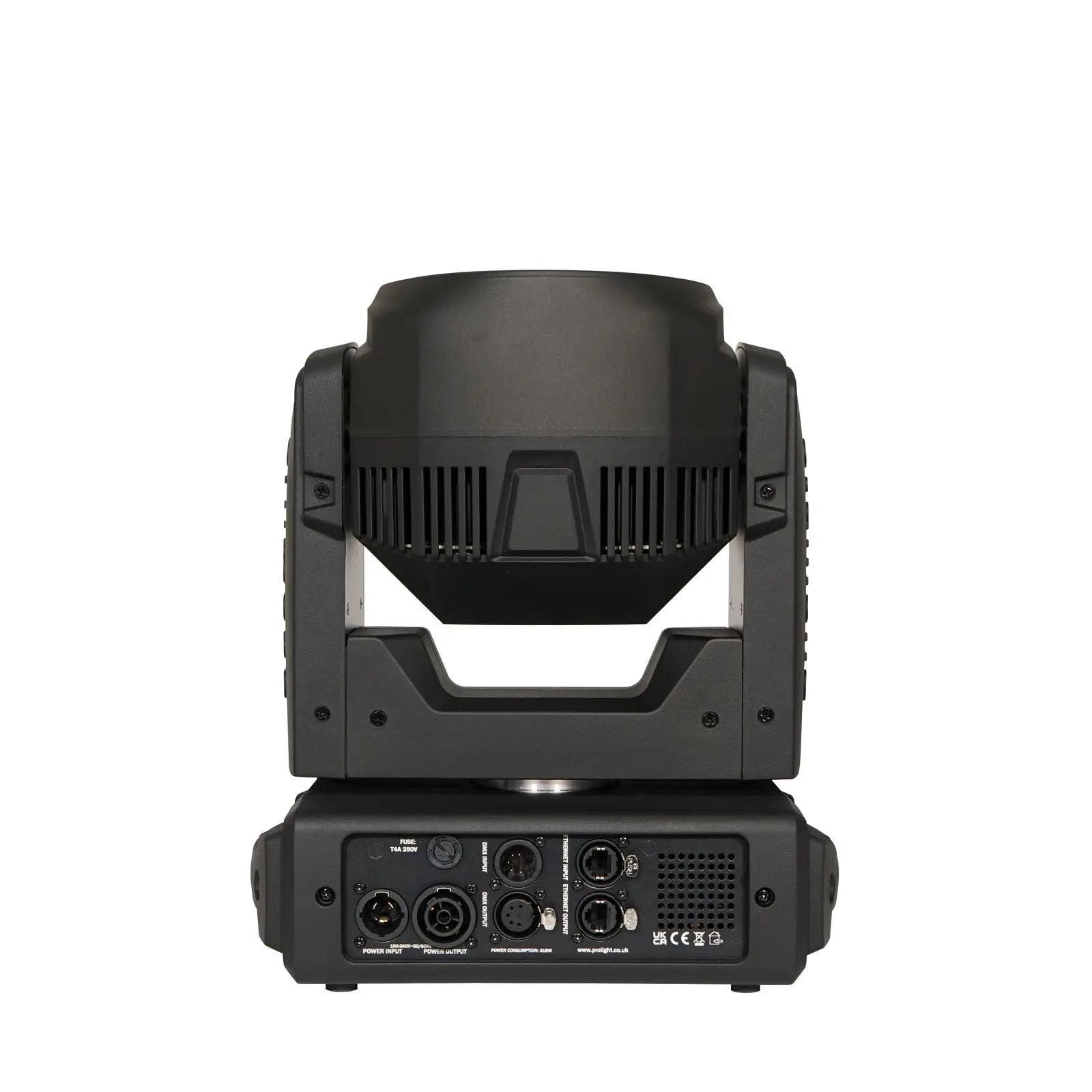

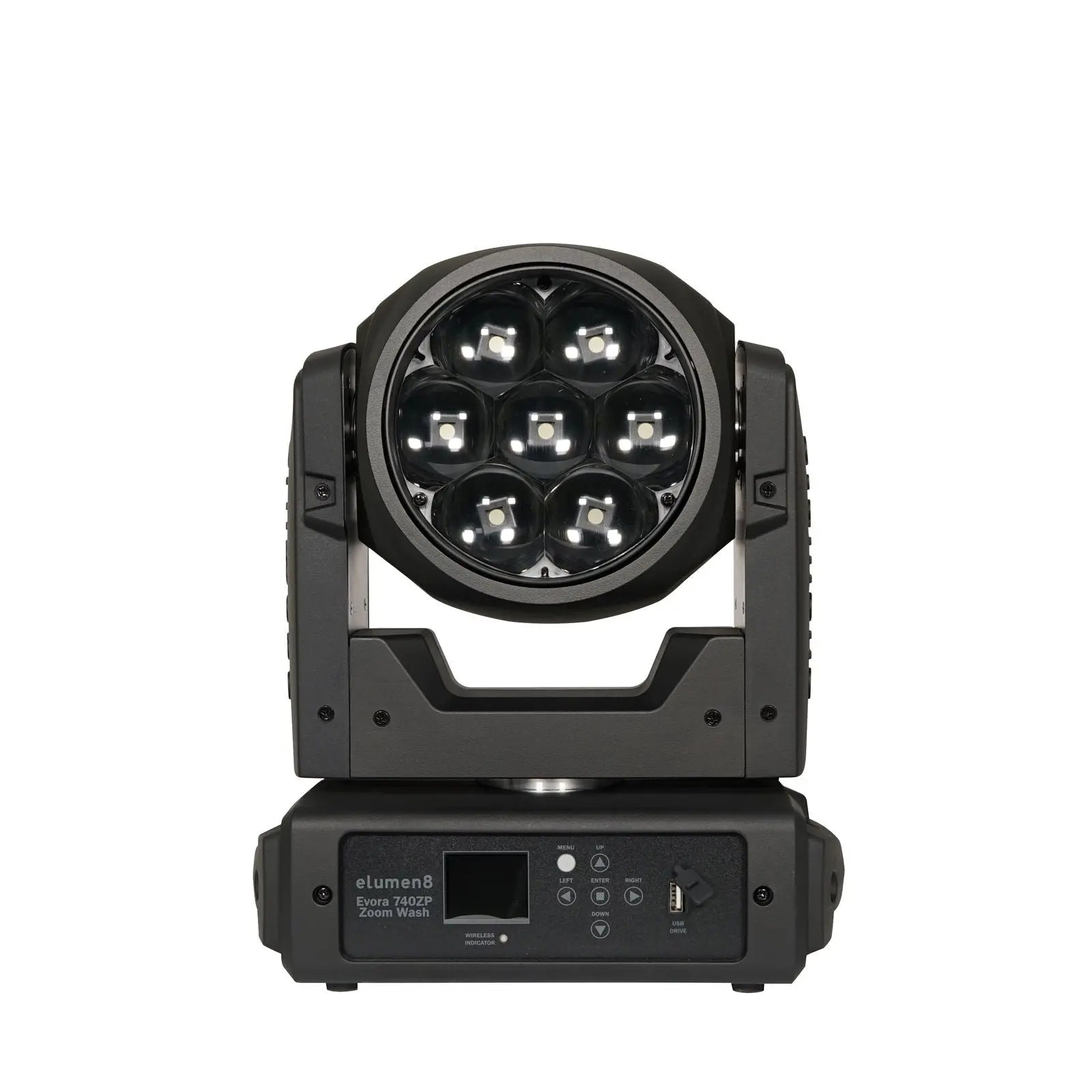

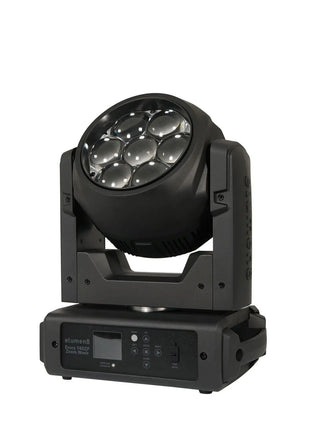

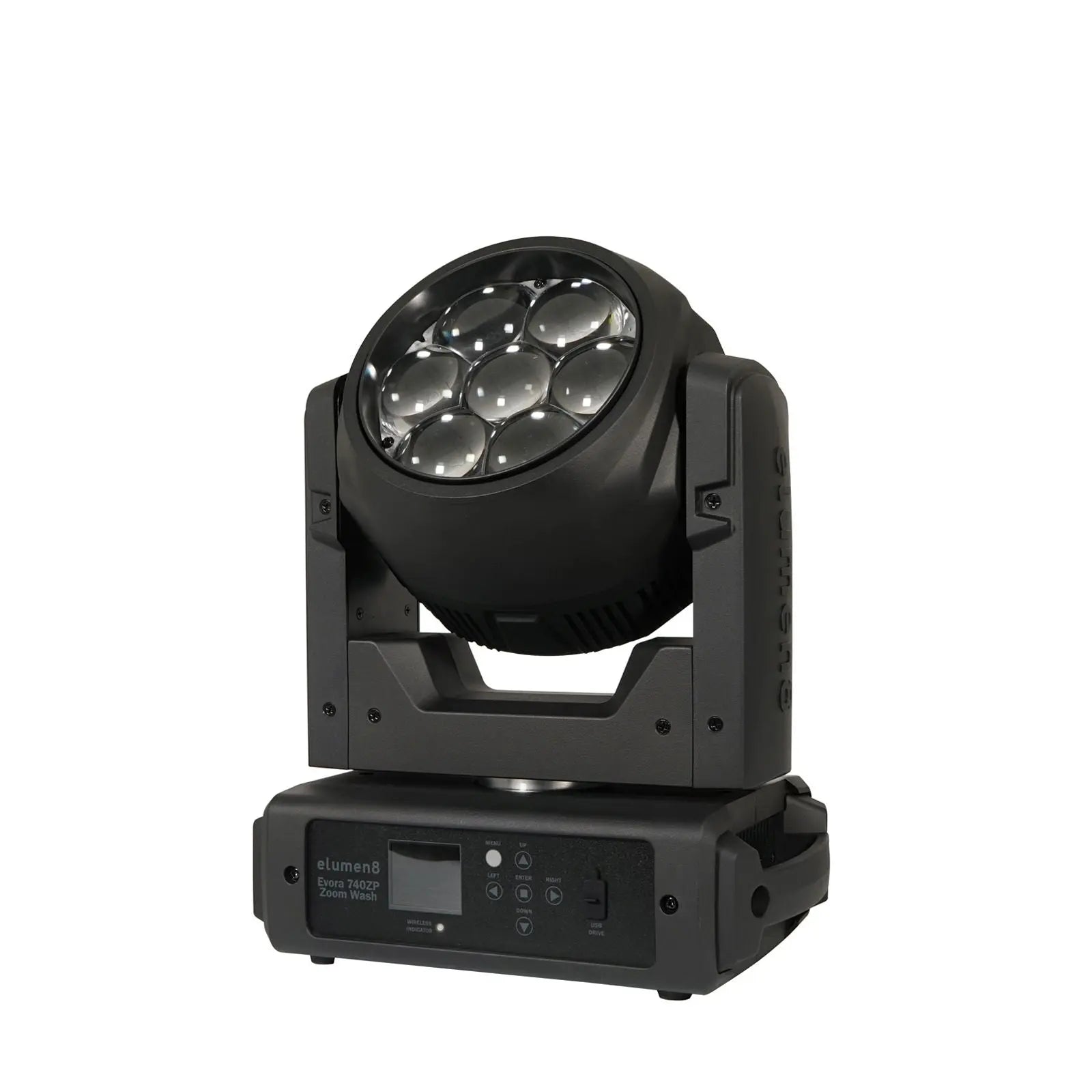

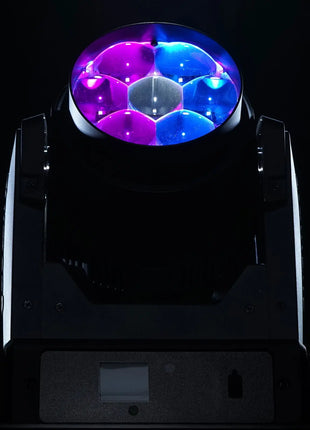

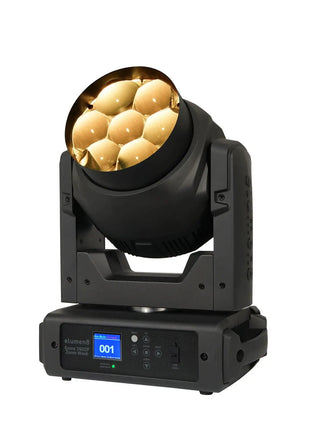

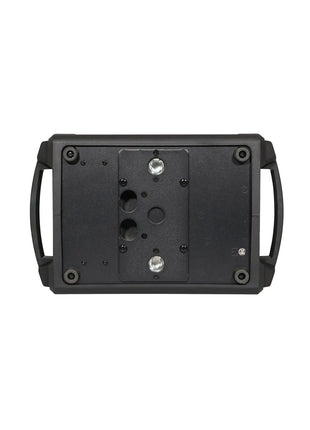

The Evora 740ZP LED Zoom Wash produces an incredible high output from a very compact and durable chassis making it an incredibly versatile yet affordable solution for both rental and installation applications. The first-class optical system presents a high intensity adjustable zoom; the narrow 4 degree beam angle creates sharp mid-air effects whilst the wider angles produce uniform colour mixing bathing concerts and events in rich colours. Full pixel control over the 7 x 40W Osram Ostar™ quad-colour LEDs gives lighting designers a further level of creativity whilst colour calibration ensures colours match from batch to batch. 2 year warranty 7 x 40W Osram Ostar™ quad-colour LEDs (RGBW) Adjustable beam angle: 4°- 54° Lumens – Source: 7322 Lumens – Output: 3950 4° - 81040 Lux @ 2m (full on) 54° - 2504 Lux @ 2m (full on) CRI: 83 Refresh rate: 14 selectable presets between 900Hz-25kHz Motorised zoom Full pixel mapping capabilities Control protocols: DMX Kling-net Art-net and sACN DMX channels: 9/14/21/25/50 or 56 selectable Wireless control (W-DMX Sweden transceiver) Features integral Art-Net to DMX for control of DMX fixtures downstream on the same universe Auto manual control and master/slave modes Built-in colour macros and patterns Colour temperature presets Pan/tilt auto correction 16-Bit pan/tilt positioning Pan: 540° or 630° selectable Tilt: 265° 0 - 100% dimming 5 dimming modes: Standard stage TV architectural and theatre Variable strobe powerCON TRUE1 5-Pin XLR and etherCON inputs/outputs RDM (Remote Device Management) 6 button menu with 1.8” LCD display Display battery backup for offline configuration Quick release omega clamps included USB port (firmware updates) Temperature controlled fan
