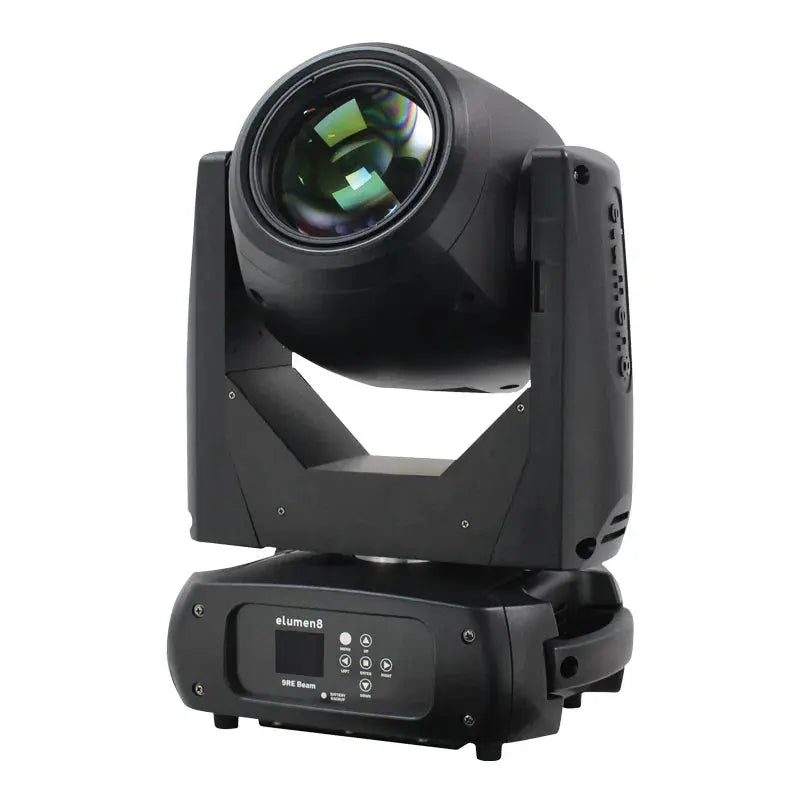

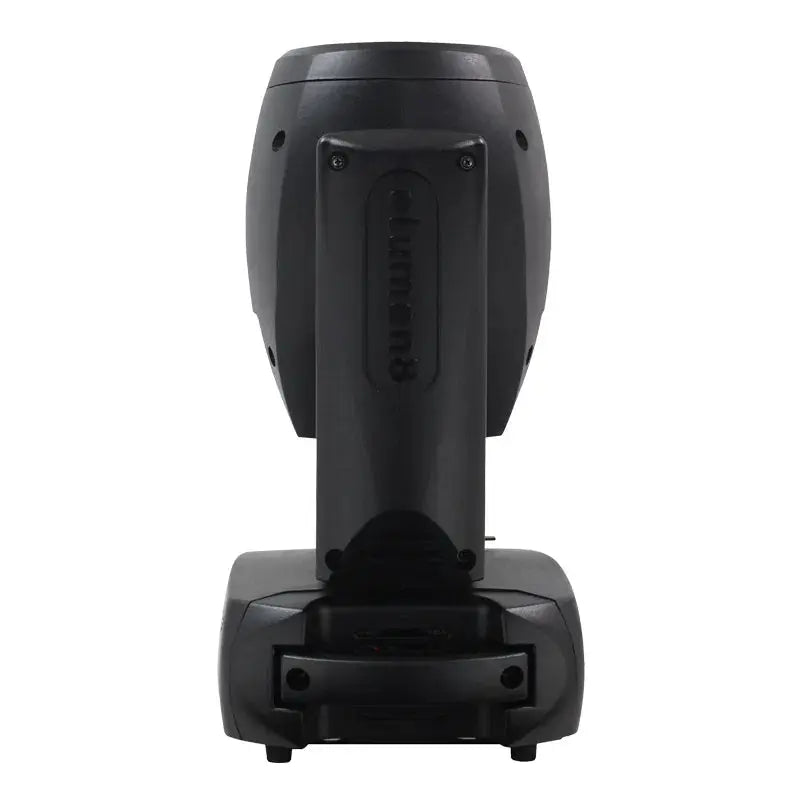

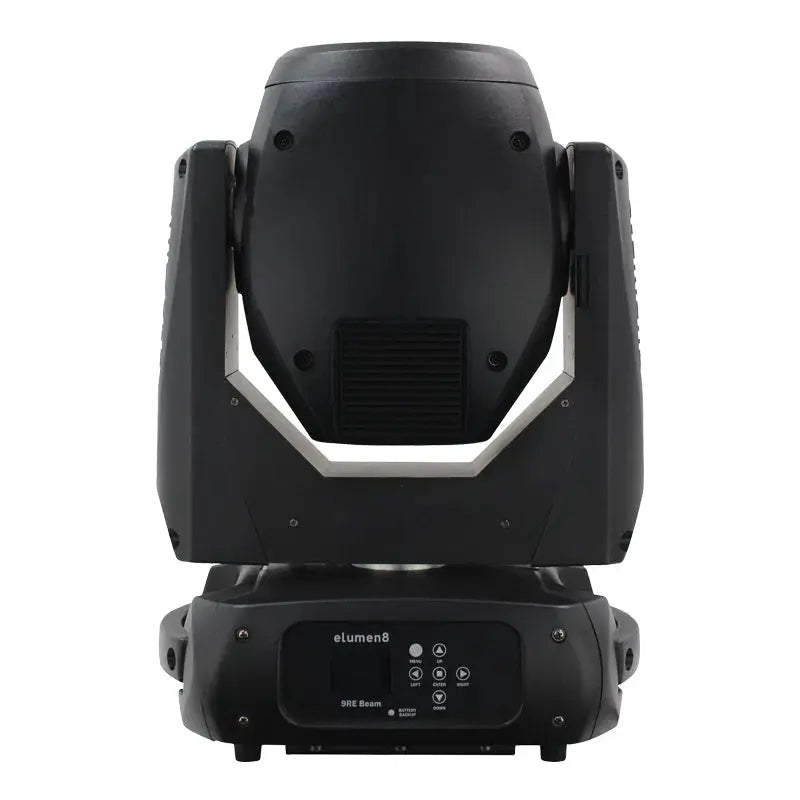

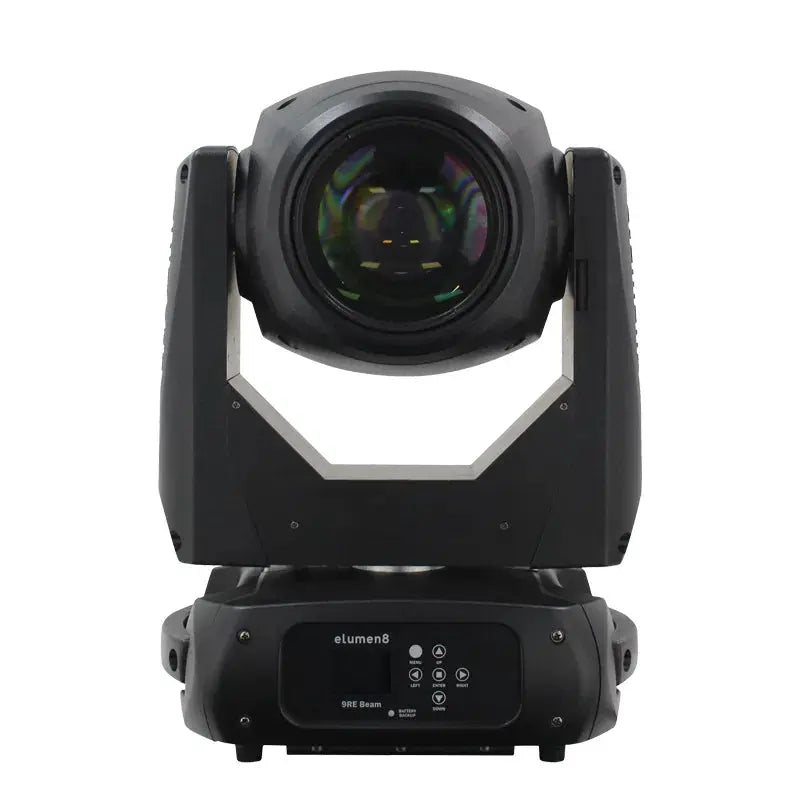

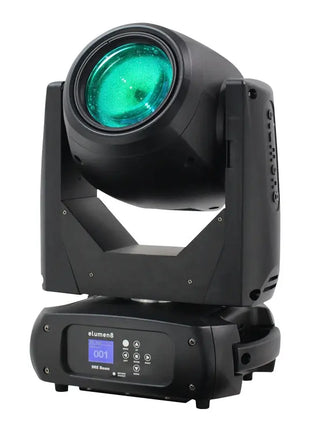

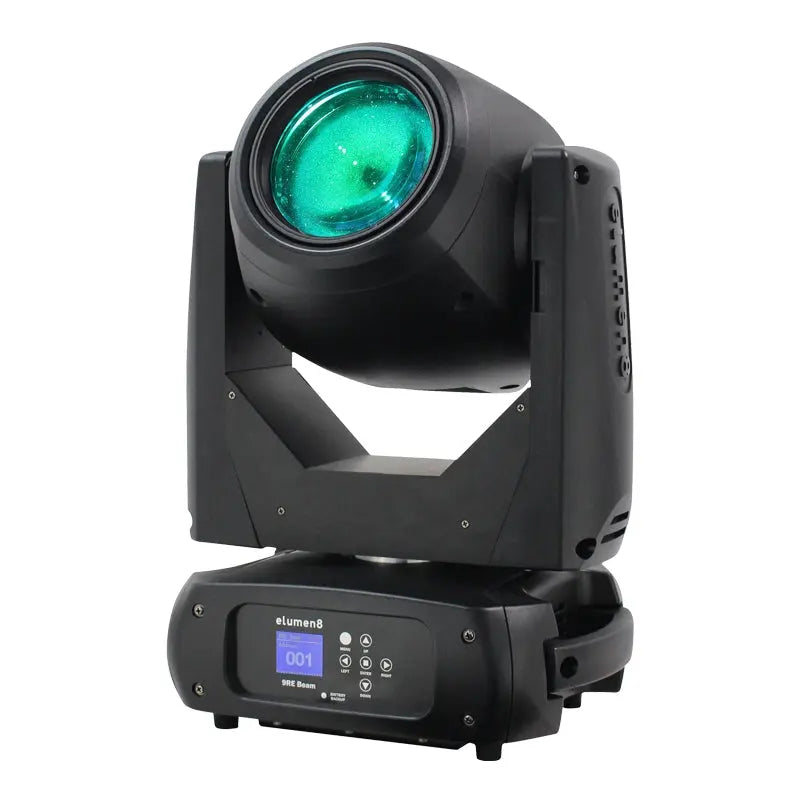

elumen8 9RE Beam Moving Head
The elumen8 9RE Beam is a powerful, professional moving head fixture meticulously designed to produce sharp, well-defined beams with a tight 2.5° angle. Powered by an intense MSD 260R9 discharge lamp, this fixture offers exceptionally high output and a comprehensive suite of advanced features, including dual rotating prisms, motorized focus, and dedicated gobo and color wheels. The 9RE Beam is an ideal choice for large-scale live events, concert tours, club installations, and television productions where precise beam work is essential.
Key Features
-
High-Output Discharge Lamp: Features a YODN MSD 260R9 (8000K) discharge lamp, delivering an astonishing output of 201,000 Lux @ 10m and providing the raw power needed for sharp, long-throw beams.
-
Dual Rotating Prisms: Equipped with two independent rotating and indexable prisms: a 16-facet circular prism and a 4-facet linear prism. These can be combined for complex aerial and projection effects.
-
Precision and Control: Offers 16-Bit Pan and Tilt movement for smooth, micro-accurate positioning, coupled with Pan/Tilt Auto Correction to ensure absolute positioning accuracy throughout the show.
-

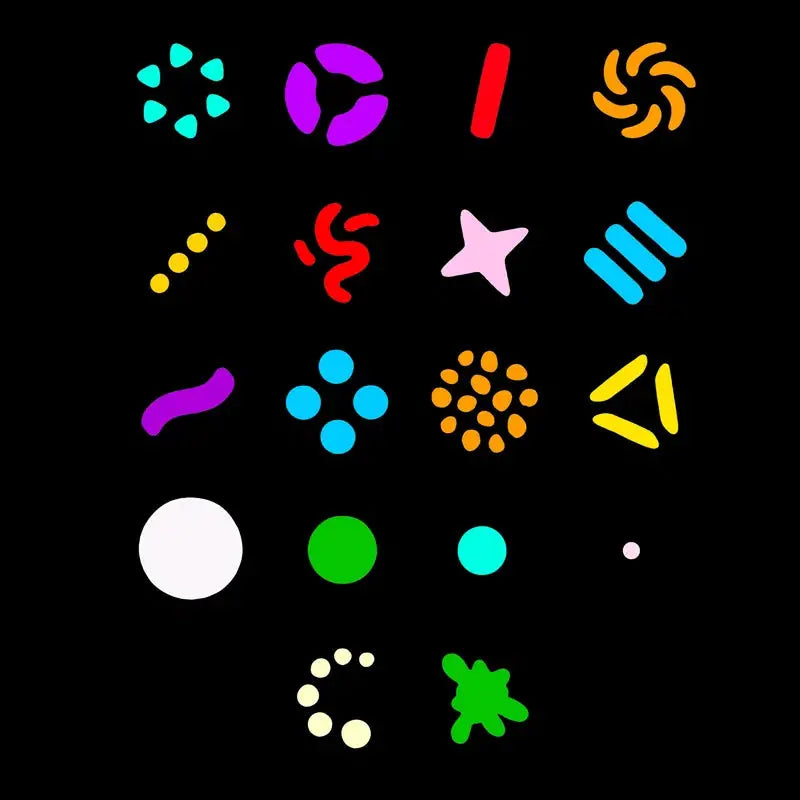

Comprehensive Effects: Includes a fixed Gobo Wheel with 17 distinct gobos + open for pattern projection, and a Colour Wheel featuring 12 colours + 5600K + 3200K + open for diverse colour and colour temperature options.
-
Motorized Focus and Frost: Features motorized focus for crisp, clear projections at any distance. A dedicated Frost Filter (21°) is included to soften the beam and transform the fixture into a wash light when needed.
-
Flexible Connectivity and Control: Offers 16 or 18 selectable DMX channels for programming flexibility. Features both 3-Pin and 5-Pin XLR Input/Output for maximum DMX compatibility.
-

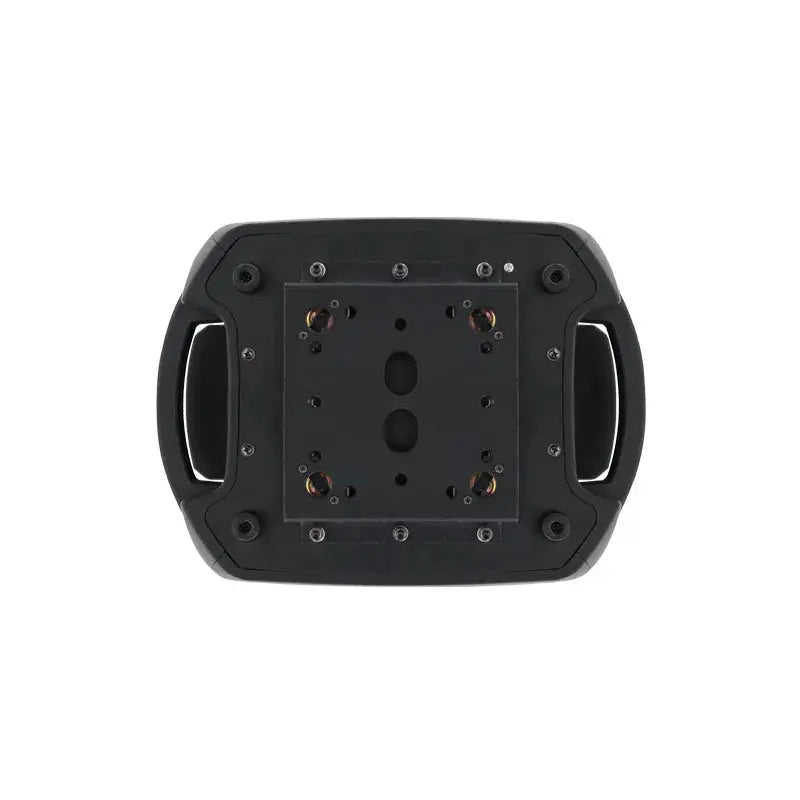

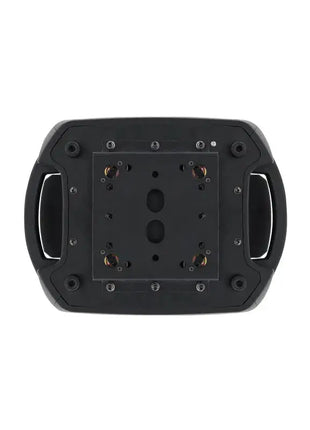

Tour-Ready Build: Includes PowerCON Input/Output for secure power connections, a Display Battery Backup for offline configuration, and Quick Release Omega Clamps for easy, secure rigging.
Technical Specifications
-
Lamp: YODN MSD 260R9 (8000K) Discharge Lamp
-
Beam Angle: 2.5°
-
Lux Output: 201,000 Lux @ 10m
-
Pan/Tilt Movement: 630° Pan / 270° Tilt
-
Movement Resolution: 16-bit
-
Focus: Motorized
-
Prisms: 16-facet circular rotating, 4-facet linear rotating
-
Frost Filter: 21°
-
Gobo Wheel: 17 fixed gobos + open
-
Colour Wheel: 12 colours + 5600K + 3200K + open
-
DMX Channels: 16 or 18 selectable
-
Dimming: 0-100%
-
Cooling: Fan cooled
-

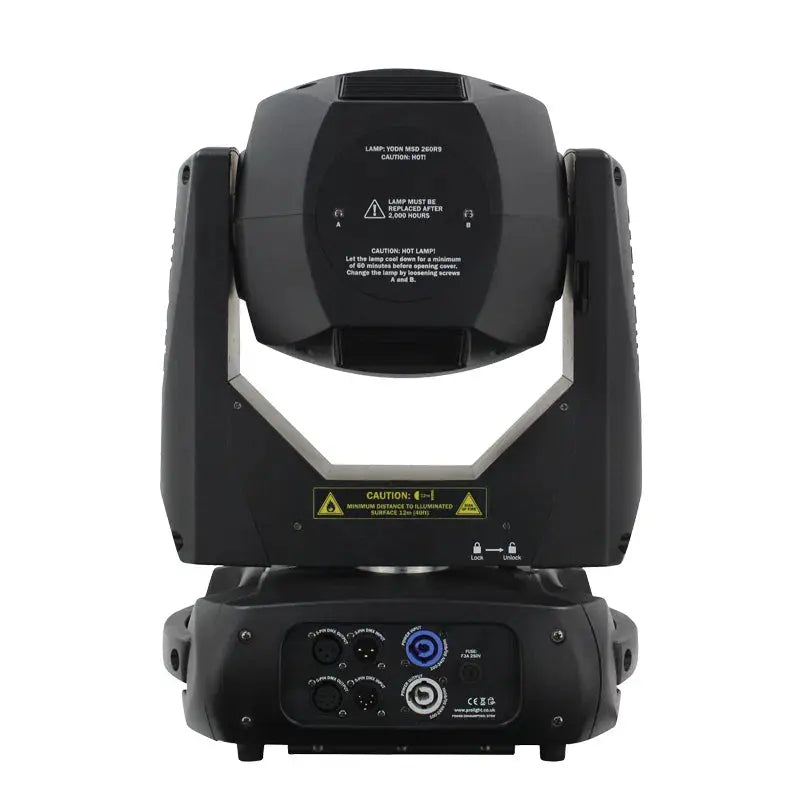

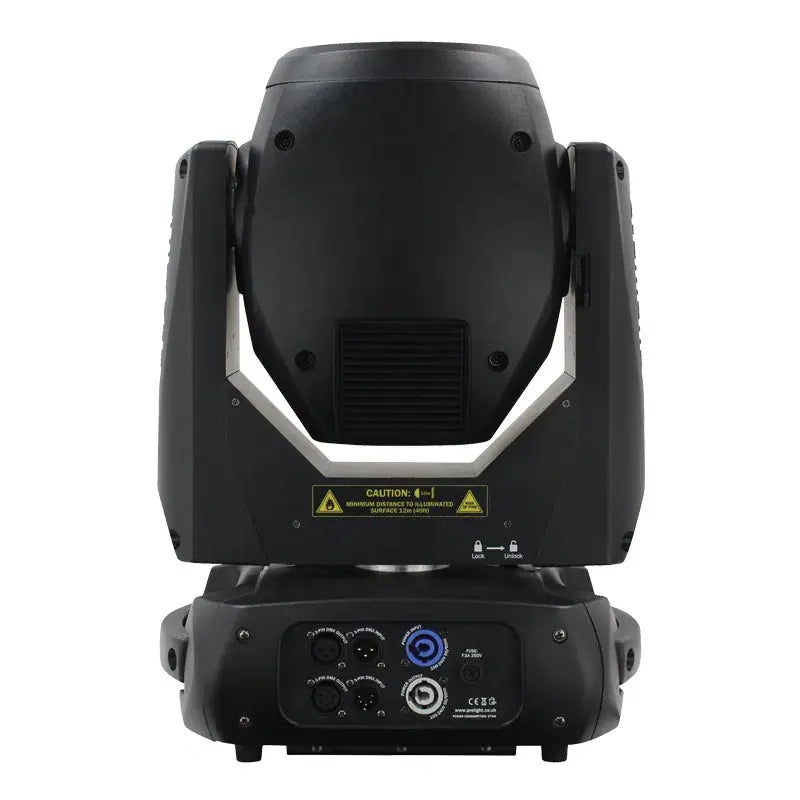

Connectors: PowerCON in/out, 3-pin XLR in/out, 5-pin XLR in/out
