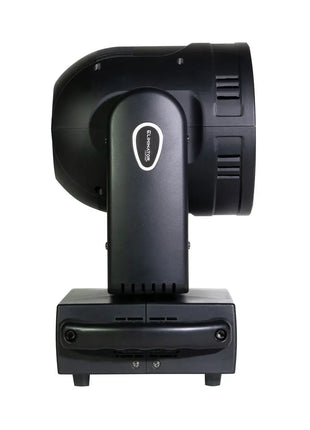

Part of Eliminator Lighting’s Stryker Series of powerful feature-packed and affordable moving head fixtures the Stryker Max is a versatile wash-zoom fixture capable of generating a variety of stunning effects. Compact lightweight and easily portable it is perfect for use by mobile entertainers and event companies as well as for integrators supplying bars nightclubs and other entertainment venues.

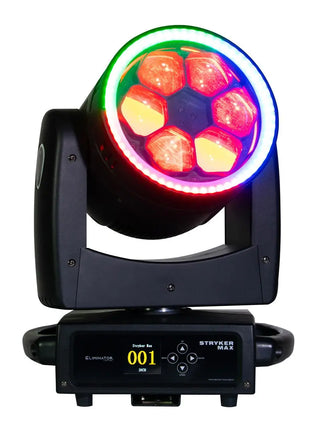

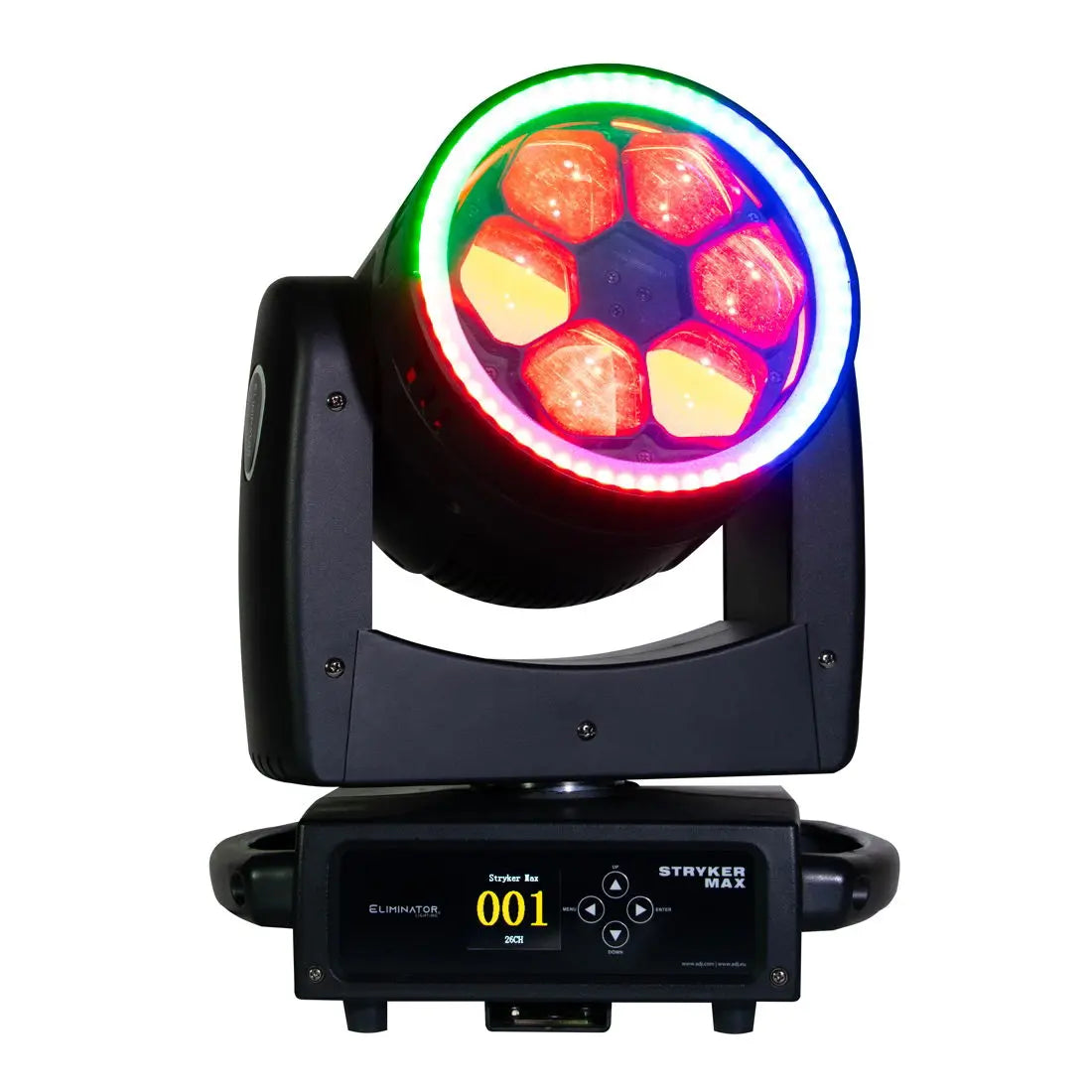

The Stryker Max features six high-output 40-Watt RGBW (red green blue and white) colour mixing LEDs attached to a motorized zoom mechanism and positioned behind a rotating lens assembly. This allows the fixture to output a narrow beam of 4° a wide wash of 55° and everything in between as well as kaleidoscopic multi-beam effects. In addition the head also features an outer ring of 60 x .5-Watt RGB LEDs which can be used to add mesmerizing ‘eye candy’ visual effects. Plus control white colour temperature with the built-in presets from 2800K to 8500K.
The fixture offers a wide variety of internal programs for easy standalone sound activated or Primary/Secondary operation as well as comprehensive DMX control. A sizable LED display screen on the front of the fixture paired with four navigation buttons provides an intuitive menu-driven interface for easy setup and DMX addressing. In addition the fixture supports the RDM protocol which allows its DMX address to be assigned remotely using a compatible DMX control system.
SPECIFICATIONS
Light Source:
6 x 40-Watt Quad (RGBW) LEDs LED Ring: 60 x 0.5-Watt RGB LEDs
Features:
Motorized Zoom: 4 ~ 55° Motorized rotating lens that allows the unit to output a narrow beam of 4° a wide wash of 55° and a kaleidoscopic multi-beam effect Create eye candy effects with LED Ring Variable White Colour Temperatures: 2800K – 8500K Built-in Colour Macros & Effects 0-100% smooth dimming Variable speed strobe effect Fast precise pan & tilt movements
Control:
DMX Channel Modes: 20 or 26 channels Operational Modes: DMX512 / Primary-Secondary / Auto Run / Sound / RDM OLED Menu Display
Connections:

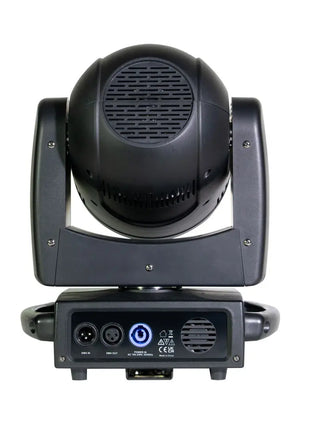

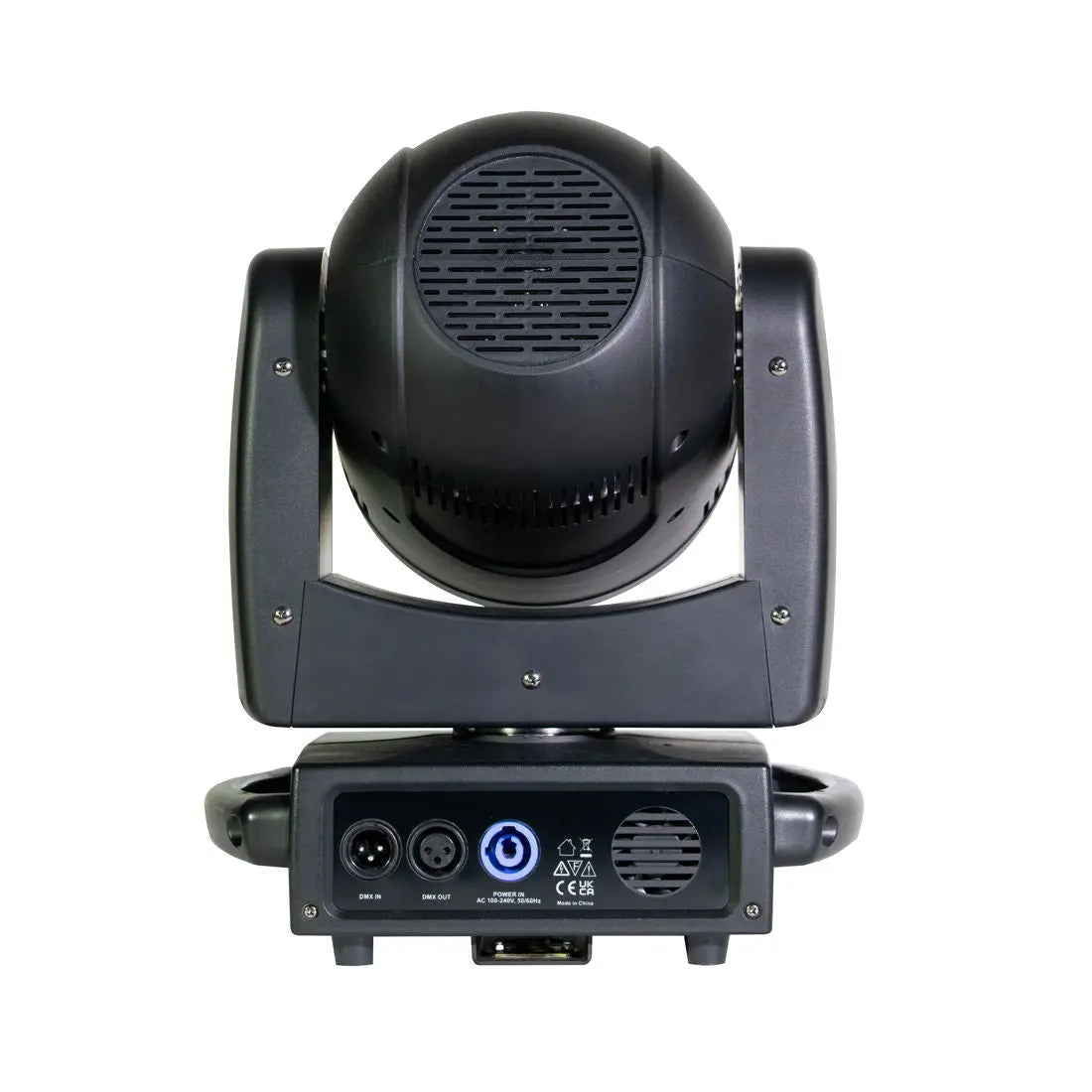

3-pin DMX In/Out Locking Input & Output connections to daisy chain power
Pan/Tilt:
Pan: 540° Tilt: 190° 16-bit Fine Pan 16-bit Fine Tilt
Electrical:
Multi-voltage operation: 100-240V 50/60Hz Maximum power draw: 260-Watts
Dimensions & Weight:
Dimensions (LxWxH): 367.5 x 292 x 180mm Weight: 7.5 kg
Approvals:
IP20
Specifications are subject to change without notice
