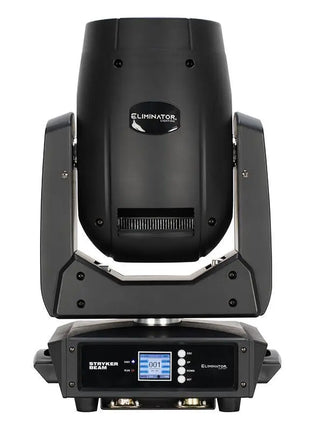

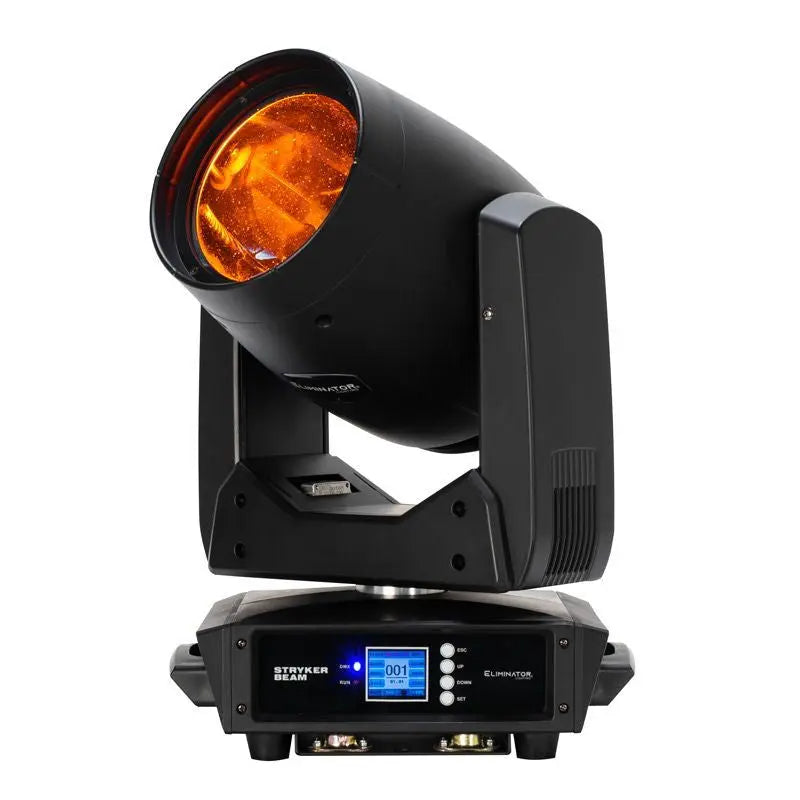

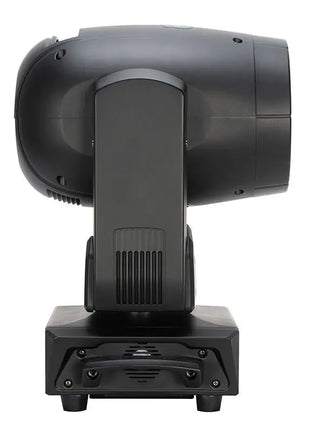

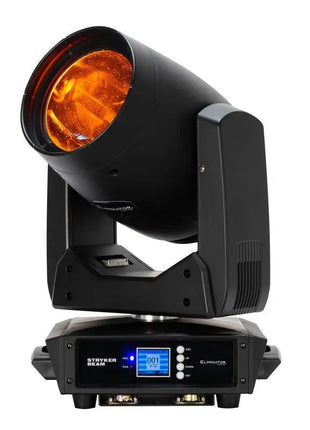

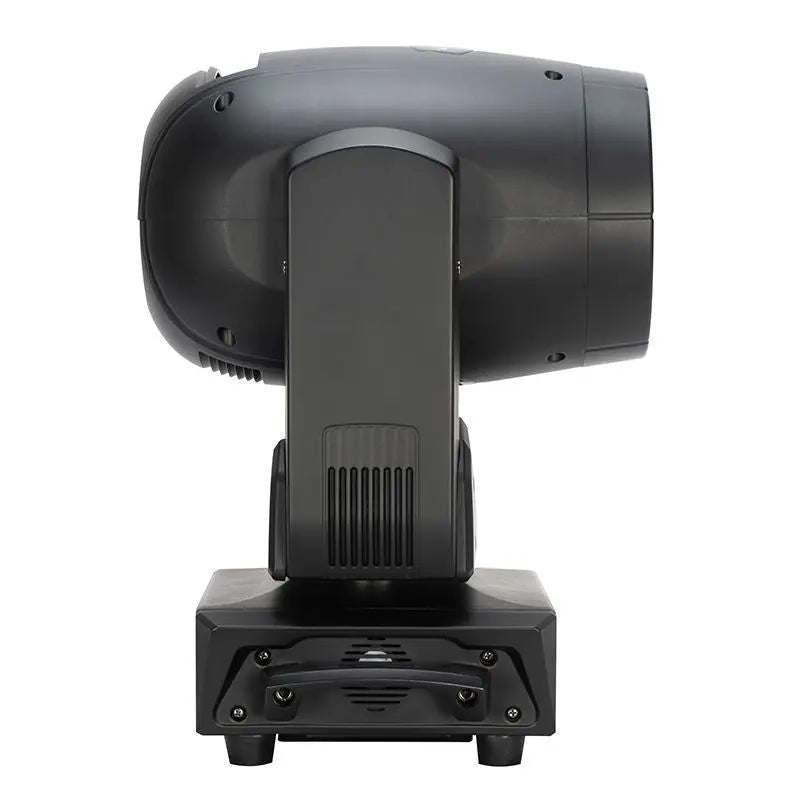

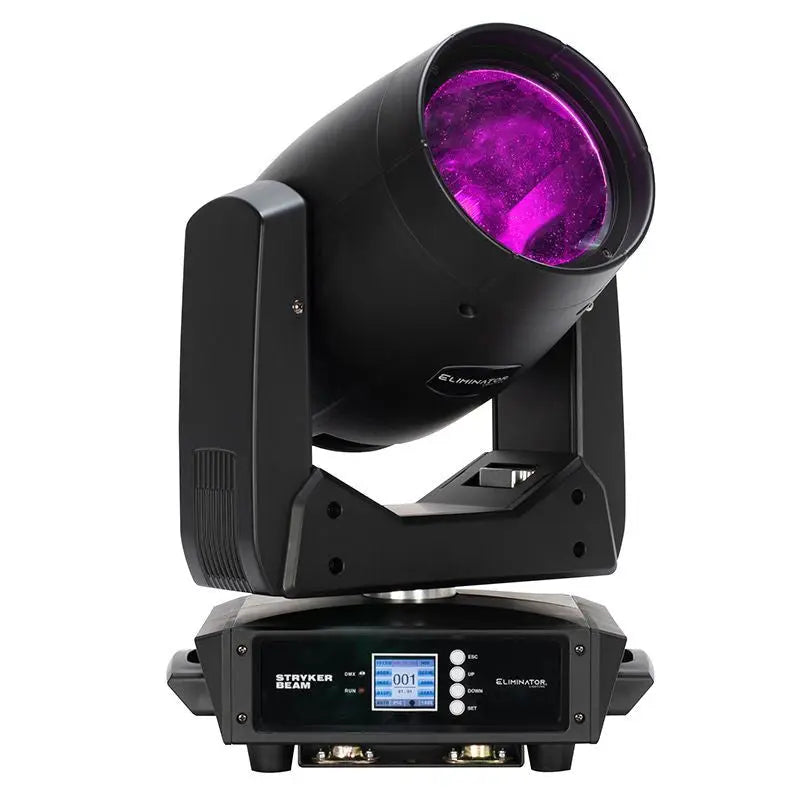

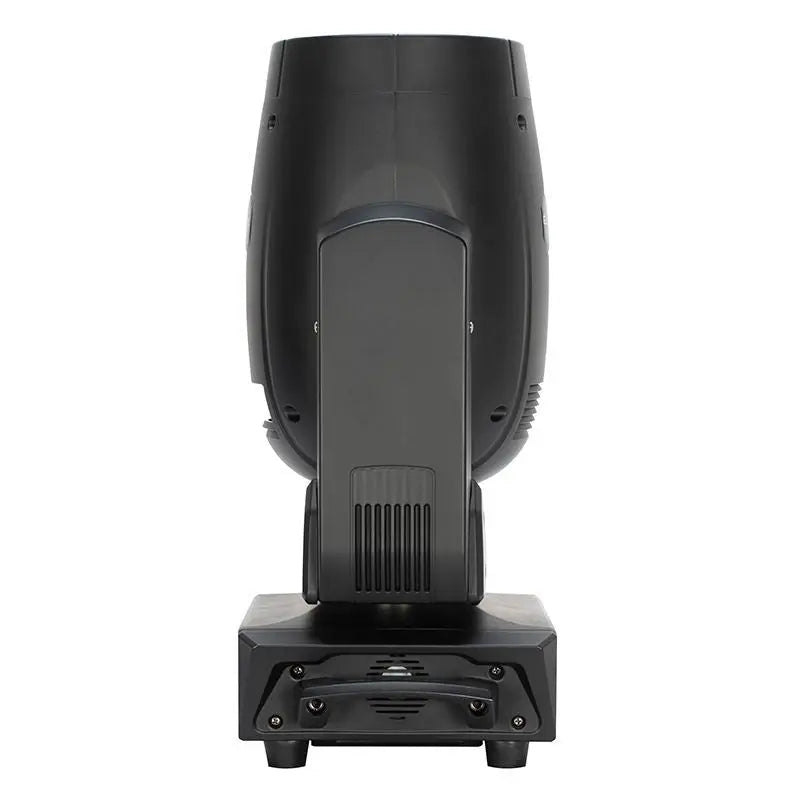

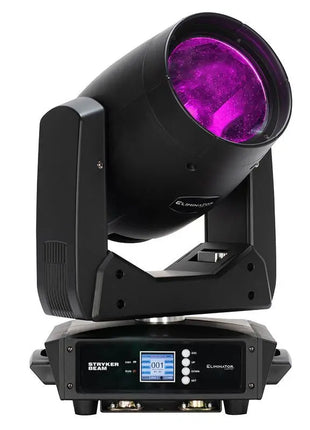

Suitable for installation in nightclubs and other entertainment venues as well as for mobile use by production companies and entertainers Eliminator Lighting’s Stryker Beam is a potent moving head beam fixture. It focuses the light from a powerful 100W LED light engine through high quality optics to create a razor-sharp output that will punch through background lighting to create piercing mid-air effects. The Stryker Beam offers fast precise movement as well as a diverse collection of beam-shaping tools which provide lighting designers lots of creative potential. A dedicated GOBO wheel features 11 die-cut metal shapes (plus open) which include two beam reducer options alongside a carefully curated selection of patterns designed for generating aerial effects. A motorized focus function allows GOBOs to be kept sharp while a separate colour wheel offers 13 vibrant options (plus white) and an additional 6-color flag allows the creation of multi-coloured beam effects A built-in frost filter allows the fixture to switch from a hard-edge beam to a soft wash of light. Finally two circular rotating prisms are provided 8-facet and 16-facet which can be used to split up the narrow beam into a wider break-apart effect. Both prisms may be layered for an animated effect. For a fixture of its class the Stryker Beam is a compact and lightweight moving head which is easily portable. It features a large full colour display screen providing access to an intuitive menu-driven interface for DMX addressing and customization of the unit’s operating parameters. It features locking power input and output sockets to allow multiple fixtures to daisy chain from a single outlet together with both 3-pin and 5-pin DMX sockets for easy integration into any existing DMX system.
Source:
100W LED Engine 6° Beam Angle
Features:

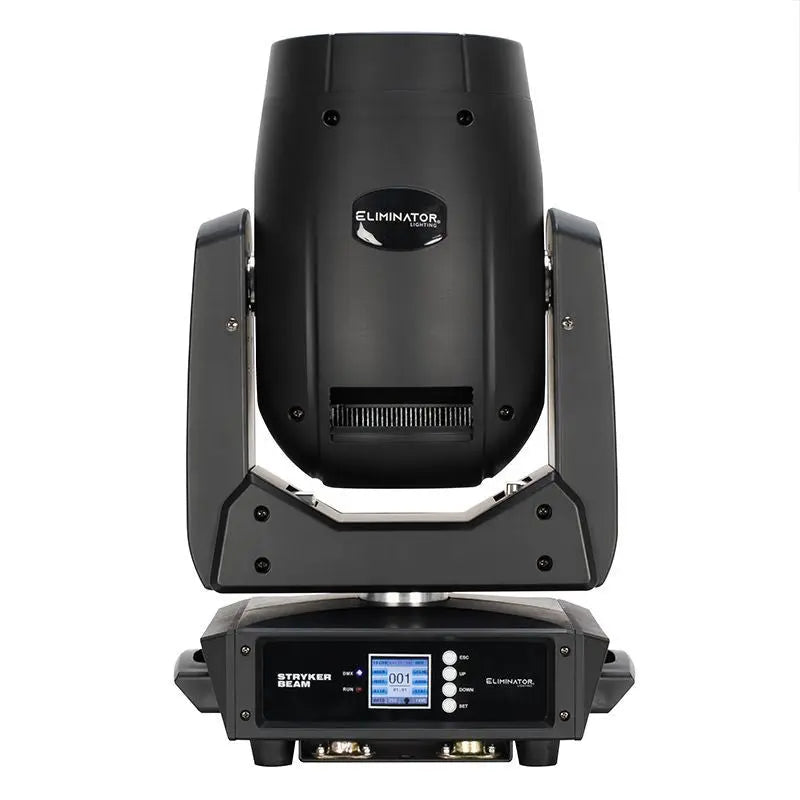

Full colour function display with 4 buttons Fast precise pan & tilt movements Primary / Secondary stand-alone mode Motorized Focus Frost Filter (50° Wash Effect)
Colour Wheel:
13 colours + open Separate 6-Color flag for multi-colour effects
Gobo Wheel:
Metal wheel with 11 GOBOS + open (2 are beam reducers) GOBO Shake Effect
Prism Wheel:
8-facet rotating circular prism 16-facet rotating circular prism Prism layering
Control:
2 DMX channel modes: 6 & 19 channels Protocols: DMX-512 RDM Auto and Primary/Secondary control modes Electronic Dimmer: 0- 100 % Variable Strobe: 0-20HZ With Wired Digital Communication Network
Connections:

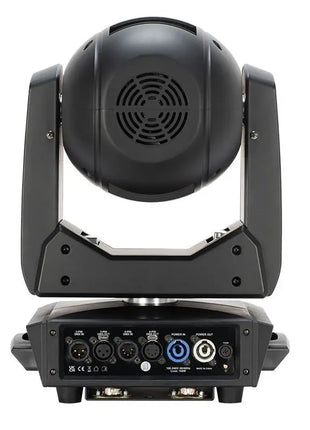

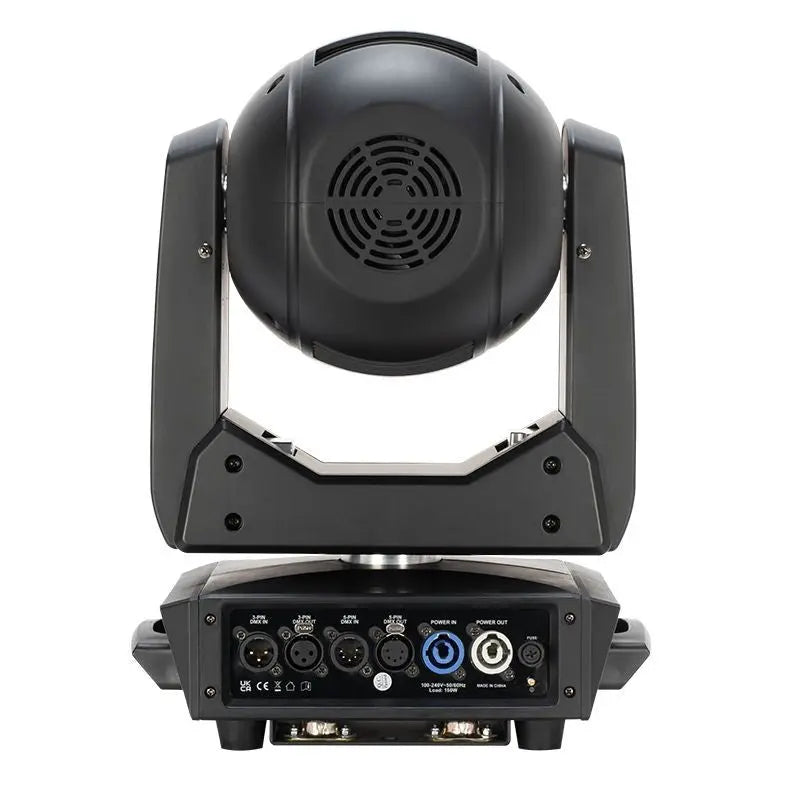

DMX Data In/Out: 3-pin & 5-pin connections Power In: Blue Locking indoor power connection Power Out: White Locking indoor power connection
Pan/Tilt:
Pan/Tilt: 540° / 270° 16-bit Fine Pan 16-bit Fine Tilt
Electrical:
Multi-voltage operation: AC 100-24V 50/60Hz Maximum Power Consumption: 150W Power daisy chain: 3 units @230V
Dimensions & Weight:
Dimensions (LxWxH): 200x302x465mm Weight: 12.8 kg.
What´s Included:
Locking power cord Omega bracket
Specifications and documentation subject to change without notice.
