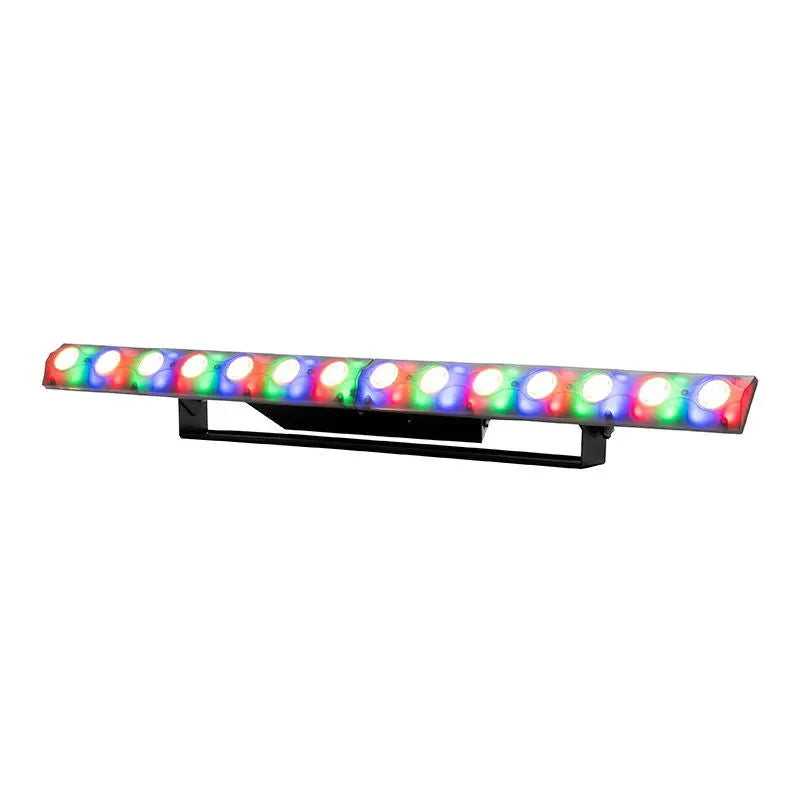

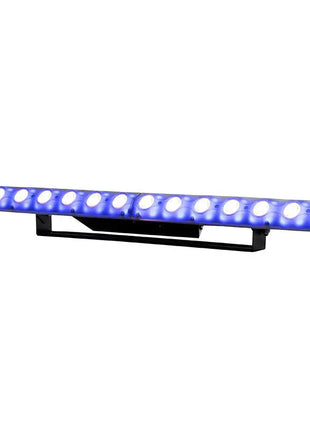

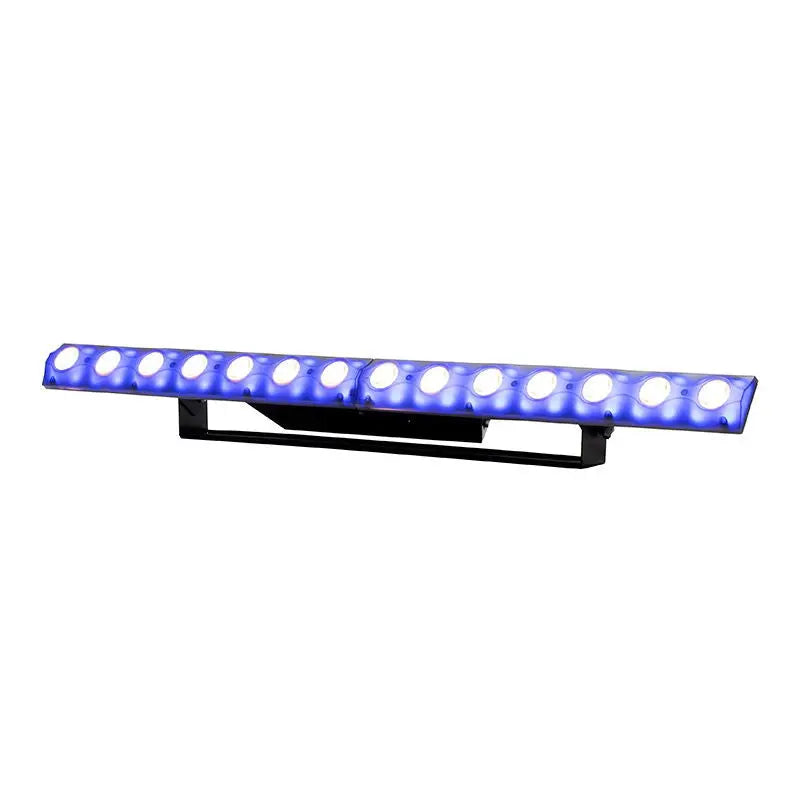

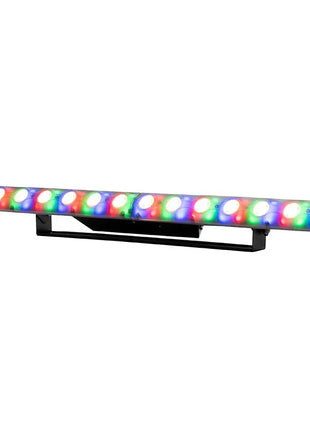

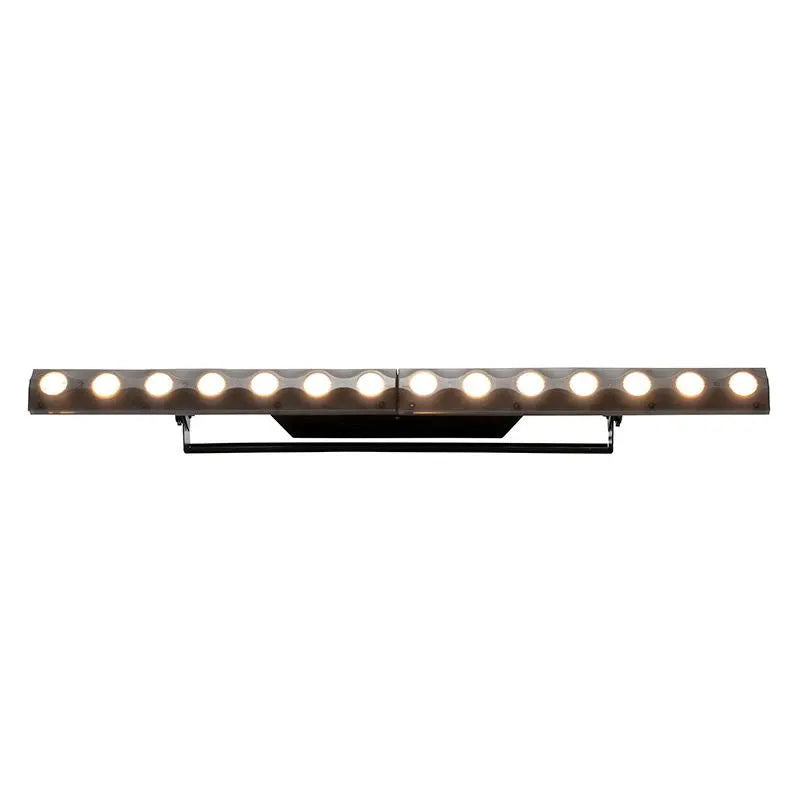

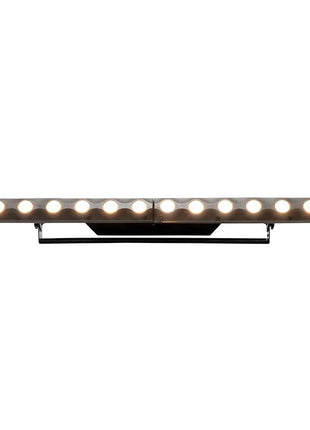

The Eliminator Lighting Frost FX BAR W is a 1-meter linear entertainment lighting fixture that creates colour washes and breathtaking colour chase effect. It has two types of colour LEDs in one fixture. It has fourteen 3W white LEDs with ACL lens across the front of the fixture to create intense beam effects. Plus it has eighty-four RGB SMD LEDs behind a frosted plastic lens that create glowing colour chase patterns. Both sets of LEDs run independently.
Each fixture has 45 built-in lightshows that can be triggered from the on-board 4-button display controls or run in DMX sound or primary/secondary configurations. Multiple fixtures may be linked together through 3-pin DMX In/Out data connections and locking power in/out connections to so that the power may be daisy chained from one fixture to another.
Users may choose from 64 built-in colour macros and 9 flexible DMX channel modes. The fixture offers 0-100% electronic dimming and requires a maximum of 55W per unit.

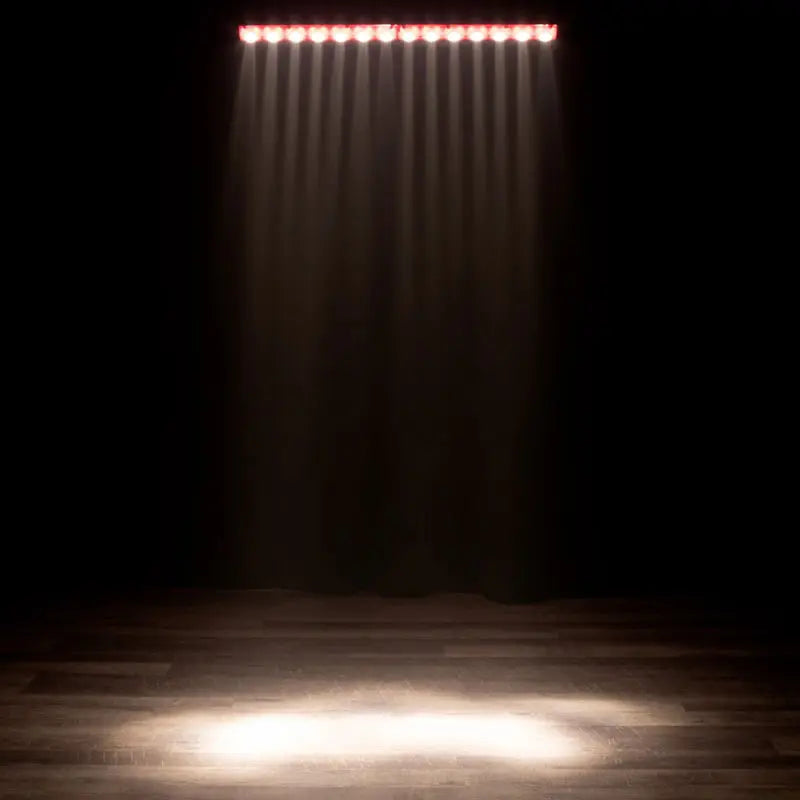

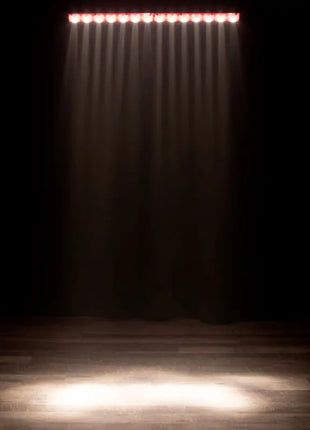

The Frost FX Bar W horizontally or vertically for unique effects for stages bars lounges clubs bands and mobile entertainers. Multiple fixtures may be placed directly next to each other to create a seamless band or colour light.
SPECIFICATIONS
Source:
1-meter LED linear wash fixture that chases colours and creates engaging effects Light sources: 14x 3W white LEDs + 84x 5050 RGB (3-IN-1) SMD LEDs 17-degree beam angle
Control:
4-button LED function display 9 DMX channel modes (3 8 14a 14b 17 56 60 66 ad 69-channel modes) 4 operation modes: DMX Auto Sound and Primary/Secondary 0-100% Electronic Dimming 64 built-in colour macros 45 built-in shows
Connections:

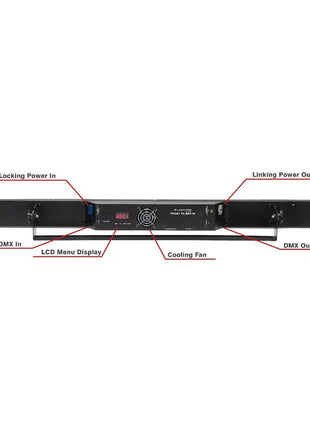

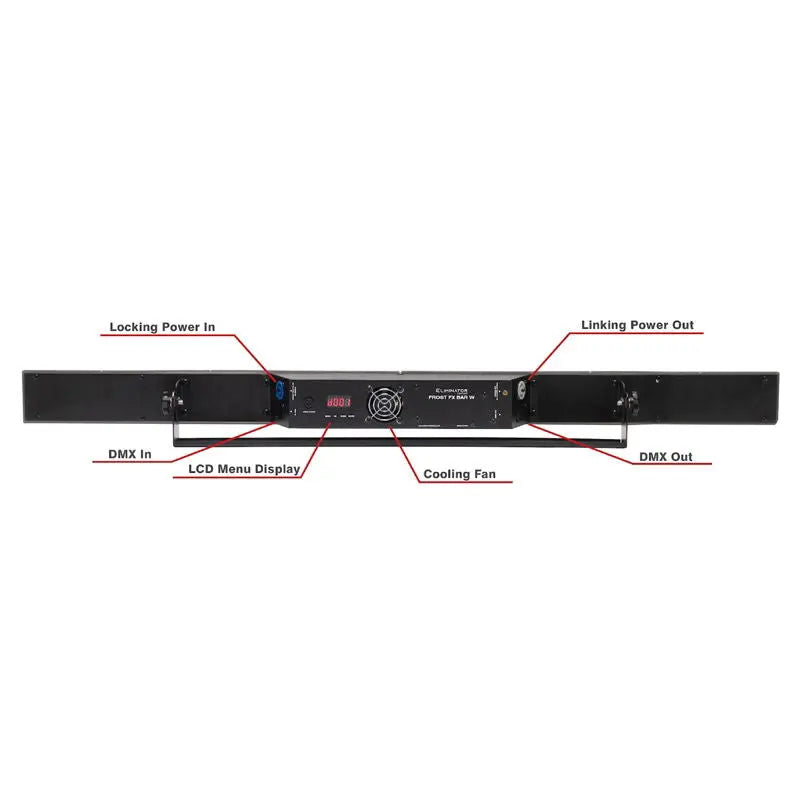

3-pin DMX In/Out connections to link data Locking power In/Out connections to daisy chain power
Electrical:
Max power: 55W Multi-voltage operation: AC 110-240V 50/60Hz
Dimensions & Weight:
Dimensions (LxWxH): 1000x71x121.4mm Weight: 3 Kg.
What's included:
Adjustable Angle Hanging Bracket Power cable
