Replaces the (discontinued) 1223200031 - Dotz TPAR System. Fully identical only rebranded to Eliminator Lighting.
The Eliminator Lighting Dotz TPar Sys Plus is a portable all-in-one wash lighting system that employs C.O.B. (Chip On Board) Tri-colour LEDs to deliver seamless colour mixing without colour shadows. From immersive wash lighting to captivating pixel mapping pulse and strobe effects this system is designed for illuminating smaller size events such as live performances on stages weddings and parties offering an unforgettable lighting experience.

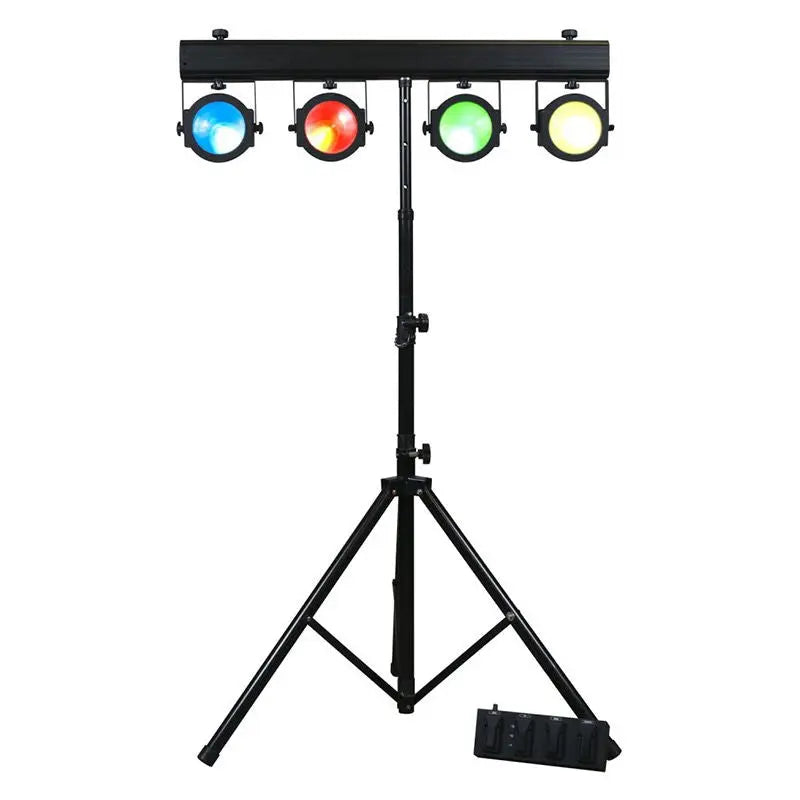

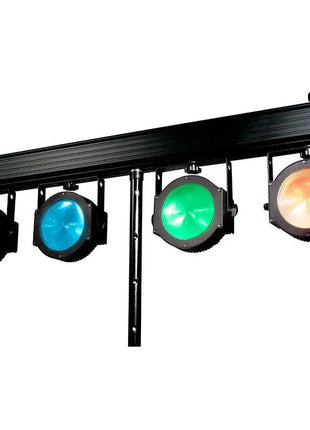

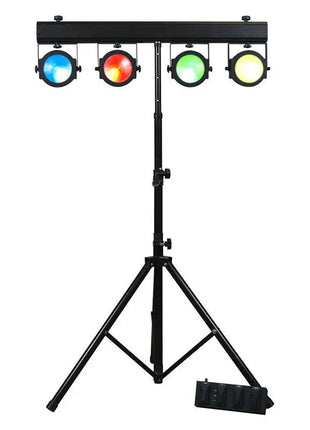

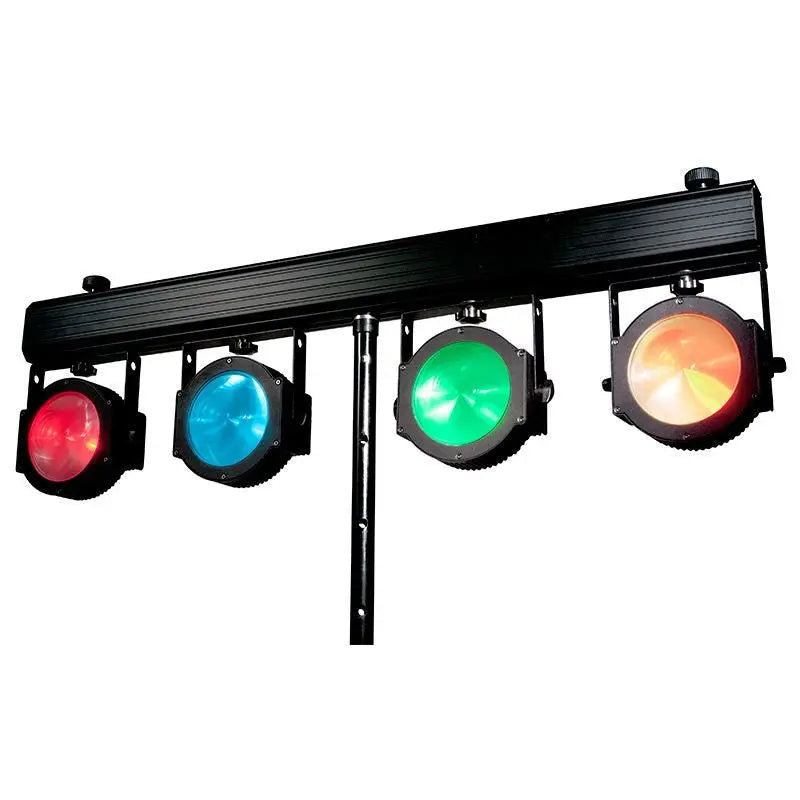

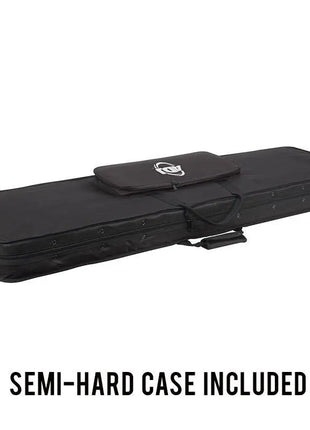

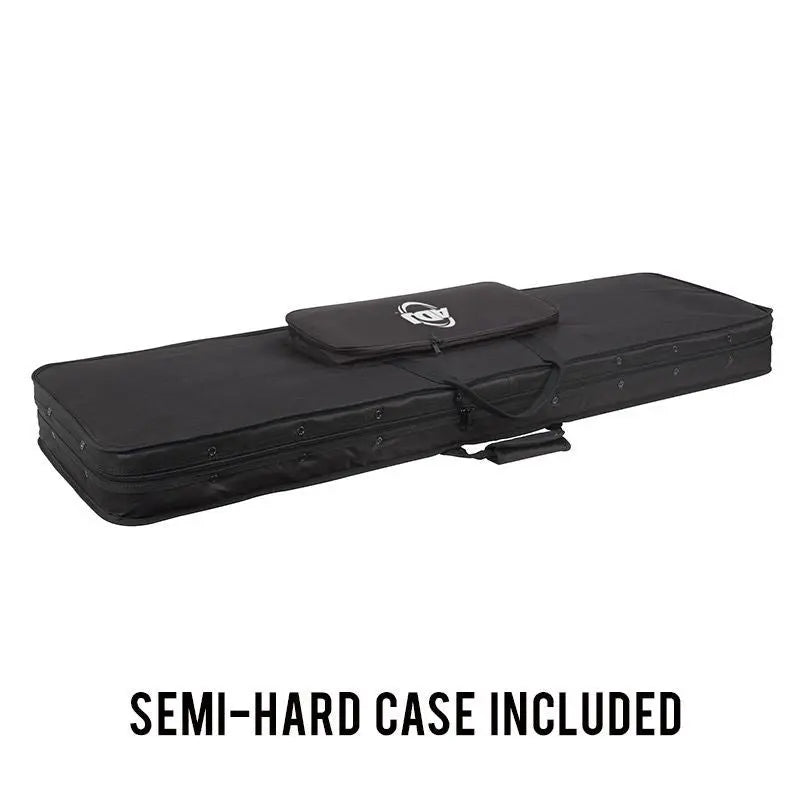

Engineered for reliability and portability the Dotz TPar Sys Plus is constructed with top-quality materials boasting 50000-hour rated LEDs ensuring durability and flicker-free performance. It’s easy to set-up operator and take down. This portable lighting system includes four adjustable COB LED Par Wash fixtures a foot controller lighting stand RF remote control stand bag and a soft case for the entire system.
With versatile operation modes – auto run sound active colour macro dimmer and full DMX control – it adapts to any scenario. Unleash your creativity effortlessly. Elevate your stage nightclub or mobile production to new heights.
Specifications:
Source:
Light Source: Each fixture has 1x 30-Watt TRI Colour COB LEDs LUX @ 3M: 1345 Long Life LEDs (Rated at approximately 50000 hrs.) Beam angle: 90°
Features:

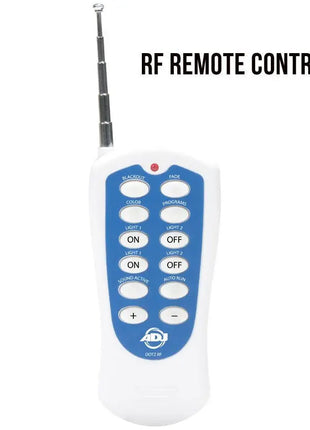

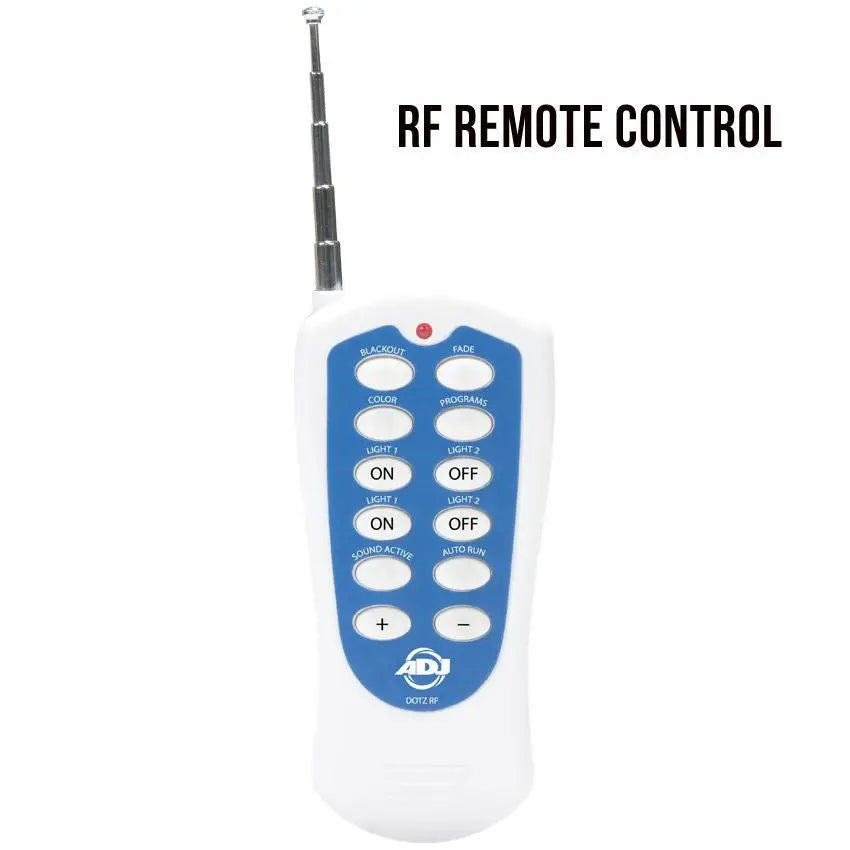

COB Technology (Chip On Board) produces powerful smooth RGB colour mixing with rich palettes of colour and no colour shadows Smooth RGB Colour Mixing (fast or slow colour change operation) Great for Stage Lighting Bands Night Clubs & Mobile Entertainers Emits less heat on performers on stage as opposed to conventional stage lighting RF Remote Control up to 25 meters Refresh Rate: 3.6KHz
Control:

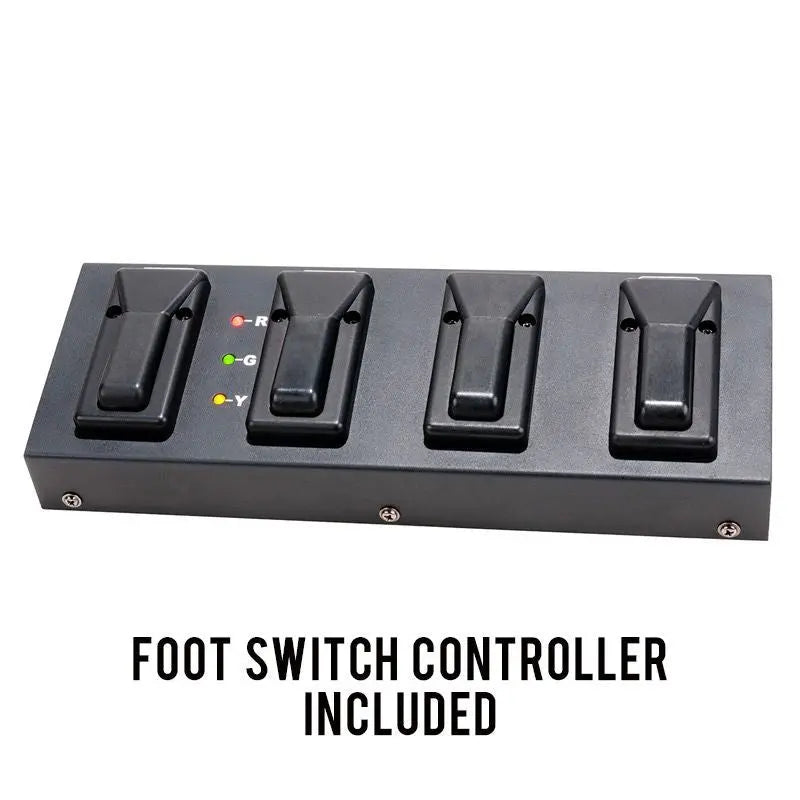

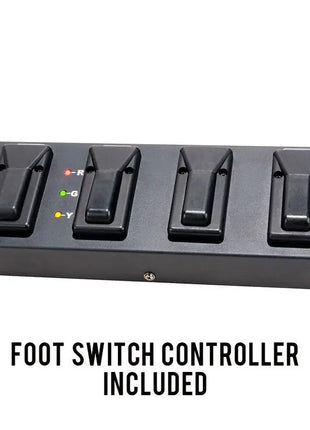

Digital DMX Display with 4-button menu for easy navigation 4 Operational modes: Sound Active Auto Run Built-In Programs & DMX-512 Stand Alone or Primary/Secondary Configuration Pixel Flip option changes pixel orientation 14 Built-in Programs 5 DMX Channel modes: 3 5 9 12 and 18 channels Strobe & Pulse LED Effect Electronic Dimming: 0-100% 5 selectable Dim Curves (Standard Stage TV Architectural & Theatre) Foot Controller Features: Mode Black Out and Program Change With Wired Digital Communication Network
Connections:

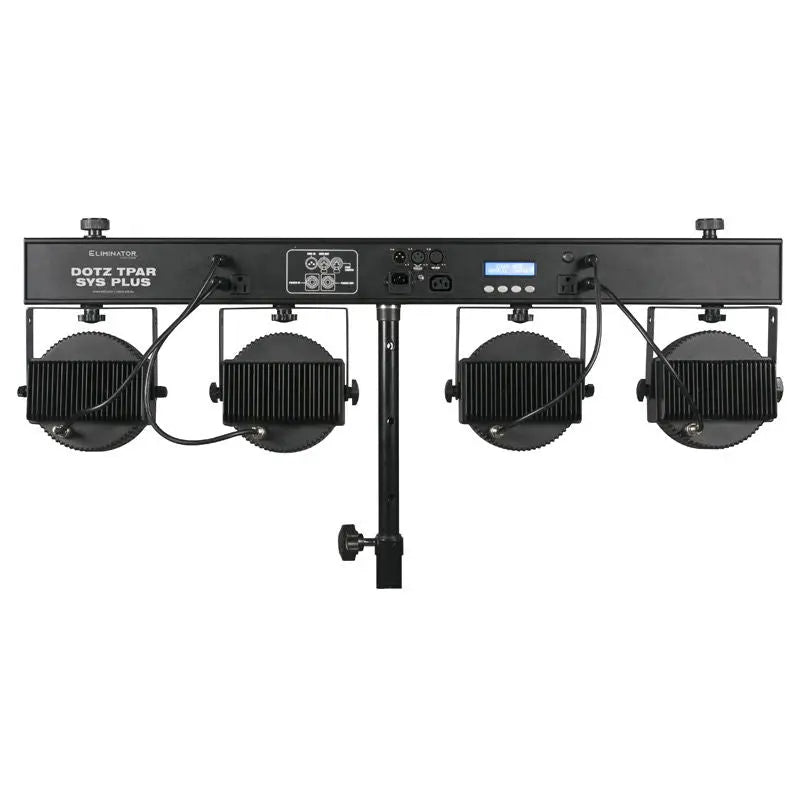

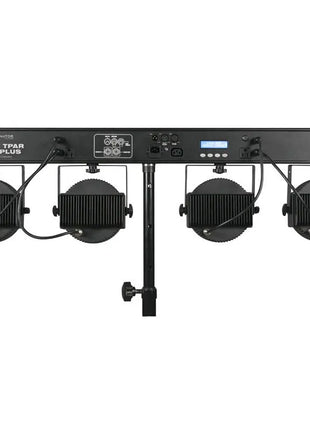

3-Pin DMX In/Out IEC In and IEC out to daisy chain power 2x power plugs on rear to plug in other lighting fixtures (120V = Edison 230V = Shuko) 5-pin DMX In to connect the foot controller
Electrical:
Multi-voltage operation: AC 100V-240V 50/60Hz (IEC Input) Power Draw: 144W Max (entire system)
Dimensions & Weight:
Dimensions (LxWxH): 1000 x 320 x 82mm / 39.5” x 12.75”x 3.25” Weight: 16 kg. / 35 lbs. (Fixture Bar Stand & Controller) Maximum stand height: 1 meter / 9 feet
What’s Included:
Includes 25° beam angle lens kit Includes hardware to mount two lighting fixtures on top of the light bar 5-pin DMX cable to connect the foot controller to rear of the light bar Power Cord
Approvals / Ratings:
CE Certified
