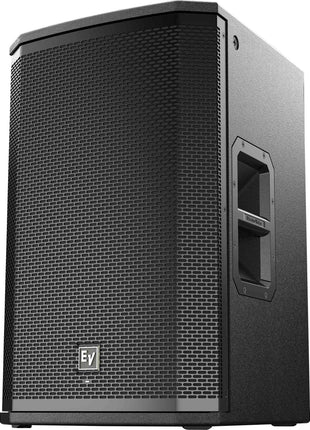

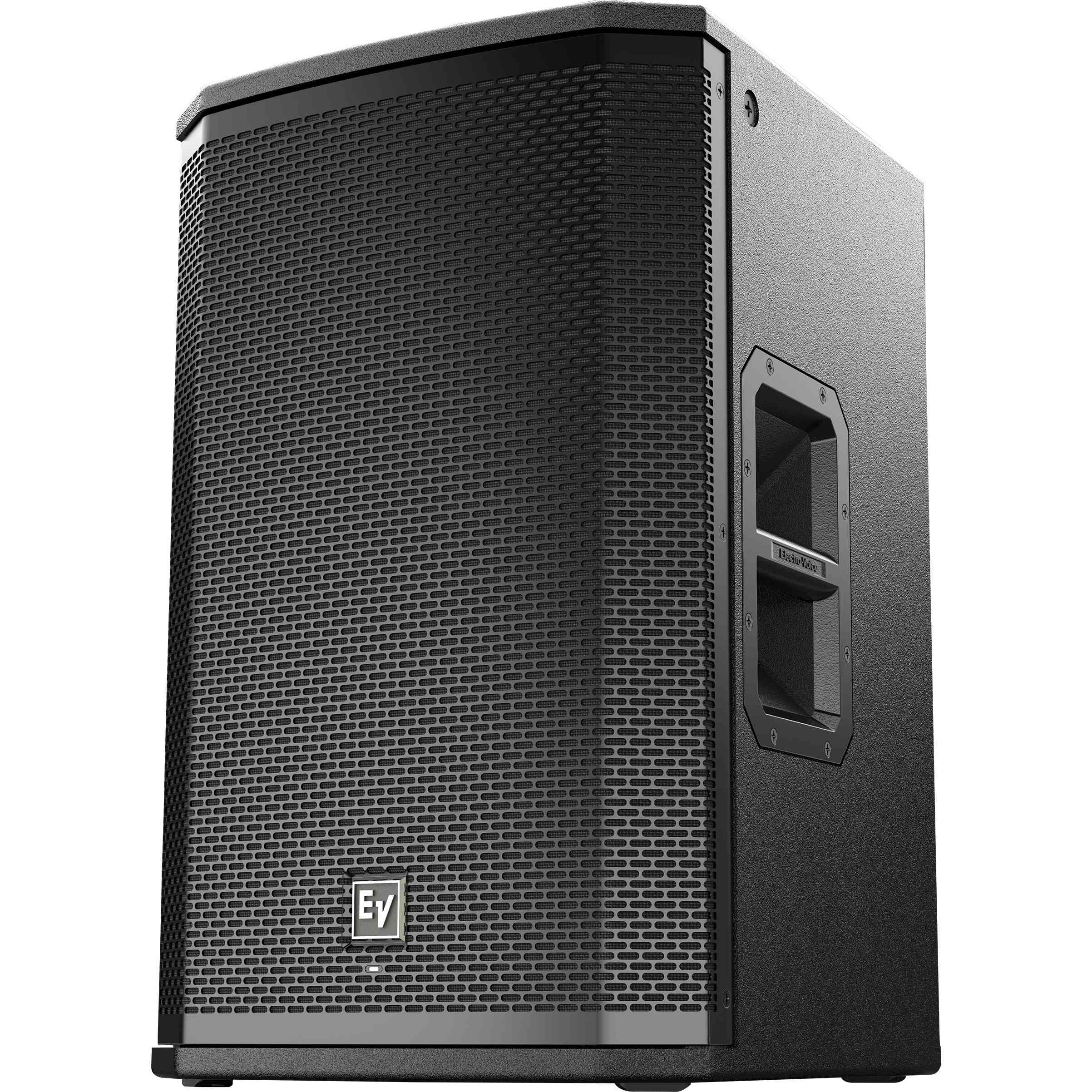

Electro-Voice ETX-12P
The Electro-Voice ETX-12P 12-Inch Two-Way Powered Loudspeaker is a premium, compact speaker designed for professional audio applications, offering exceptional sound quality and power. With a 2000W Class-D amplifier and a maximum SPL of 135 dB, it features a 12" woofer and a 1.25" titanium compression driver, delivering clear, punchy audio for small to medium venues. Its enclosure made of tour-grade birch plywood, advanced FIR-Drive DSP, and EV-patented SST waveguide make it a top choice for live performances, DJ sets, and installations, blending portability with robust performance.
Key features:
· Product Name: Electro-Voice ETX-12P 12-Inch Two-Way Powered Loudspeaker
· Amplifier Power: 2000W Class-D
· Maximum SPL: 135 dB peak
· Frequency Response:
o (-3 dB): 55 Hz - 20 kHz
o (-10 dB): 43 Hz - 20 kHz
· Coverage: 90° horizontal x 60° vertical
· Transducers:
o 12" SMX2120 woofer
o 1.25" DH3-B titanium compression driver
· Crossover Frequency: 1600 Hz
· Inputs: 2x XLR/TRS combo jacks
· Outputs: 1x XLR link output
· Enclosure: 18-mm, 13-ply birch plywood with EVCoat finish
· Grille: 16 AWG steel with powder coat
· Mounting: 8x M10 suspension points, integrated pole mount
· Power Consumption: 100-240V, 50-60 Hz, 1.6-0.8A
· Dimensions: 613 mm x 381 mm x 400 mm (24.1" x 15" x 15.8")
· Weight: 23.6 kg (52 lbs)
Key features:
· FIR-Drive DSP: Advanced digital processing with presets, EQ, and limiters for precise sound optimisation
· SST Waveguide: Signal Synchronised Transducer design ensures even coverage and minimal distortion
· High-Efficiency Transducers: EV-engineered components for superior audio performance
· Tour-Grade Build: Durable birch plywood enclosure with EVCoat finish for rugged reliability
· Thermal Management: Intelligent system maintains performance under demanding conditions
· Versatile Connectivity: Dual XLR/TRS inputs and XLR output for flexible system integration
Highlights:
· Powerful Output: 2000W and 135 dB SPL in a compact design, ideal for gigs and events
· Exceptional Clarity: Delivers pristine sound across all frequencies with strong bass for its size
· Professional Versatility: Suits FOH, monitors, or installs with multiple mounting options
· EV Excellence: Combines cutting-edge technology with Electro-Voice’s trusted engineering
Product-related questions and answers:
Q: What size venues is the ETX-12P best suited for?
A: It’s perfect for small to medium venues like clubs, halls, or outdoor spaces, covering up to 300-400 people with its 135 dB SPL and wide dispersion.
Q: Do I need a subwoofer with this speaker?
A: The 12" woofer reaches down to 43 Hz, adequate for many uses, but adding a sub (e.g., ETX-18SP) boosts bass for music-heavy applications like DJing.
Q: Is it easy to set up for someone new to audio equipment?
A: Yes, it’s straightforward with XLR inputs and a pole mount, plus the FIR-Drive DSP offers simple presets adjustable via the rear panel.
Q: Can I use it as a stage monitor?
A: Yes, its angled design and DSP seenable it to function as a monitor, although its primary purpose is for front-of-housefor FOH or pole-mounted use.
Q: How durable is it for regular gigging?
A: The birch plywood enclosure with EVCoat finish and steel grille is tour-grade, built to endure frequent transport and use.
Q: Can I link multiple ETX-12P speakers together?
A: Yes, the XLR link output supports daisy-chaining for larger setups or stereo configurations.
Q: Is it suitable for outdoor use?
A: Yes, for temporary outdoor gigs, but it’s not weatherproof; keep it protected from rain and harsh weather.
Q: What warranty does it come with?
A: Electro-Voice typically offers a 3-year warranty on powered speakers, but confirm with us for exact terms.
Q: How does it perform at high volumes?
A: It maintains clarity up to 135 dB SPL with DSP limiters preventing distortion, making it ideal for loud environments.
Q: Are cables or a pole included?
A: No, we supply it standalone; you will need to purchase cables, poles, or covers (e.g., ETX-12P-CVR) separately.
