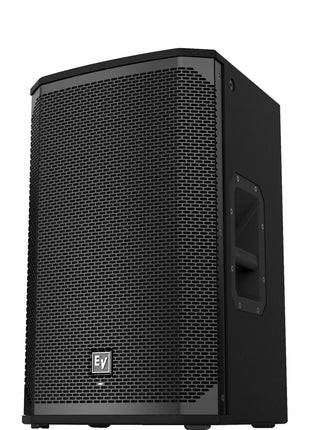

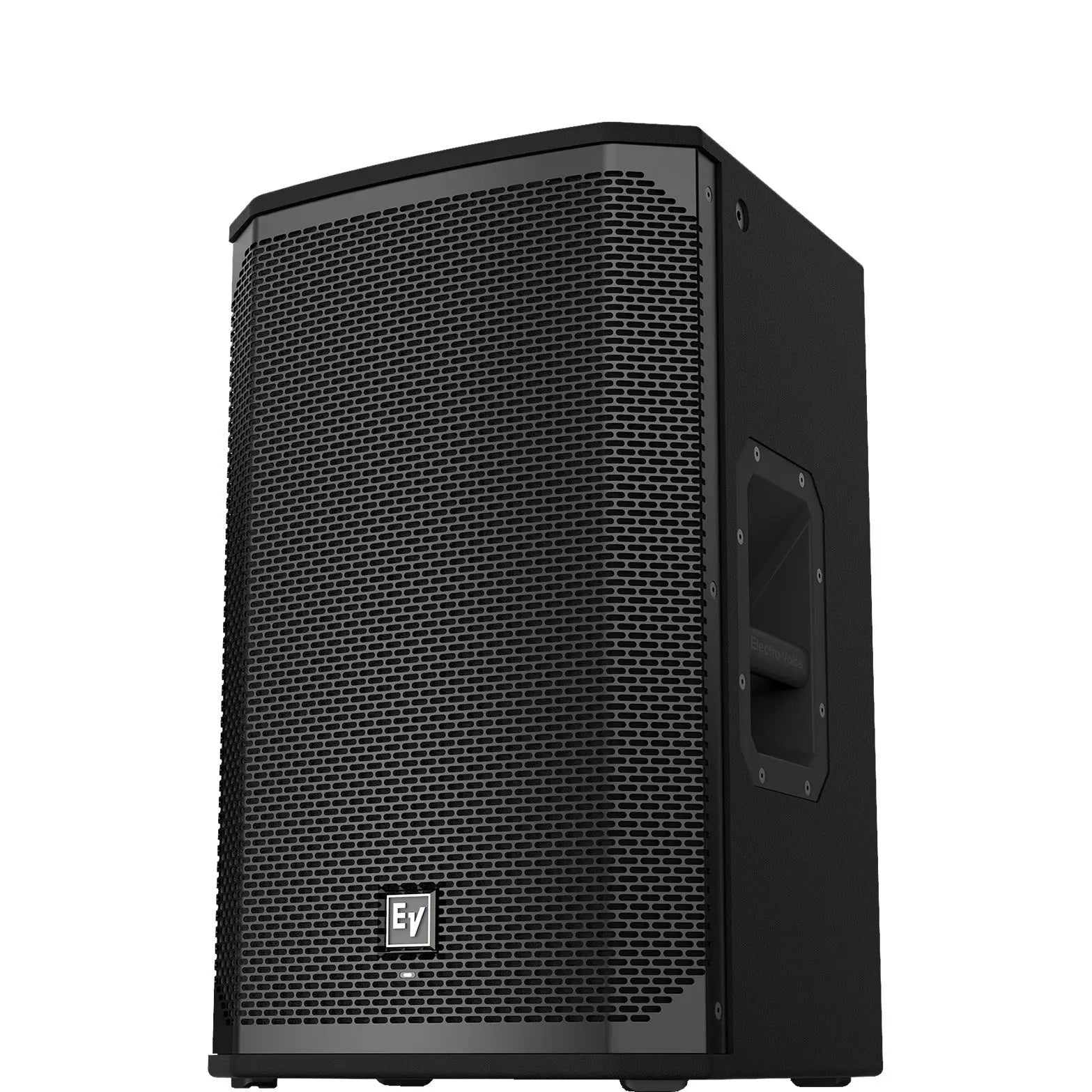

Electro-Voice EKX-12P
QuickSmartDSP features a best-in-class processing EV's signature single-knob user interface and intuitive menu navigation via LCD. The high-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV. Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors ensures superior performance and reliability in demanding environmental conditions. EV-patented Signal Synchronised Transducers (SST) waveguide design provides precise and consistent coverage. A lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminium pole mounts, and all-metal handles.
Product specs:
-
Product Name: Electro-Voice EKX-12P 12-Inch Two Way Active Loudspeaker
-
Amplifier: 1500W Class D power amplifier
-
Maximum SPL: 132 dB peak
-
Frequency Response: 55 Hz - 20 kHz
-
Coverage Pattern: 90° x 60° (horizontal x vertical)
-
Transducers:
- 12-inch woofer
- 1-inch titanium compression driver
-
DSP: QuickSmartDSP with single-knob user interface and LCD menu navigation
-
Enclosure: Lightweight, compact 15-mm wooden enclosure with internal bracing
-
Finish: Durable EVCoat finish
-
Mounting Options:
- Eight M10 threaded mounting points for suspension
- Aluminium pole mount for use with a subwoofer
- Can be used as a floor monitor with a 40° tilt angle
-
Handles: All-metal handles for easy transport
-
Weight: Approximately 18.8 kg (41.4 lbs)
-
Dimensions: 607 mm x 375 mm x 356 mm (23.9" x 14.8" x 14.0")
-
Inputs/Outputs:
- 2x XLR/TRS combo inputs (mic/line level)
- 1x XLR link output for daisy-chaining
-
Thermal Management: Intelligent thermal management with variable-speed fan for reliability in demanding conditions
-
Waveguide Design: EV-patented Signal Synchronised Transducers (SST) for precise and consistent coverage
Key features and highlights
· Powerful Sound: High-efficiency 1500W Class D amplifier delivers up to 132 dB SPL for clear, powerful audio in small to medium venues.
· EV-Engineered Transducers: Custom-designed woofer and compression driver ensure optimal performance and sound quality.
· QuickSmartDSP: Best-in-class processing with easy setup via four presets, three-band EQ, and visual monitoring of limiter status, all controlled through an intuitive single-knob interface.
· SST Waveguide Design: Provides precise, consistent coverage with minimal distortion, ensuring even sound distribution.
· Lightweight and Portable: Compact wooden enclosure with metal handles makes it easy to transport and set up.
· Versatile Mounting: Multiple mounting options, including suspension, pole mounting, and floor monitor use, make it adaptable to various setups.
· Durable Construction: 15-mm wooden enclosure with internal bracing and EVCoat finish ensures longevity and reliability.
Thermal Reliability: Intelligent thermal management system with a variable-speed fan keeps the speaker performing optimally even in challenging environments.
Product-related questions and answers:
Q: What is the sound quality like on the EKX-12P?
A: The EKX-12P delivers powerful, clear sound with a maximum SPL of 132 dB, thanks to its 1500W Class D amplifier and EV-engineered transducers. The SST waveguide ensures even coverage, making it ideal for small to medium venues.
Q: Is the EKX-12P easy to set up and use?
A: Yes, the QuickSmartDSP with a single-knob interface and intuitive LCD menu makes it simple to configure and optimise for different applications, such as live sound, DJing, or installations.
Q: How portable is the EKX-12P?
A: Weighing approximately 18.8 kg (41.4 lbs), the EKX-12P is lightweight for its class. Its compact design and all-metal handles make it easy to transport and set up.
Q: Can I use the EKX-12P with other equipment, like a subwoofer or additional speakers?
A: Yes, it has standard XLR inputs and outputs, allowing it to be connected to various audio sources and daisy-chained with other speakers. It also has a pole mount for use with a subwoofer.
Q: What are the mounting options for the EKX-12P?
A: The speaker offers versatile mounting options, including eight M10 threaded points for suspension, an aluminum pole mount for use with a subwoofer, and the ability to be used as a floor monitor with a 40° tilt.
Q: Does the EKX-12P have any built-in protection features?
A: Yes, it features intelligent thermal management with a variable-speed fan to ensure reliable performance in demanding conditions, as well as DSP-based limiters to protect the speaker from overload.
Q: Is the EKX-12P suitable for outdoor use?
A: While it’s designed for indoor use, its durable construction and thermal management make it capable of handling temporary outdoor events. However, it’s not weatherproof, so it should be protected from direct exposure to rain or extreme conditions.
Q: How does the EKX-12P compare to other speakers in its price range?
A: The EKX-12P offers professional-grade features like QuickSmartDSP, EV’s SST waveguide, and a high-efficiency amplifier, making it a strong contender in its price range for both sound quality and ease of use.
Q: Are there any accessories available for the EKX-12P?
A: Yes, Electro-Voice offers padded covers (e.g., EKX-12-CVR) to protect the speaker during transport, as well as mounting brackets and other installation hardware.
Q: What is the warranty for the EKX-12P?
A: DJKit offers a standard warranty, and Electro-Voice typically provides a 3-year warranty on their powered loudspeakers. It’s best to confirm the exact terms with the retailer or manufacturer.
