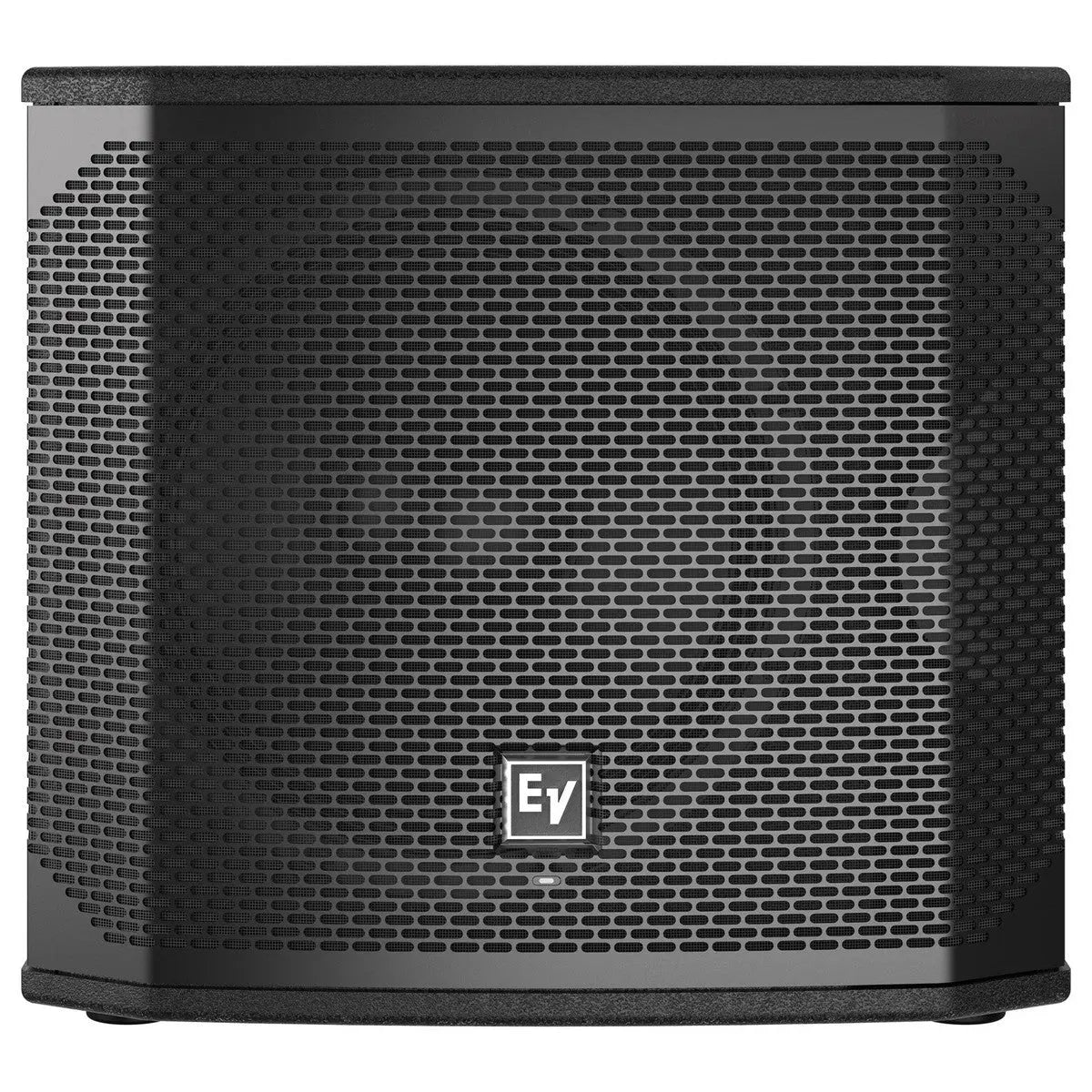

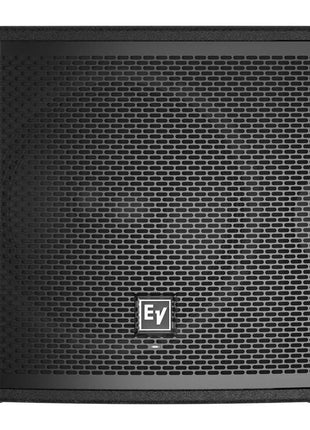

Electro-Voice ELX200-12S Passive
The Electro-Voice ELX200-12S Passive 12-Inch Subwoofer is a compact yet powerful addition to any audio system, designed to deliver rich, deep bass for live performances, DJ setups, and installations. With a peak power handling of 1600W and a maximum SPL of 132 dB, it features a 12" high-output woofer engineered by EV for exceptional low-frequency reproduction. Encased in a lightweight, durable 15-mm plywood enclosure with a premium polyurea top-coat finish, this passive subwoofer offers professional-grade performance, making it an ideal choice for enhancing sound systems with punchy, reliable bass.
Specifications:
·
· Product Name: Electro-Voice ELX200-12S Passive 12-Inch Subwoofer
· Power Handling:
o Peak: 1600W
o Continuous: 400W
· Maximum SPL: 132 dB peak (half-space measurement)
· Frequency Response:
o (-3 dB): 49 Hz - 200 Hz
o (-10 dB): 41 Hz - 250 Hz
· Transducer: 12" EVS-12L woofer (305 mm)
· Impedance: 8 ohms nominal
· Sensitivity: 94 dB (1W/1m, half-space)
· Connectors: Dual NL4 Speakon inputs
· Enclosure: 15-mm plywood with internal bracing, durable polyurea top-coat finish
· Grille: 18 AWG steel with a powder coat
· Mounting: Integrated M20 threaded pole mount plate
· Dimensions: 397 mm x 445 mm x 457 mm (15.6" x 17.5" x 18")
· Weight: 19.1 kg (42.1 lbs)
· Shipping Weight: 23.2 kg (51.1 lbs)
Key features:
· High-Output Woofer: EV-designed 12" EVS-12L driver for superior durability and exceptional bass
· Large Slot Ports: Optimised for low distortion and enhanced low-frequency output
· Lightweight Design: Compact plywood enclosure with internal bracing for easy portability
· Durable Finish: Polyurea top-coat and steel grille ensure long-lasting toughness
· Professional Hardware: M20 pole mount and two-handle design for seamless integration and lifting
Highlights:
· Powerful Bass: Delivers deep lows down to 41 Hz with a 132 dB SPL for impactful sound
· Versatile Compatibility: Passive design pairs with any amplifier or powered system
· Portable & Tough: Lightweight yet robust, ideal for mobile gigs and installations
· EV Engineering: Offers reliable, high-quality audio performance
Product-related questions and answers:
Q: What amplifier should I use with the ELX200-12S?
A: You’ll need an amplifier providing 400W continuous at 8 ohms, with headroom up to 1600W peak. Electro-Voice recommends their CPS or TG series for best performance.
Q: Can I pair this unit with active speakers?
A: Yes, it works with active tops (e.g., ELX200-12P) if you use an external crossover or the tops’ DSP to split frequencies.
Q: How does it compare to the ELX200-12SP active subwoofer?
A: The ELX200-12S is passive, requiring an external amp, while the ELX200-12SP has a built-in 1200W amp and DSP. The passive version offers more system flexibility but lacks onboard processing.
Q: Is it suitable for outdoor use?
A: Yes, for temporary outdoor gigs, but it’s not weatherproof, protect it from rain and harsh conditions.
Q: How many people can this subwoofer cover in a room?
A: With proper amplification and tops, it can support 200-300 people in a small to medium venue, depending on acoustics.
Q: Does it include cables or a pole?
A: No, it comes standalone, Speakon cables and poles (e.g., ASP-58) are separate purchases.
Q: What warranty does it come with?
A: Electro-Voice typically offers a 3-year warranty on passive speakers, but confirm with DJKit for exact terms.
Q: Can I stack multiple ELX200-12S units?
A: Yes, they can be stacked, but ensure secure placement, as they don’t interlock, side-by-side use is often more stable.
Q: How easy is it to transport?
A: At 19.1 kg (42.1 lbs) with two handles, it’s manageable for one person over short distances, though a trolley helps for longer moves.
Q: Will it distort at high volumes?
A: When paired with a suitable amp within its 1600W peak rating, it provides clean bass up to 132 dB SPL; exceeding this risks distortion or damage.
