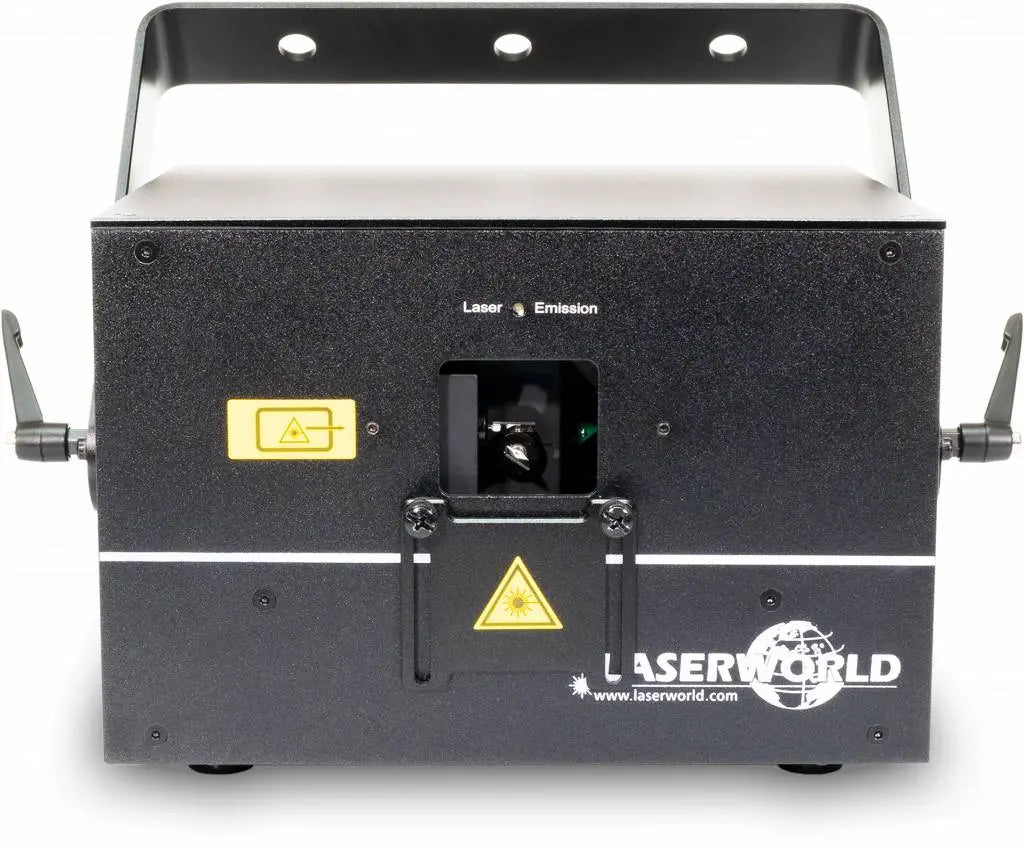

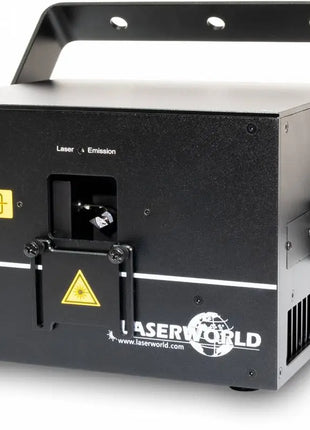

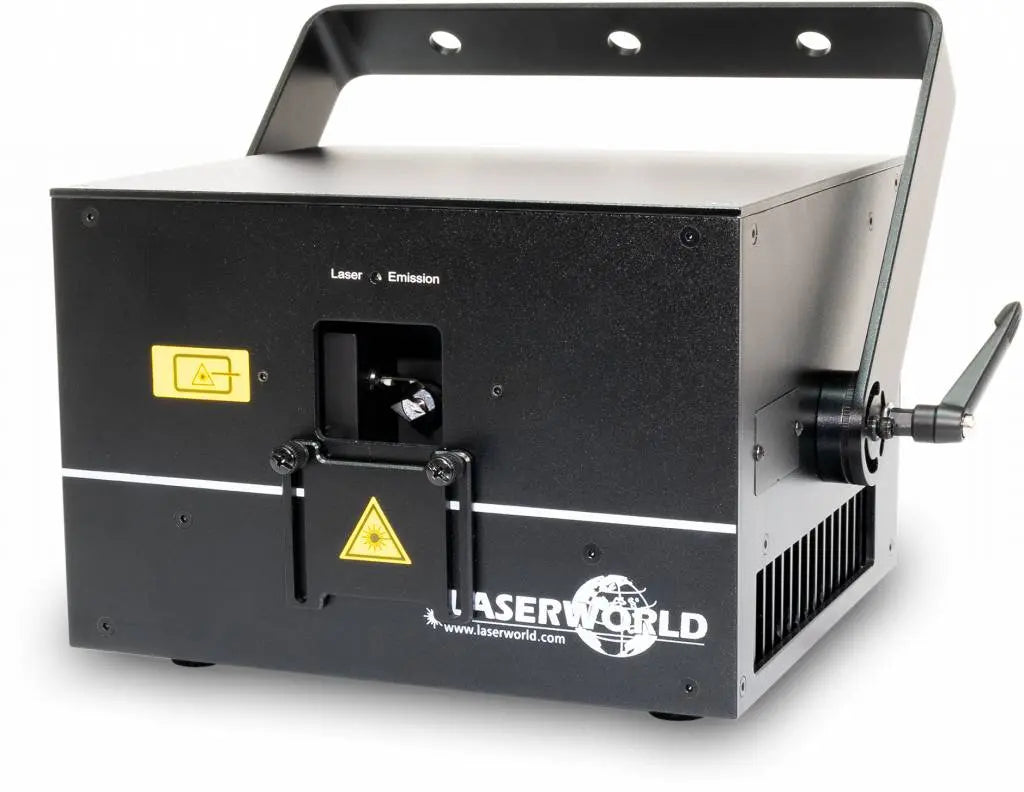

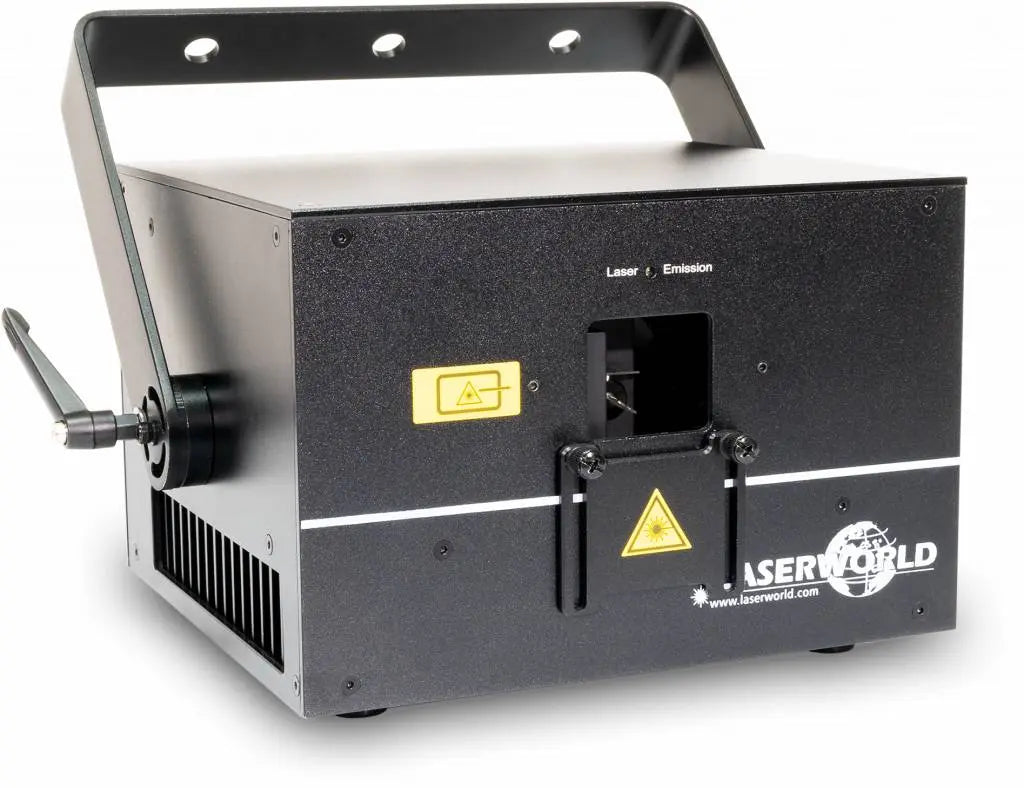

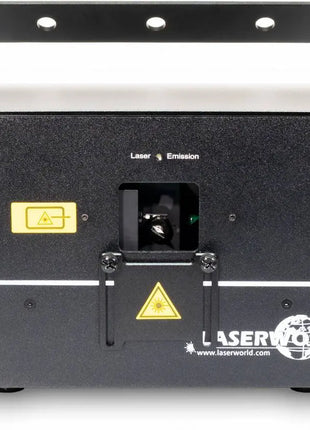

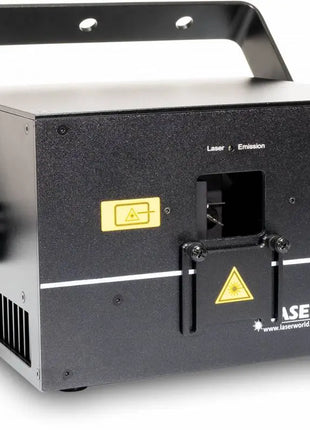

Laserworld DS-2000RGB MK4 - RGB Diode Laser System
The Laserworld DS-2000RGB MK4 is a high-performance RGB diode laser system designed for professional lighting applications. Featuring "Pure Diode" laser sources, exceptional beam specifications, and versatile control options, this unit is ideal for creating stunning laser shows in clubs, events, and installations. With its integrated ShowNET network interface and included Showeditor software, the DS-2000RGB MK4 offers a complete solution for both beginners and experienced laser show designers.
Key Features
Pure Diode Laser Sources:
500 mW 638 nm red diode.
500 mW 520 nm green diode.
1400 mW 450 nm blue diode.
Analog color modulation for vibrant and smooth color mixing.
Exceptional Beam Specifications:
Approximately 4 mm beam diameter.
Low beam divergence of 0.9 mrad.
Scanning speed up to 40 kpps @ 8° ILDA.
Maximum scan angle of 50°.
Versatile Control Options:
Integrated ShowNET network interface for Showcontroller and Showeditor software.
ILDA input for compatibility with other laser control software (Pangolin Quickshow, Beyond, Lasergraph DSP, etc.).
Built-in memory with pre-set patterns (user-editable).
DMX control (DJ mode and Professional mode).
Stand-alone operation.
ArtNET support.
Integrated ShowNET and Free Software:
Includes Showeditor laser control software for creating professional laser shows.
Showcontroller software compatibility (sold separately).
Direct input via ILDA and LAN.
Trigger single frames via ArtNET.
Playback of custom frames and shows from integrated SD card (included).
Robust and Reliable Design:
Sealed housing technology for minimal maintenance.
Integrated and switchable scan safety.
Linking Capabilities:
Link multiple units for synchronized shows.
Technical Specifications
Total Power: 2000 mW (guaranteed)
Laser Sources: Diode (Pure Diode)
Wavelengths: 638 nm (red), 520 nm (green), 450 nm (blue)
Beam Specifications: ca. 4 mm / 0.9 mrad (full angle)
Scanning: Up to 40 kpps @ 8° ILDA
Max. Scan Angle: 50°
Modulation: Analog
Control Modes: Auto, DMX, ArtNET, ILDA, Stand-alone

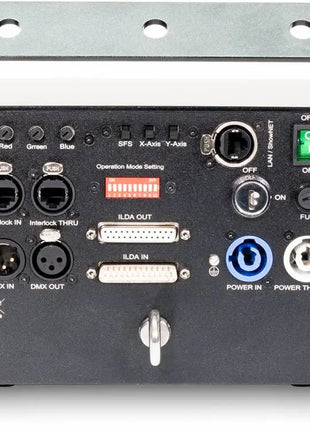

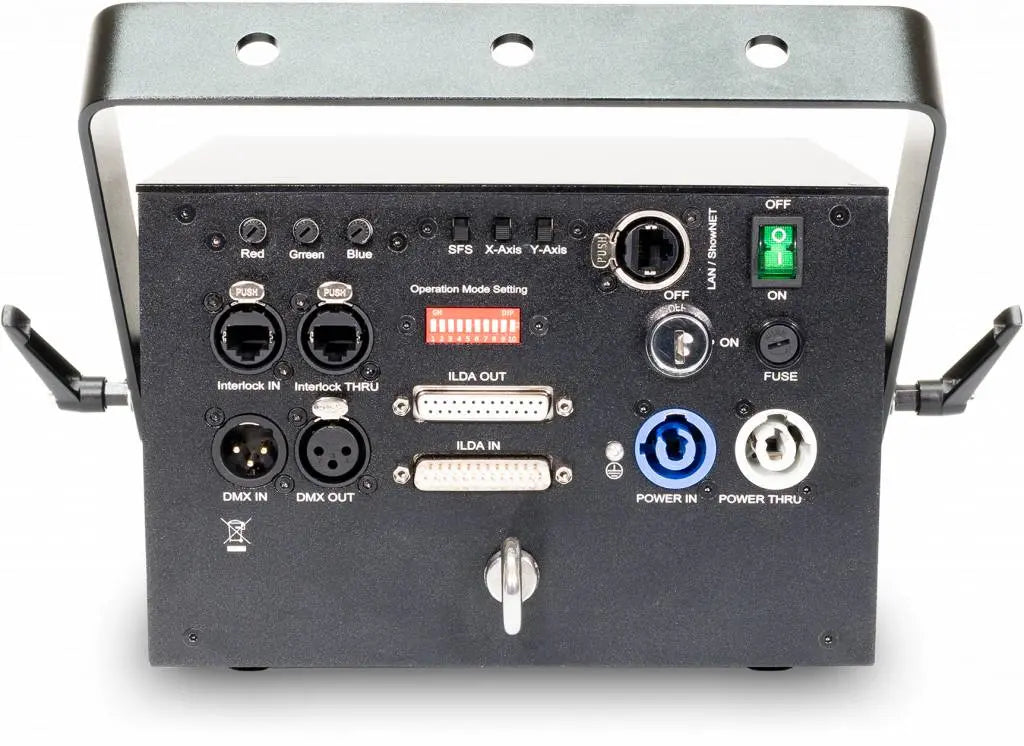

Interfaces: ILDA In/Out, LAN (ShowNET), DMX In/Out, ArtNET
Software: Showeditor (included), Showcontroller (optional)
Safety: Integrated and switchable scan safety
Housing: Sealed Housing Technology
What's in the box
Laserworld DS-2000RGB MK4 Laser System
SD card
Power cord
ILDA cable
LAN cable
Quick Start Guide
Showeditor laser control software (download)
