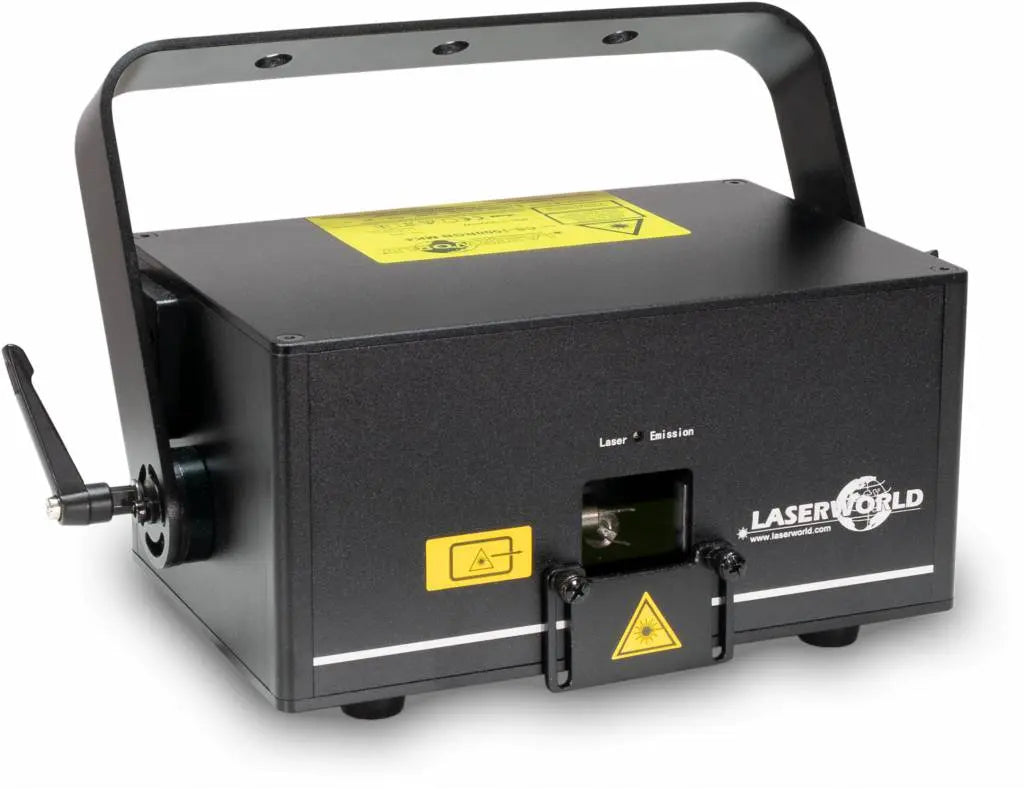

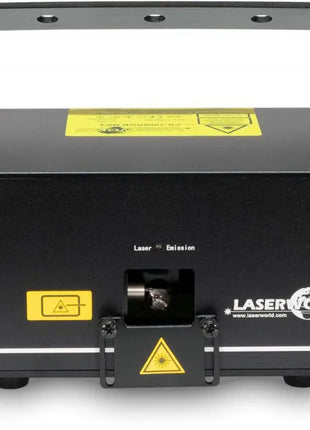

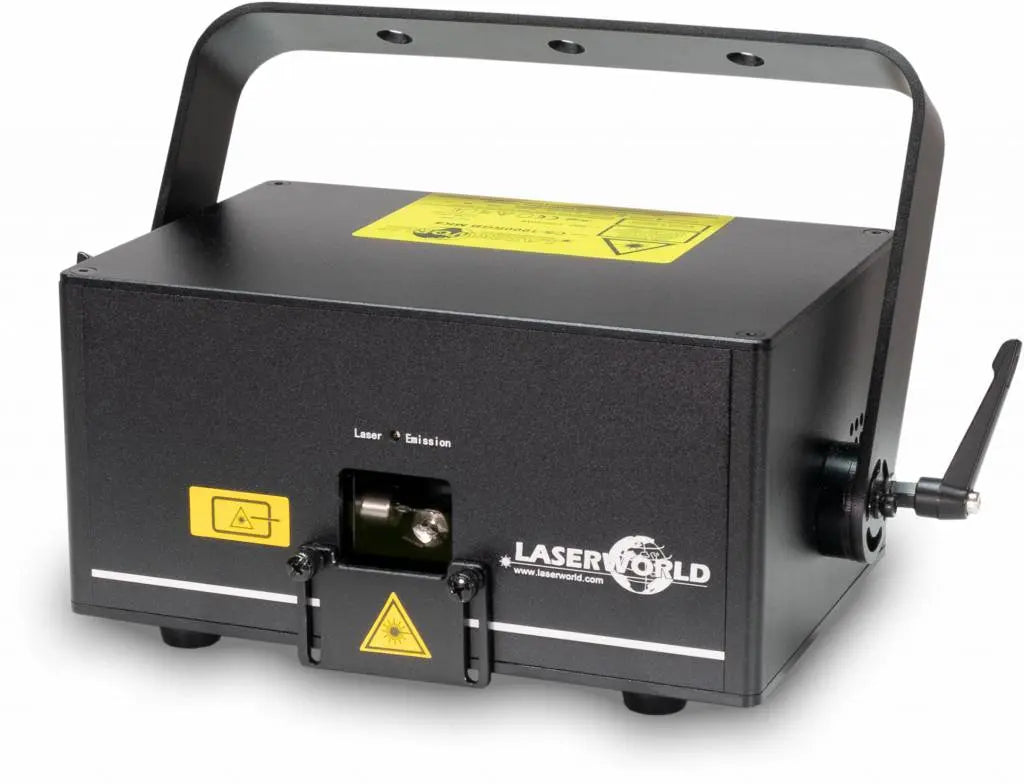

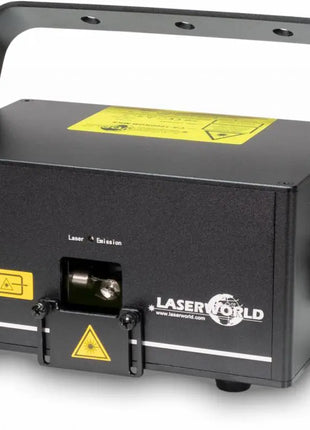

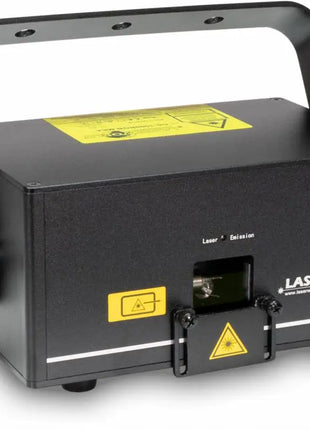

The Laserworld CS-1000RGB MK4 is a compact and versatile RGB diode laser projector designed for small to semi-professional applications. Its lightweight and robust housing, combined with flexible mounting options, make it ideal for mobile DJs, clubs, bars, and private use. With its analog modulation and diverse control options, including DMX, automatic, sound-to-light, master-slave, and ILDA, the CS-1000RGB MK4 allows for the creation of dynamic and colorful laser shows.
-
Compact and Lightweight Design: Features a newly designed housing with a stable bracket for versatile mounting, suitable for hanging or standing installations.
-
Pure Diode RGB Laser System: Analog modulated multi-color RGB laser system with a total output power up to 800 mW (guaranteed). Includes a 200 mW 650 nm red diode, 70 mW 520 nm green diode, and 530 mW 450 nm royal-blue diode for brilliant colors and powerful laser beams.
-
Good Beam Specifications: Offers approximately 4 mm beam diameter and 1.1 mrad beam divergence.
-
Fast Scanning Speed: Achieves 28 kpps at 8° ILDA scanning speed.
-
Versatile Control Options: Supports DMX control, automatic mode with pre-programmed patterns, sound-to-light mode, master-slave mode for synchronized shows, and an ILDA interface for computer control.
-
Adjustable Settings: Allows adjustable pattern size (X and Y axis) and adjustable microphone sensitivity.
-

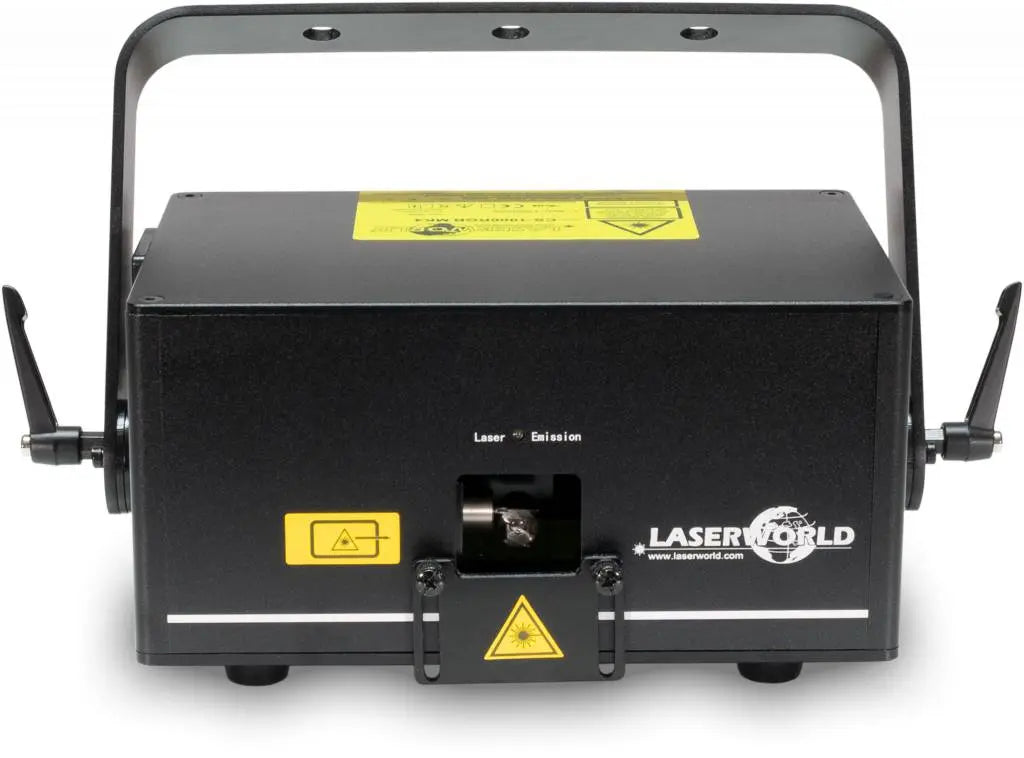

Advanced Safety Features: Includes a key switch, interlock connector, on/off switch, and a front panel laser beam masking plate.
-
Basic Graphics Capability: Capable of displaying basic graphics, texts, and logos.
-
Extensive Color Palette: Can produce several hundred colors, including white.
-
Low Maintenance: Features a sealed optical compartment with separate cooling fins for reduced maintenance.
-
Flexible Mounting: Comes with a 360° mounting bracket.
-
Total Power: 800 mW (guaranteed)
-
Laser Sources: Diode (Pure Diode)
-
Wavelengths: 650 nm (red), 520 nm (green), 450 nm (royal-blue)
-
Beam Specifications: ca. 4 mm / 1.1 mrad
-
Scanning: 28 kpps @ 8° ILDA
-
Control Modes: DMX, Automatic, Sound-to-light, Master-slave, ILDA
-

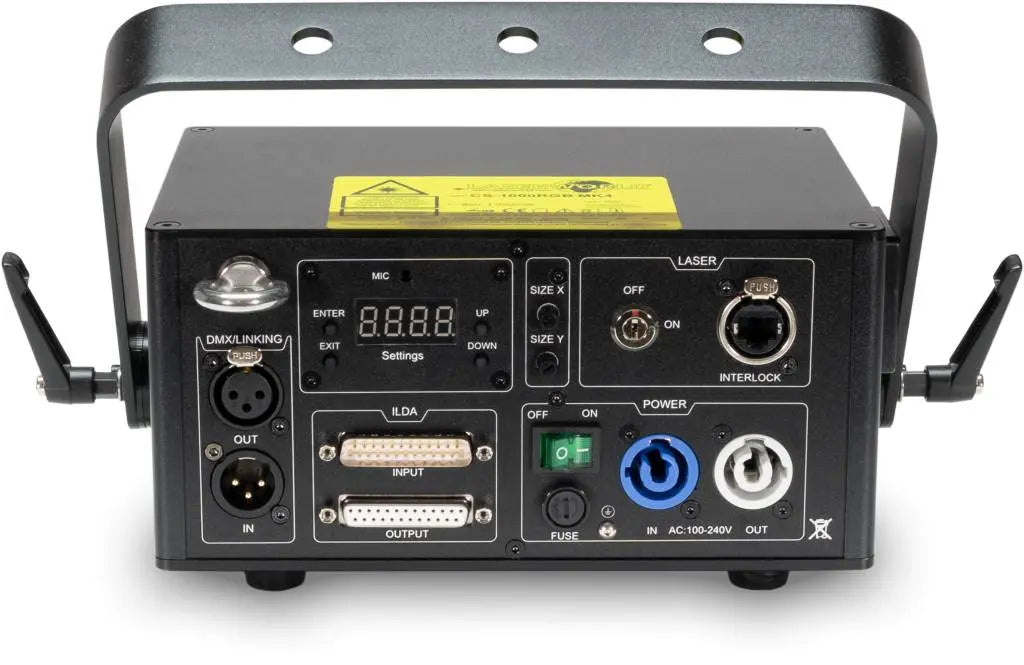

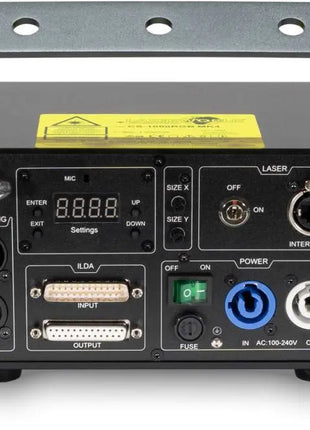

Interfaces: DMX In/Out, ILDA In/Out
-
Safety: Key switch, interlock connector, on/off switch
-
Mounting: 360° mounting bracket
