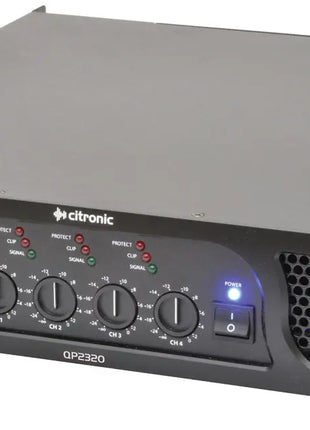

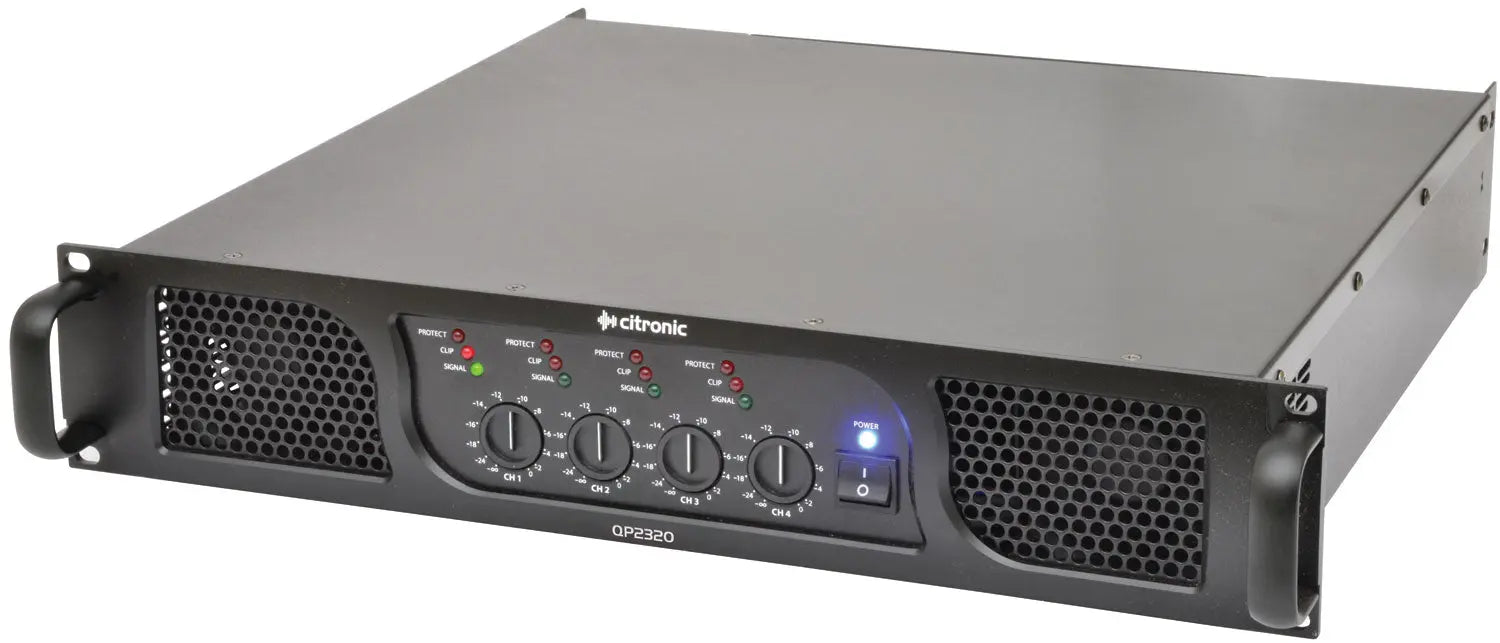

A range of quad power amplifiers with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.
Fully balanced signal path
Stable down to 2 Ohms
2U rack-mountable
Power supply 230Vac, 50Hz (IEC)
Controls 4 x channel gain
Dimensions 483 x 439 x 88mm

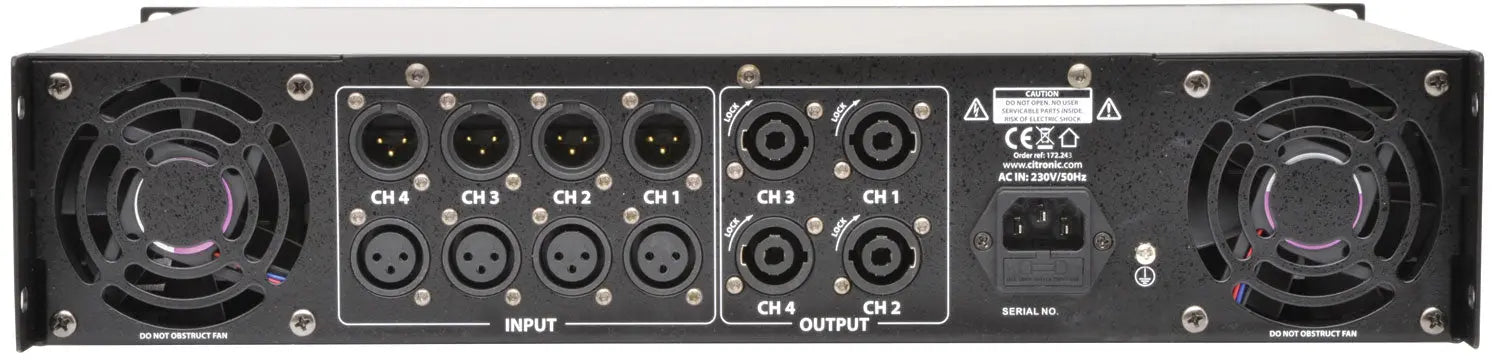

Input : line 4 x XLRF balanced
Output : line 4 x XLRM (parallel from inputs)
Speaker : outputs 4 x SPK connectors
Input impedance 20k Ohms
Frequency response 5Hz - 50kHz
THD 0.05%
Slew rate 40V/usec
S/N ratio 103dB
Circuit protection Short-circuit, DC, overload, soft-start
Input sensitivity 0dB @ 0.775Vrms
