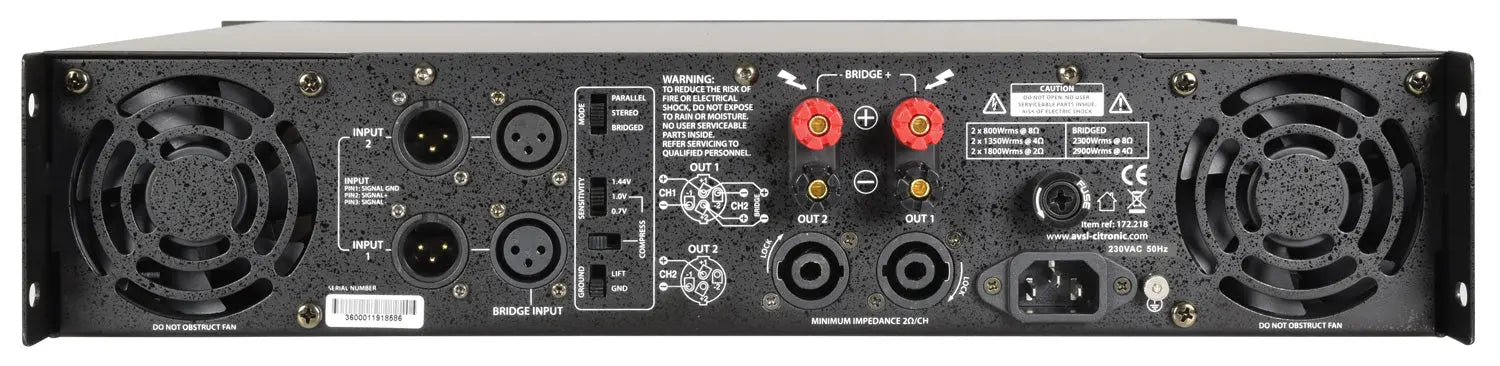

19" rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.
Bridge mode for high power mono operation
Output stable down to 2 Ohms
Switchable clip limiter
Power supply 230Vac, 50Hz (IEC)
Controls Level channel 1, level channel 2, ground, mode, clip limiter
Input impedance 20k ohms
Frequency response 5Hz - 50kHz
Total harmonic distortion 0.05%
Slew rate 40V/us
Damping factor >400
Protection Short-circuit, overload, D.C. and thermal protect
Dimensions 482 x 453 x 88mm (2U)
