2.1 power amplifiers with 2 channels for mid-top cabinets and a single high power sub output with integral active crossover. Designed as a cost effective and efficient solution for bi-amplified sound systems where subs and top cabinets are run together from this single amplifier.
Mono summed sub output (can be full range)
Active crossover with variable frequency
Stereo full range output

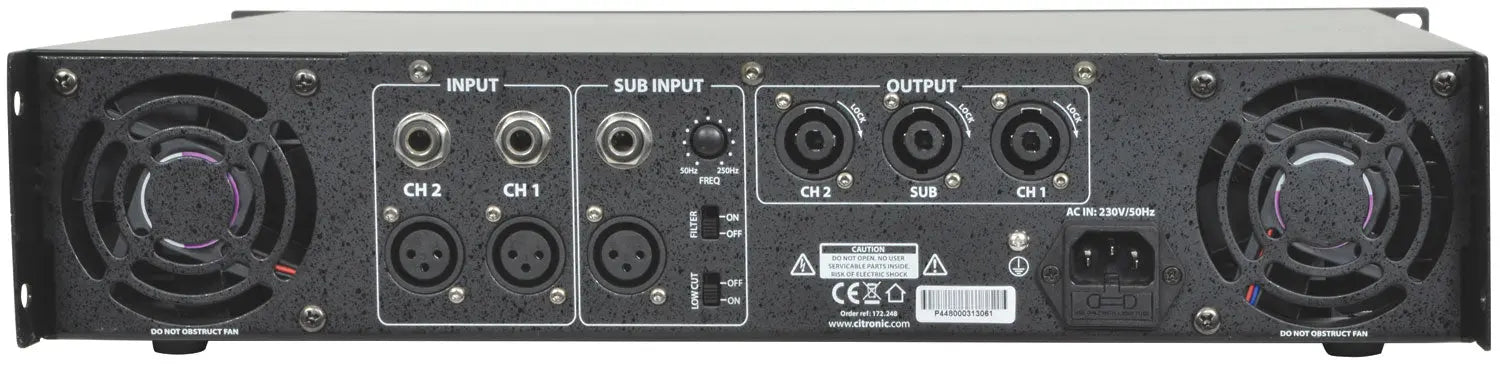

Connections 3 x XLRF, 3 x jack, 3 x SPK
Cut-off frequency 50 - 250Hz (12dB/oct)
Dimensions 483 x 439 x 88mm
Power supply 240Vac, 50Hz (IEC)
Controls 3 x channel level + crossover frequency
Input impedance (balanced/unbalanced) 40k Ohms / 20k Ohms
Damping factor >250 (20-400Hz @ 8 Ohms)
Slew rate 6.5V/us
Frequency response 10Hz - 50kHz (-2dB)
THD +N 0.04%
Signal to noise ratio 86dB
Low-cut filter 30Hz fixed (12dB/oct)
