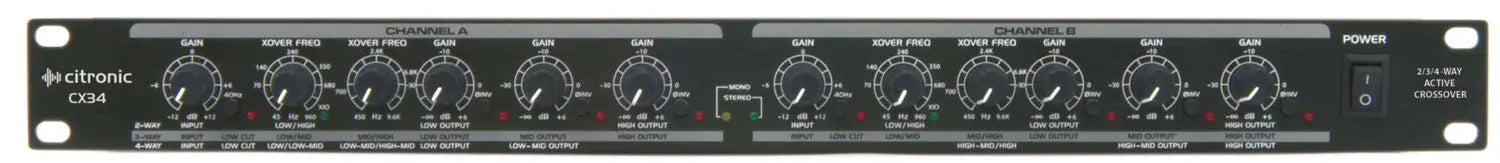

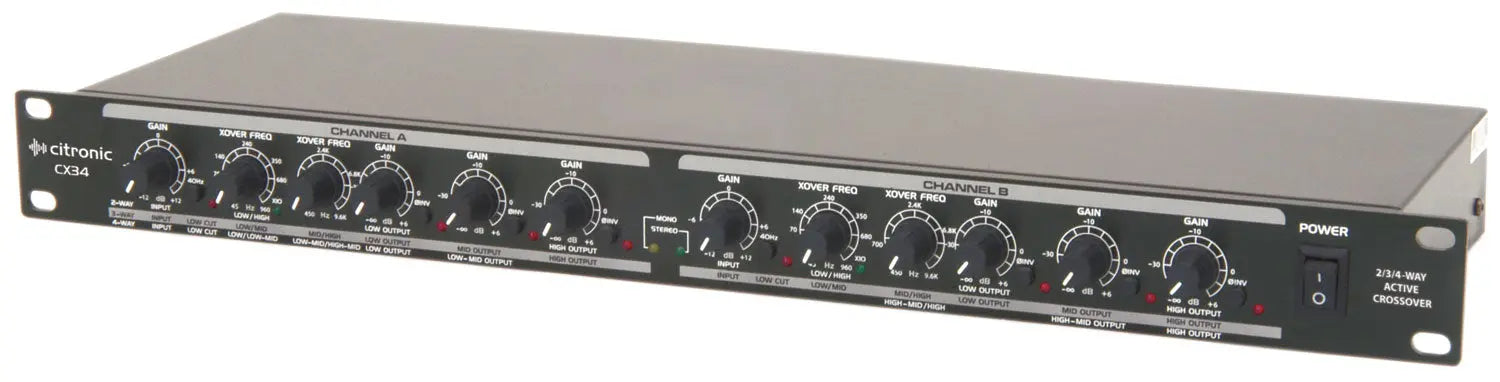

The CX34 is a 2 or 3-way stereo or 4-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs. This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.
2 or 3-way stereo, 4-way mono crossover
19" rack mountable
Linkwitz-Riley 24dB/octave, state variable
Continuously adjustable cutoff frequencies
40Hz ultra-low frequency cut
Phase invert function

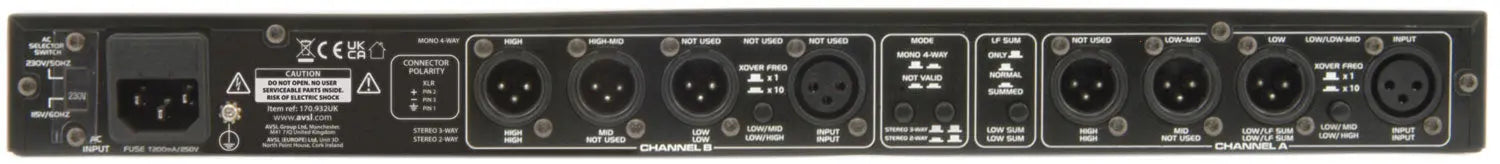

Inputs and outputs via XLR
Power supply 115/230Vac, 50/60Hz (IEC)
Input impedance : balanced 50k ohms
Input impedance : unbalanced 25k ohms
Output impedance 200 ohms
Crossover ranges 45-960Hz (switchable 10x) or 450Hz-9.6kHz
Filter slope 24dB/octave
Frequency response 20Hz - 20KHz, +0/-0.5dB
Signal to noise ratio >90dB
THD <0.004% @ +4dBu, 1kHz
Dimensions 482 x 44 x 170mm
Weight 2.5kg
