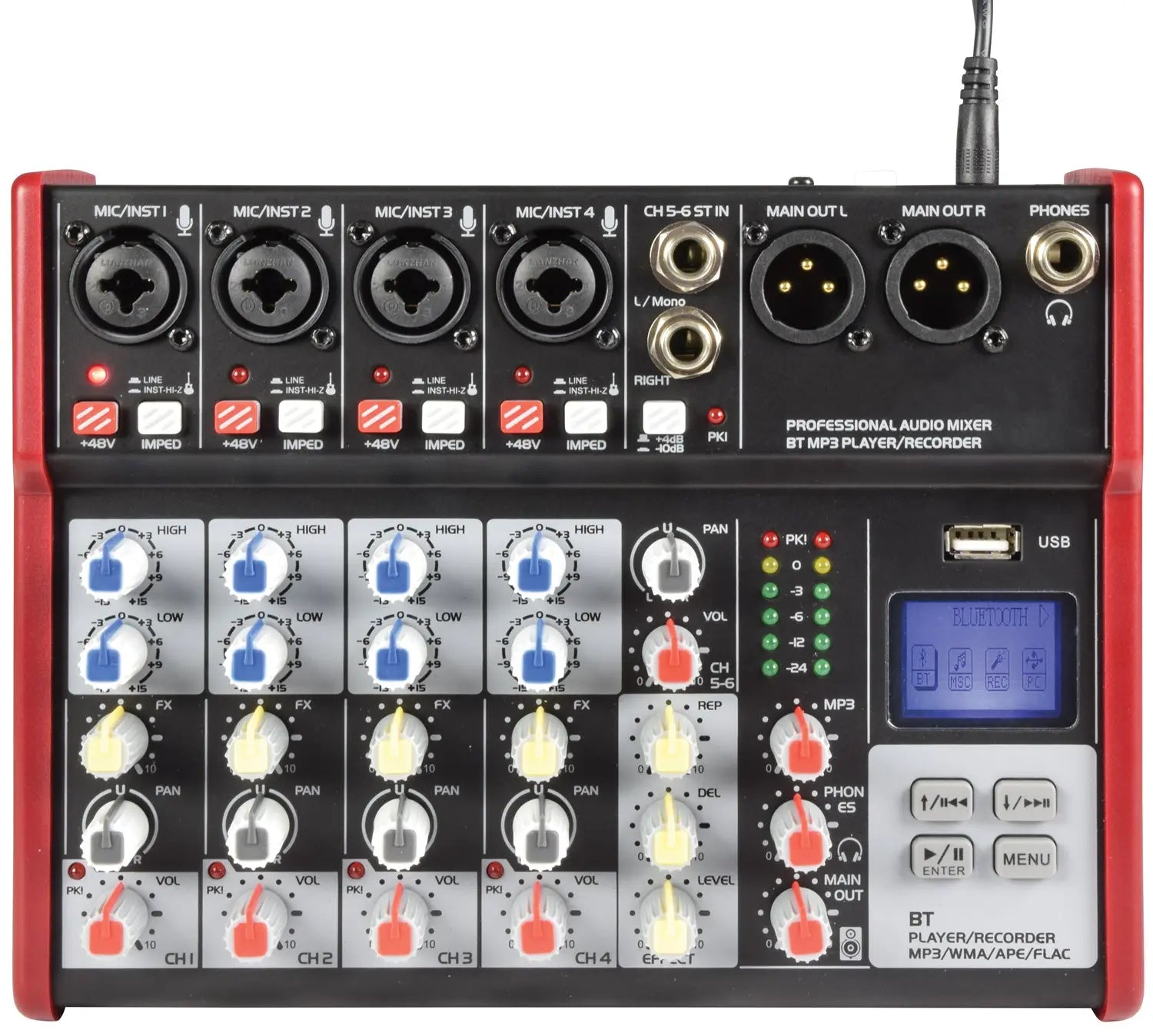

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.
Integral USB multi-format audio player
BT wireless connectivity
Supplied with DC power adaptor
Built in record function
Digital delay effect for vocals or instruments
Individually switchable +48V phantom power
Power supply 5Vdc 1A (adaptor included)
Output Left + Right balanced XLR
Phantom power +48V individually switchable (XLR inputs only)
Audio format USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)
Bluetooth version 2.1 + EDR
Power consumption max. 5W
Max. output level 3Vrms
Dynamic range 102dB
Frequency response 20Hz - 20kHz (±0.5B)
THD +N <0.03% @ 1kHz
Crosstalk : stereo 92dB
Gain -14 to +40dB
EQ: low ±15dB @ 80Hz
EQ: high ±15dB @ 12kHz
Audio source Internal USB player/recorder & BT receiver
Input impedance : mic 2k Ohms
Input impedance : instrument 1M Ohms
Input impedance : line 20k Ohms
Output impedance 120 Ohms
