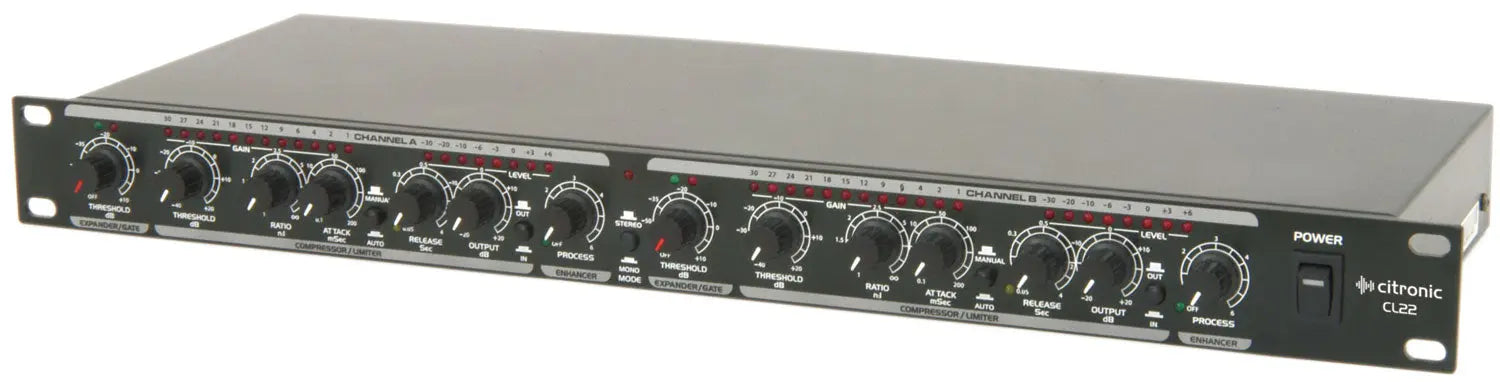

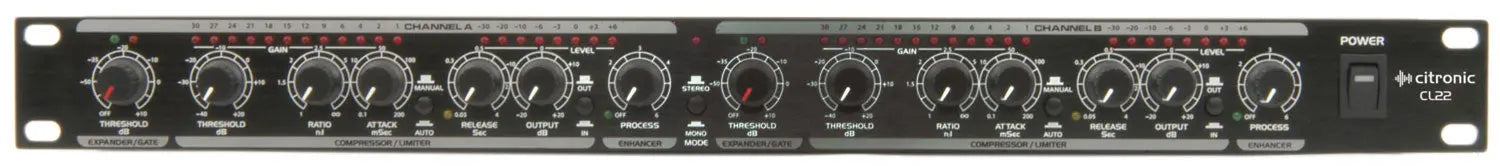

The CL22 is a professional 19" compressor/limiter/gate designed to control the dynamic range of the signal, allowing more overall sound volume before distortion. An enhancer on each channel helps restore high frequencies under heavy compression. Also useful for protecting loudspeakers by curtailing the output once it reaches a preset threshold level. The gate helps to reduce noise in silent passages.
Dual or stereo linked compressor/limiter
Expander/gate on each channel
Variable or Auto attack/release times
Enhancer on each channel

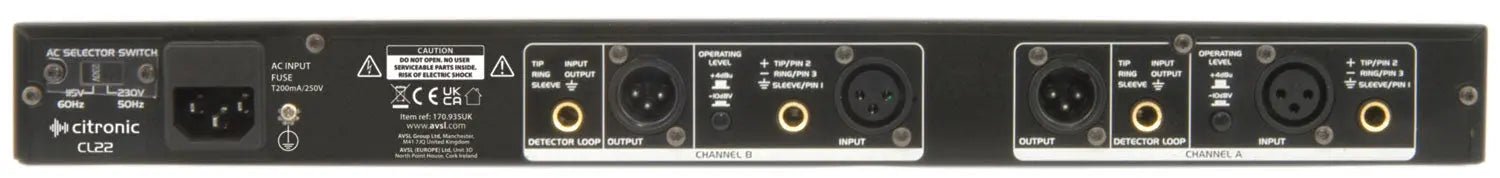

Balanced and unbalanced inputs and outputs
Bypass switch for processed/unprocessed comparison
LED attenuation meters
Power supply 115/230Vac, 50/60Hz (IEC)
Connectors : bal/unbal XLR or 6.3mm jack inputs and outputs L+R
Input impedance : balanced 50k Ohms
Input impedance : unbalanced 25k Ohms
Output impedance 60 Ohms
Operating level +4dBu/-10dBV, switchable
Frequency response 20Hz-20kHz (+0/-0.5dB)
Signal to noise ratio >95dBu
Crosstalk <100dB
THD 0.04% @ +4dBu 1kHz
Dimensions 482 x 44 x 180mm
Weight 3.2kg
