Citronic CDM8:4 USB | 4-Channel 19" Rackmount DJ Mixer
The ultimate workhorse for mobile performers. The Citronic CDM8:4 USB is engineered for versatility and reliability. Featuring 14 inputs across 4 stereo channels, this mixer handles everything from traditional turntables and CD players to modern MP3 players and laptops. Its standout feature is the dual USB audio interface, which allows for simultaneous playback and high-quality digital recording. For karaoke hosts and mobile entertainers, the three dedicated microphone inputs—complete with independent EQ and a built-in digital delay—ensure professional vocal clarity and effects without the need for external processors.
Why Choose the CDM8:4 USB?
-
14-Input Versatility: 2 Phono, 6 Line, 2 USB, 1 Aux (3.5mm), and 3 Microphone inputs provide massive connectivity for any setup.
-
Integrated USB Audio Interface: Easily playback tracks from your PC/Mac or record your live sets directly to your hard drive.
-
Dedicated Vocal Section: Includes a DJ mic input plus two additional vocal mic inputs with Hi/Lo EQ and internal digital delay for karaoke.
-
Professional 3-Band EQ: Every stereo channel features a full 3-band EQ (-30dB to +10dB) for precise tonal shaping and creative mixing.
-
Remote Fader Start: Compatible stereo channels can be triggered remotely via the mixer's faders for tight, professional transitions.
-
Built for the Booth: Standard 19" (4U) rack-mount design with a 12V BNC output to power a console light for dark environments.
Professional Control and Routing
Flexible Crossfader Management The CDM8:4 features a 45mm rail-glide replaceable crossfader. Every channel can be assigned to either the A or B side of the crossfader, or defeated entirely for those who prefer mixing solely on the channel faders. This flexibility makes it ideal for both rhythmic scratching and smooth, long-form transitions.
Superior Vocal Effects Unlike standard DJ mixers, the CDM8:4 is built with vocalists in mind. The internal digital delay (echo) can be applied to the two vocal microphone channels, adding professional depth to karaoke performances or announcements. If you prefer your own outboard gear, the integrated FX loop allows for seamless connection to external processors.
Technical Specifications
-
Format: 19-inch Rackmount (4U)
-
Channels: 4 Stereo Channels + 3 Mic Channels
-
Inputs: 2 x Phono (RCA), 6 x Line (RCA), 3 x Mic (6.3mm/XLR), 2 x USB (In/Out), 1 x Aux (3.5mm)
-

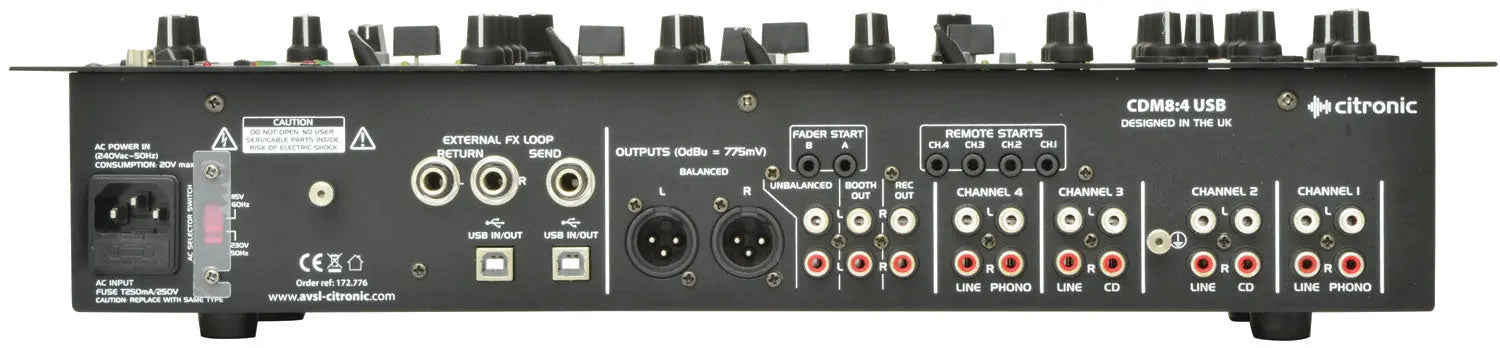

Outputs: Master (Balanced XLR & Unbalanced RCA), Booth (RCA), Rec (RCA)
-
Equaliser (Stereo): Bass (-30/+10dB @ 100Hz), Mid (-30/+10dB @ 800Hz), Treble (-30/+10dB @ 9kHz)
-
Microphone EQ: Hi/Lo EQ for each mic channel
-
Crossfader: 45mm rail-glide (Replaceable)
-
USB Version: 2.0
-
Console Light Power: 12Vdc (BNC)
-

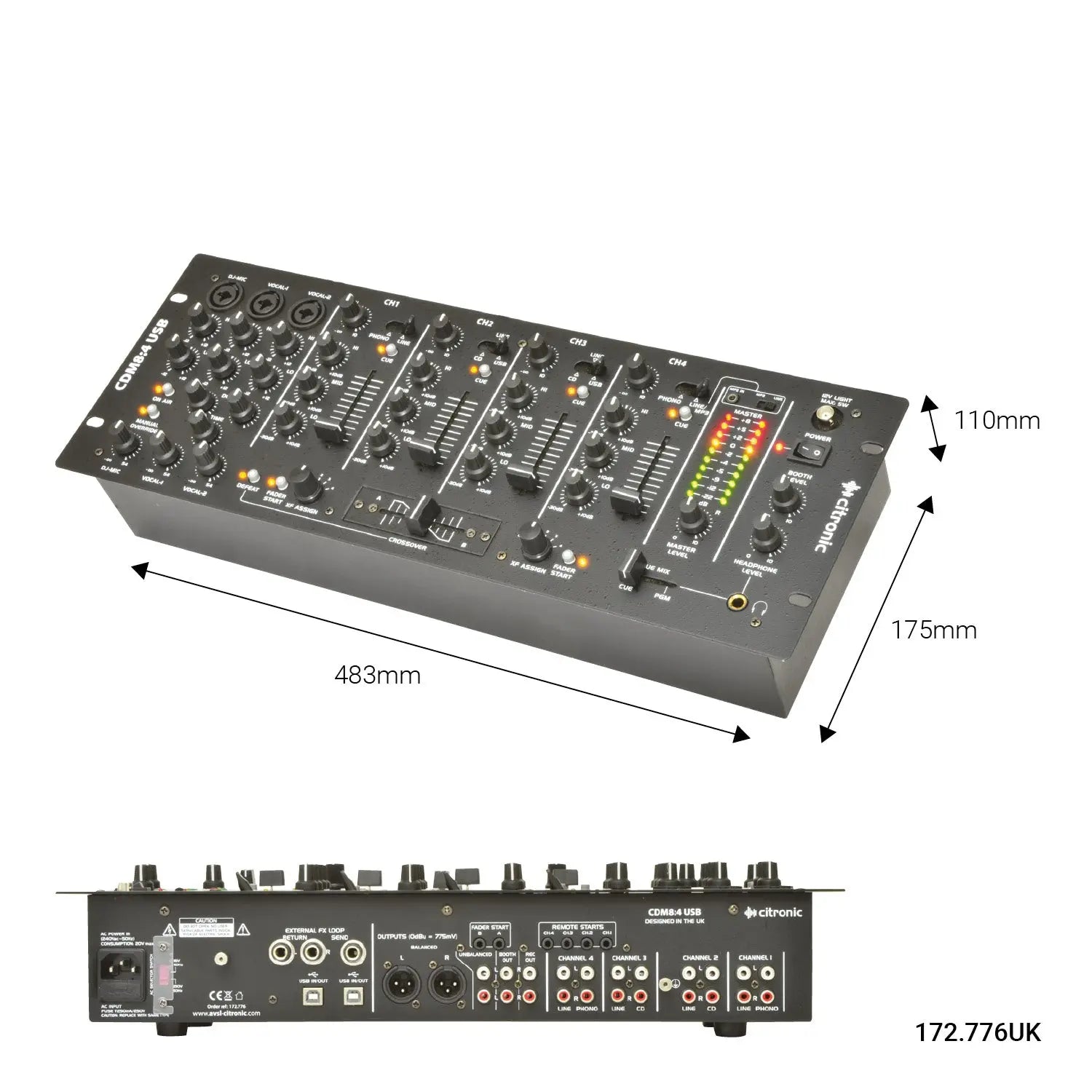

Dimensions: 483 x 175 x 110 mm
-
Weight: 4.1 kg
Frequently Asked Questions
Can I record my mix directly to my computer? Yes. By connecting the USB output to your computer, you can use standard recording software to capture the entire master output of the mixer in high-quality digital audio.
Does the talk-over feature work on all mics? The "Manual Override" (Talk-over) function is specifically designed for the DJ Mic channel, allowing you to automatically drop the music level by a fixed amount when you speak over the mix.
Is this mixer compatible with standard rack cases? Absolutely. It is a standard 19-inch width and takes up 4U of height, making it compatible with almost all professional flight cases and studio racks.
