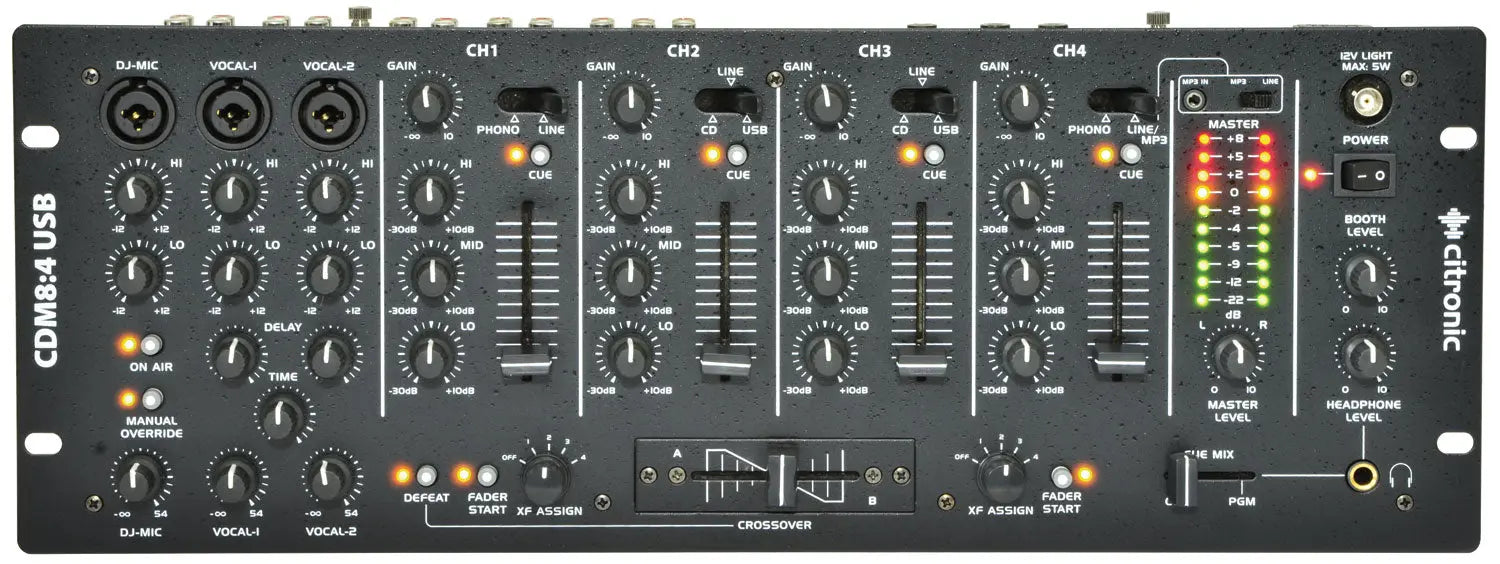

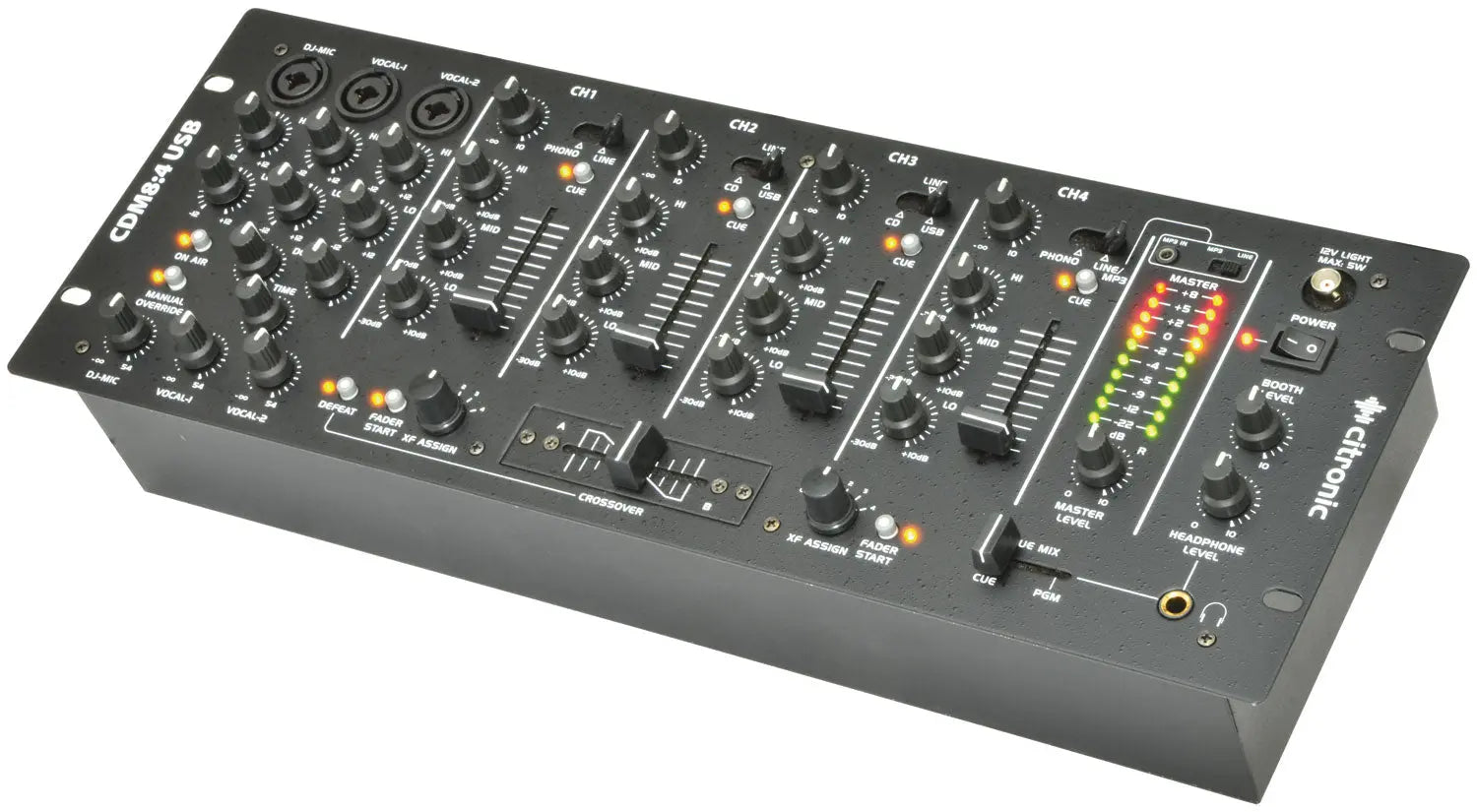

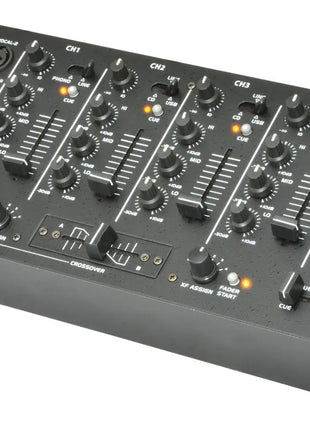

This 14 input, 4 channel professional DJ mixer is ideal for mobile use and installations. Each channel has 3 band EQ with individual volume control that can be assigned to either side of the crossfader or cue mix fader. It features USB IN/OUT for playback or recording, and there are 3 x microphone inputs, great for karaoke and DJ set-ups.
45mm rail glide replaceable crossfader with defeat and assign channels

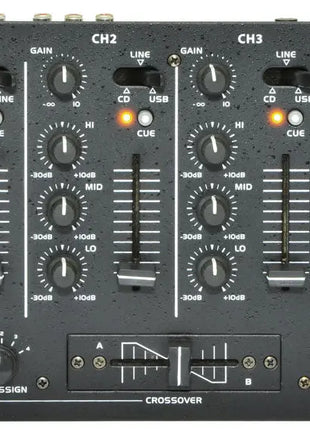

3-band EQ on all stereo channels
Remote fader starts on stereo channels
DJ mic + 2 vocal mic inputs for karaoke
Internal digital delay or FX loop for vocal mics
3.5mm input option for patching in an MP3 player
Individual gain controls on each music channel
Hi/Lo EQ for each mic channel
12Vdc BNC output for console light

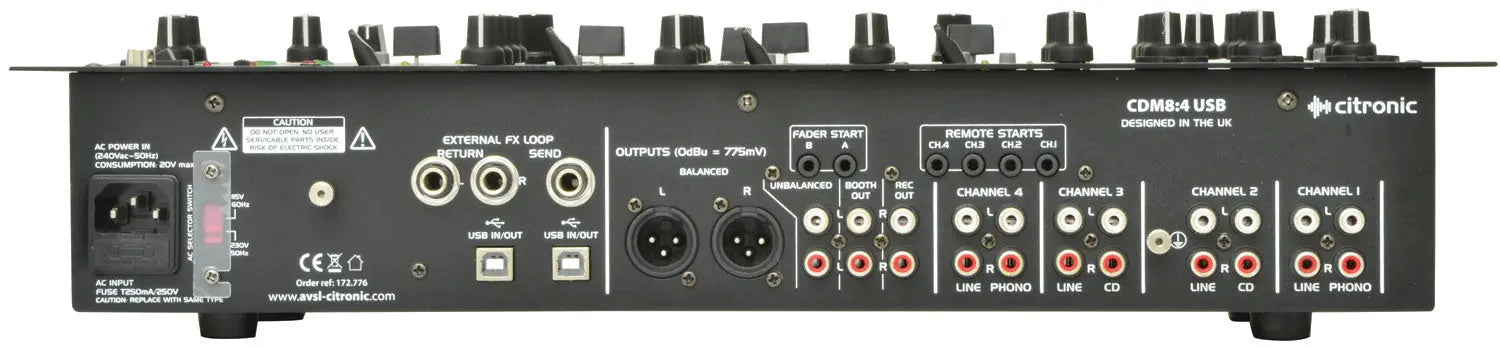

2 x phono, 6 x line, 2 x USB IN/OUT, 1 x 3.5mm jack and 3 x microphone inputs
Power supply 115/230Vac, 50/60Hz (IEC)
Equaliser : bass -30 +10dB @ 100Hz
Equaliser : midrange -30 +10dB @ 800Hz
Equaliser : treble -30 +10dB @ 9kHz
Signal to noise ratio : line >87dB
Signal to noise ratio : mic 68dB
Signal to noise ratio : phono 73dB
Headphone output 112mV @ 32 Ohms
Console light power 12Vdc 5W max (BNC)

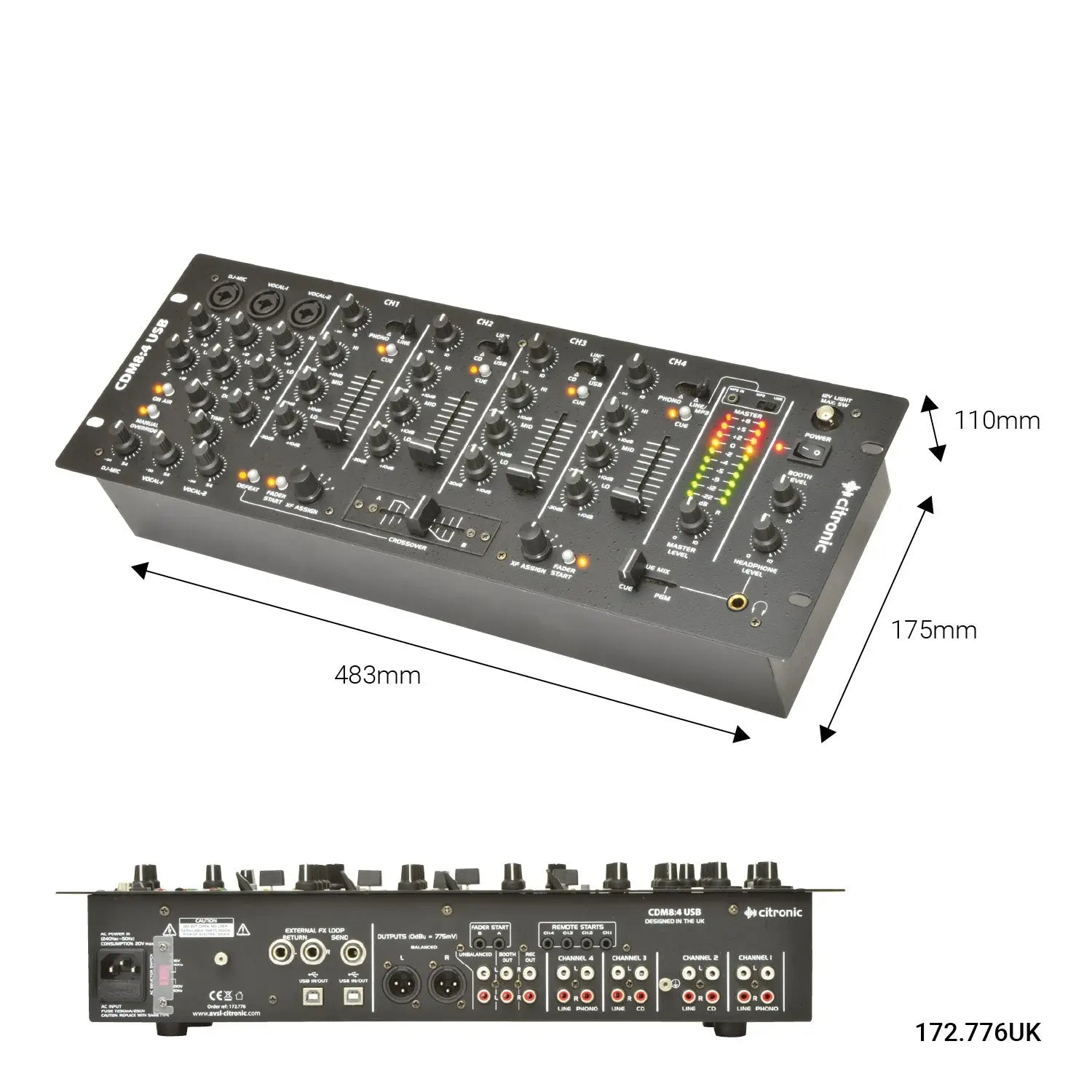

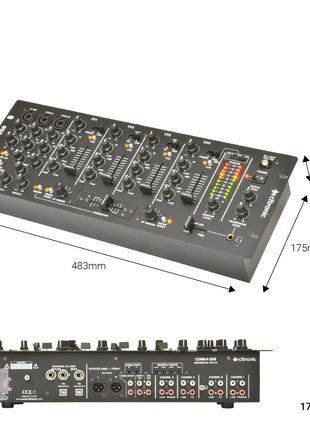

Dimensions 483 x 175 x 110mm (4U)
Weight 4.06kg
