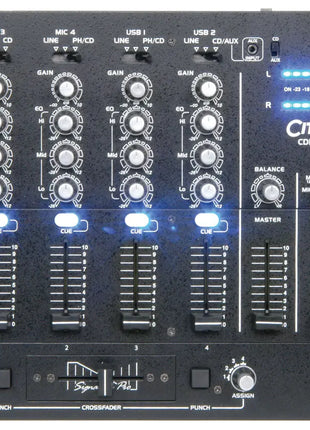

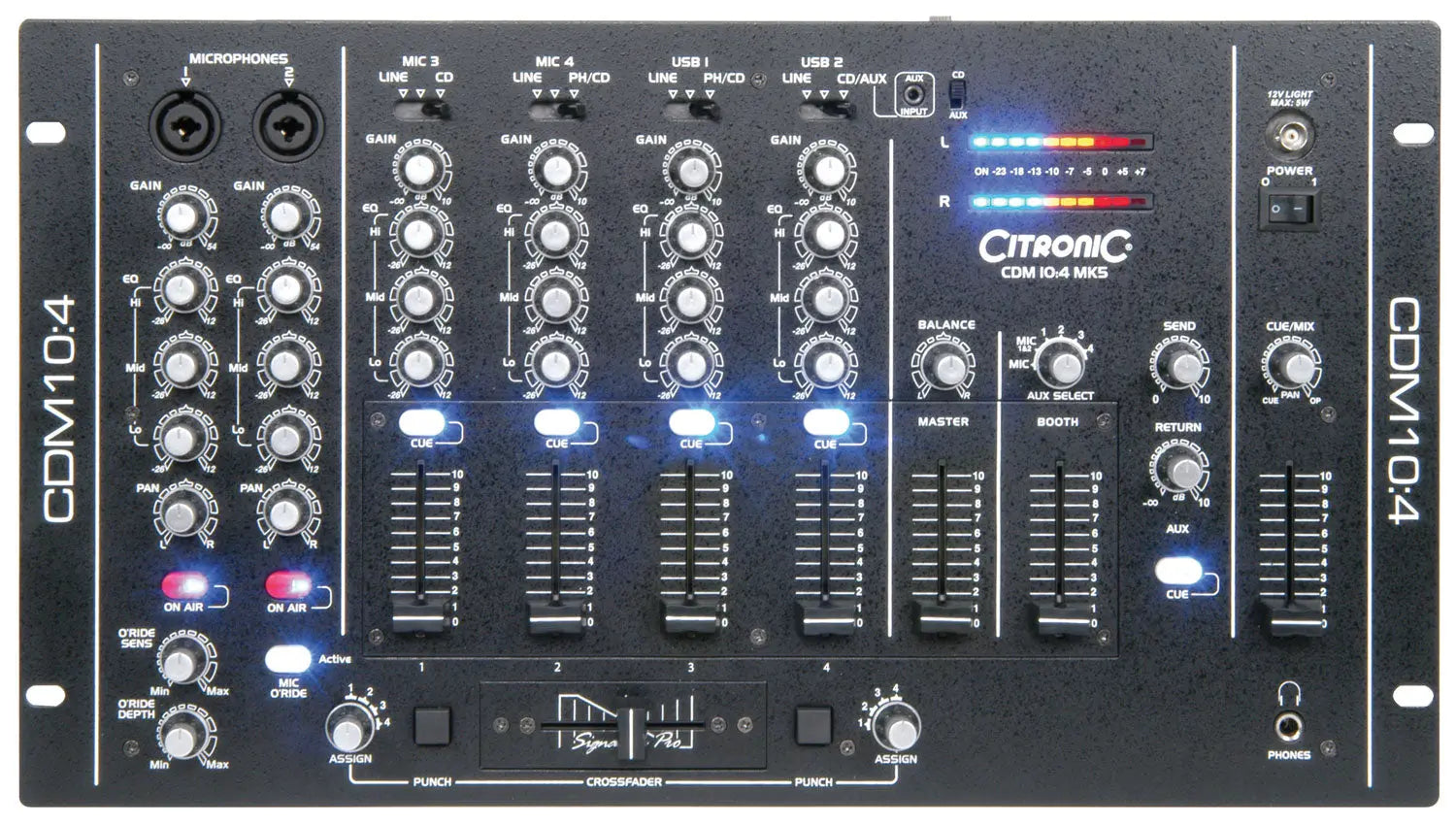

A classic mixer the Citronic CDM10:4 has always been the choice of the working DJ, with a simple layout that is packed with all the features you need. The MKV version comes with connectivity through USB and an additional auxiliary input on the top panel for external sound sources such as MP3 player.
4 channel, 17 inputs
2 dedicated balanced mic channels with 3-band EQ
Mic override facility for DJ mics
2 auxiliary mics on channels 1 and 2
8 CD/line inputs (2 switchable to phono)
Top panel 3.5mm aux input for MP3 player
2 USB input/outputs for channels 3 and 4
Fully assignable VCA crossfader
Punch buttons
Hotswap channel faders
Individual gain control per channel
3-band EQ with total kill
Fully assignable send and return
10-bar LED monitor display
12V BNC light socket (light not supplied, 173.501 recommended)

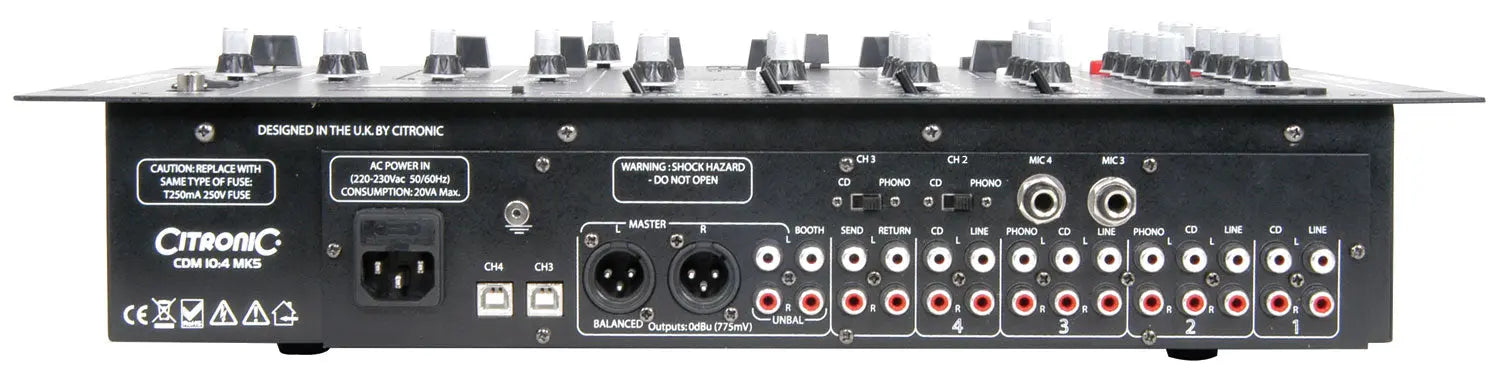

Booth output
Balanced XLR and unbalanced RCA outputs
Rotatable back panel for convenient installation
19" (6U) rack mountable
Power supply 220-230Vac, 50/60Hz (IEC)
Cutout 440 x 250mm
Equaliser : bass +12dB, -26dB @ 100Hz
Equaliser : midrange +12dB, -26dB @ 800Hz
Equaliser : treble +12dB, -26dB @ 9kHz
Headphone output 112mV @ 32 Ohms
Input : line 195mV, 50k Ohms
Input : mic 1.5mV, 2k Ohms
Input : phono 4mV, 47k Ohms
Signal to noise ratio : line >87dB
Signal to noise ratio : mic 68dB
Signal to noise ratio : phono 73dB
Dimensions 483 x 266 x 80mm (6U)
Weight 5kg
Fuse rating T250mA (240V) / T500mA (110V)
