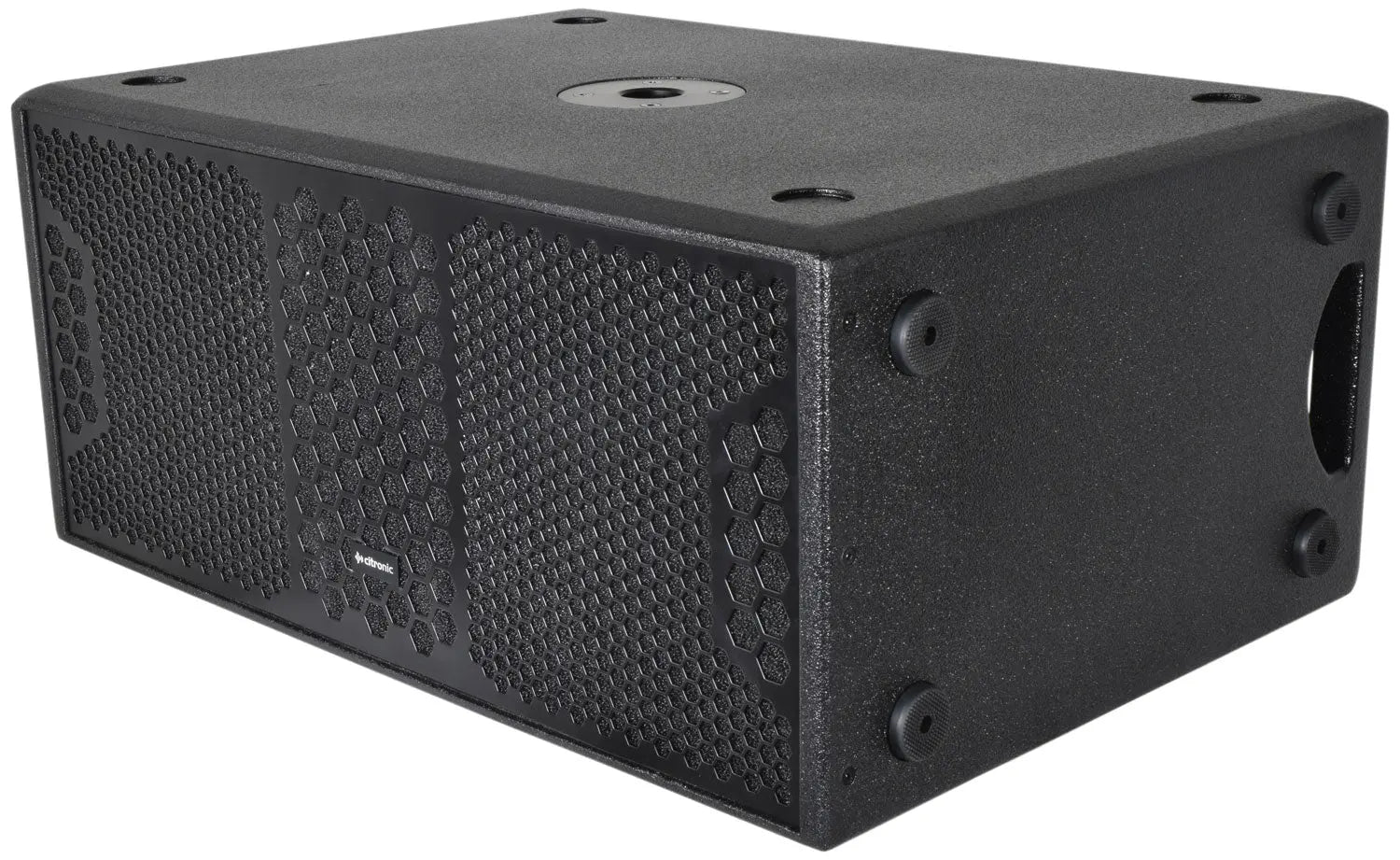

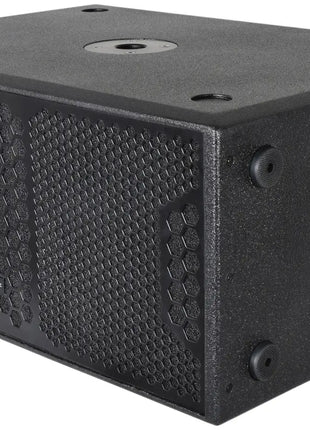

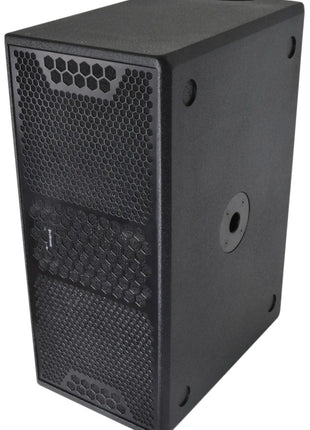

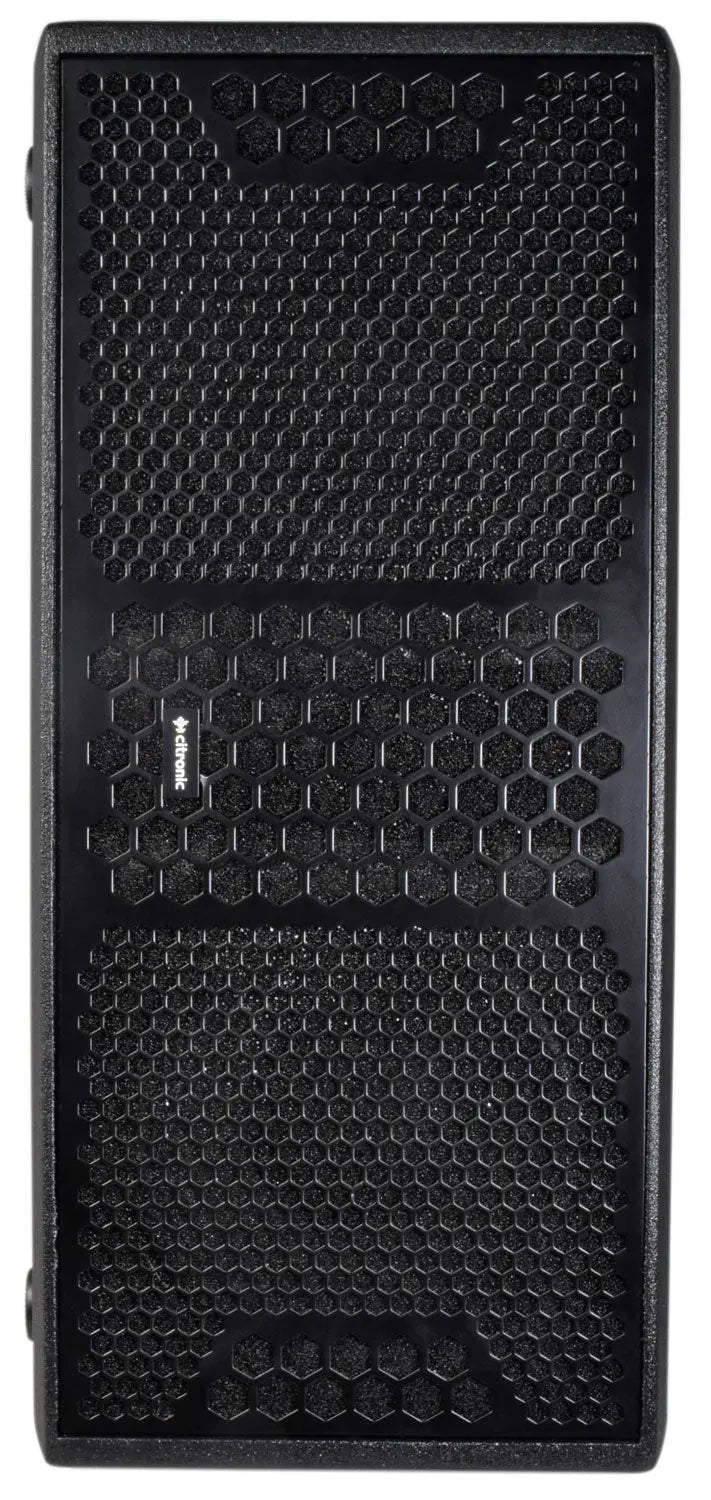

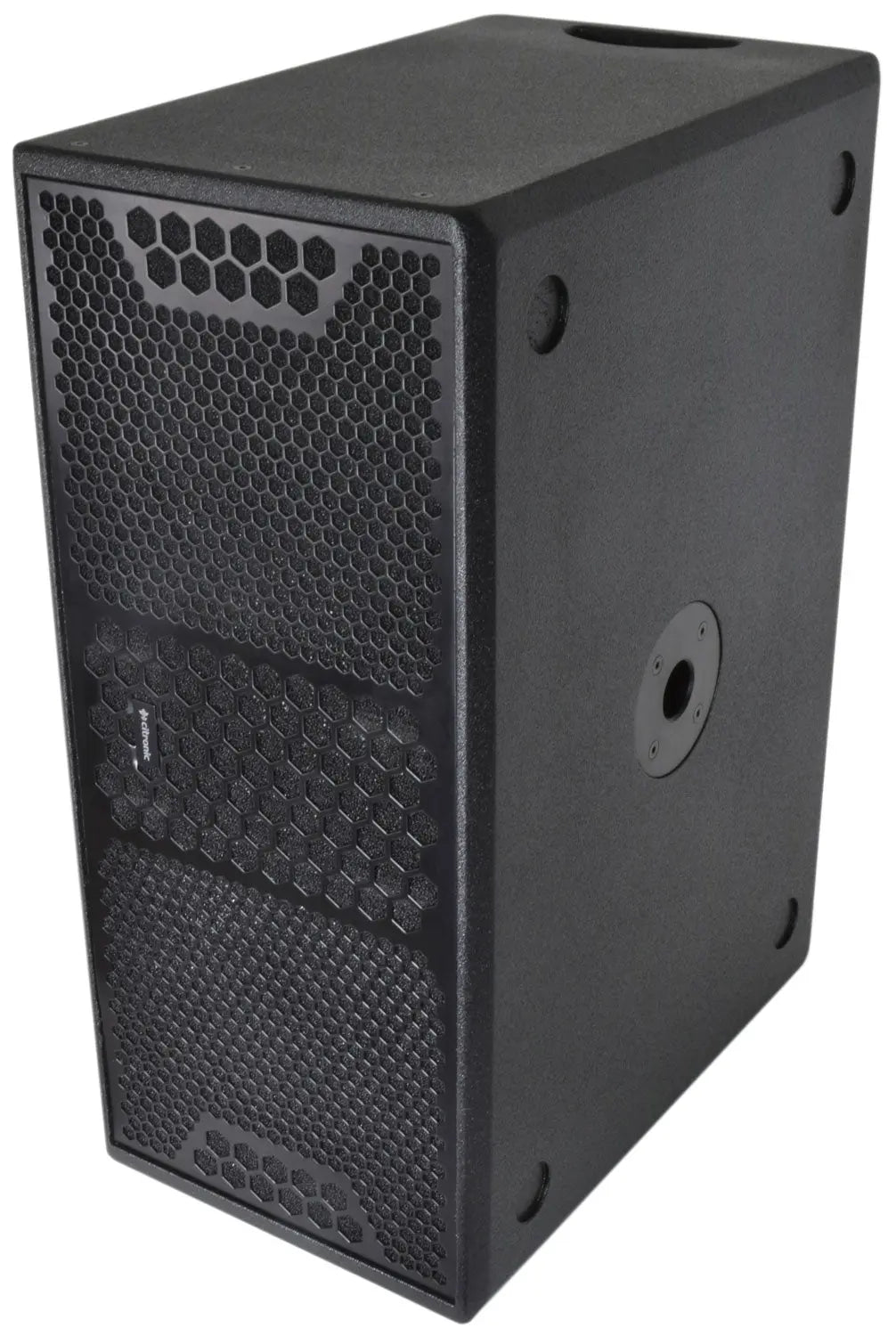

Dual driver active subwoofer cabinet with internal amplifier for mobile and fixed sound reinforcement. Inputs and outputs for 2 channels can be used for independent signals, enabling a 2.1 system setup with 2 full-range cabinets. Each input has independent level control, giving the option of adjusting the sub content for either channel at will. Preset DSP control accurately filters low frequencies to the class-D amplifier section to drive the twin 10" woofers up to 600Wrms output. A phase switch can be used to correct time-alignment or out-of-phase situations. This sub unit can be positioned flat to accept a 35mm pole to mount a full-range speaker or upright for a smaller footprint. The form factor of this cabinet also makes it ideal for discreet installation.
Independent 2 channel in/out connection
Narrow footprint for discreet installation
600Wrms class-D amplifier
Power supply 230Vac, 50Hz (IEC)
Construction 15mm MDF with durable polyurea finish

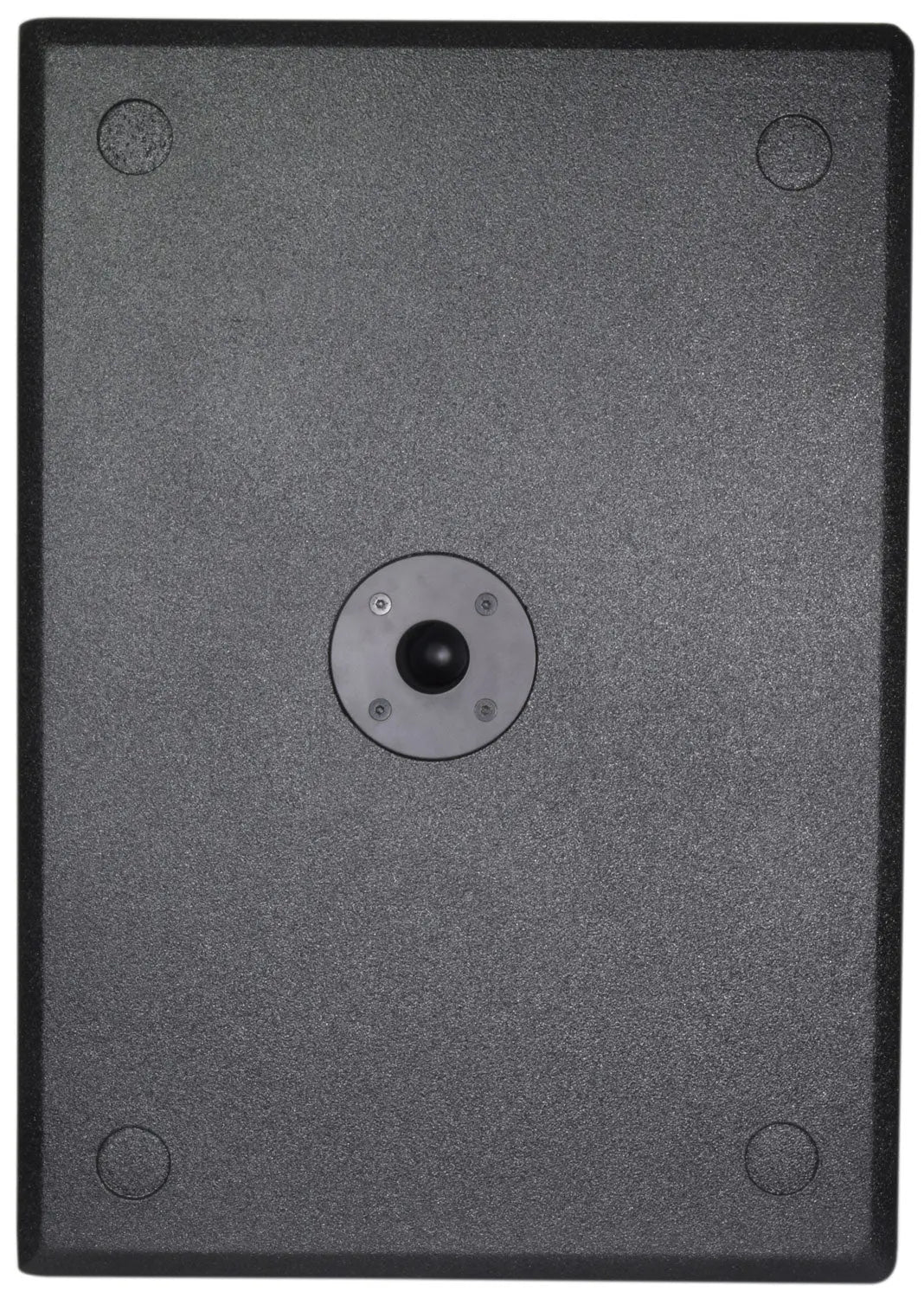

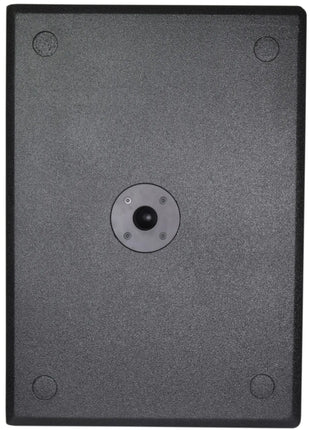

Hardware Integral carry handle & 35mm pole mount socket
Amplifier : construction Class-D (fixed DSP)

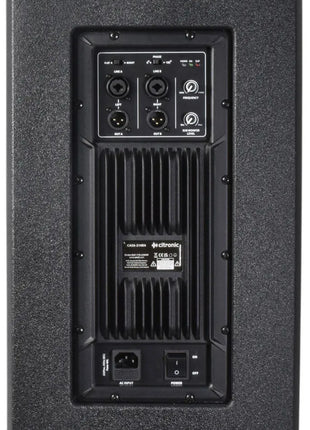

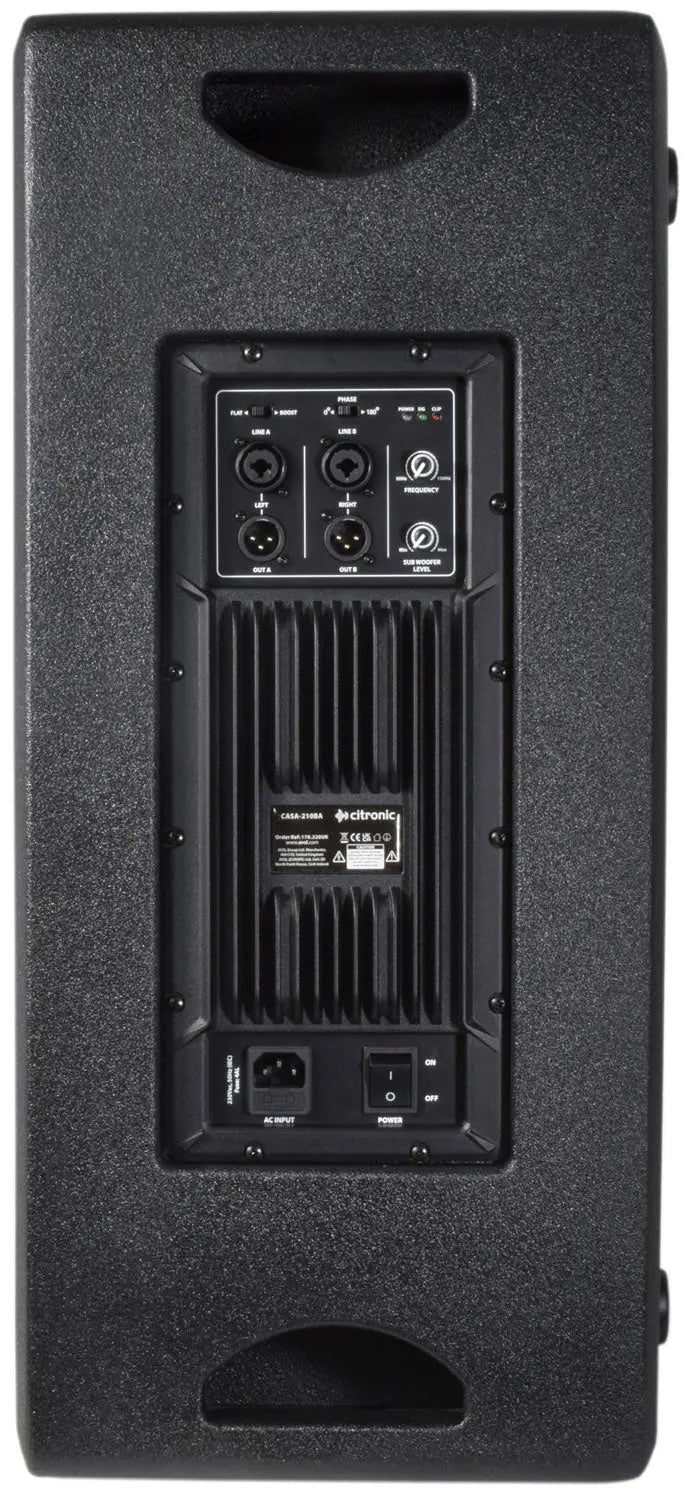

Inputs 2 x balanced XLR / 6.3mm jack
Outputs 2 x balanced XLR
Controls Flat/boost, phase switch, frequency, subwoofer level
Drivers 2 x 250mmØ (10") woofers
Frequency response 55 - 150Hz
Output power rms 600W
Output power max. 1200W
Dimensions 690 x 480 x 305mm
Weight 31.0kg
