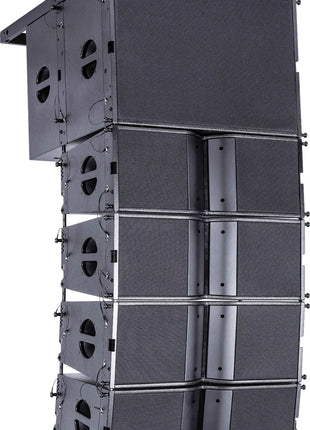

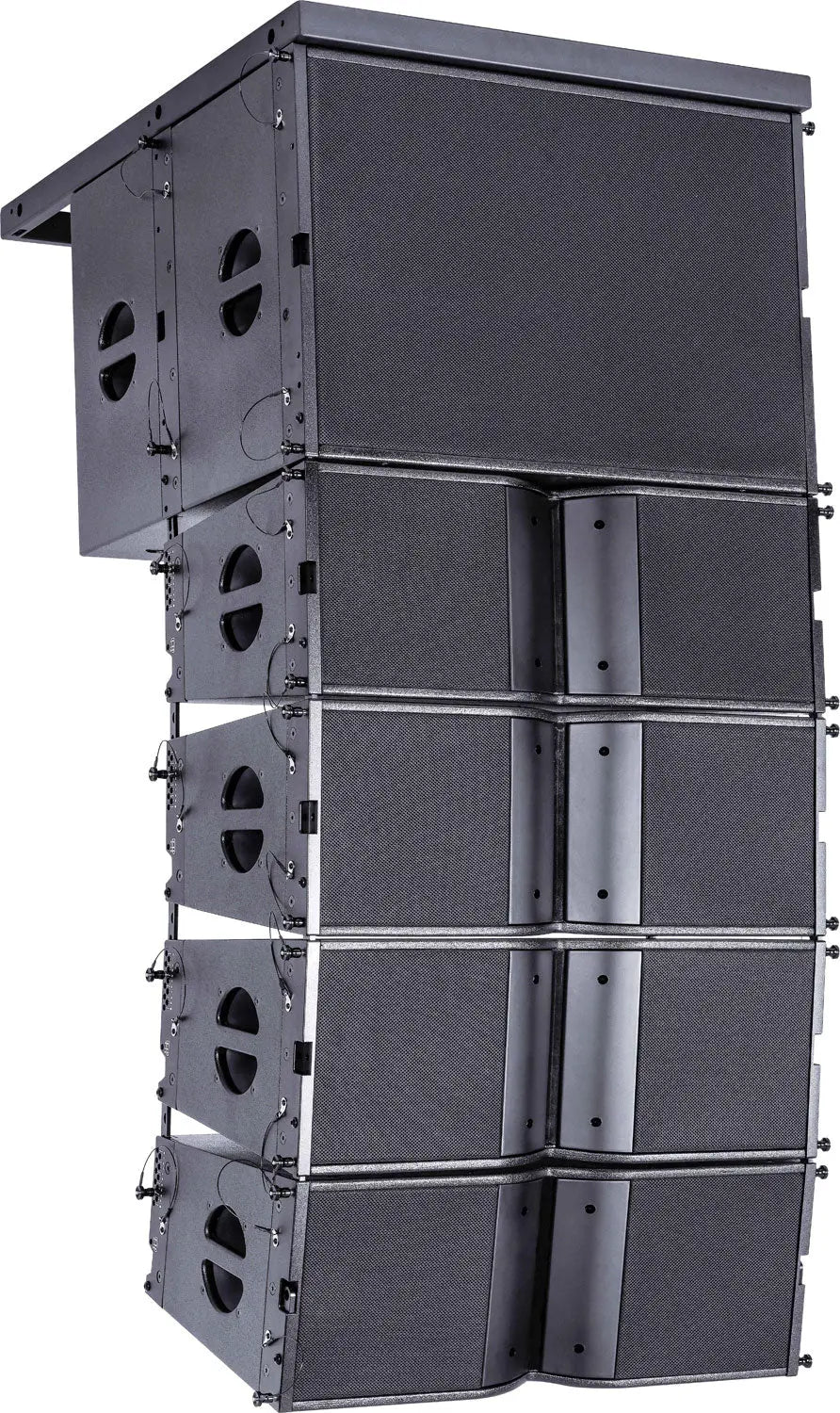

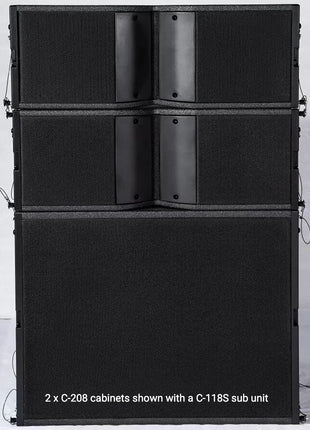

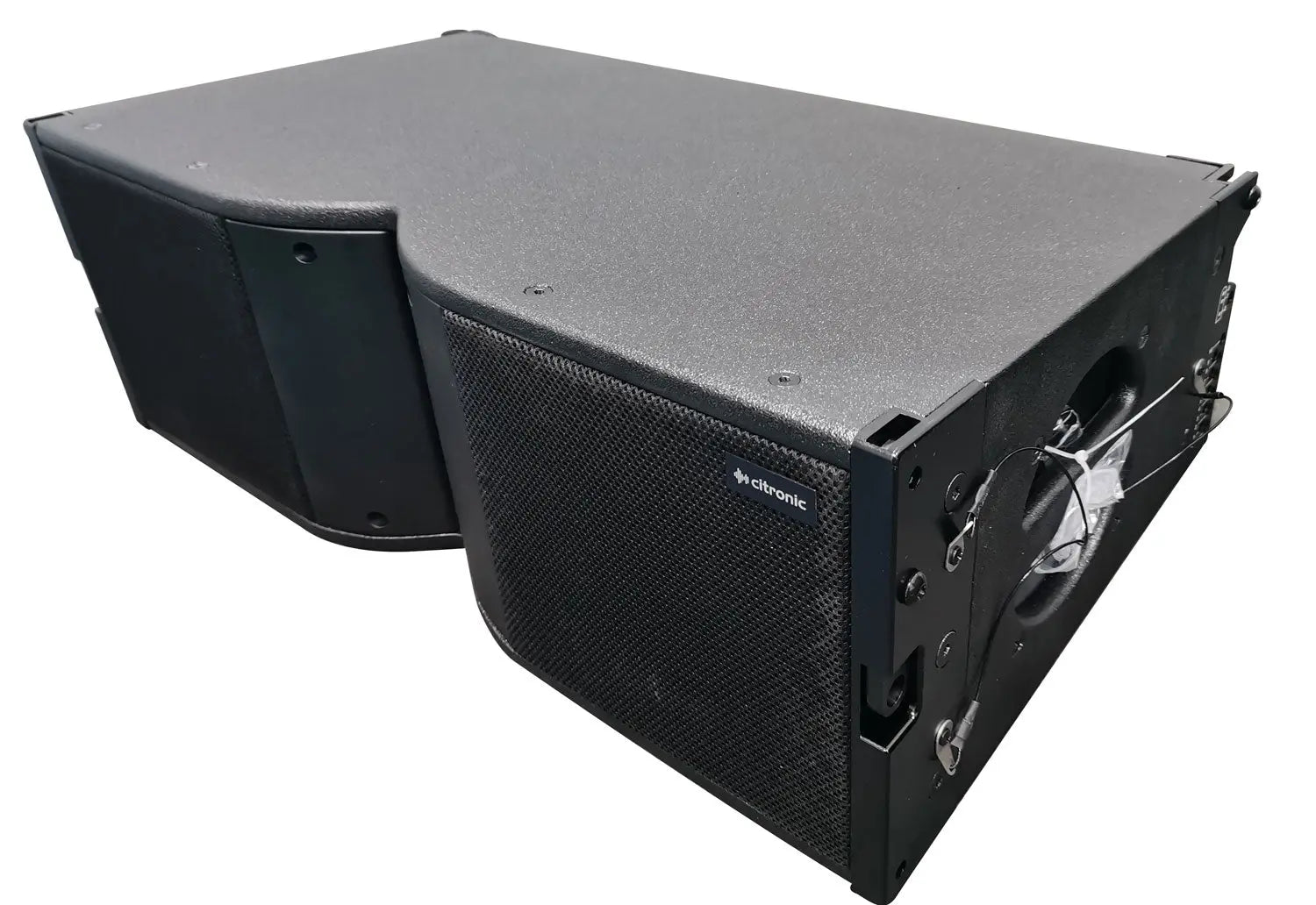

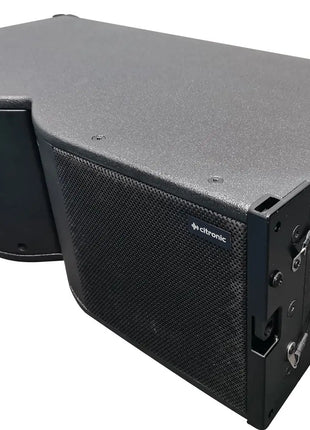

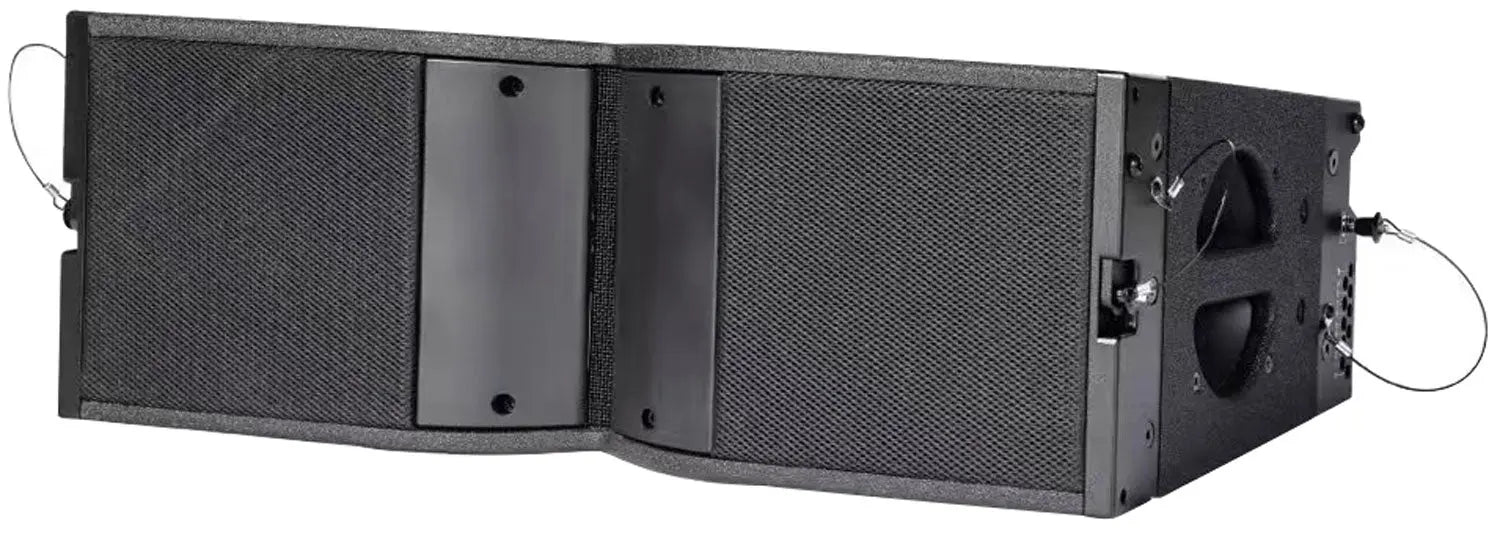

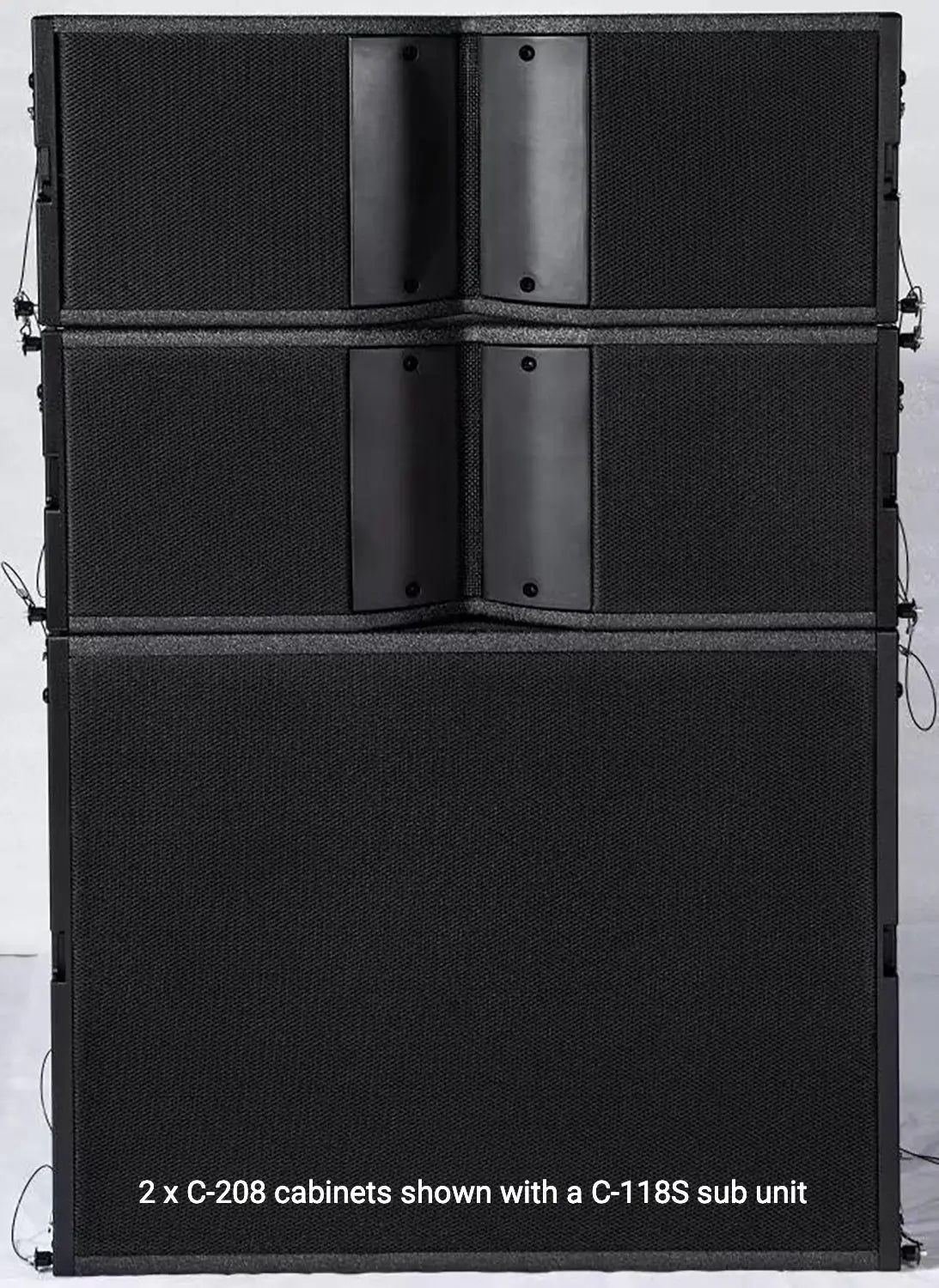

Created for high SPL output in medium to long throw applications, the C-series line array system offers uncompromised sound performance and power control in a modular and easy to configure format. The C-208 line array unit comprises 2 x 8" main drivers coupled with a 3" compression driven ribbon tweeter for wide horizontal coverage. All drivers are fitted with high flux-density Neodymium magnets to efficiently convert power into sound pressure and are loaded into a computer-designed plywood wedge enclosure. A class-D bi-amplifier section is fully DSP controlled for accurate and efficient power delivery to the driver units across all frequencies. Fitted with side handles and array hardware, the C-208 can be angled for exact coverage of the venue or auditorium, either flown or floor mounted from the optional C-FRAME support assembly and/or partnered to the the C-118S sub units.
Neodymium magnets for efficient power-to-sound conversion

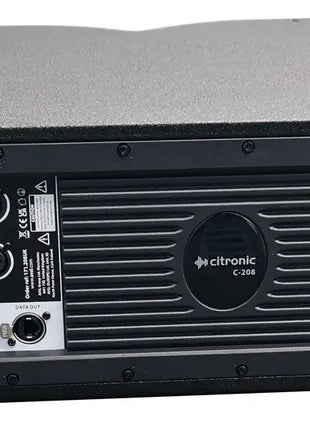

Internal 500+100Wrms digitally controlled bi-amplifier
Integral pinlock array hardware and carry handles

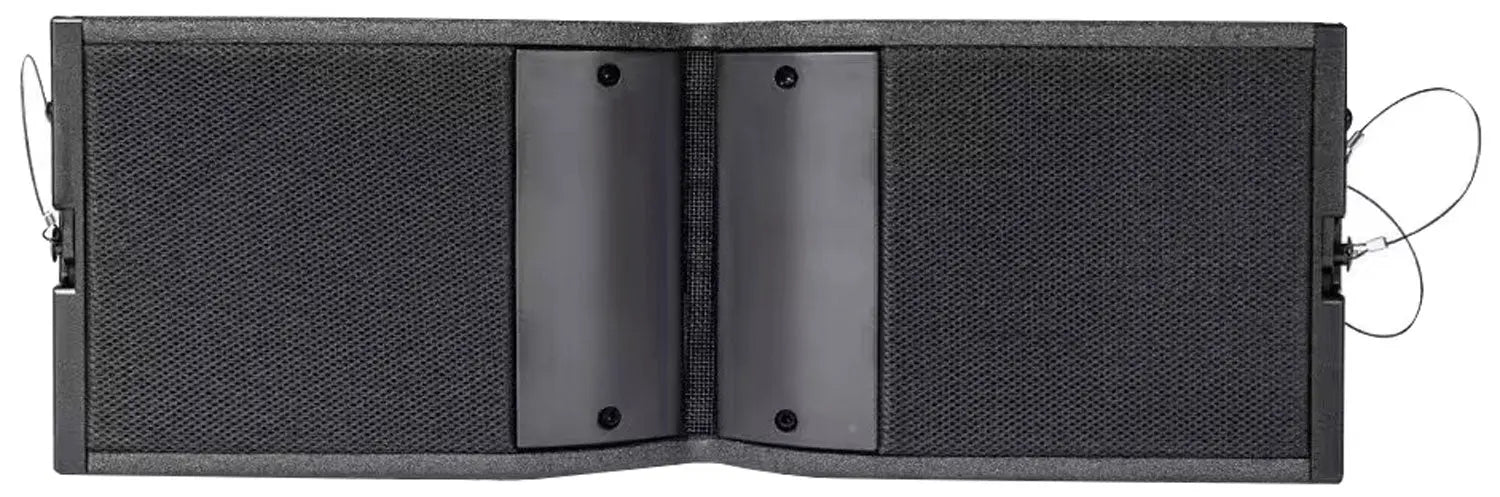

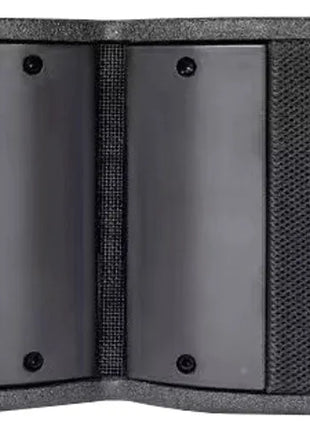

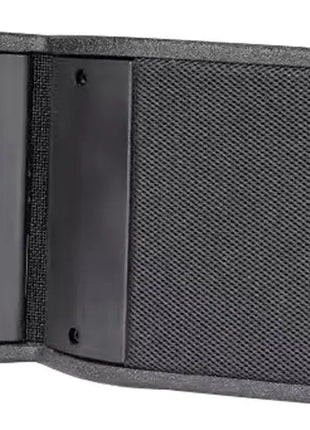

2 x 8" main drivers + 3" CD ribbon tweeter

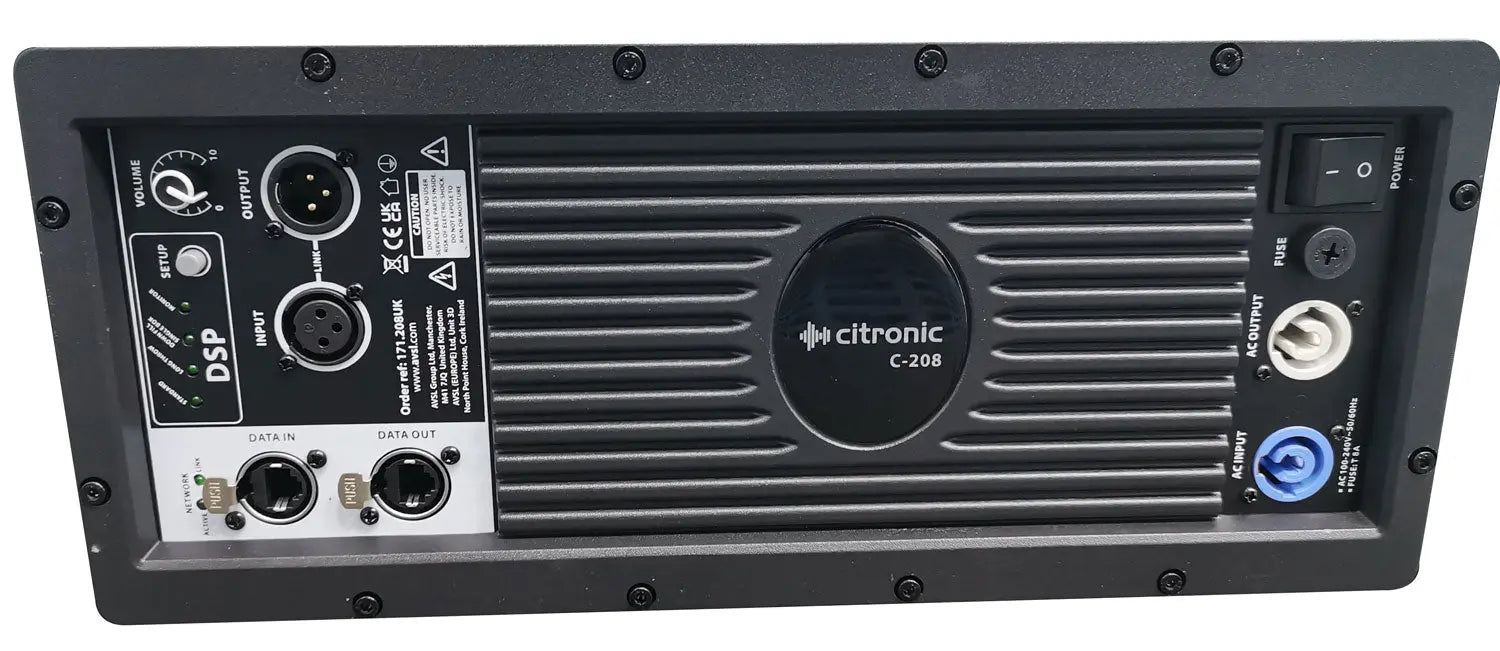

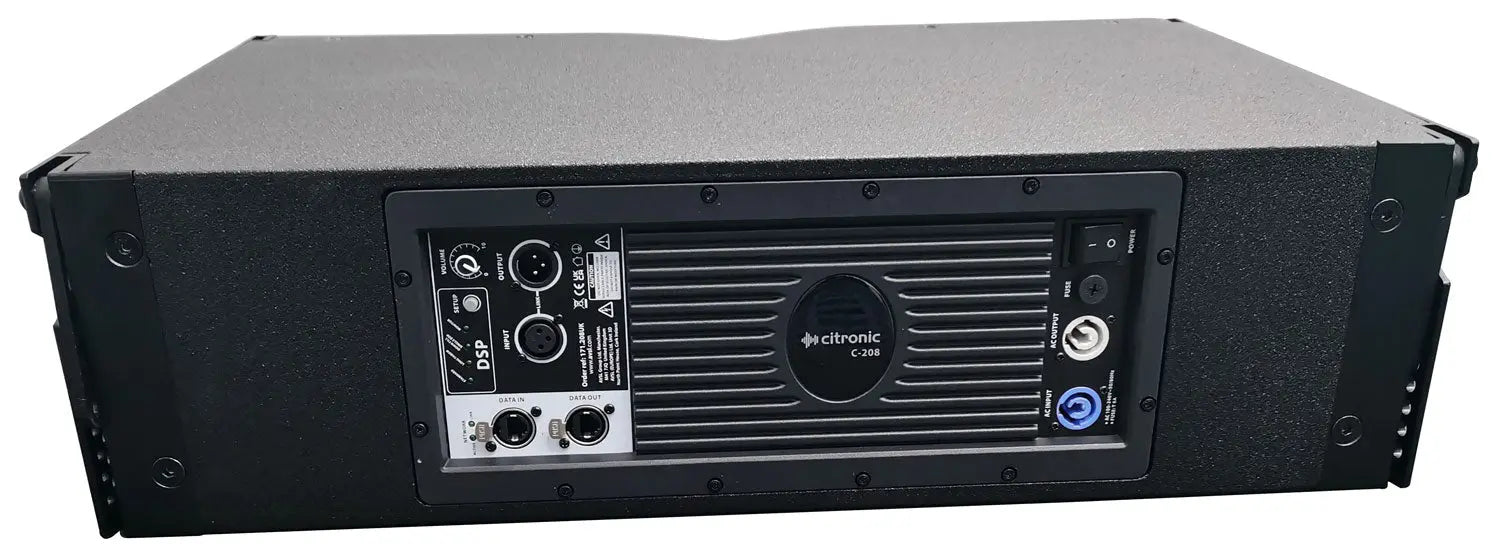

Power supply 230Vac, 50Hz (Powercon® in + through)
Construction 15mm plywood cabinet, polyurea coated
Frequency response 45Hz - 20kHz

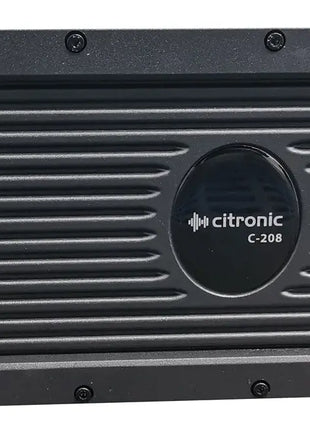

Amplifier : construction Class-D bi-amp (inbuilt DSP)
Output power rms 600W
Output power peak 1200W
Drivers 2 x 200mmØ (8") LF + HF ribbon tweeter (Ti CD)
Voice coil 2 x 50mmØ (2") LF, 1 x 75mmØ (3") HF
Sensitivity 98dB
Dimensions 690 x 380 x 248mm
Weight 22.5kg
SPL max. 128dB (@ 1W/1m)
Dispersion 10° (V) x 100° (H)
