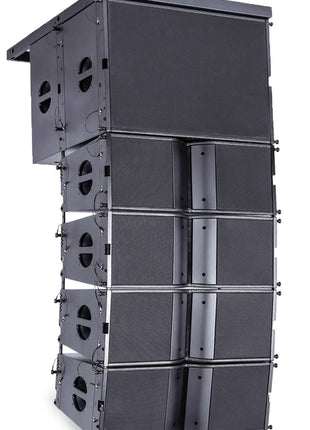

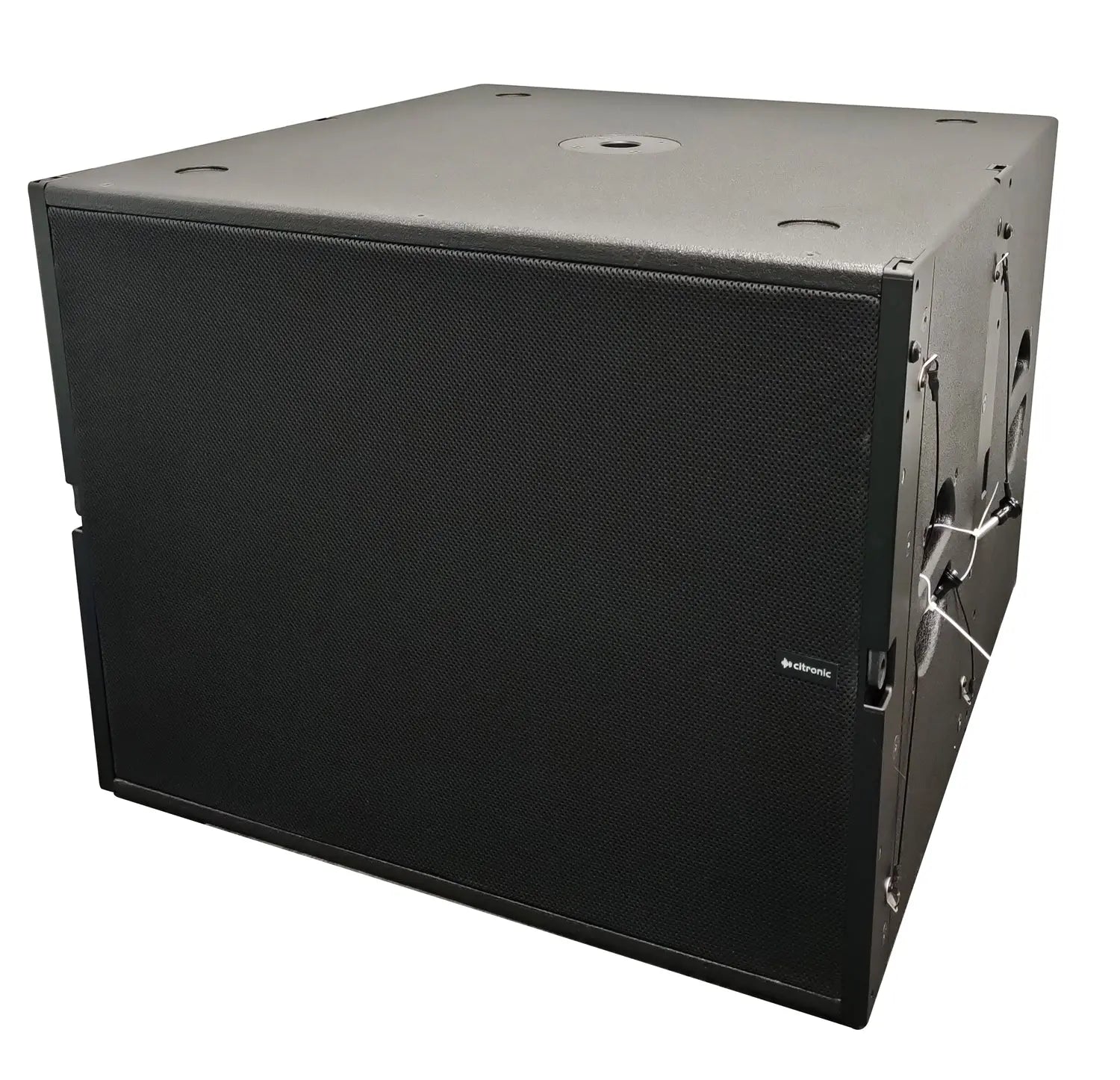

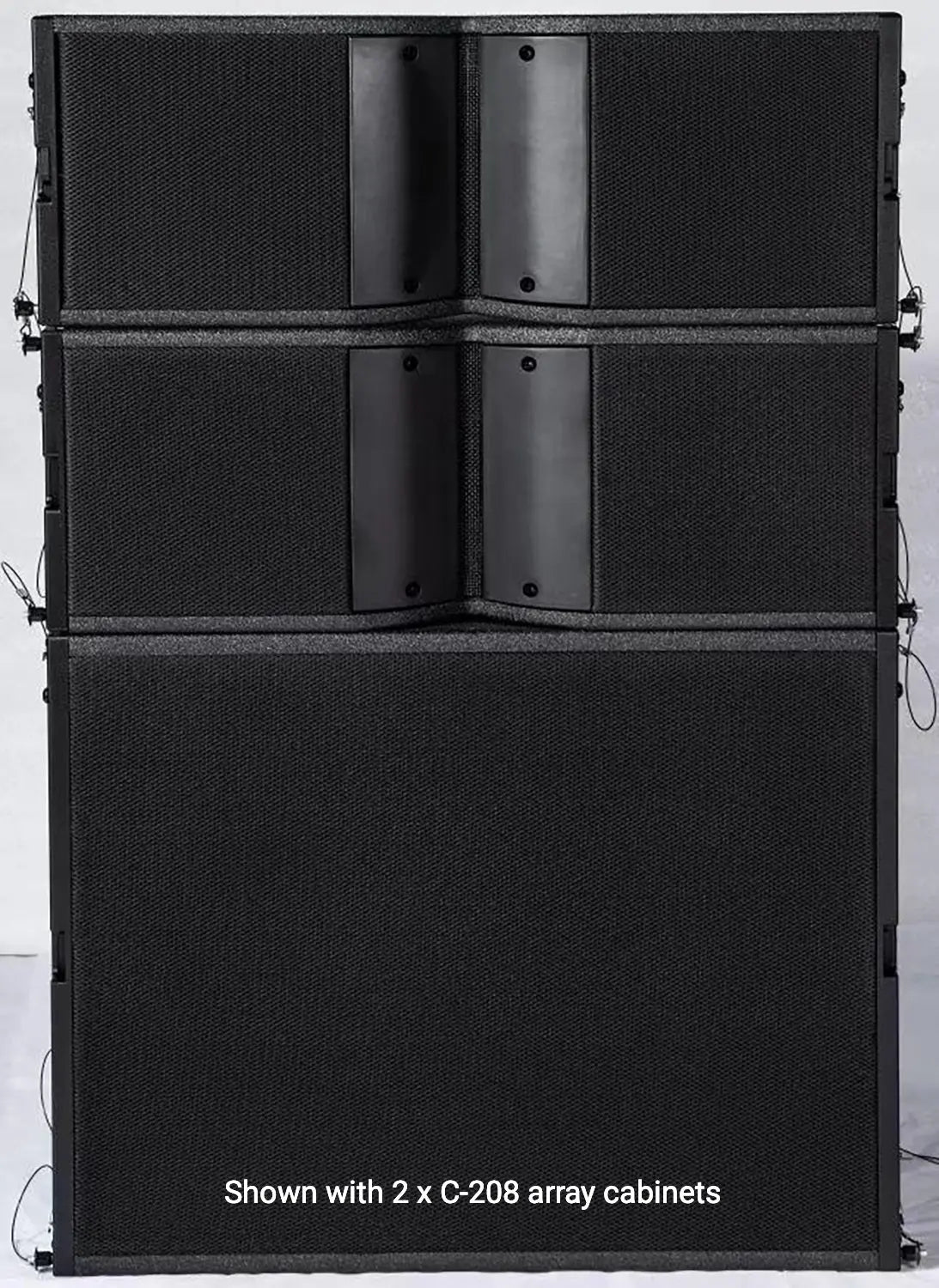

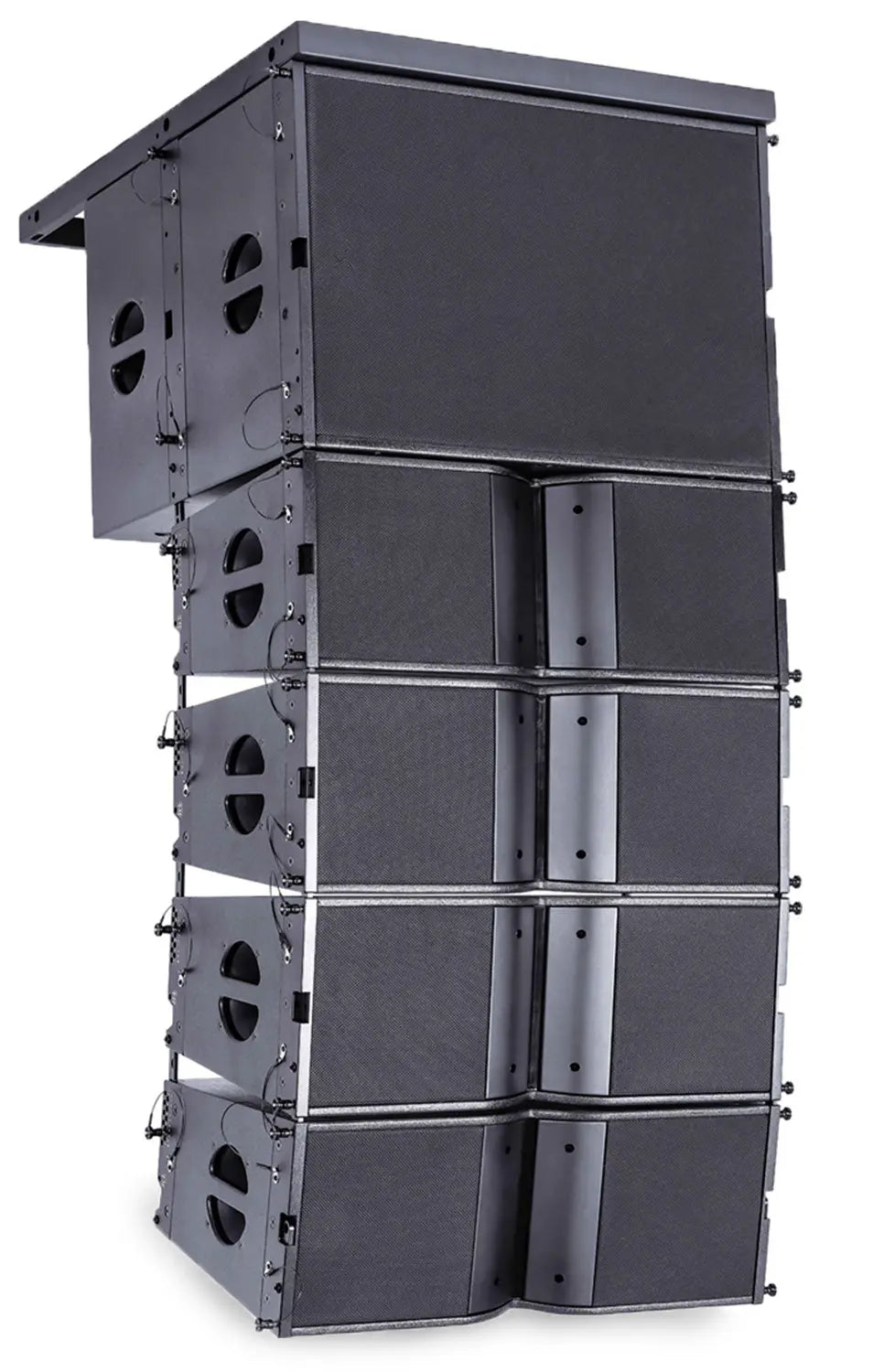

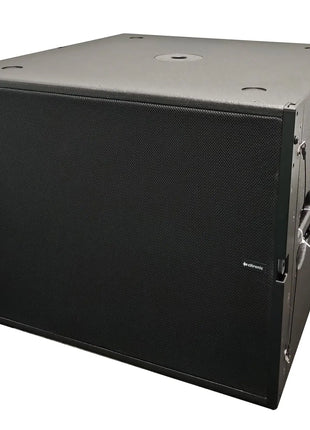

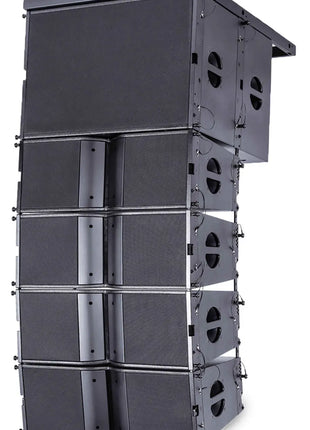

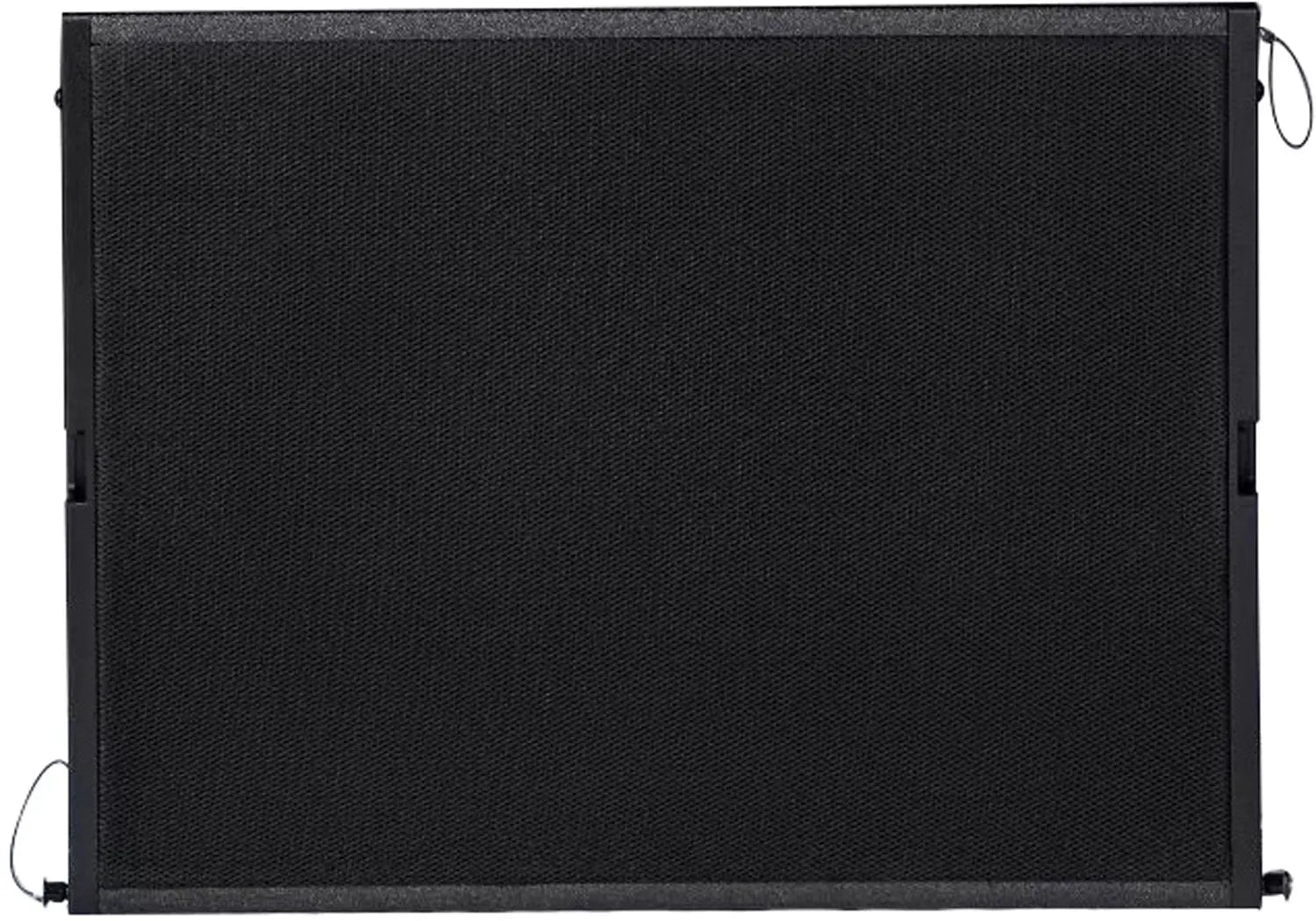

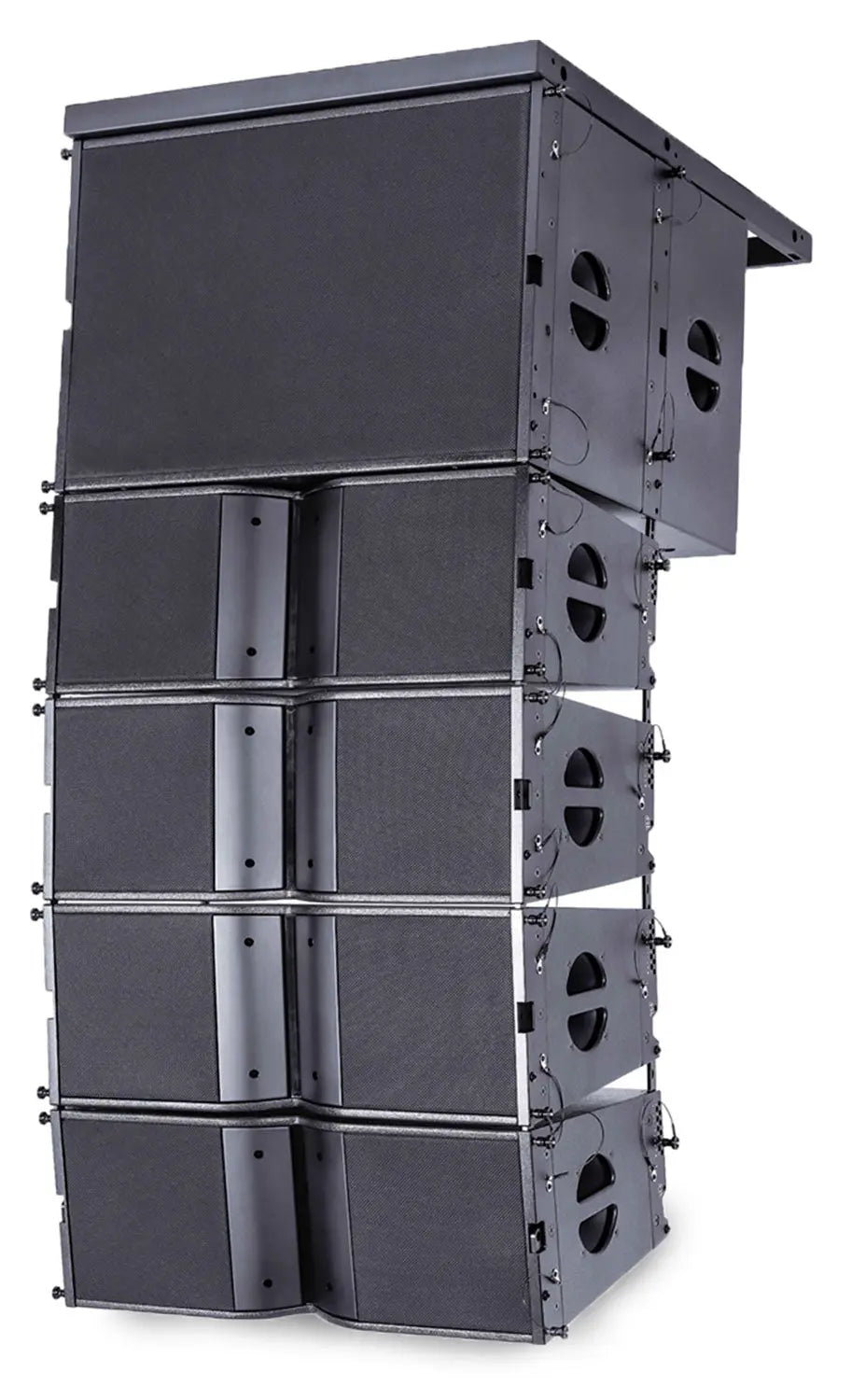

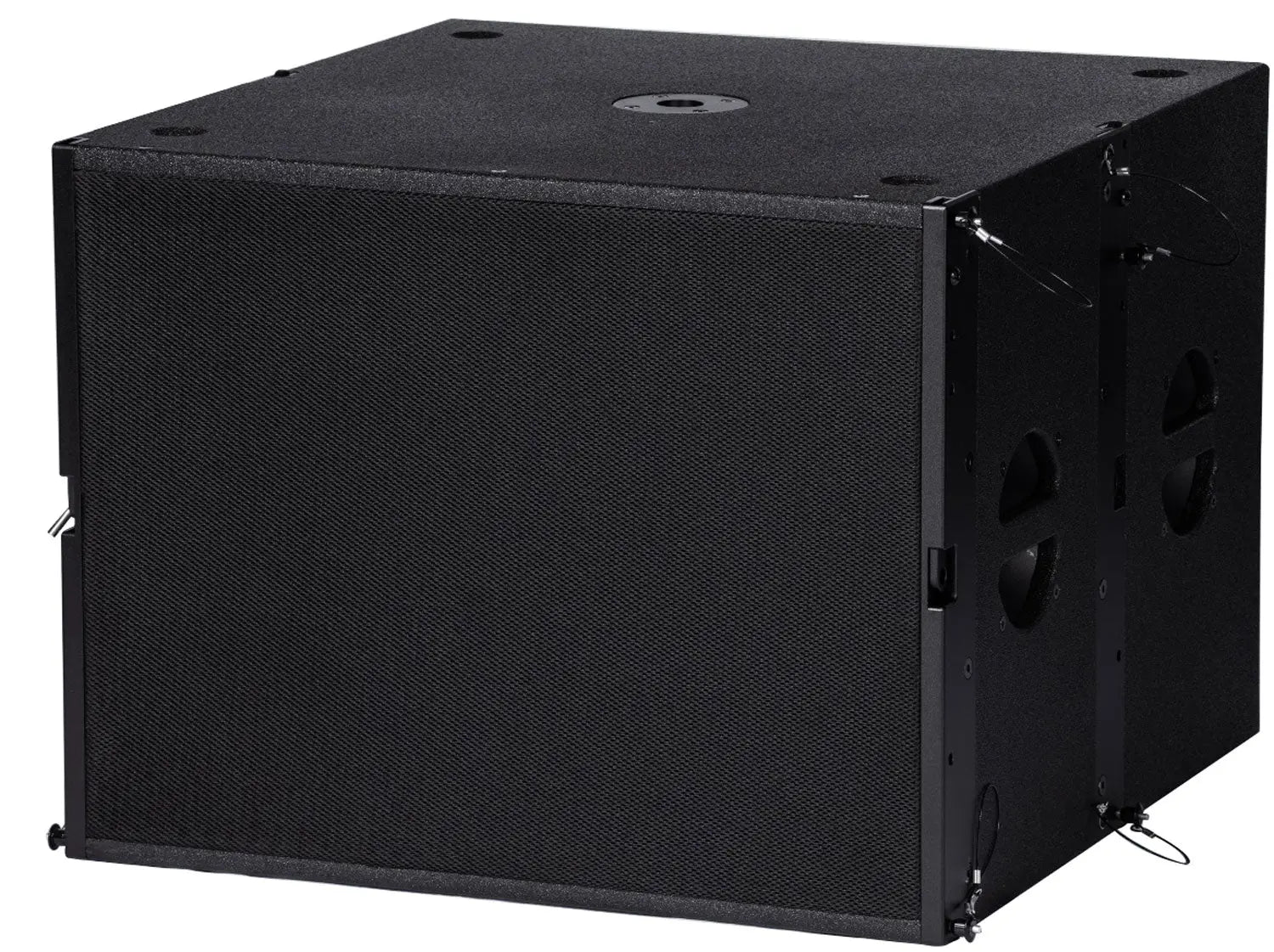

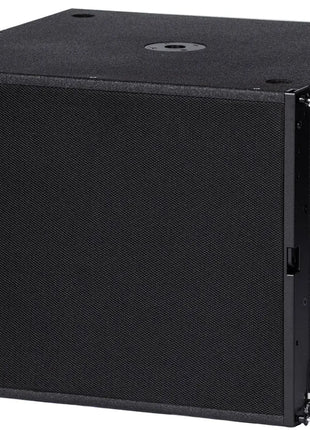

Created for high SPL output in medium to long throw applications, the C-series line array system offers uncompromised sound performance and power control in a modular and easy to configure format. The C-118S sub unit features a single 1000W 18" driver with cast aluminium basket and double reinforced suspension, loaded into a custom computer-designed and tuned wooden enclosure with a super-tough polyurea texture finish. The subwoofer is served by an internal class-D amplifier section with inbuilt pre-set DSP to deliver 1000W of power on demand with accurate frequency and dynamics control. The C-118S can be used as a standalone active subwoofer, stacked in multiples, or flown with C-series array cabinets using the optional C-FRAME support assembly
Internal 1000Wrms digitally controlled amplifier

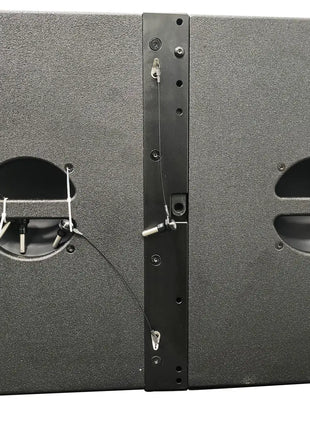

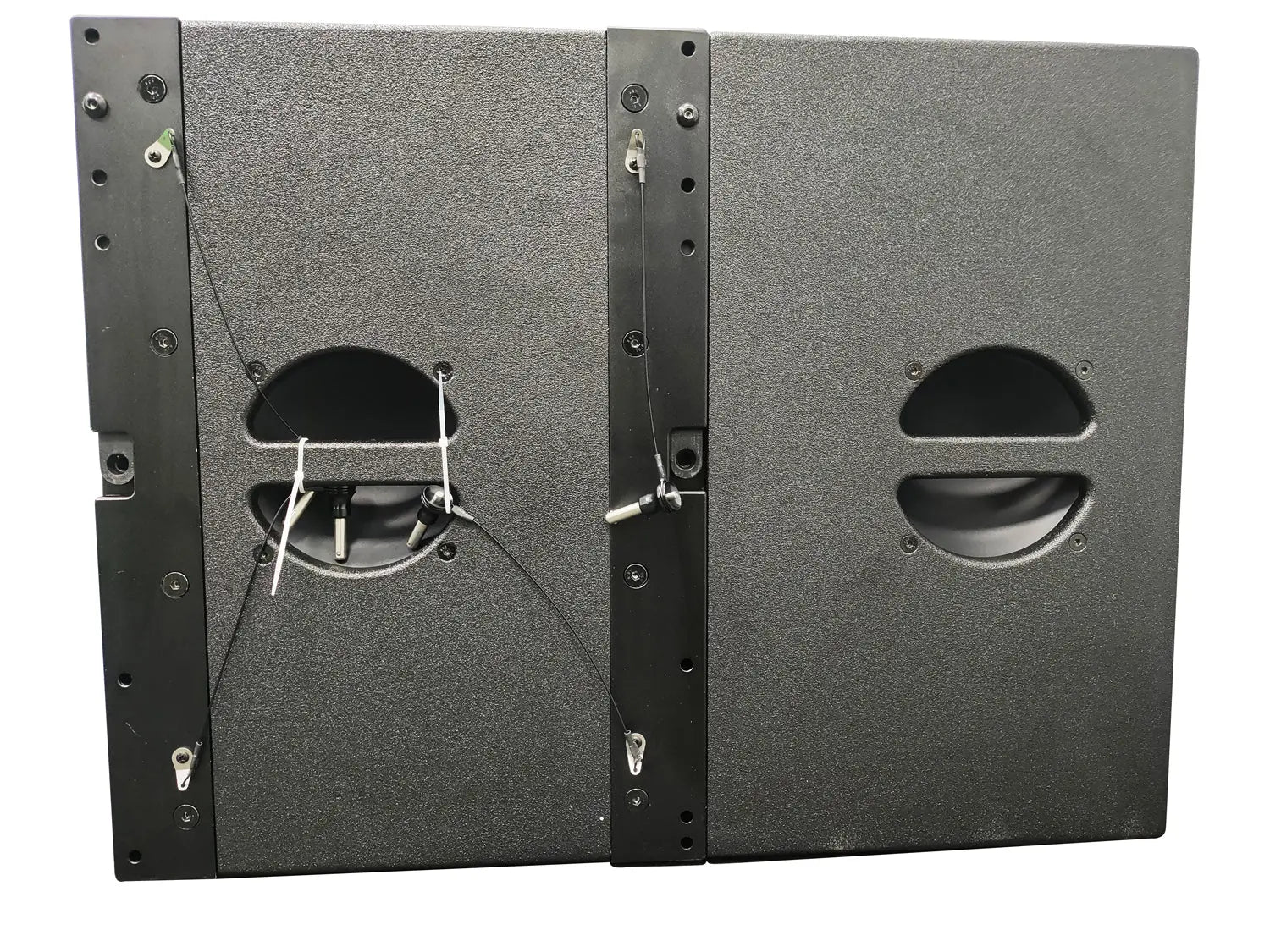

Integral pinlock array hardware and carry handles
Polyurea-coated wooden cabinet
Single heavy duty sub driver
Top panel 35mmm pole mount socket

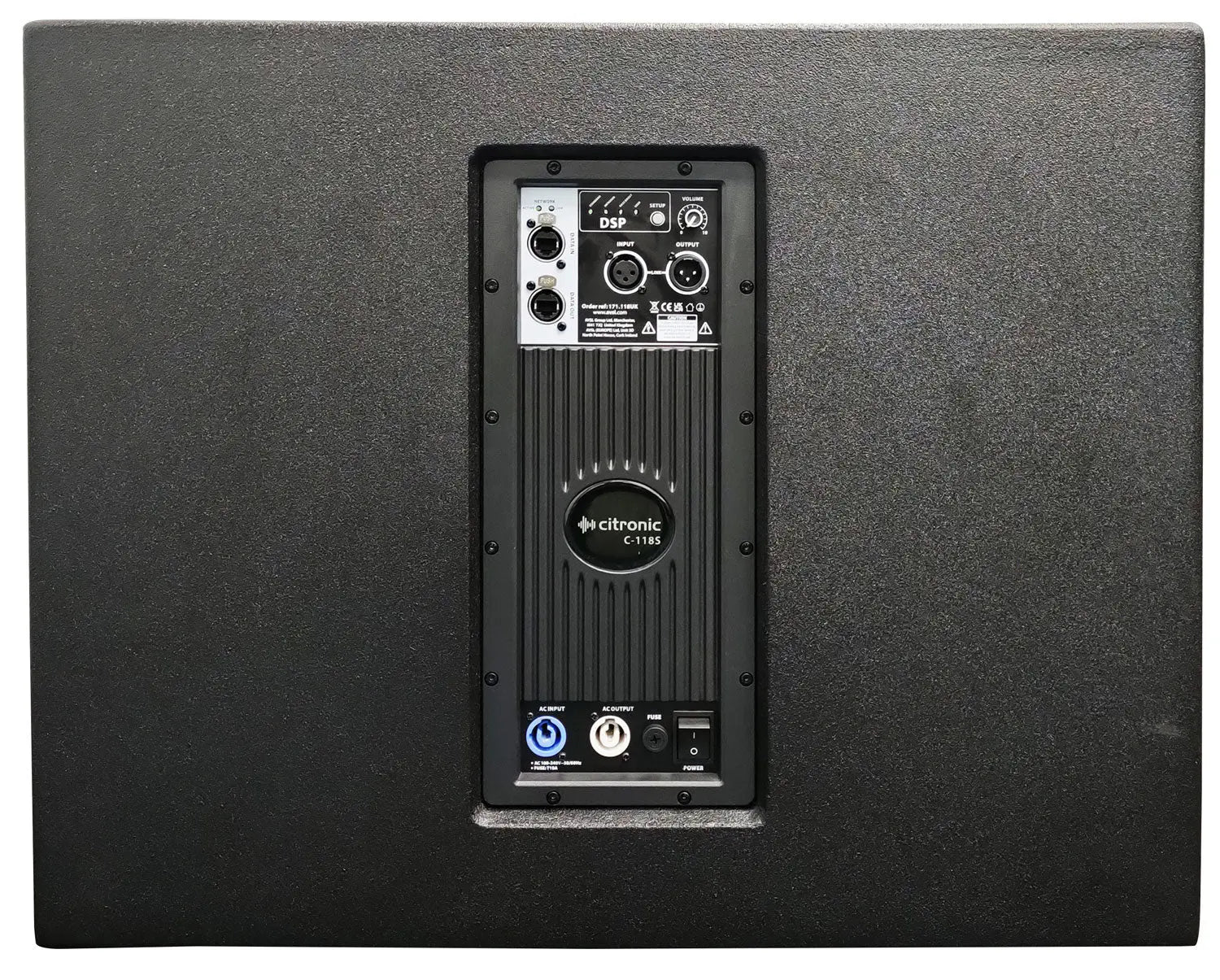

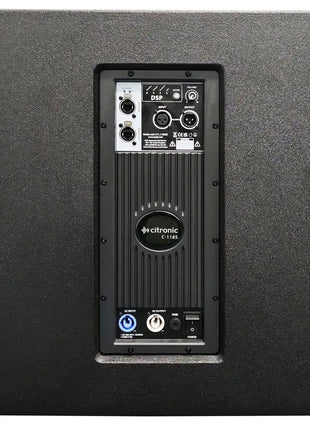

Power supply 230Vac, 50Hz (Powercon® in + through)
Frequency response 40Hz - 150Hz
Output power rms 1000W
Output power peak 2000W
Amplifier : construction Class-D (inbuilt DSP)
Driver unit 450mmØ (18") driver, Al frame, ceramic magnet
Voice coil 100mmØ (4")
Sensitivity 98dB
Construction 15mm plywood cabinet, polyurea coated
SPL max. 131dB (@ 1W/1m)
Dimensions 710 x 690 x 545mm
Weight 54kg
