Passive DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Equipped with 3 pad settings, RF/mains filter and selector for ground lift with or without filter.
Ground float option for ground lift with RF/mains filter
Ground lift option isolates signal ground without filter
3 pad settings for level matching

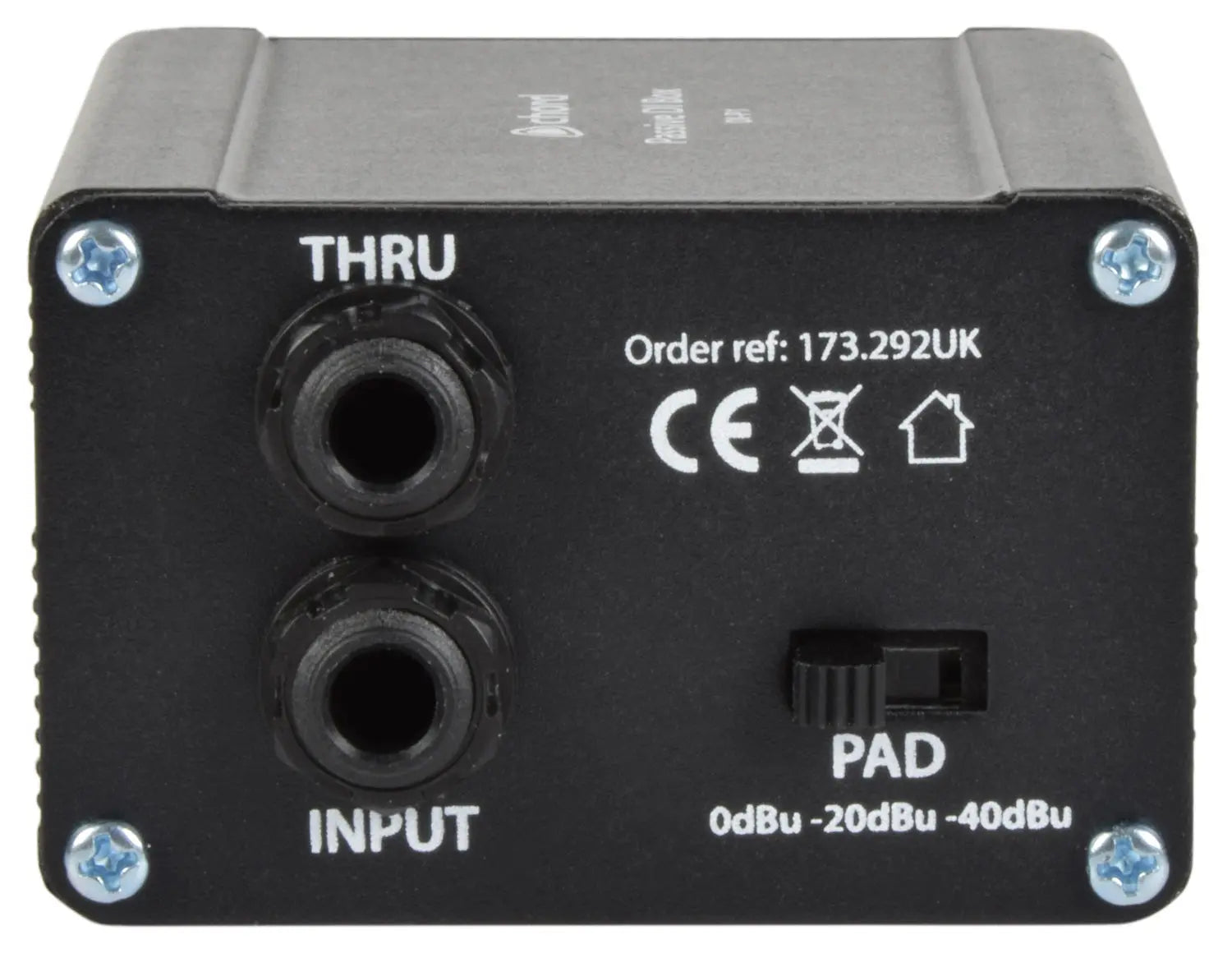

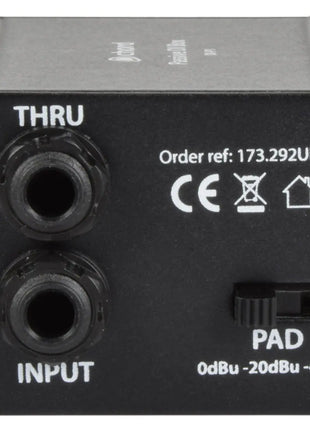

Input 6.3mm jack (unbalanced)

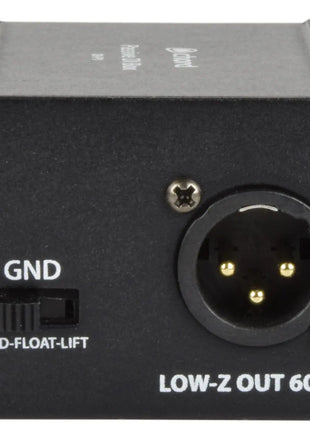

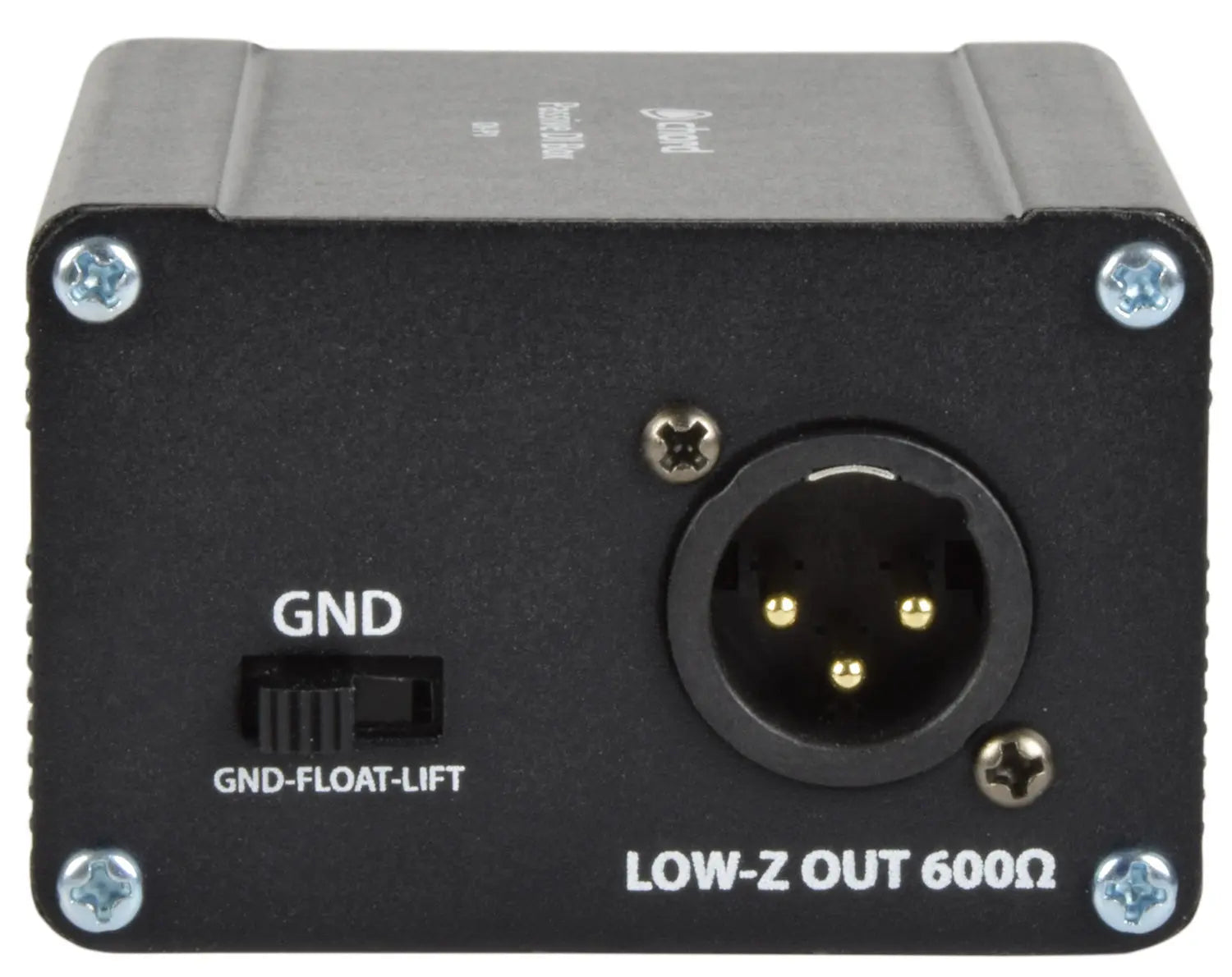

Outputs XLRM (balanced), 6.3mm jack through (unbalanced)
Output impedance 600 Ohms
Input impedance >100k Ohms
Controls 0/-20/-40dBu pad & Ground-Float-Lift switch

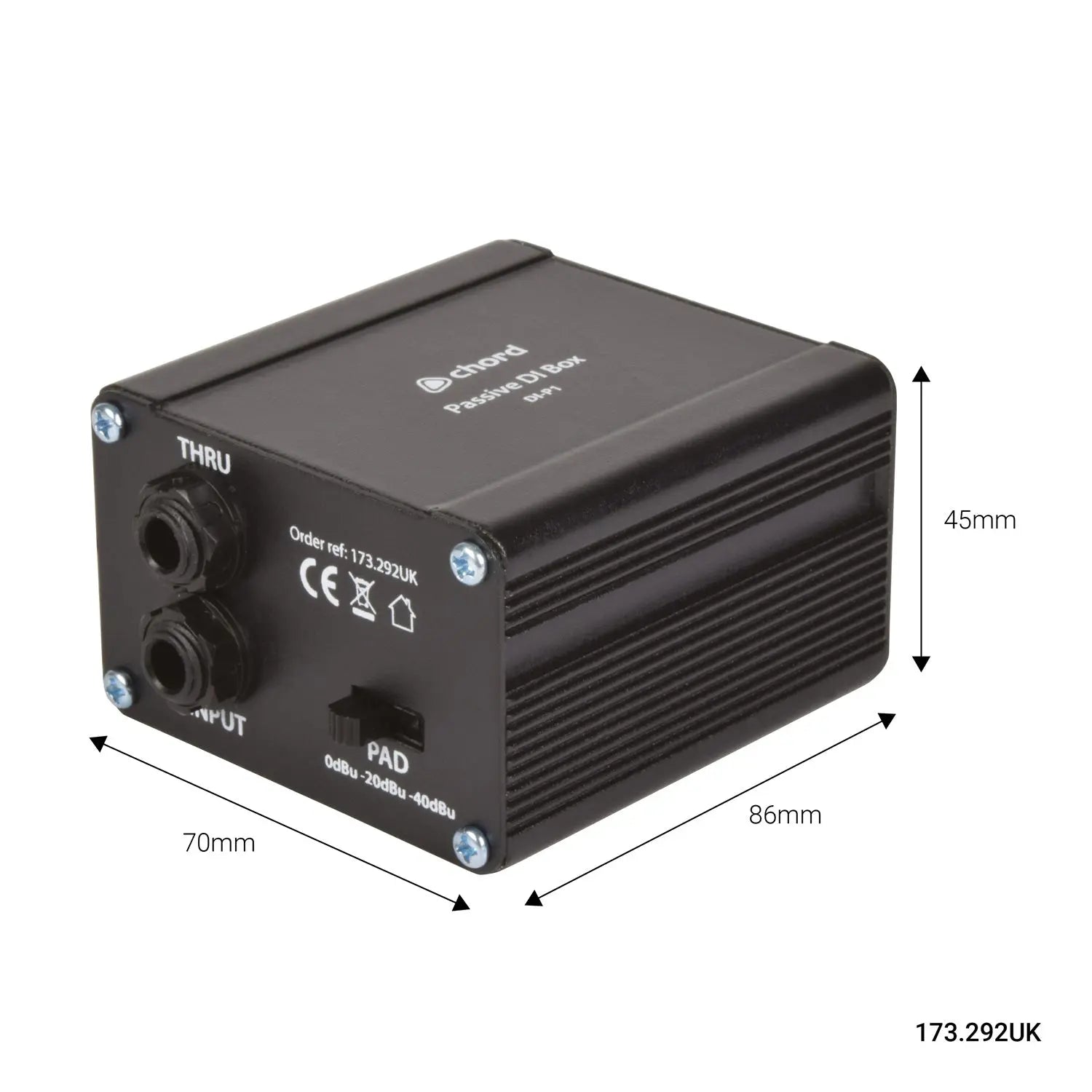

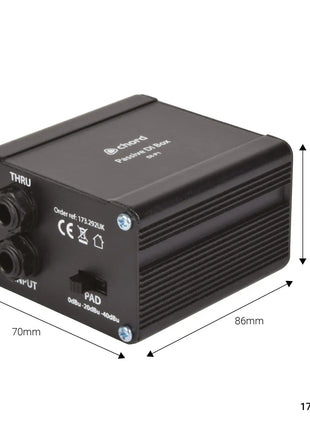

Dimensions 86 x 70 x 45mm
Weight 234g
