CHAUVET Professional WELL FIT X – 6x Wireless LED Uplighter Kit in Charging Flightcase (Chrome, IP65)
Buy the CHAUVET Professional WELL FIT X, a premium 6-unit wireless uplighting kit featuring nine high-output RGBWW LEDs per fixture, IP65 all-weather construction, and a professional drop-in charging flightcase. In stock, fast UK delivery.

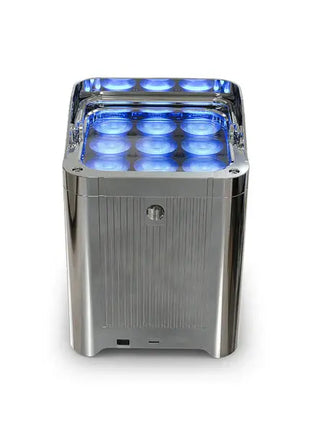

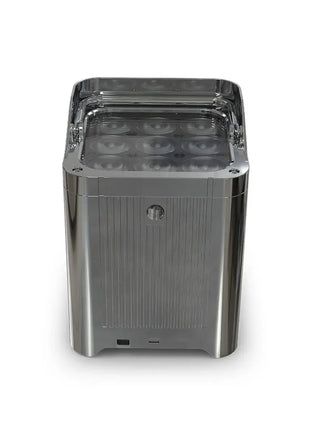

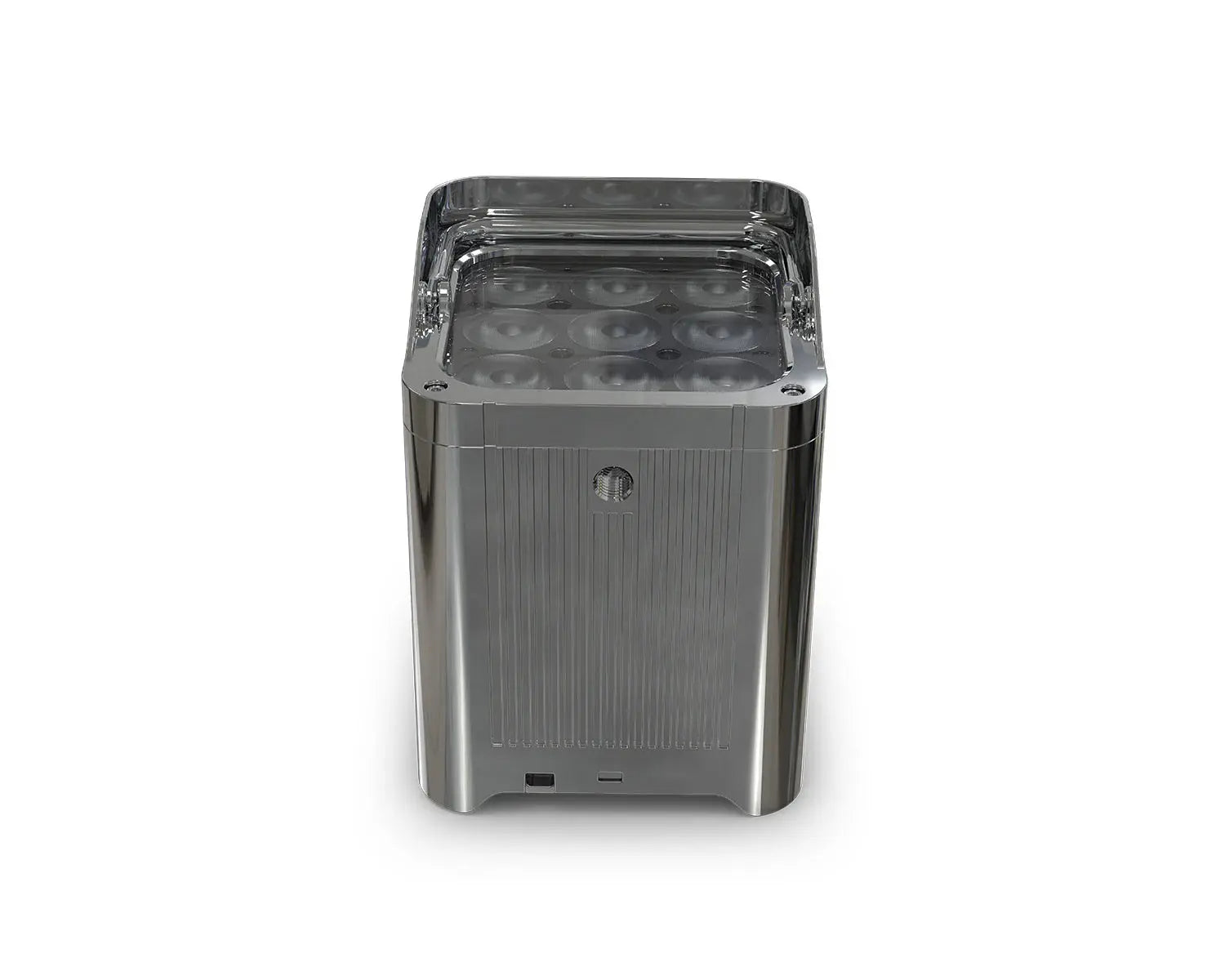

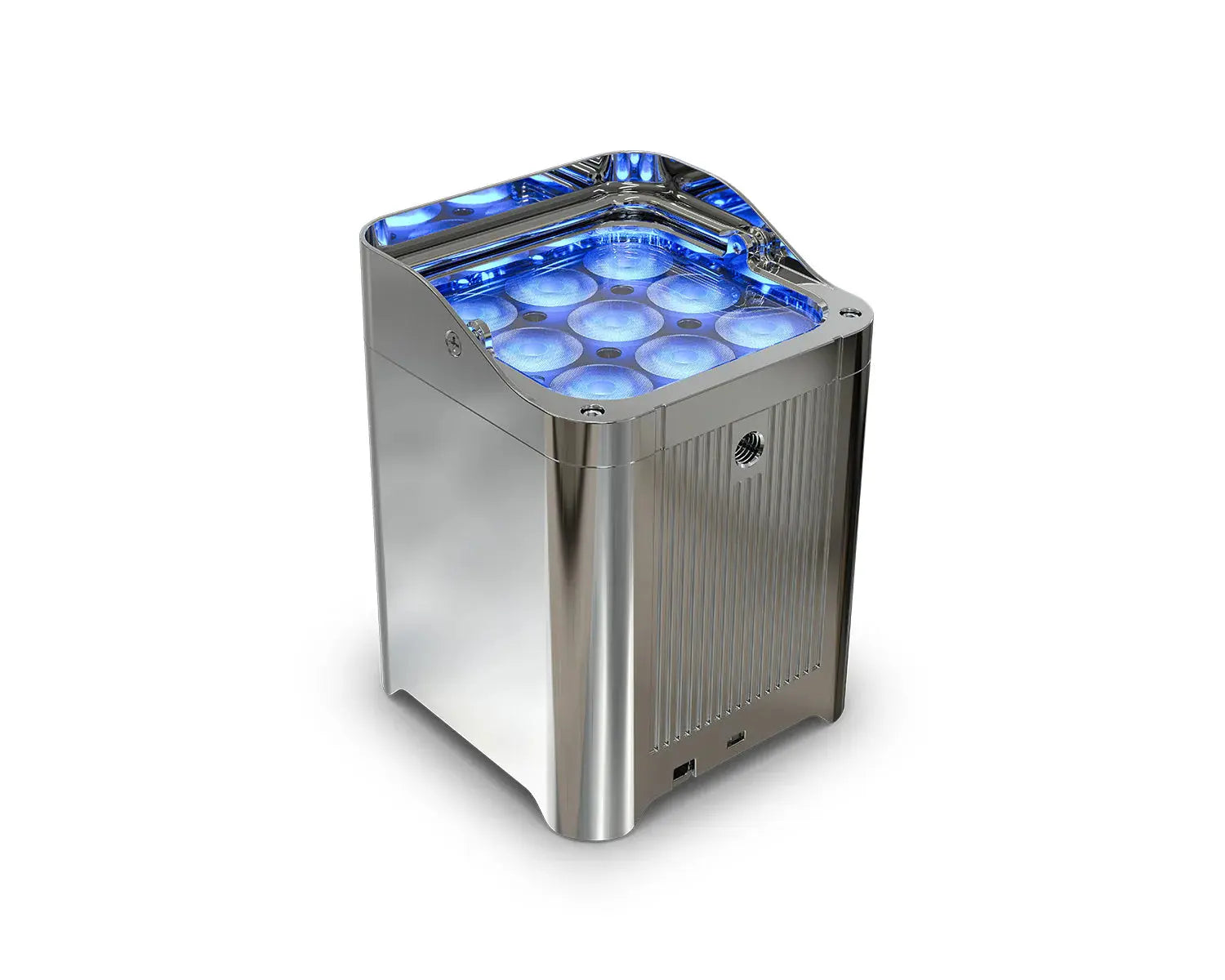

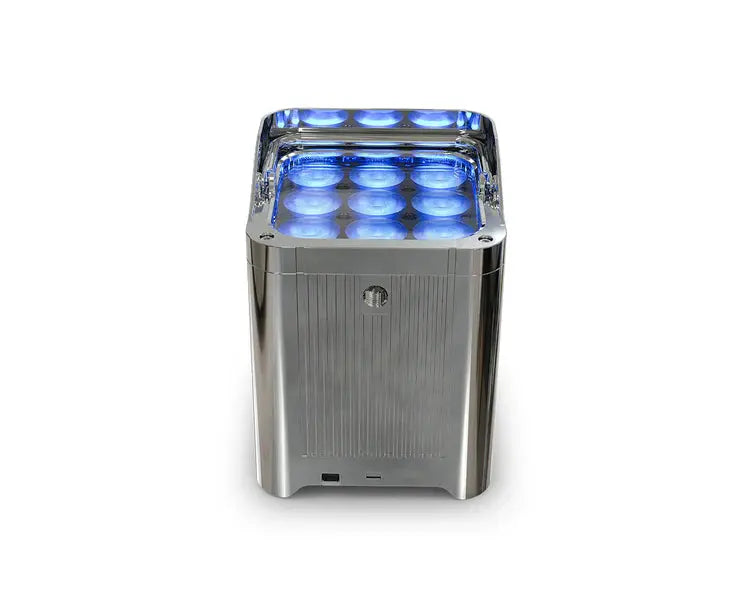

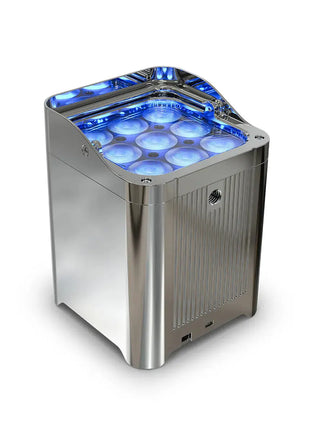

The CHAUVET Professional WELL FIT X is the leading workhorse battery-powered LED uplighter kit in its class, engineered for production companies, mobile DJs, high-end wedding venues, and corporate event decorators who need immediate, high-output ambient washes without the mess of signal or power cabling. Each fixture in this road-ready 6-unit package features nine 7.5W RGB Warm White (RGBWW) LEDs. These upgraded optics provide highly defined beam collimation at an 11.3-degree angle, delivering exceptionally smooth color mixing from deep saturated hues to warm pastel tones. Housed in a premium reflective chrome die-cast aluminum casing that mirrors its immediate surroundings to blend invisibly into any room decor, the fixtures carry a rugged IP65 all-weather rating to seamlessly transition between indoor ballrooms and outdoor architectural lighting arrays.
Staff Take: The Expert Verdict
The single strongest selling point of the CHAUVET Professional WELL FIT X kit is its flawless operational efficiency and zero-compromise logistics management. The standout enhancement on this "X" edition is the ability to run full USB-C software updates to all six fixtures simultaneously while they remain safely docked inside the flightcase with the lid securely closed. We highly recommend this kit for event rental businesses, touring production crews, and marquee event coordinators who need premium, flicker-free architectural washes with long battery life options and rapid warehouse turnarounds.
Why Choose the CHAUVET Professional WELL FIT X Kit?
-
Nine high-output RGBWW LEDs: Every individual fixture packs premium 7.5W color-mixing LEDs that deliver a wide CCT color temperature spectrum from 2600K up to 10,000K.
-
Ultra-tight 11.3-degree beam collimation: Projects sharp, highly defined columns of light up vertical columns and venue walls without messy stray light spill.
-
Selectable battery management matrix: Program your system output to run reliably for exact blocks of 5, 8, 12, or 18 hours at full output to match the duration of any event.
-
Rugged IP65 all-weather protection: Fully sealed die-cast aluminum structures paired with an M6 Gore pressure-equalization valve ensure water-resistant security during temporary outdoor staging.
-
Advanced wireless control routing: Embedded with internal LumenRadio CRMX, wireless RDM, and NFC transceivers alongside an included RF hardware remote control for ultimate programming flexibility.
-

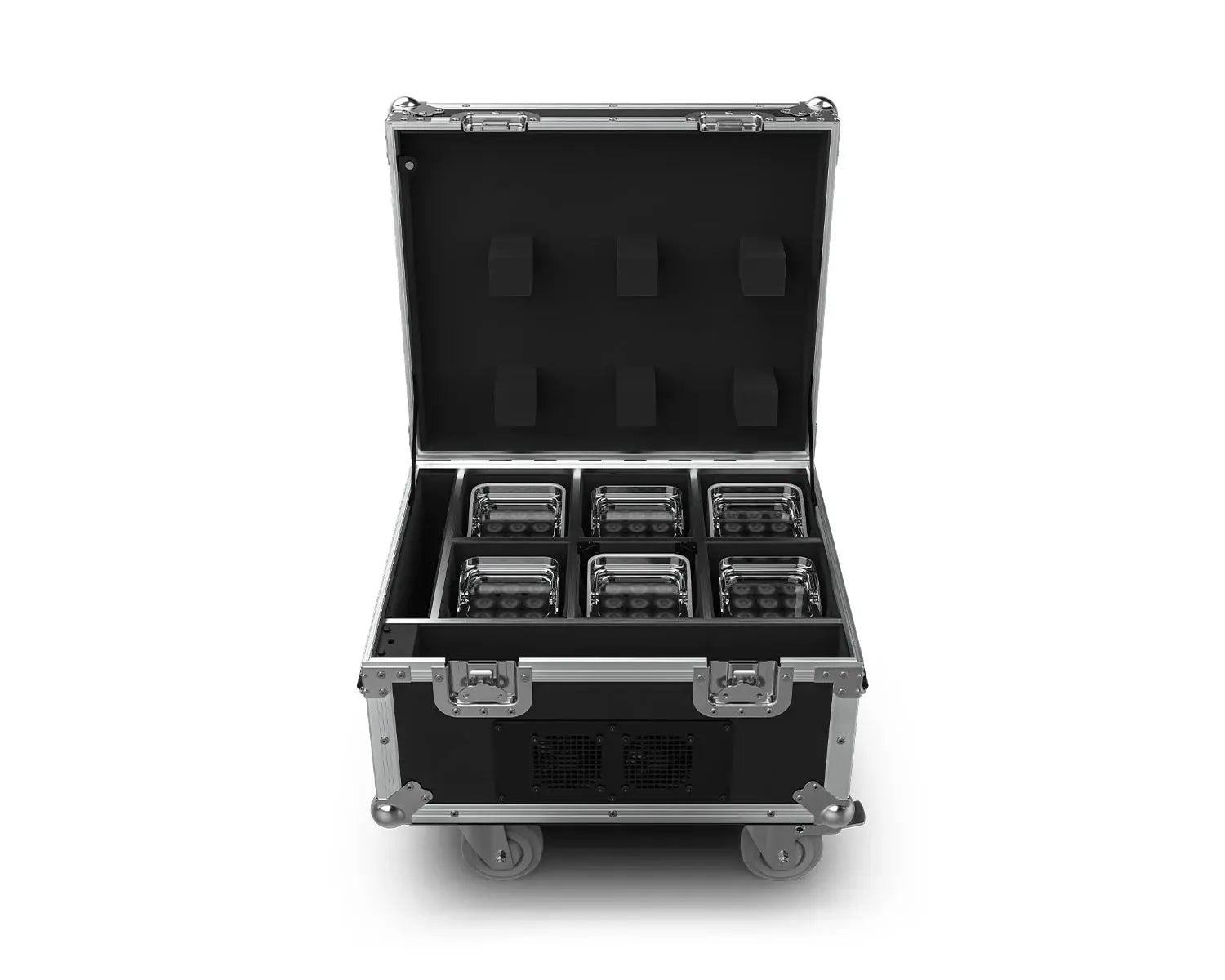

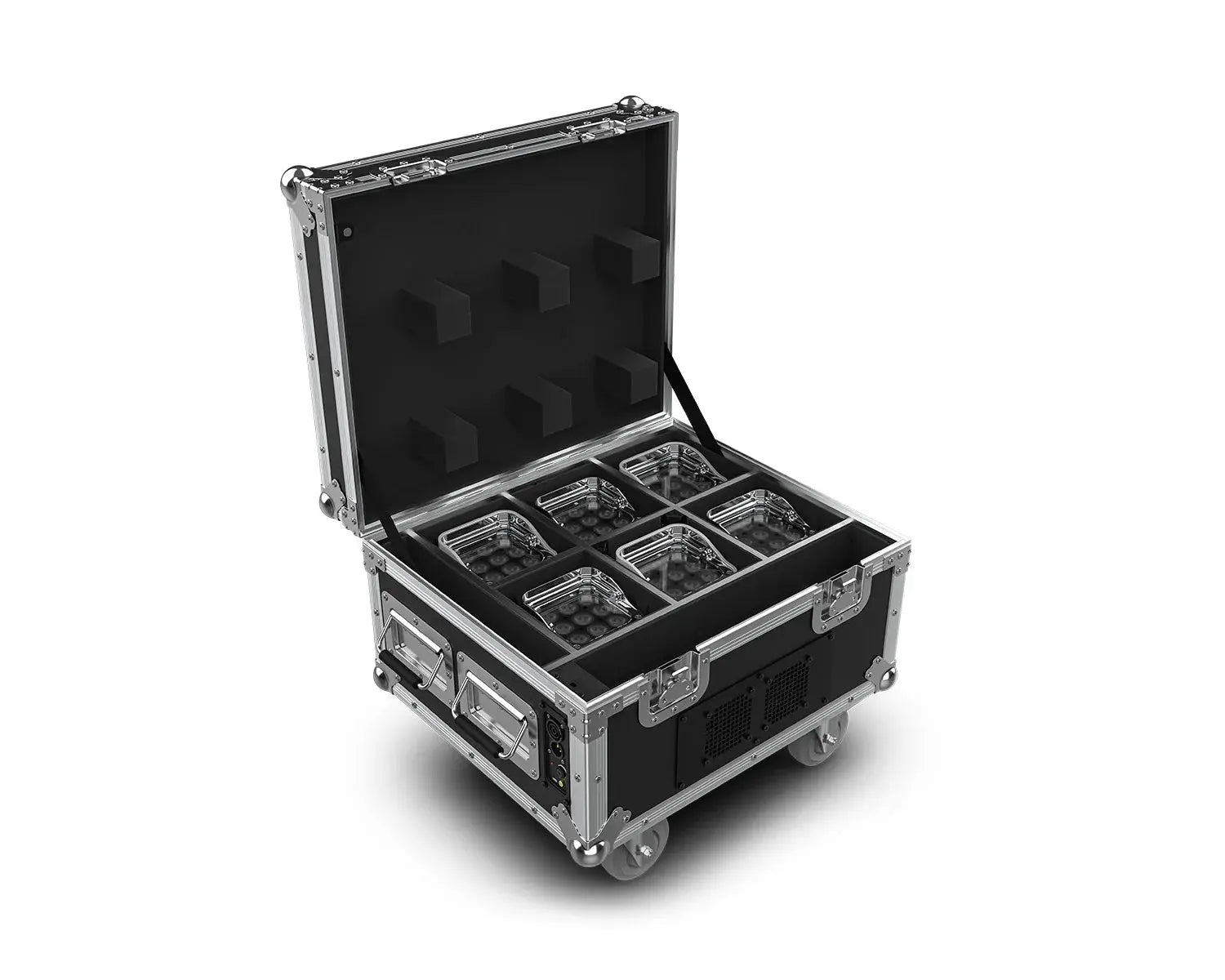

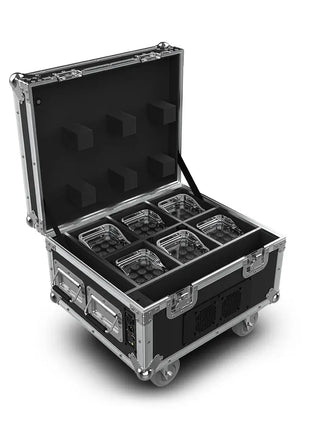

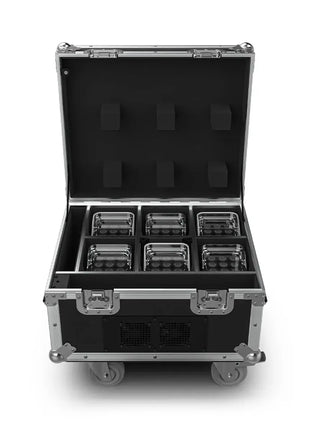

Drop-in 6-slot charging flightcase: Conserves venue and warehouse footprint space by charging all six docked fixtures simultaneously via a single heavy-duty Seetronic TRUE1 connection line.
-
Integrated visual beam shaping: Supplied out of the box with a dedicated filter pack to broaden or alter beam diffusion paths on demand.
-
Active hardware anti-theft alarm: Features an onboard security engine with distinct audio and visual notifications to instantly alert technicians if a fixture is moved during an event.
Who is the CHAUVET Professional WELL FIT X Kit best suited for?
This professional 6-unit uplighter deployment kit is built first and foremost for corporate event crews, live touring production companies, and premium mobile DJ companies who handle large-scale ballroom, gallery, and hotel functions. Its wire-free layout allows production techs to roll the flightcase directly onto a venue floor, drop the individual pods along structural walls, and establish an entire ambient room wash in under ten minutes without hunting for local mains sockets.
For alternative use cases, the WELL FIT X system serves as a premier solution for high-end wedding planning agencies, marquee rental providers, and historical architectural venues where running loose power cables is strictly prohibited for aesthetic or heritage safety reasons. Thanks to its selectable high-frequency PWM (Pulse Width Modulation) adjustments up to 25,000 Hz, it is heavily relied upon by video broadcast studios and film production companies to guarantee perfectly flicker-free color mixing on camera.
CHAUVET Professional WELL FIT X vs Original WELL Fit — What's Changed?
The structural evolution when moving from the classic, older-generation WELL Fit model up to the upgraded WELL FIT X is an absolute game-changer for layout speed and acoustic power. The original model utilized four 10W RGBA LEDs; the new WELL FIT X dramatically increases lumen efficiency and color mixing accuracy by deploying nine custom-engineered RGB Warm White (RGBWW) light sources. This means you can generate significantly brighter, warmer, and more realistic pastel tones, stone-wash ambers, and true whites while maintaining a noticeably more compact and lightweight fixture framework.
Logistical control has been completely revamped on the "X" edition. While the previous base required removing fixtures to apply system patches, the WELL FIT X integrates an accessible USB-C data pipeline right through the charging flightcase slots, allowing complete software inventory updates with the case lid shut. Furthermore, the battery configuration has expanded from an unchangeable single runtime block to an adjustable matrix offering four distinct performance modes (5, 8, 12, and 18 hours), allowing operators to trade peak lumen output for extended operational lifetimes when handling multi-day festivals or overnight events.
How to Set Up the CHAUVET Professional WELL FIT X Kit
-
Roll the 6-slot flightcase near a primary power source, open the lid, and verify all fixtures are fully charged.
-
Lift the chrome uplighters out of their slots and position them at the base of the walls or pillars you wish to illuminate.
-

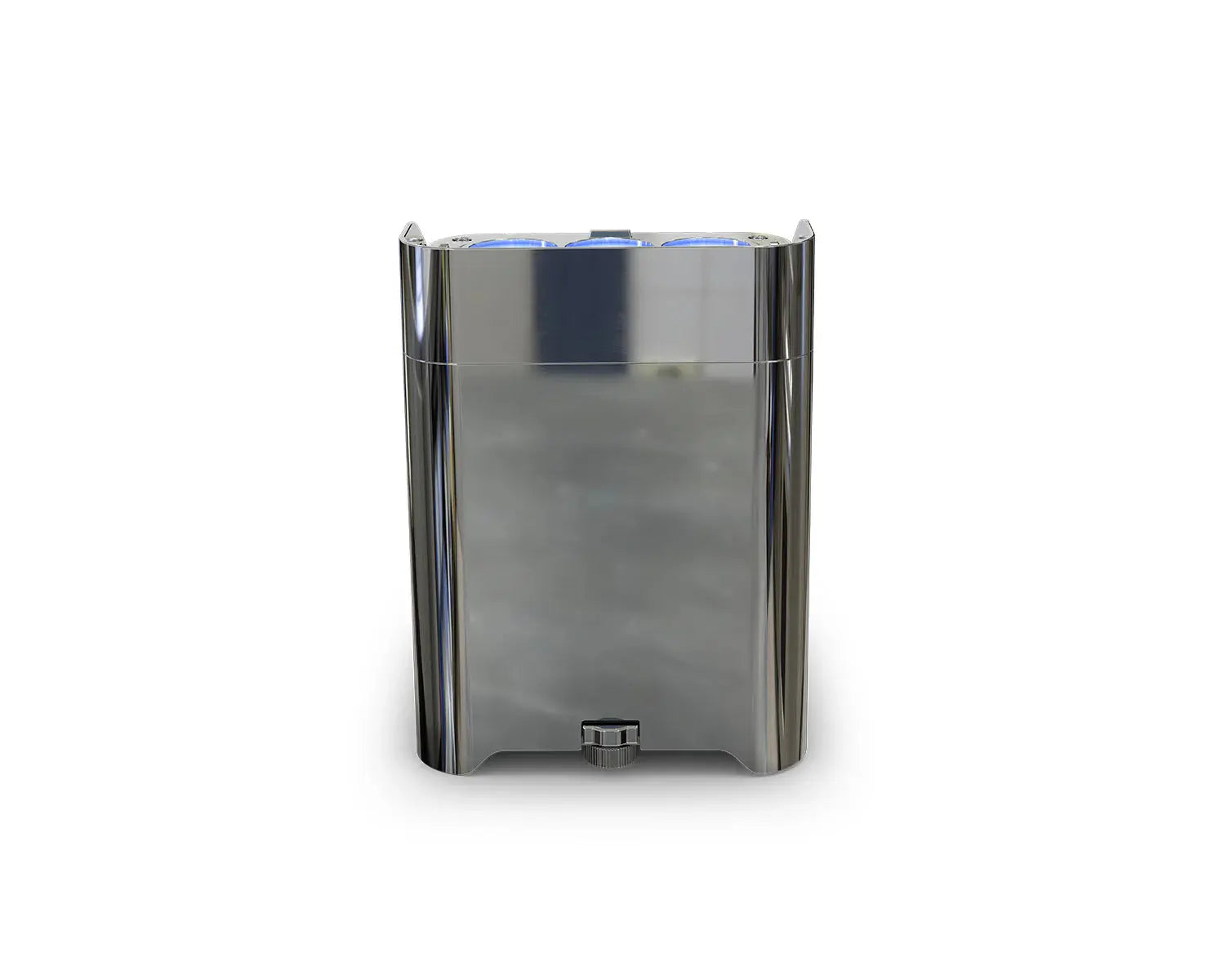

Pull out the integrated adjustable front foot on the bottom of the fixture chassis to easily tilt and aim the beam precisely where the light is needed.
-

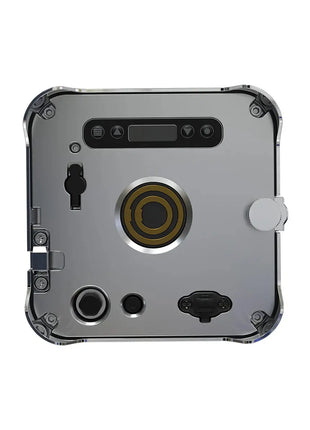

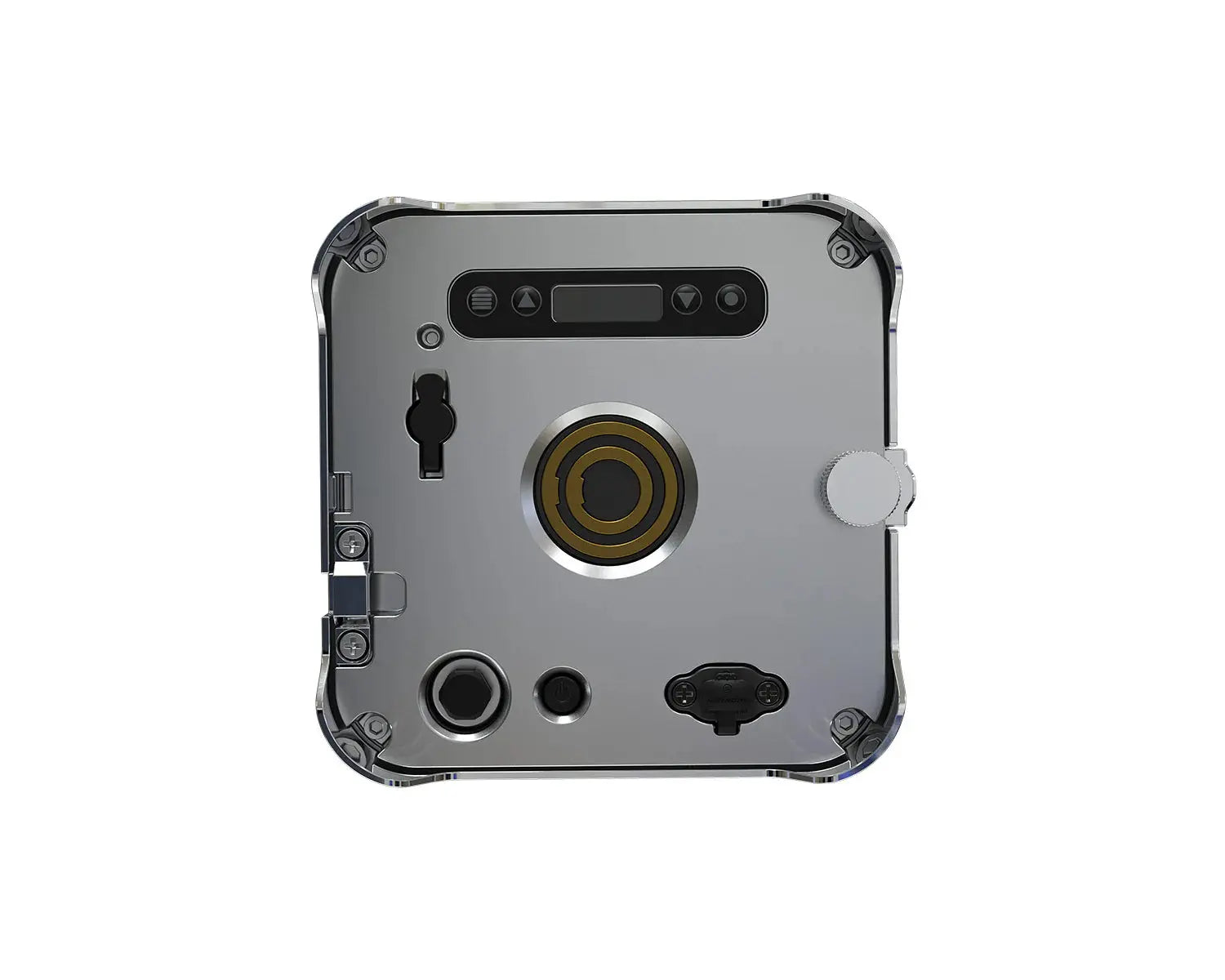

Power the units on using the rear panel controls and monitor the high-contrast onboard OLED screen.
-
Select your preferred control protocol: pair with a wireless LumenRadio CRMX/WDMX transmitter, use the included RF remote, or activate manual standalone color macros.
-
Adjust the internal battery management profile to 5, 8, 12, or 18 hours based on the timing demands of your production.
-
Slide on the included white metal slip covers if your event calls for a clean, non-reflective aesthetic to match white drapery or wedding themes.
Technical Specifications
| System Feature |
Specification Details |
| Product Classification |
Professional Battery-Powered IP65 Wireless LED Uplighter Kit |
| Light Source (Per Unit) |
9 x RGBWW (Red, Green, Blue, Warm White) 7.5W LEDs |
| Color Temperature Range |
2600 K to 10,000 K CCT range |
| Beam / Field Angle |
11.5° Beam Angle / 21.1° Field Angle |
| Peak Output Performance |
1944 Lumens / 1205 lux @ 5m (On 5-hour battery setting) |
| Wireless Control Engine |
LumenRadio CRMX, Wireless RDM, NFC, RF Remote Control |
| DMX Channel Modes |
5, 8, or 12 Channels (3 distinct personalities) |
| Selectable PWM Options |
600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz |
| Battery Composition Type |
Rechargeable Lithium-Ion System |
| Battery Charging Period |
Rapid 1.6 Hours from empty to full capacity |
| Mains Power Case Input |
Seetronic TRUE1 IP65 Locking Connection |
| Chassis Material / Color |
Aluminum Die-Cast Enclosure / Polished Mirror Chrome |
| IP Protection Rating |
IP65 Weatherproof (Fixtures) / IP20 (Charging Case) |
| Single Fixture Weight |
3.2 kg (7.0 lbs) |
| Full Loaded Flightcase Weight |
44.6 kg (98.3 lbs) |
Frequently Asked Questions
Can the WELL FIT X fixtures safely operate outside in wet weather?
Yes, they can. The individual chrome uplighter fixtures feature a fully sealed die-cast aluminum housing with an IP65 rating, making them completely protected against rain and dust ingress. However, the 6-unit charging flightcase itself is rated IP20 and must stay indoors or under cover while plugged into mains power.
How fast do these uplighters recharge inside the case?
The upgraded lithium-ion battery packs feature an ultra-fast recharge curve, jumping from completely flat to full capacity in just 1.6 hours. The case is explicitly built to charge all six units safely with the flightcase lid securely closed to optimize warehouse storage space.
Can I run the fixtures while they are actively charging?
Yes, absolutely. The built-in electronic power management architecture allows you to run the uplighters continuously from standard mains power via their charging drop slots if you need to use them for extended multi-day permanent venue installations.
What is the purpose of the white metal covers included in the kit?
While the highly polished mirror chrome finish looks fantastic for mirroring its immediate surroundings, some weddings or high-end corporate events require minimalist, matte fixtures. The included white metal slip covers drop over the housing instantly to match neutral drapery and stage stages.
How do I control the color outputs wirelessly without a DMX console?
You have multiple cable-free options. The kit includes a basic RF hardware remote control to quickly tap into preset colors and automated programs. Alternatively, you can use the specialized ConnectFX mobile application on your smartphone when connected via a WELL CONNECT app interface node.
Does this lighting kit feature safety tie points for overhead rigging?
Yes, it does. Every single fixture is engineered with a built-in safety cable attachment point alongside an integrated Kensington lock position, ensuring you can secure your gear against physical drops or venue theft.
What's In The Box?
-
6 x CHAUVET Professional WELL FIT X Chrome IP65 LED Uplighters
-
1 x Heavy-Duty 6-Slot Road-Ready Charging Flightcase
-
1 x Basic RF Wireless Remote Controller
-
1 x Heavy-Duty Seetronic TRUE1 Power Input Cable
-
1 x Production Filter Pack for Beam Shaping
-
6 x White Metal Decor-Matching Slip Covers
-
1 x Factory Quick Reference Navigation Guide
