Staff Take: The Expert Verdict

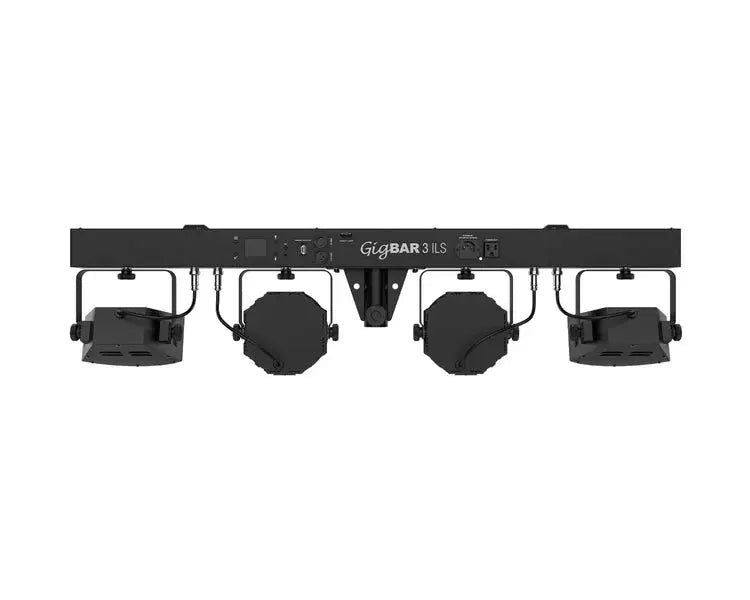

If you are a mobile entertainer or wedding DJ managing your own setups, the Chauvet DJ GigBAR series has always been a legendary time-saver, but the GigBAR 3 ILS completely perfects the formula. Instead of forcing you to build complex DMX lighting profiles to sync your fixtures, Chauvet’s proprietary Instant Light Show (ILS) ecosystem links your entire rig wirelessly with zero programming. This new generation model steps things up by building a sweeping, high-energy LED eye-candy strip straight across the central chassis, beautifully complementing the two wide-dispersion derbies and high-saturation RGB+UV par cans. It is a massive, venue-filling light show that weighs just 6 kg and packs entirely into the included gig bag in under five minutes.
Why Choose the Chauvet DJ GigBAR 3 ILS Lighting Bar?
-

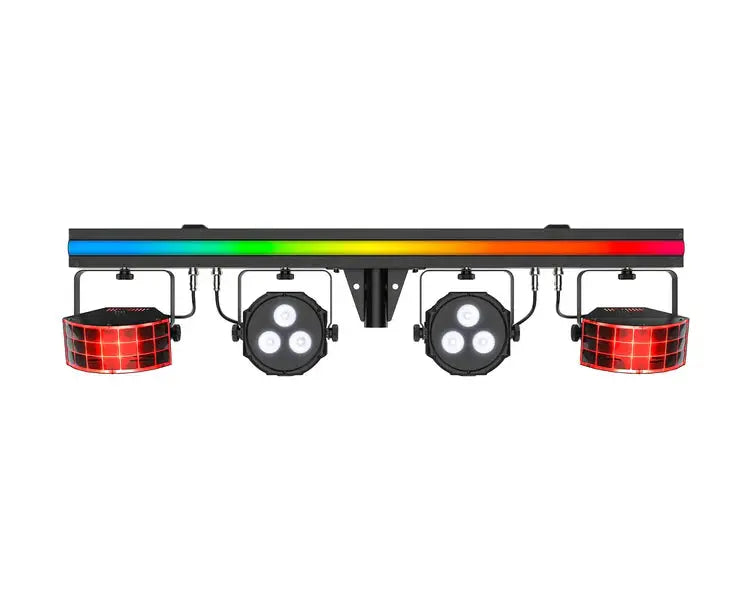

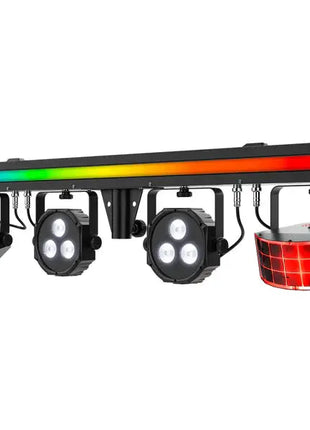

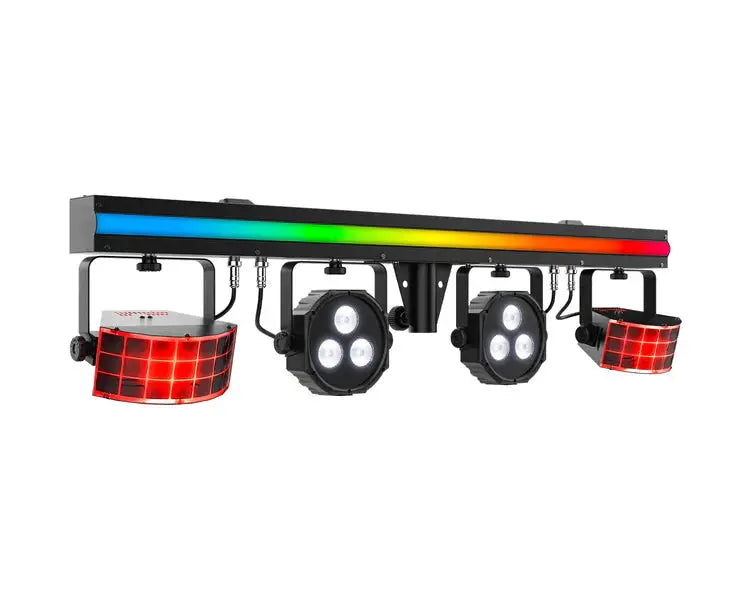

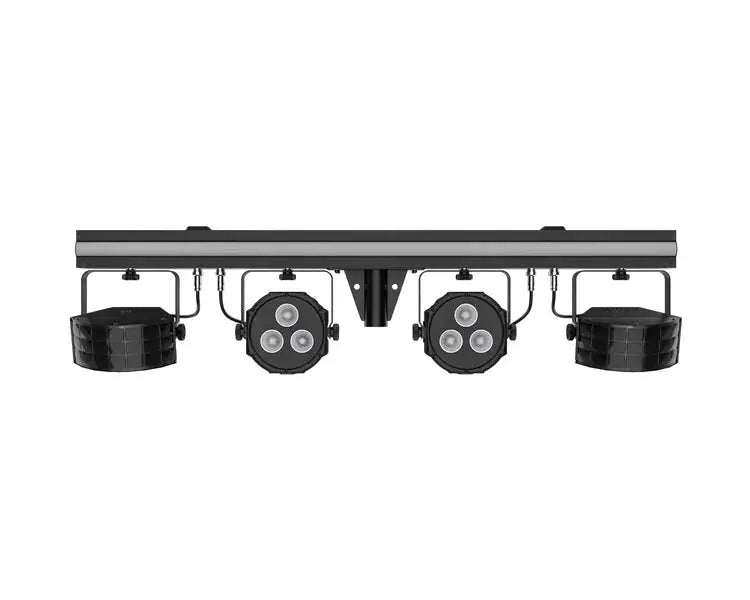

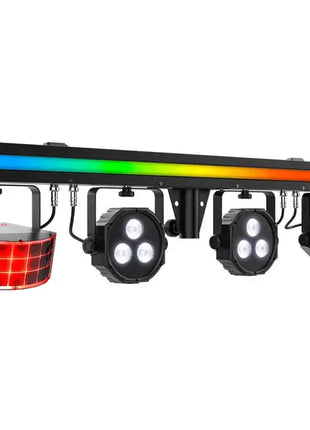

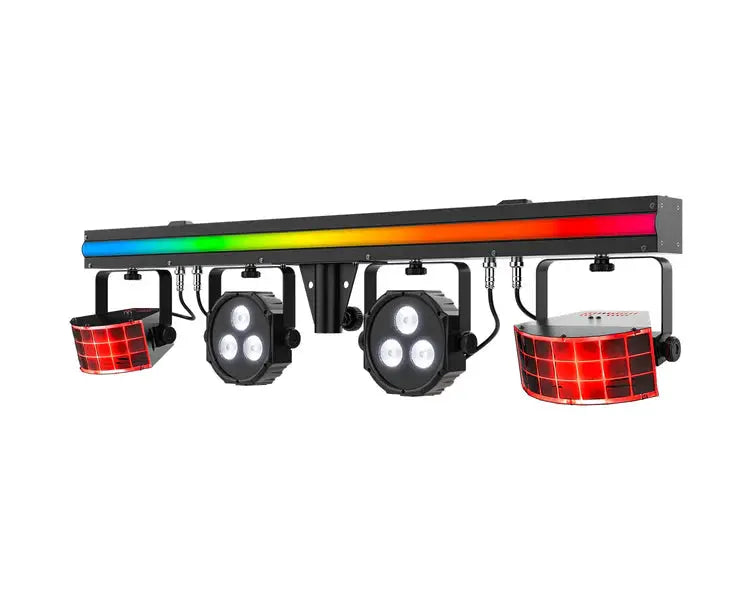

Integrated 3-in-1 Visual FX Array: Combines two high-velocity LED derbies, two rich color-wash LED pars, and a dynamic, center-mounted LED graphic eye-candy strip on one pre-wired crossbar.
-
Instant Light Show (ILS) Ecosystem: Wirelessly coordinates synchronized automated and sound-active light shows across multiple different fixture types without a single line of DMX code.
-
Saturated RGB + UV Color Mixing: The wash pars feature quad-color LEDs including dedicated Ultraviolet emitters, allowing you to flood the dance floor with rich, deep purples and high-impact neon glow.
-
Four-Fixture Rigging Expansion: Features a heavy-duty top rail layout that allows you to screw-mount up to four additional fixtures to scale up your rig as your production requirements grow.
-
Cable-Free Footswitch & Remote Control: Supplied with a rugged wireless footswitch and a compact RF remote, allowing you to black out the room or trigger strobe drops up to 30 metres away.
-
Reversible System Mounting: Outfitted with an innovative reversible tripod socket, allowing you to mount the unit traditionally on the included stand or hang it upside down from overhead trussing.
-
Professional Power Linking Matrix: Saves time running multiple extensions across the floor by allowing you to daisy-chain primary AC power between up to 18 units at 230V.
Technical Specifications
-
System Concept: All-In-One 3-in-1 Multi-Effects Lighting Bar Pack
-
Low Wash Optics: 2 x Pars with 6 LEDs each (Quad-Color RGB+UV, 3.7W)
-
Mid-Air Aerial Optics: 2 x Derbies with 6 LEDs each (Red, Green, Blue, 3W)
-
Backdrop Graphic Strip: 1 x Linear Array with 74 LEDs (Red, Green, Blue, 5W)
-
Optical Coverage Angles: Pars: 13-degree Beam / Derby: 114-degree / LED Strip: 174-degree
-
System Strobe Rate: Variable control from 0 to 20 Hz
-
Wired DMX Architecture: Selectable 2, 21, or 132 channel profiles (3-Pin XLR I/O)
-
Wireless Transceiver Frequencies: Integrated D-Fi 2.4GHz / Footswitch 433MHz
-
Adjustable Stand Elevation: 1.5 metres to 2.4 metres total tripod height
-
Mains Input Configuration: Auto-ranging 100 to 240 VAC, 50/60 Hz (45W Power Draw)
-
Chassis Dimensions: 1047mm Width x 94.5mm Depth x 272mm Height
-
Net System Weight: 6.0 kg
Specs/Box Contents
-

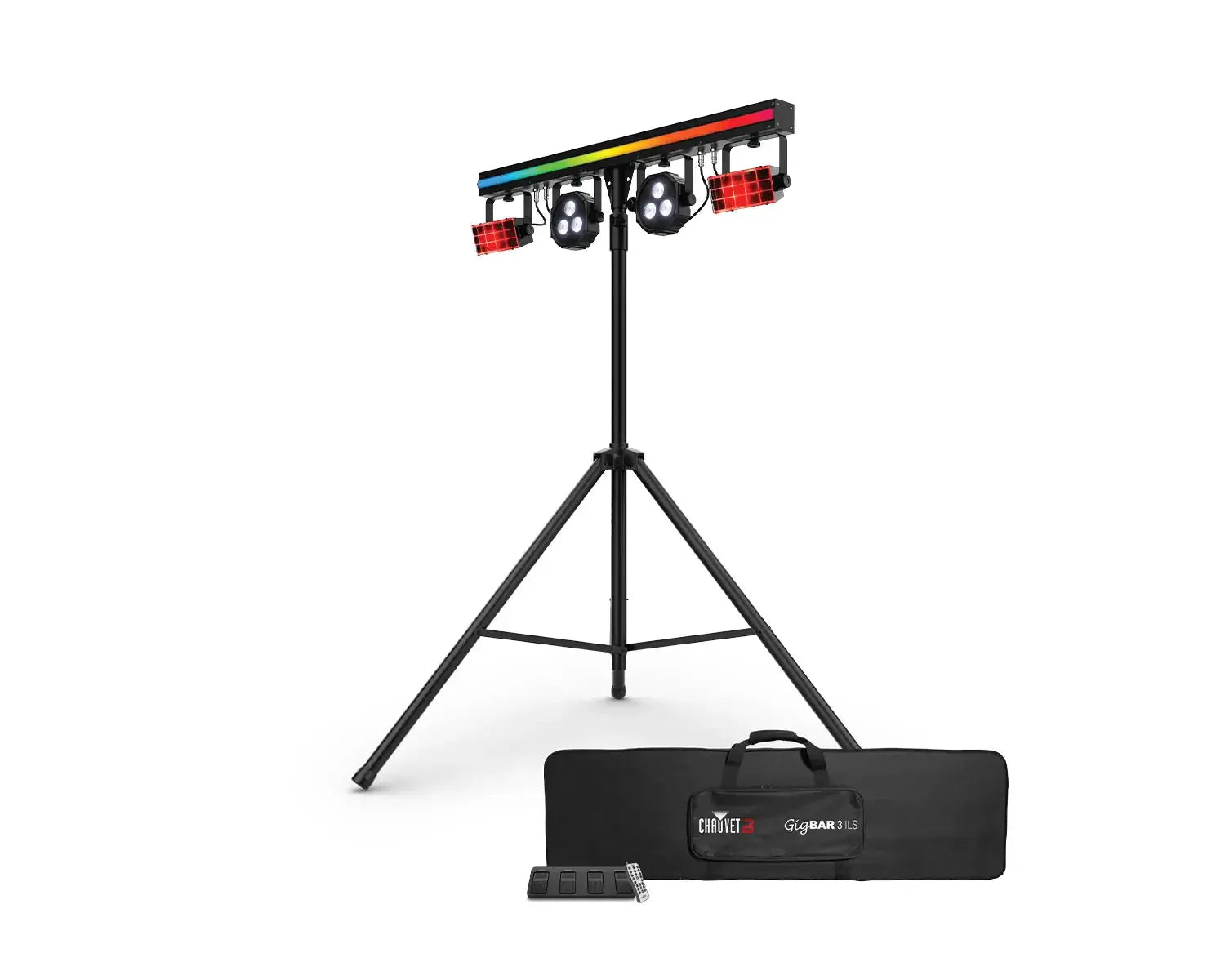

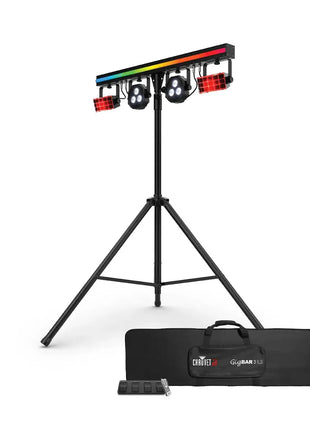

1 x Chauvet DJ GigBAR 3 ILS Main Effects Bar
-
1 x Height-Adjustable Tripod Lighting Stand
-
1 x Wireless Performance Footswitch (with 9V Battery)
-
1 x Convenient RF Remote Control
-
1 x Heavy-Duty Padded Carry Bag Set
-
1 x IEC Mains Power Cable
-
1 x User Configuration Manual
