Description

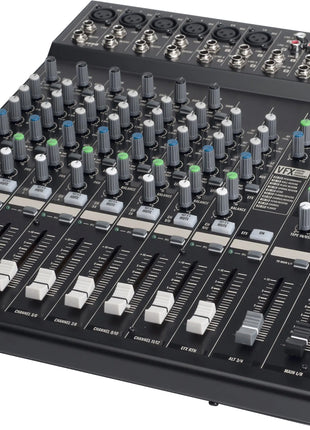

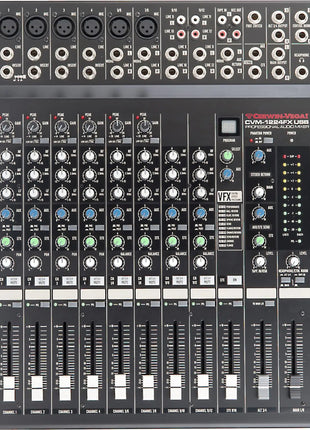

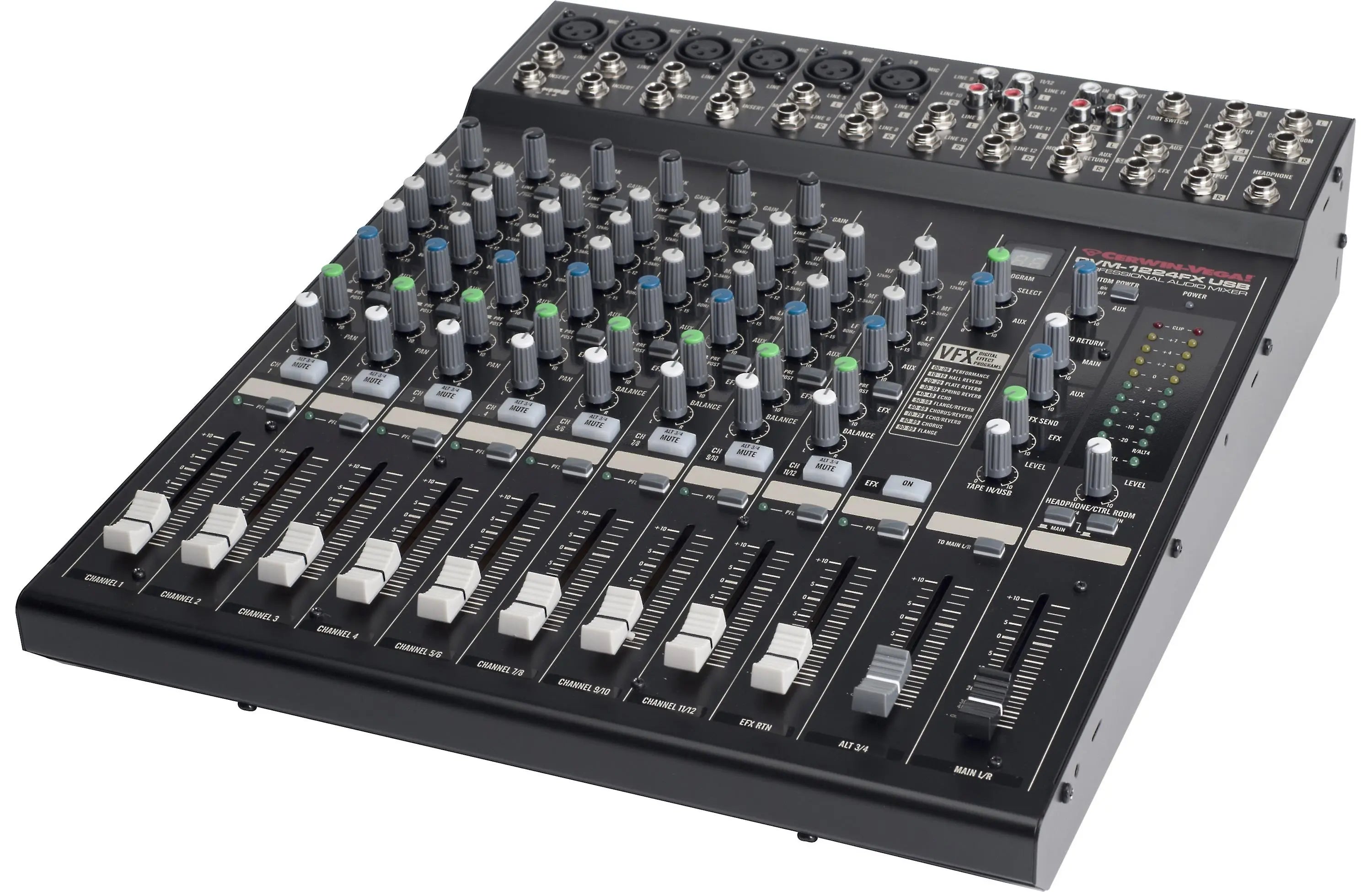

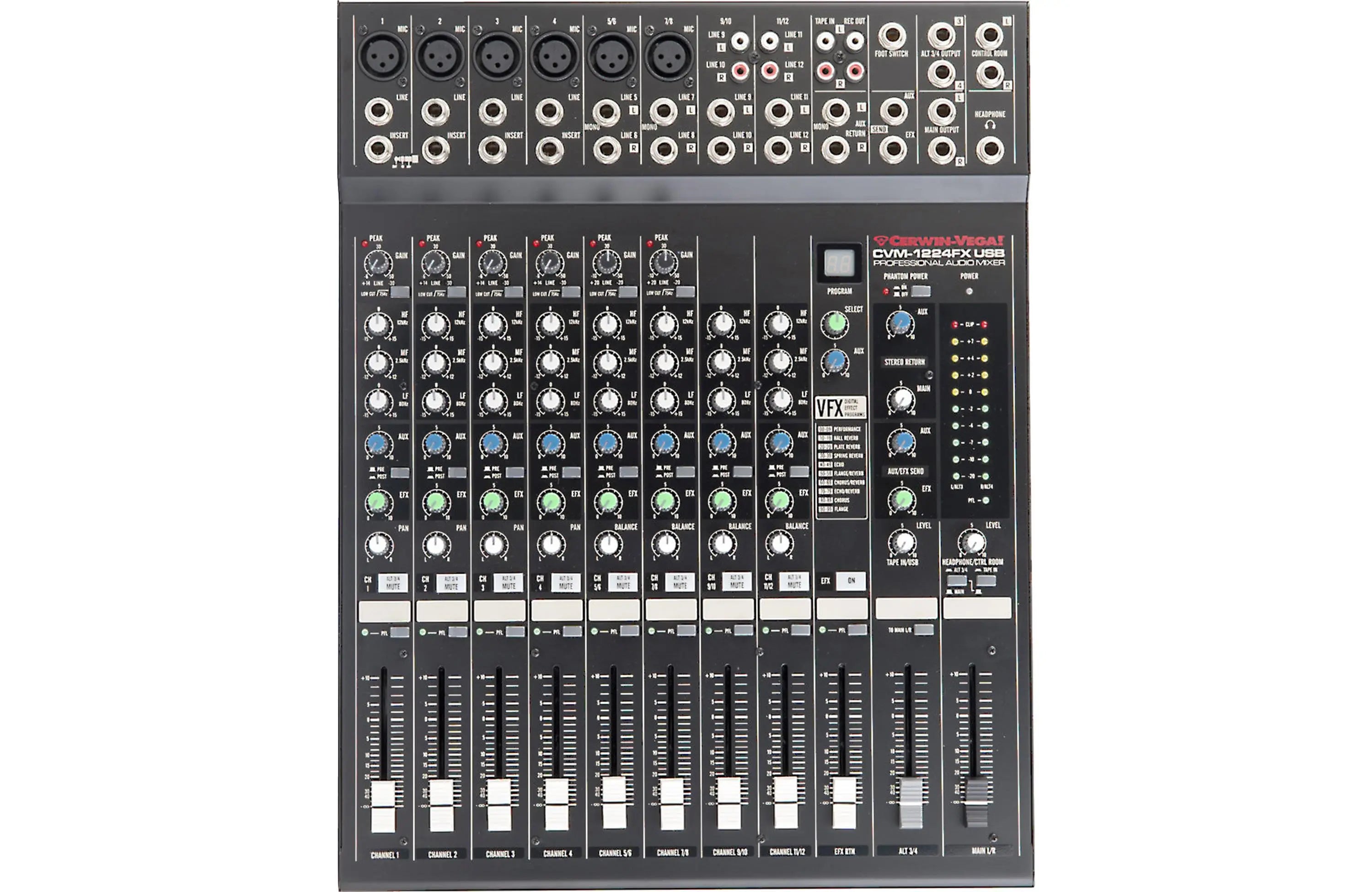

Cerwin-Vega CVM-1224FXUSB - 12-Channel Professional Rackmountable Audio Mixer
Overview
The Cerwin-Vega CVM-1224FXUSB is a 12-channel professional audio mixer designed to support live mixing applications with robust features and flexible control. It incorporates VEGA effects, precise level adjustments via 60mm faders, and the same 3-band equalization and AUX & EFX bus flexibility found across Cerwin-Vega!'s professional audio mixer line. This mixer is also rackmountable and includes USB connectivity for computer playback and recording, making it a comprehensive solution for controlling your sound.
Key Features
-
12-Channel Configuration: Features 4 mono and 4 stereo line inputs with 6 XLR microphone inputs.
-
3-Band Channel Equalizer: Provides ±15 dB (HF, LF) and ±12 dB (MF) per channel for precise tone shaping.
-
Individual Level Control: Utilizes 60mm faders for individual channel and main level control.
-
Gain (Trim) Level Control: With sensitivity markings for both microphone and line inputs.
-
Low Cut (HPF) Switch: At 75Hz to eliminate background microphone rumble.
-
AUX and EFX Controls: Adjust the level of the signal sent to the respective bus.
-
PAN Control (Mono Channel): To position the signal across the master left and right bus.
-
BALANCE Control (Stereo Channel): To adjust the level between left and right signals.
-
Switchable Phantom Power (+48V): For safe and easy connection of condenser microphones.
-
Level Control for Headphone and Control Room Connections.
-
PRE/POST Switch: Sets the AUX signal as pre- or post-fader for foldback/monitoring mix or to preserve the wet-to-dry ratio on AUX sends.
-
PFL (Pre-Fade Listen) Switch: With adjacent indicator to allow the engineer to listen to each channel before it reaches the main mix.
-
Built-in VEGA-Effects 24-bit Digital Signal Processor: With 100 selectable programs including reverb, echo, chorus, and flange.
-
100mm VEGA-effects Master Fader: And remote footswitch on/off control for effects return.
-
USB Connection: 16-bit, 44.1kHz for computer playback and recording (class compliant).
-
Rackmountable Design: Detachable rack ears for mounting in a standard 19″ rack enclosure.
Technical Specifications
-
Channels: 12 (6 XLR mic inputs, 4 mono line, 4 stereo line inputs).
-
Equalization: 3-band per channel (HF, LF: ±15 dB; MF: ±12 dB).
-
Faders: 60mm (channel and main), 100mm (VEGA-effects master).
-
Low Cut Filter: 75Hz.
-
Phantom Power: +48V (switchable).
-
Digital Effects Processor: 24-bit, 100 programs (reverb, echo, chorus, flange).
-
USB Connection: 16-bit, 44.1kHz (class compliant).
-
Outputs: MAIN L/R ¼” jack and XLR, ALT 3-4 ¼” jack, REC OUT stereo RCA.
-
Inputs: TAPE IN stereo RCA.
-
Headphone Out: ¼” Stereo.
-
Control Room Out: Balanced ¼”.
-
Power Source: 100-120VAC or 220-240VAC, 50/60Hz.
-
Weight: 3.4 kg / 7.5 lbs.
-
Dimensions (HxWxD): 247 x 65 x 290 mm / 328 x 65 x 420 mm / 12.9 x 2.5 x 16.5 inches.
Suitable For
- Live mixing applications.
- Professional audio engineers.
- Installations requiring a rackmountable mixer.
- Users needing built-in effects and USB recording/playback capabilities.
What's in the box
- Cerwin-Vega CVM-1224FXUSB 12-Channel Professional Audio Mixer.
- Detachable rack ears.
- Power cable (implied by power source).
