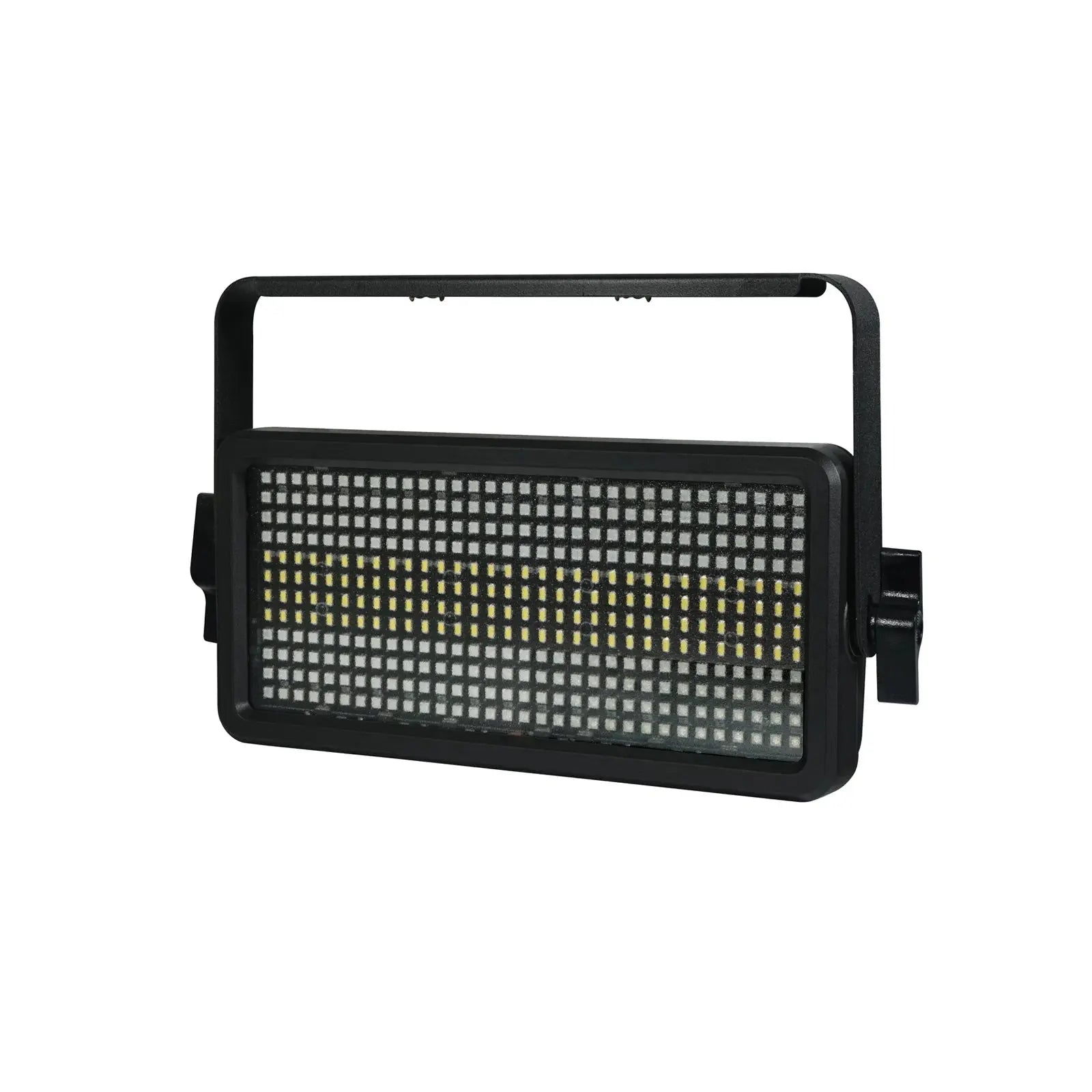

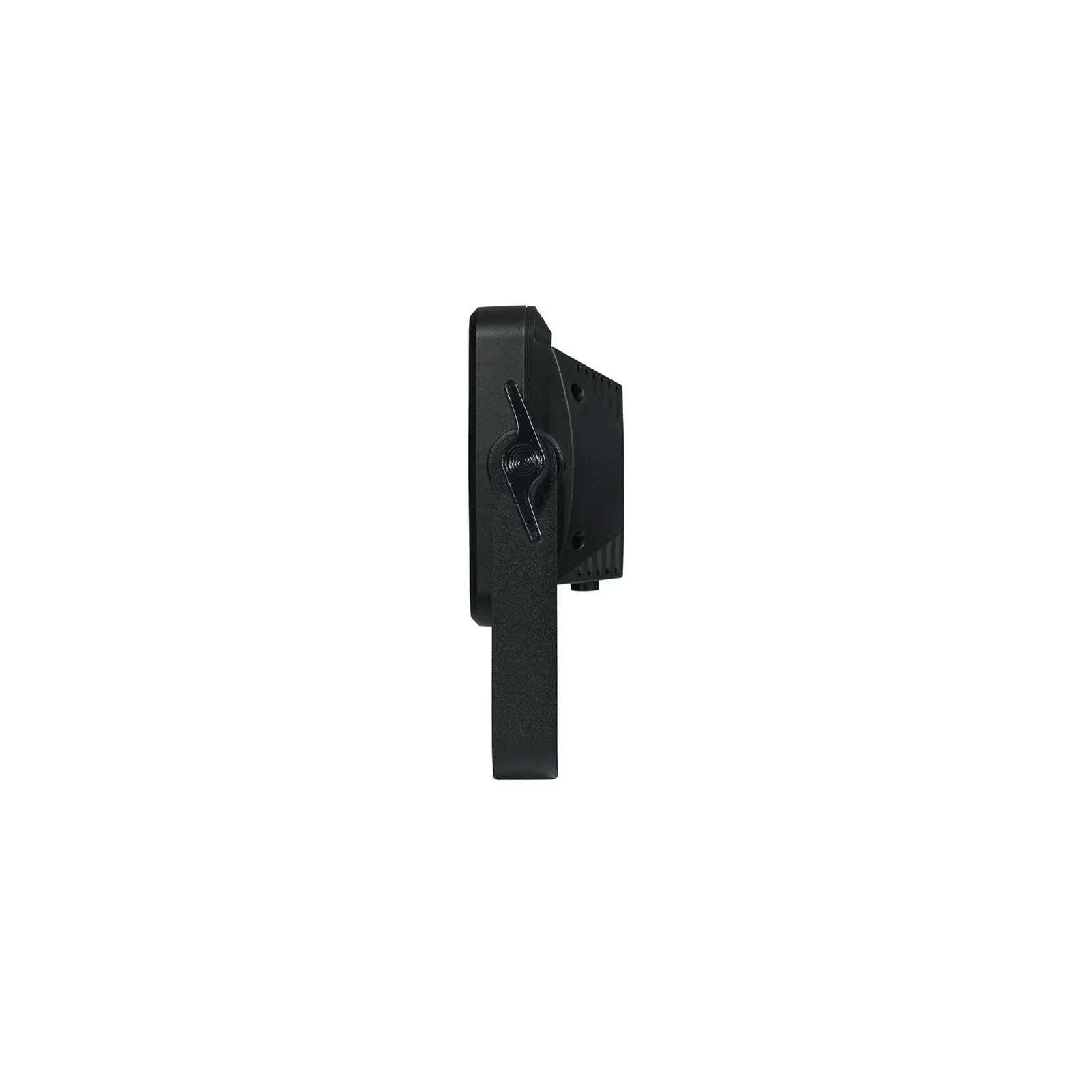

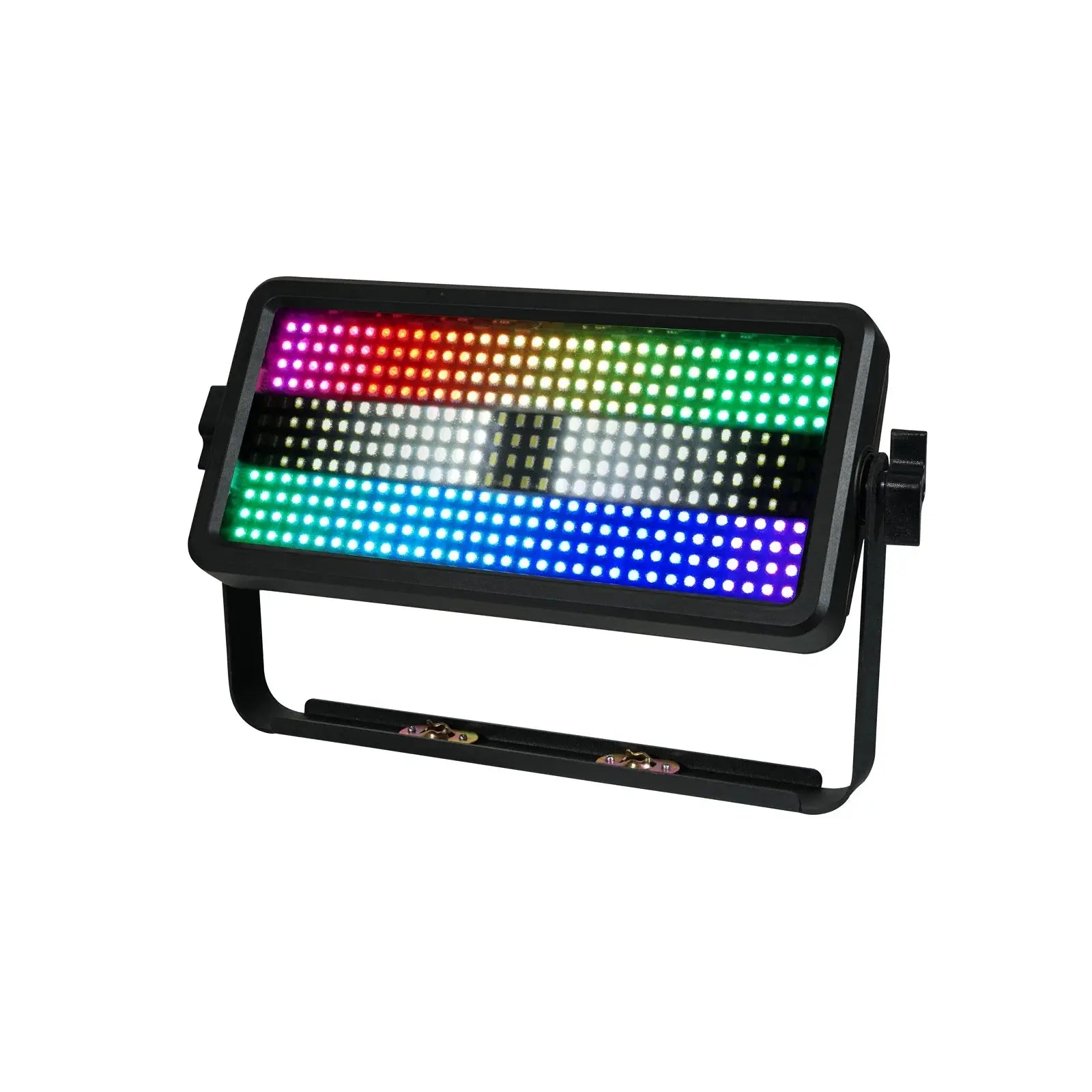

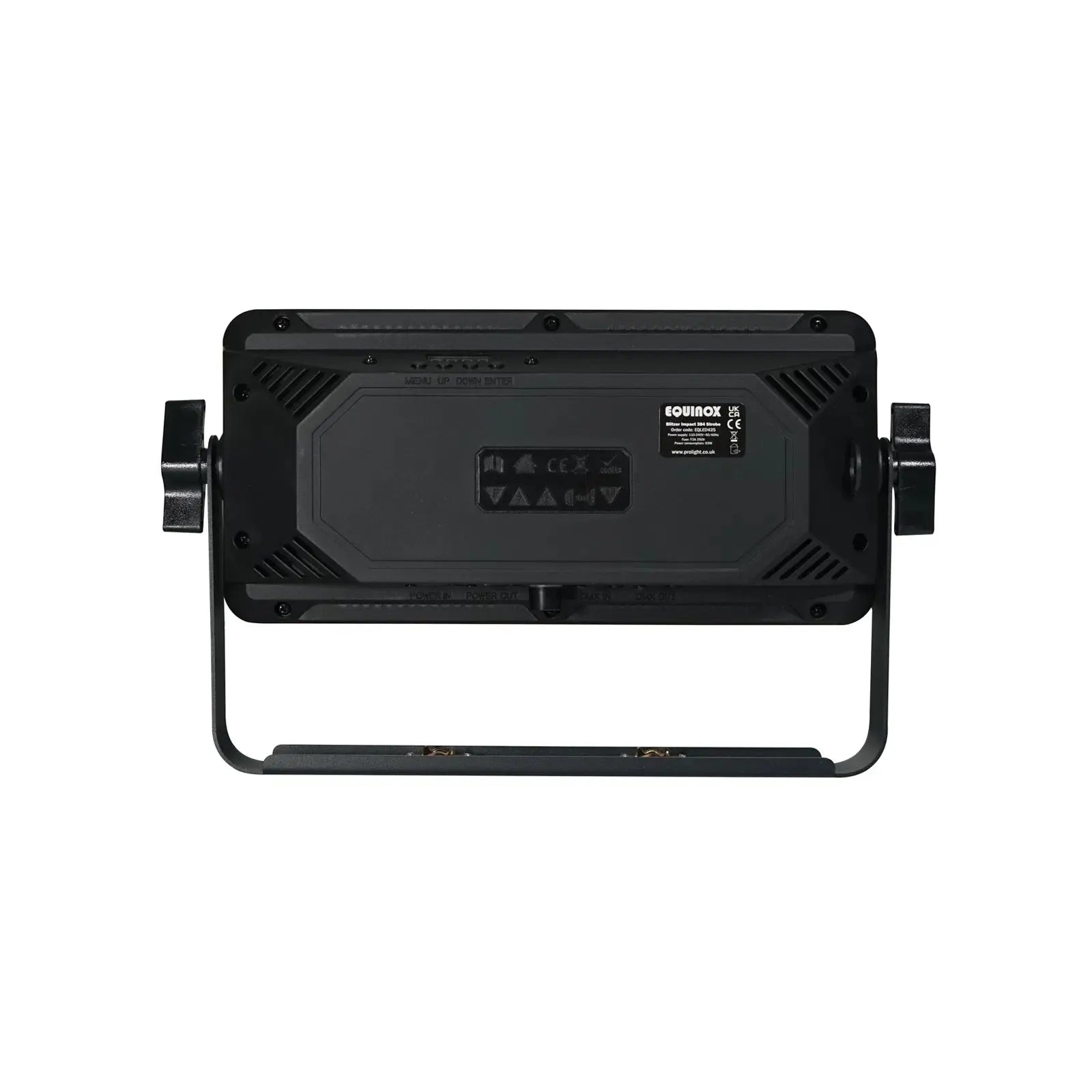

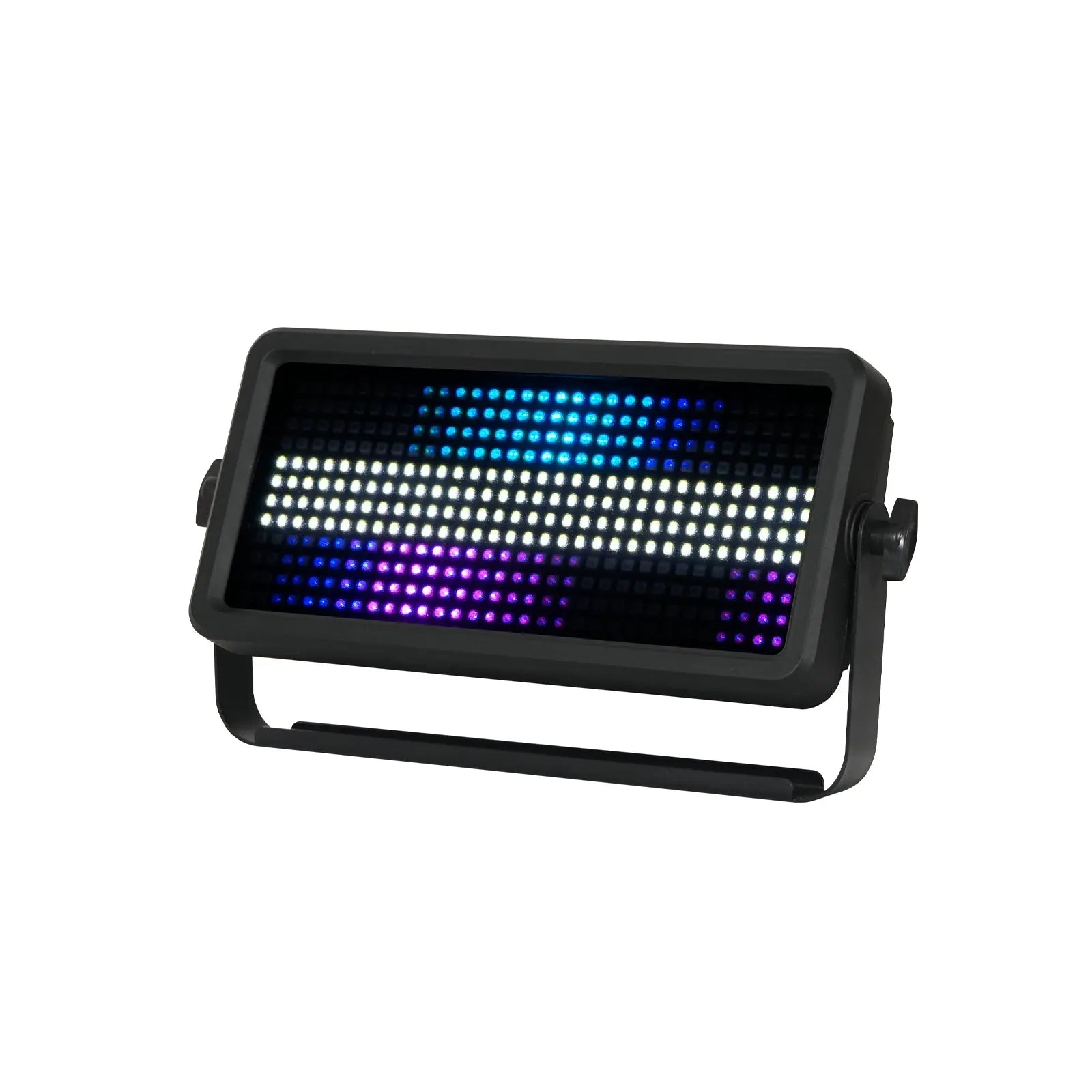

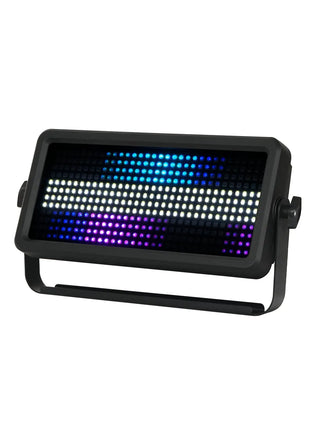

Equinox Blitzer Impact 384 - LED Multi-Function Strobe Effect
The Equinox Blitzer Impact 384 is a dynamic multi-function strobe effect fixture designed to create eye-catching visual displays. It combines tri-colour RGB LEDs with cool white LEDs to produce a variety of chasing and strobe effects, suitable for stages and events.
Key Features
256 Tri-Colour SMD 5050 LEDs (RGB): For vibrant color washes and effects.
128 White SMD 5730 LEDs (CW): Arranged horizontally for traditional strobe effects.
Individual Segment Control: 32 individually controlled segments for the RGB LEDs and 16 for the white LEDs.
Multiple Chase Effects: Produces stunning chase patterns across the RGB zones.
Wide Viewing Angle: 135° coverage for filling the space with light.
High Refresh Rate: 10kHz for flicker-free operation.
Selectable DMX Channels: 6, 9, 64, or 112 DMX channels for flexible control.
Multiple Operational Modes: Static color, auto, sound active, and master/slave modes, plus built-in programs.
0-100% Dimming: For precise intensity control.
Variable Strobe: Adjustable strobe speed.
Flexible Mounting: Bracket allows for multiple rigging or floor-standing applications.
Quick Release Omega Clamp: Included for easy mounting.
User-Friendly Interface: 4 push button menu with LED display.
PowerCon Input/Output: For secure power connections.
3-Pin XLR Input/Output: For DMX connectivity.
Fan Cooled: For reliable operation.
Technical Specifications
LEDs: 256 Tri-colour SMD 5050 (RGB), 128 White SMD 5730 (CW)
Viewing Angle: 135°
Refresh Rate: 10kHz
DMX Channels: 6, 9, 64, or 112 selectable
Modes: Static colour, auto, sound active, master/slave, built-in programs
Dimming: 0-100%
Strobe: Variable
Connectors: PowerCON input/output, 3-Pin XLR input/output
Cooling: Fan cooled
What's in the box
Equinox Blitzer Impact 384
Quick release omega clamp
Power cable
User manual
