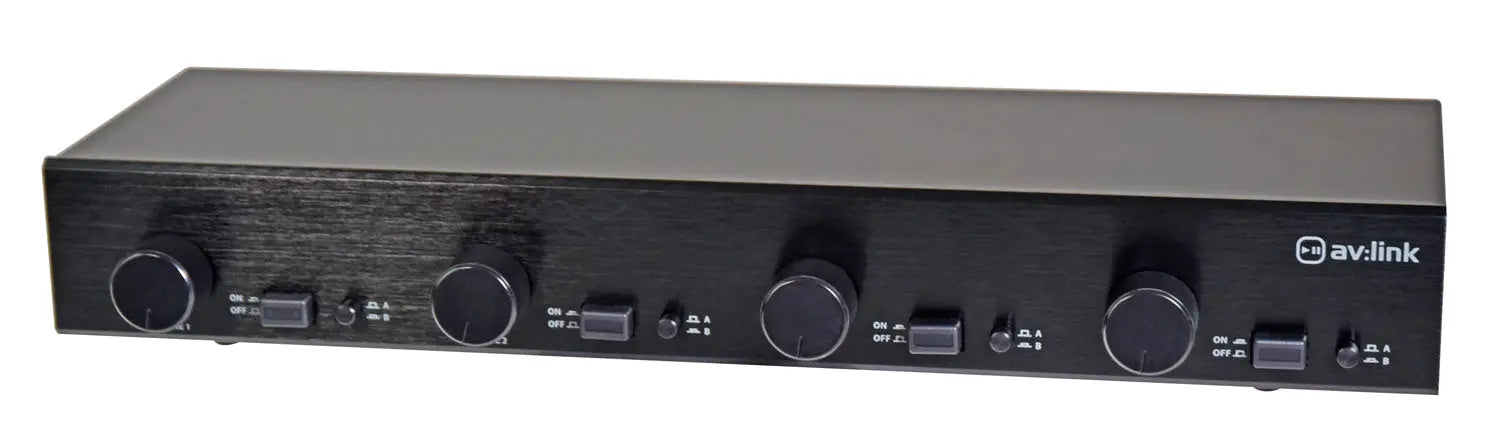

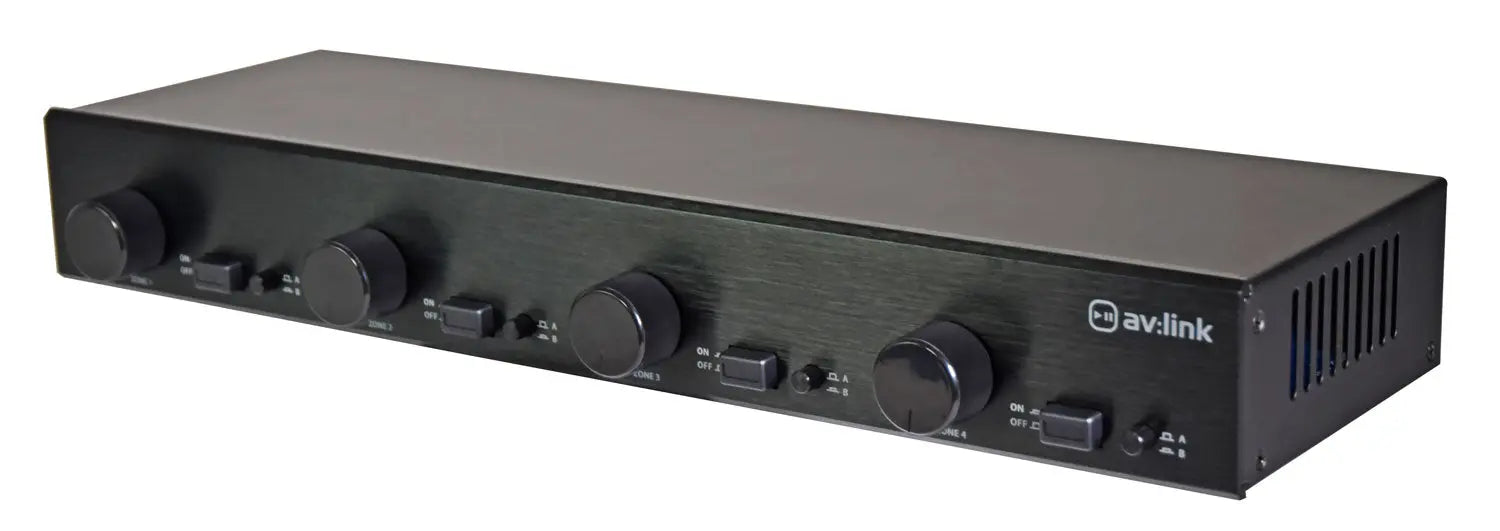

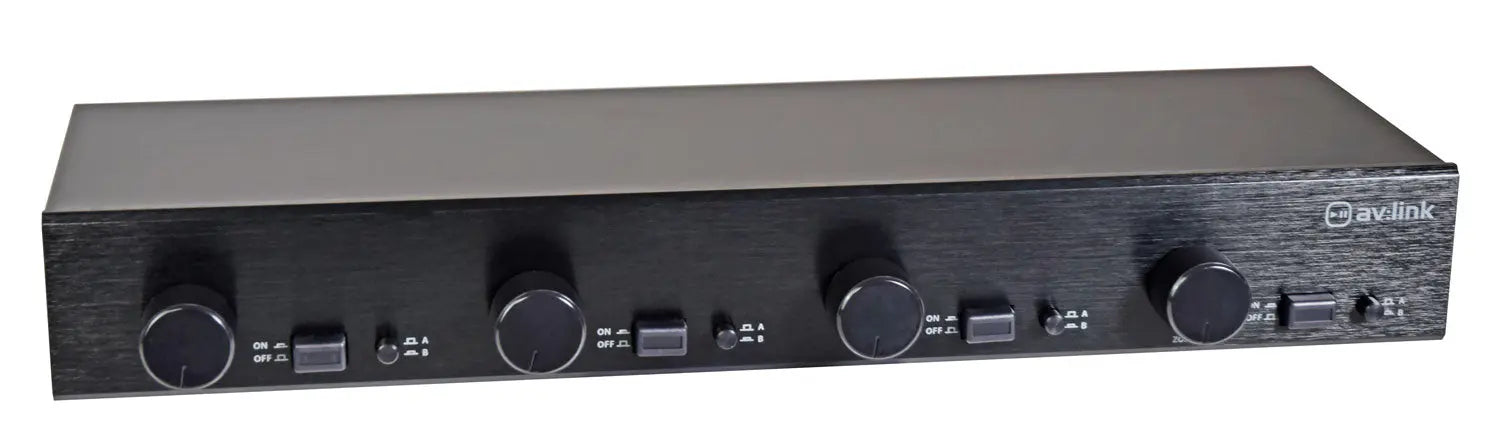

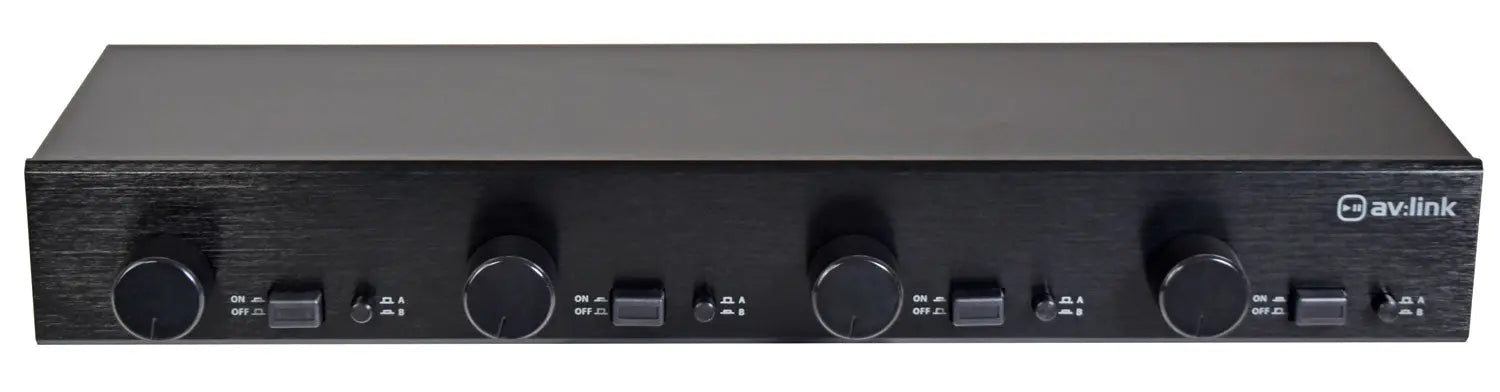

This matrix switcher for stereo amplifiers has 2 inputs and 4 outputs. Any of the inputs may be routed to any of the outputs, or the same input may be routed to all outputs or any combination. Simply connect the output of the amplifiers to the inputs, these inputs can then be routed to four different stereo speaker sets in four different locations, each speaker set can be individually activated via the push buttons on the front of the box and individual volume controls.
Enables four pairs of speakers to be connected to two separate amplifiers
Heavy-duty push buttons
Built-in overload protection
Designed for 4-16 ohms speakers
Black aluminium housing
Individual volume controls with black aluminium finish
Accepts up to 14 gauge speaker cable
Individual A/B switch per zone
Wiring gauge 14 to 22 gauge
Inputs 2 x stereo
Outputs 4 x stereo @ 4 to 16 ohms
Power per channel 100W max.
Dimensions 432 x 133 x 64mm
Weight 2.67kg
