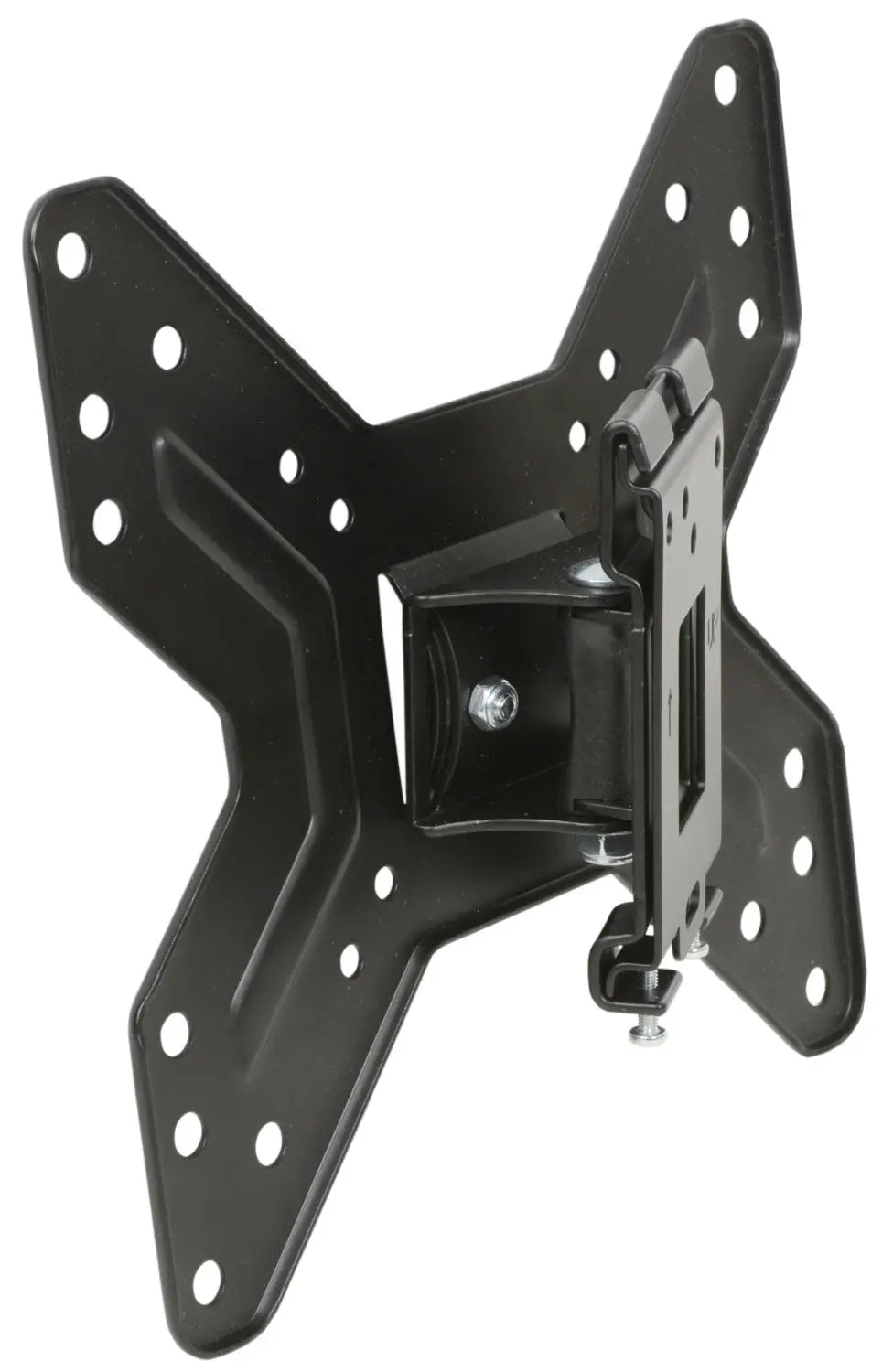

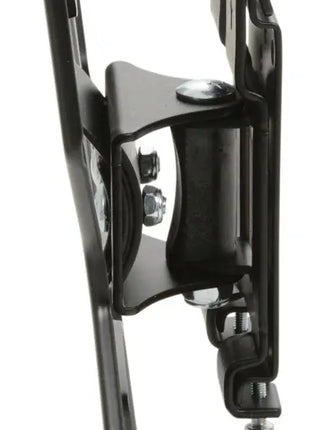

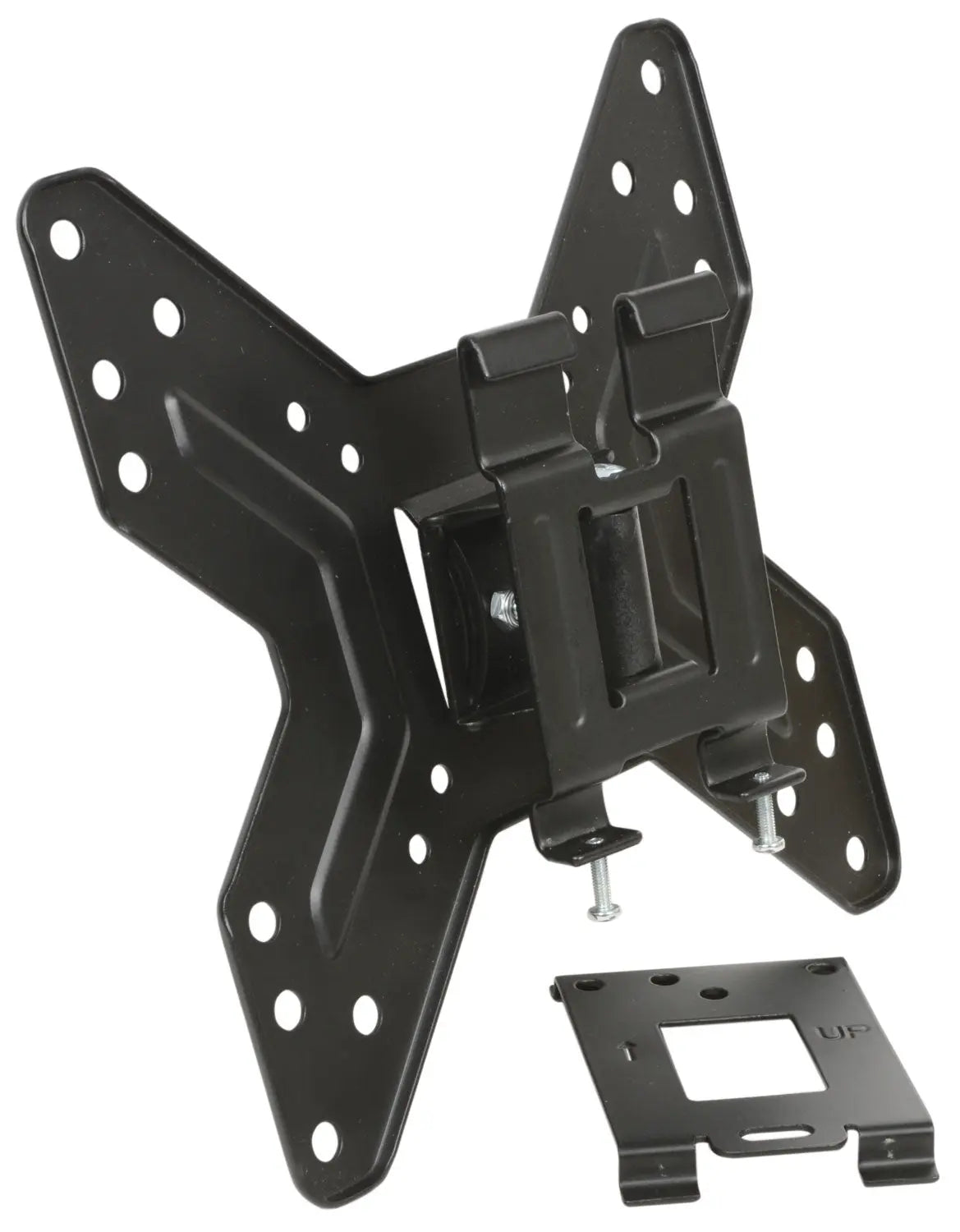

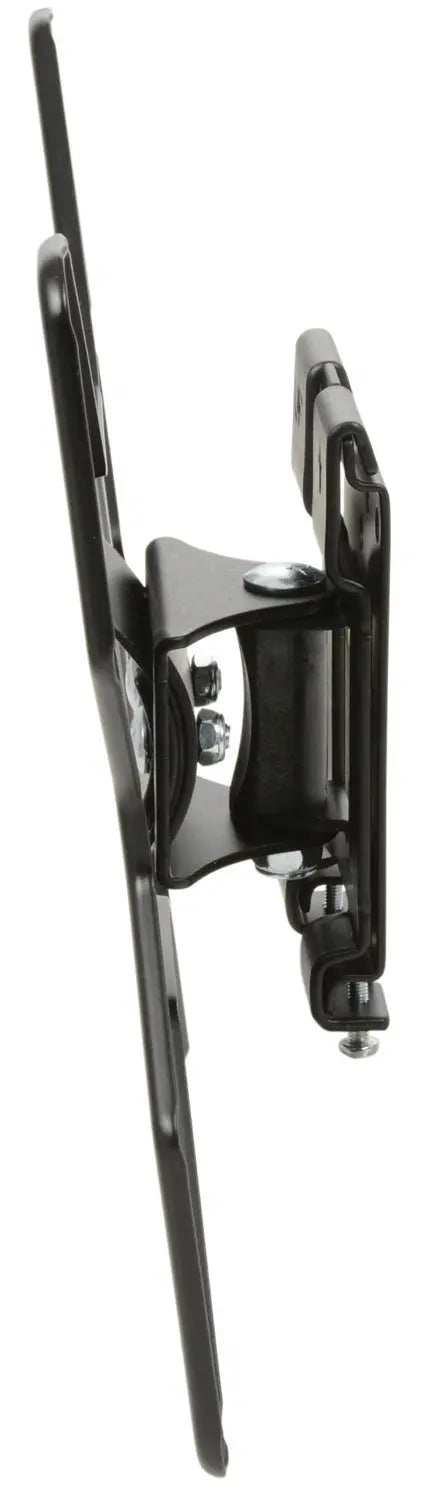

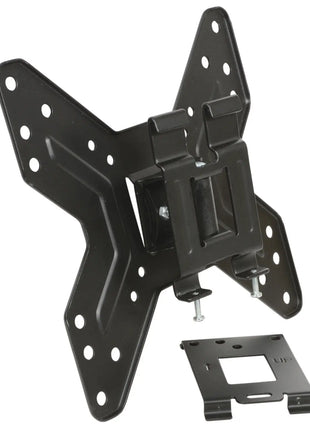

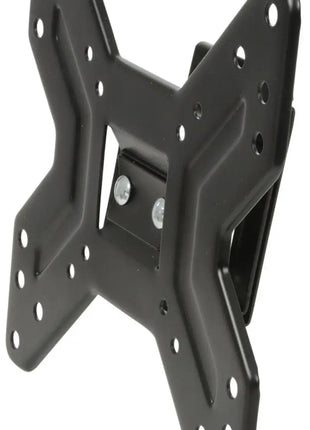

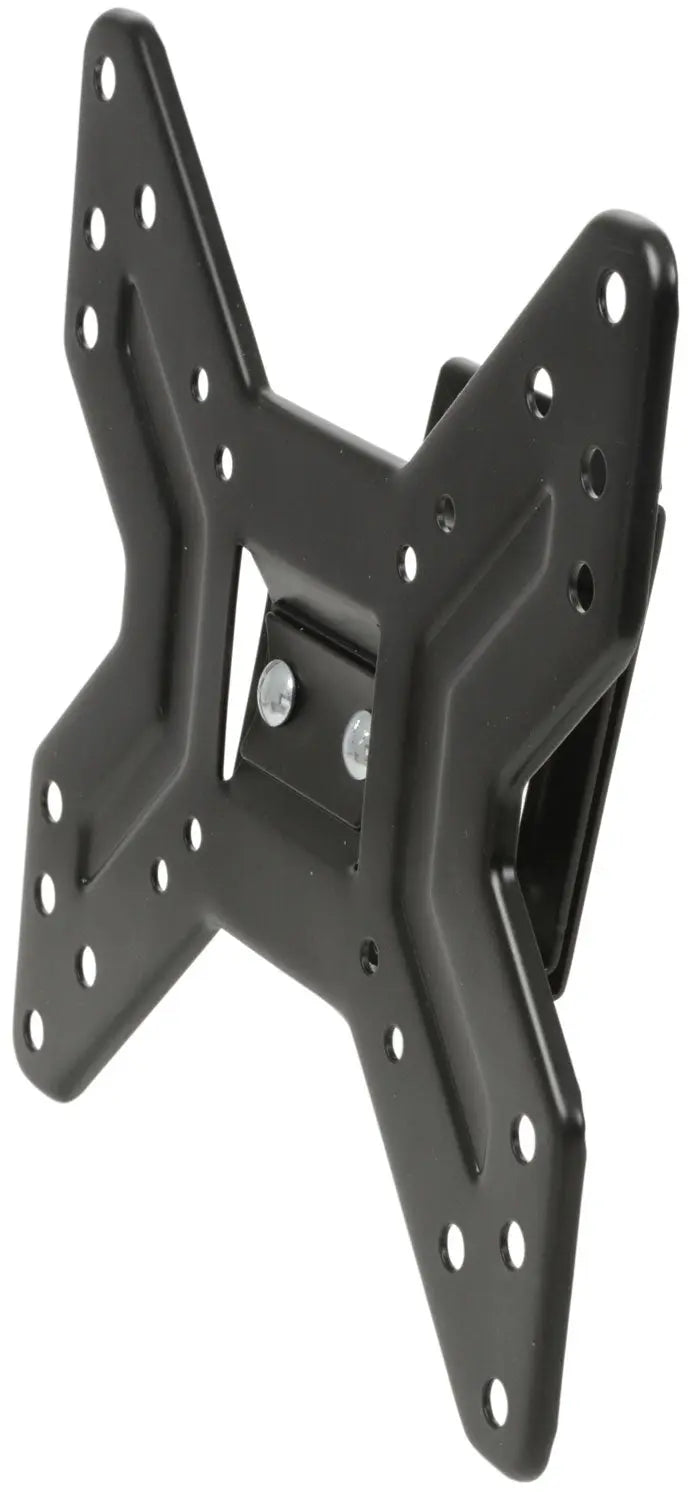

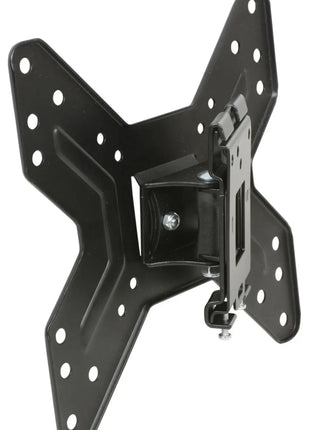

An adjustable rolled steel wall bracket suitable for mounting VESA compatible screens from 10" up to 45"
Suitable for mounting LCD or LED TV screen sizes 10" to 45"
25kg maximum loading capacity
VESA 75, 100 & 200 hole patterns
Swivels ±20° from wall connection point
-5° to +10° tilting mechanism
Separate wall mounting plate for simple installation
Installation hardware included
Max. hole spacing 200 x 200mm
Distance from wall 48mm
Max. weight load 25kg
VESA 75 x 75, 100 x 100 and 200 x 200mm
Wall plate dimensions 70 x 120mm (W x H)
Weight 750g
TV fixing screws provided 4 x M4 12mm, 4 x M5 12mm, 4 x M6 12mm, 4 x M8 16mm
