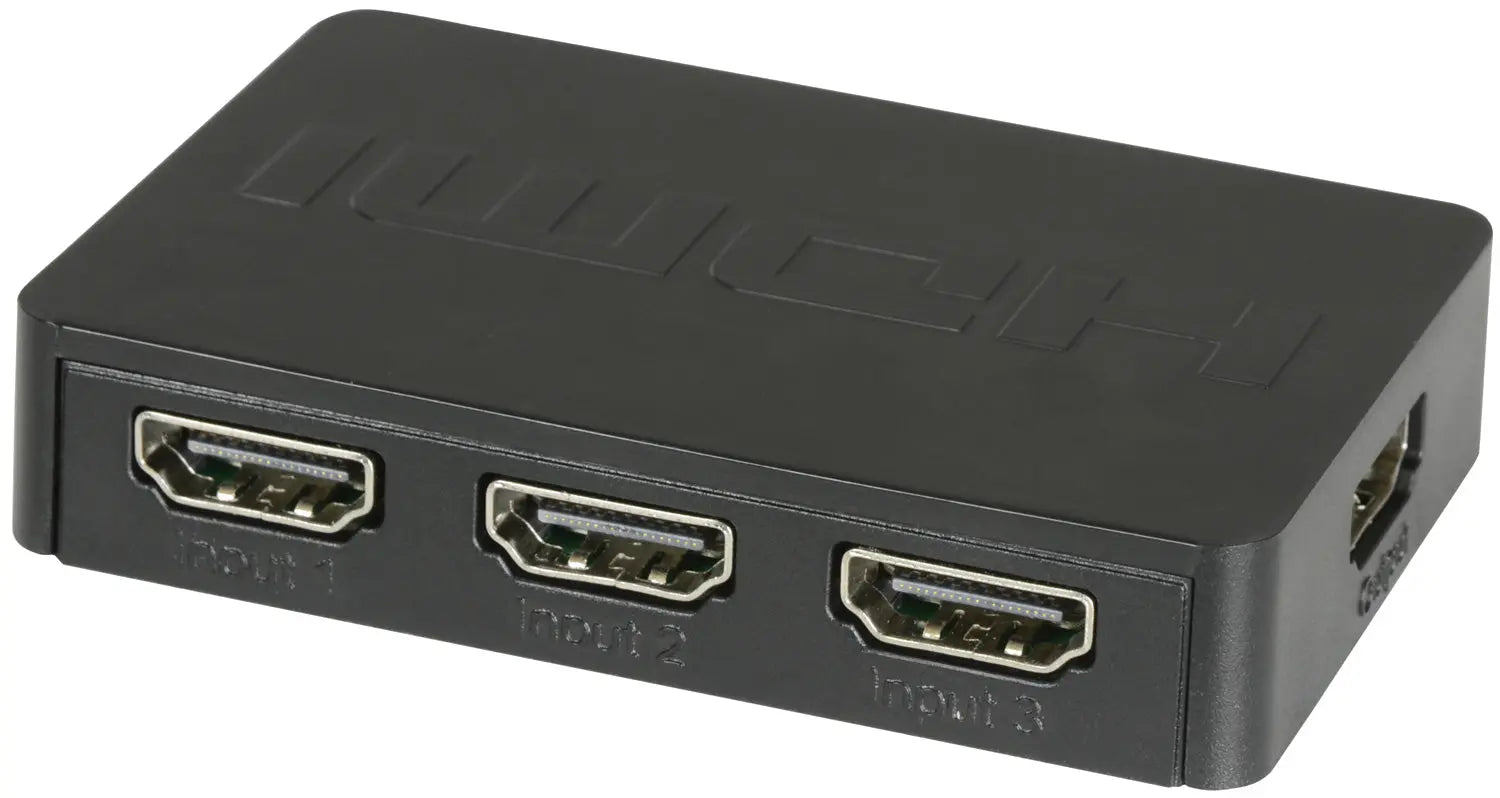

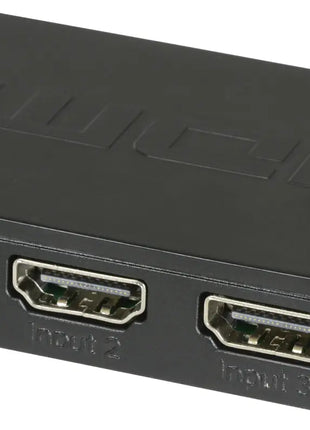

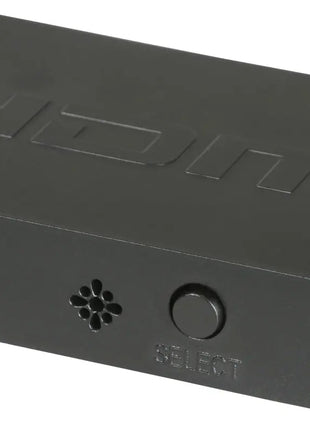

This mini HDMI switch allows a single display to be connected to up to 3 HDMI sources and selected using the IR remote control or selection button on the unit. Front LEDs keep you informed as to which of the inputs is live at any one time.
Small form factor chassis
No power needed, works using the power carried by the HDMI cables

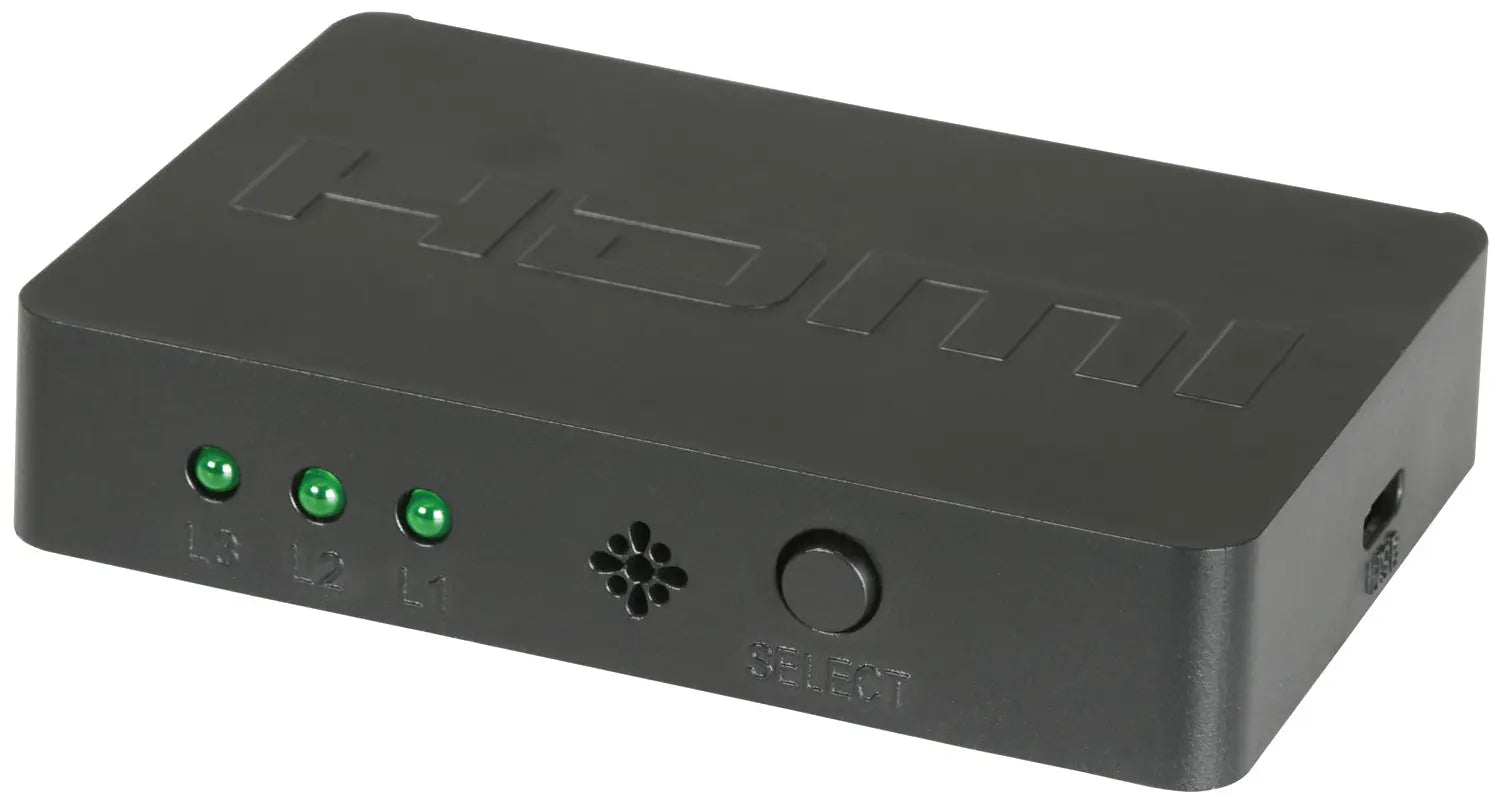

Live input LEDs
Supports 4K, up to full HD 1080p, 3D and 8bit deep colour image formats
Supports DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD audio formats

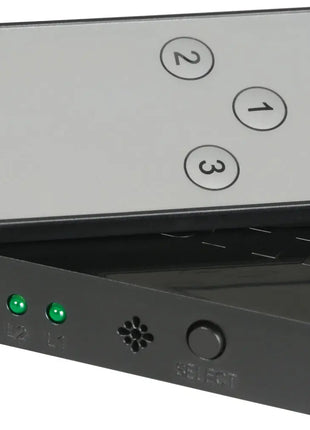

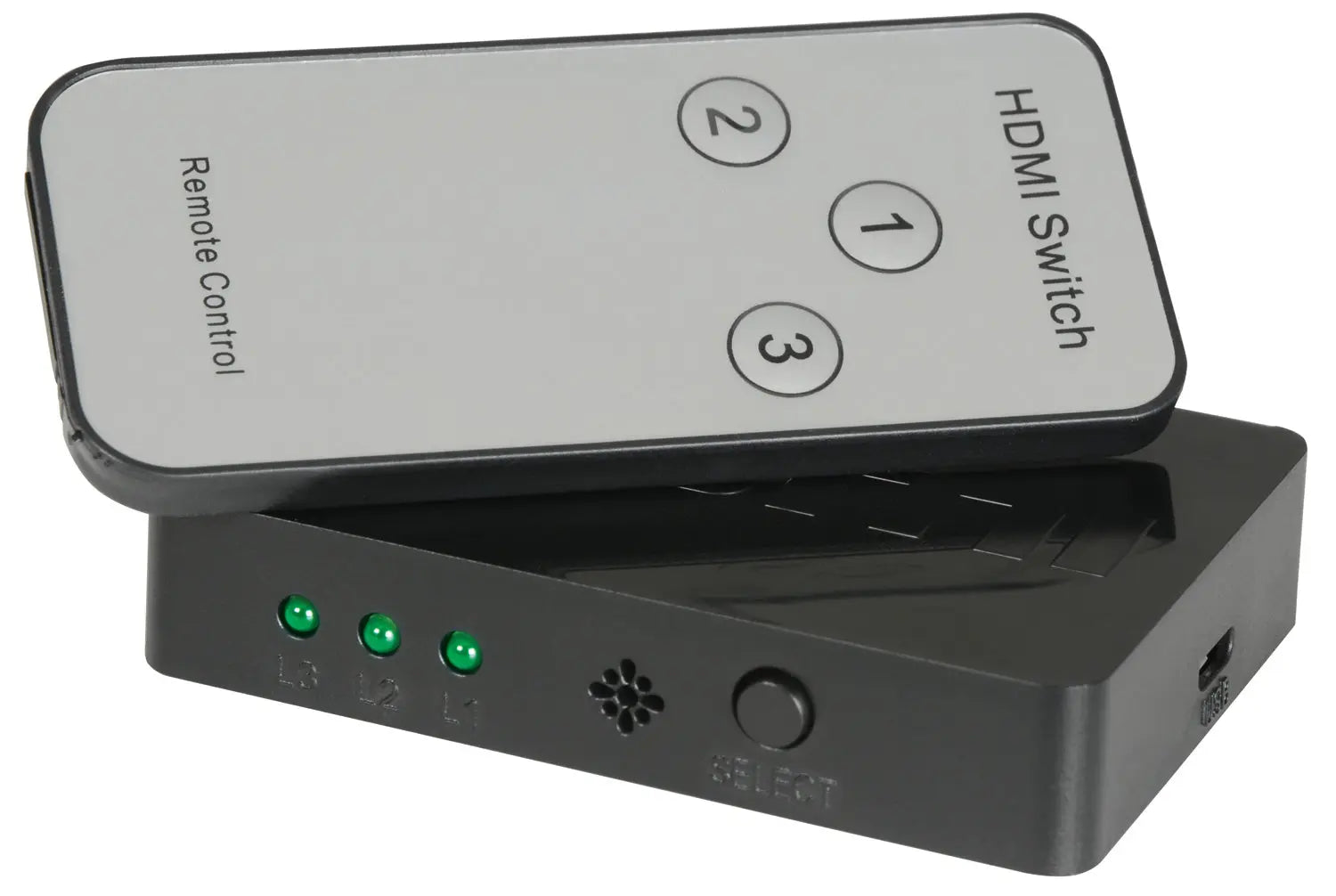

Supplied with IR Remote Control
HDCP2.2 Compliant
Video format Up to 4K, 1080p @ 60Hz, 3D, 8bit deep colour
Audio format DTS-HD, Dolby-trueHD, DTS, Dolby-AC3 and DSD
Operating temperature range -15 to +55°C
Max. bandwidth 340MHz
Max. baud rate 3.4Gbps
Max. working current 150mA
Dimensions 77 x 56 x 15mm
Weight 40g
Battery : remote CR2025 (supplied)
