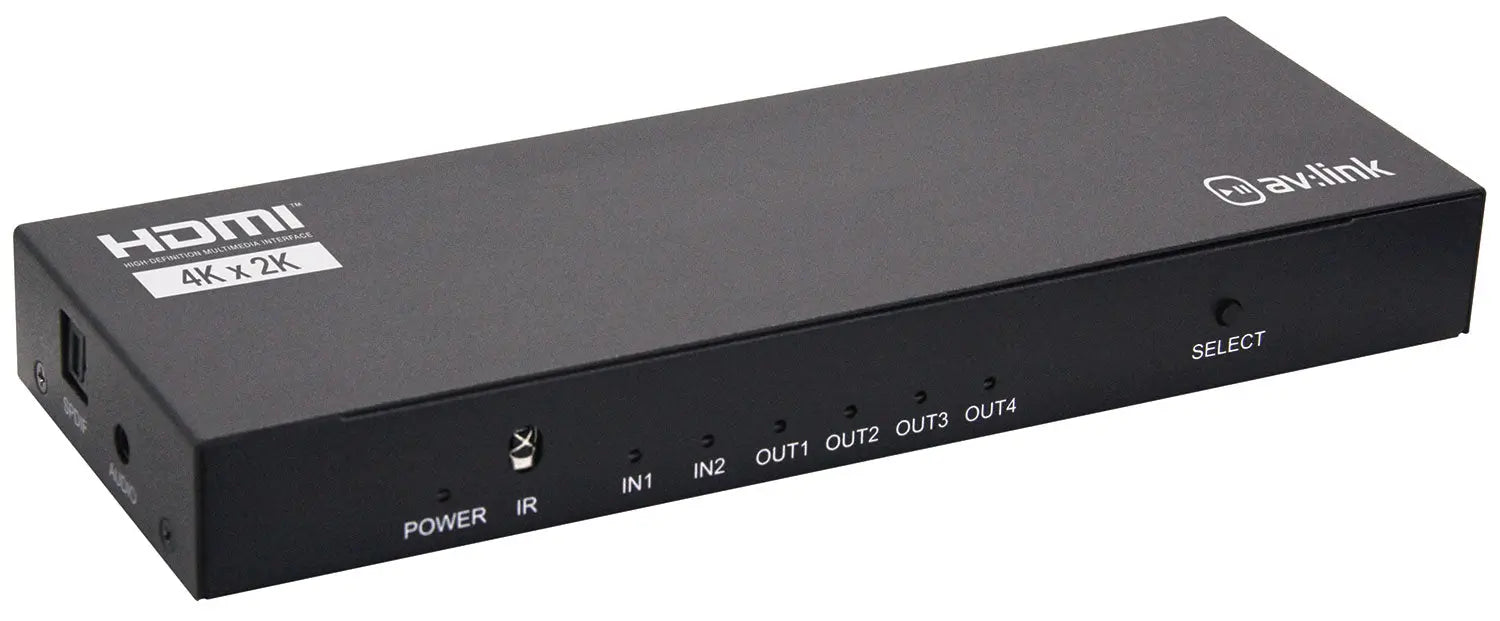

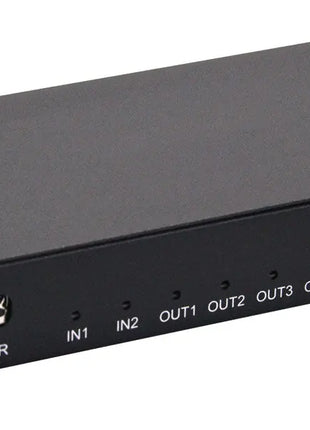

A 4K HDMI splitter to switch between 2 source devices, with up to 4 display outputs. Use with HDMI cables of a combined 20m per output for HD resolution, or a combined 10m per output for 4K resolution, without signal loss. SPDIF and 3.5mm jack outputs allow the audio signal of the selected source device to simultaneously be channelled through a separate sound system. Compatible with the latest digital TV boxes making it ideal for hospitality and entertainment venues. Supplied with IR remote to switch between sources.
Simple connection and operation
Gold plated HDMI connectors for optimum signal transfer
Supports HDMI resolutions up to 3840 x 2160 @ 60Hz for compatibility with the latest 4K digital TV boxes
Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats
Ideal for entertainment, hospitality and other commercial venues with multiple displays

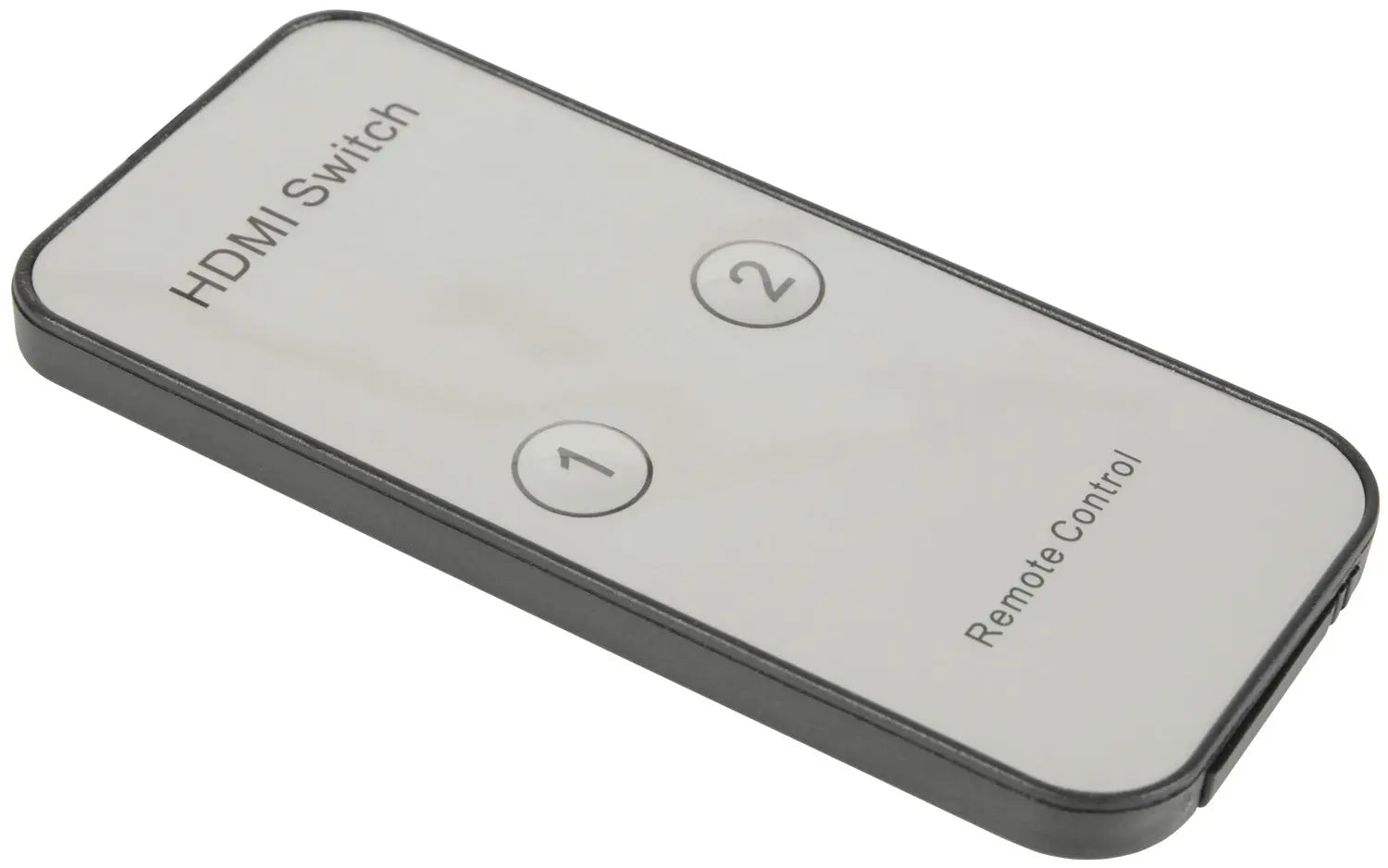

IR remote and UK power adaptor supplied
Digital SPDIF and analogue 3.5mm jack audio outputs
Transmission distance 20m max HD or 10m max 4K (20m input/output @ 1080p and 10m input/output @ 4K)
Resolution Up to 3840 x 2160 @ 60Hz
Display colours 8/10/12bit deep colour
Audio format DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
Max. bandwidth 600MHz
Max. baud rate 6Gbps
Max. working current 500mA
Operating temperature range -15°C ~ +55°C
Dimensions 200 x 70 x 25mm
Weight 305g
HDCP version 1.4 (input only)
Battery : remote CR2025 (supplied)
