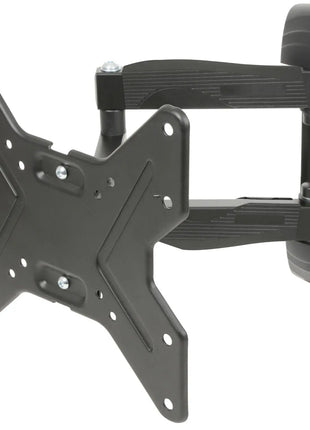

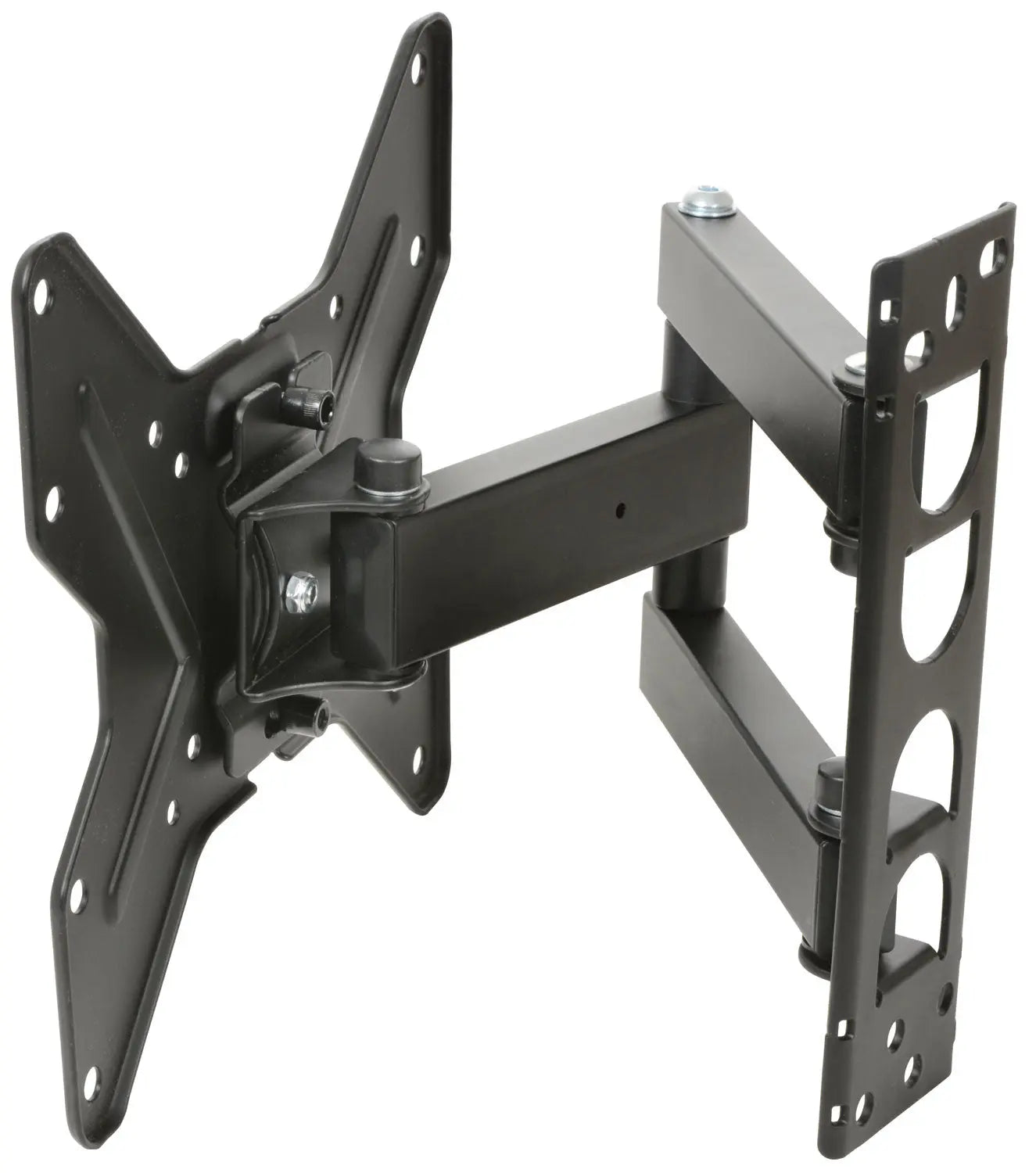

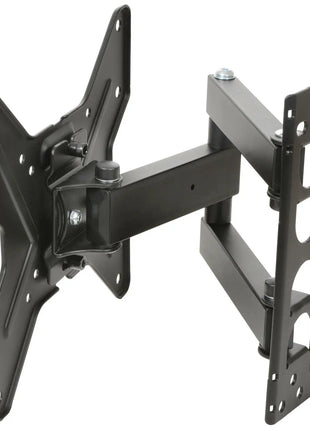

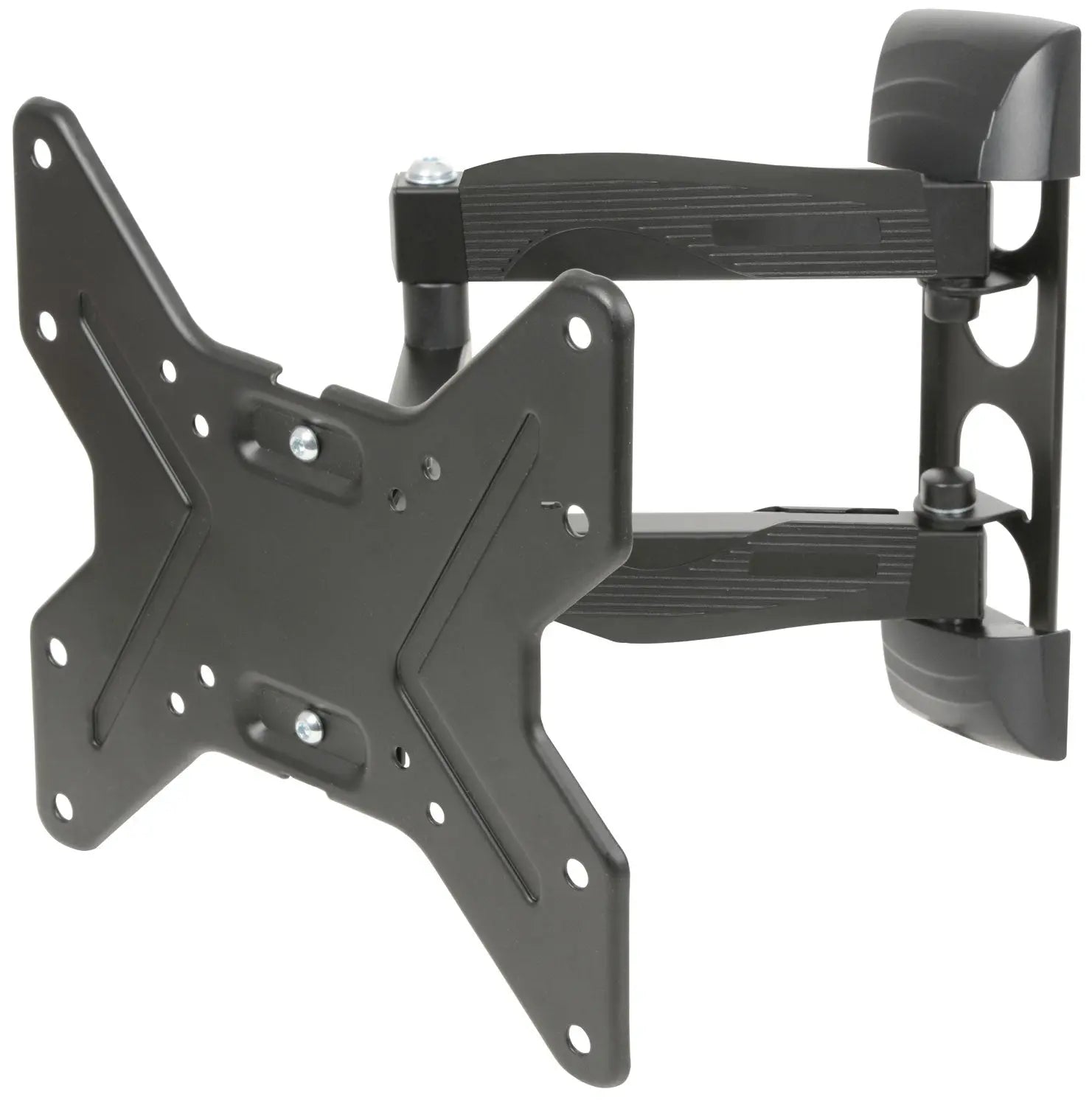

An adjustable rolled steel double arm wall bracket suitable for mounting VESA compatible screens from 26" to 45" and up to 25kg in weight.
Suitable for mounting LCD or LED screens sized 26" to 45"
VESA 75, 100 and 200 hole patterns
Swivels 180° from wall connection point and 180° from arm
-5° to 10° tilt mechanism
Locking screws for safety
Installation hardware included
Max. hole spacing 200 x 200mm
Distance from wall 52 - 342mm
Max. weight load 25kg
VESA 75 x 75, 100 x 100 and 200 x 200mm
Wall plate dimensions 234 x 72mm (W x H)
Weight 1.9kg
TV fixing screws provided 4x M4 20mm, 4x M5 x 20mm, 4x M6 x 20mm, 4x M8 x 30mm
