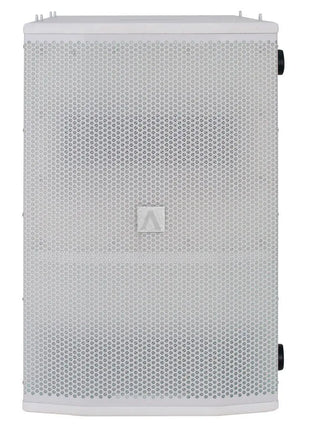

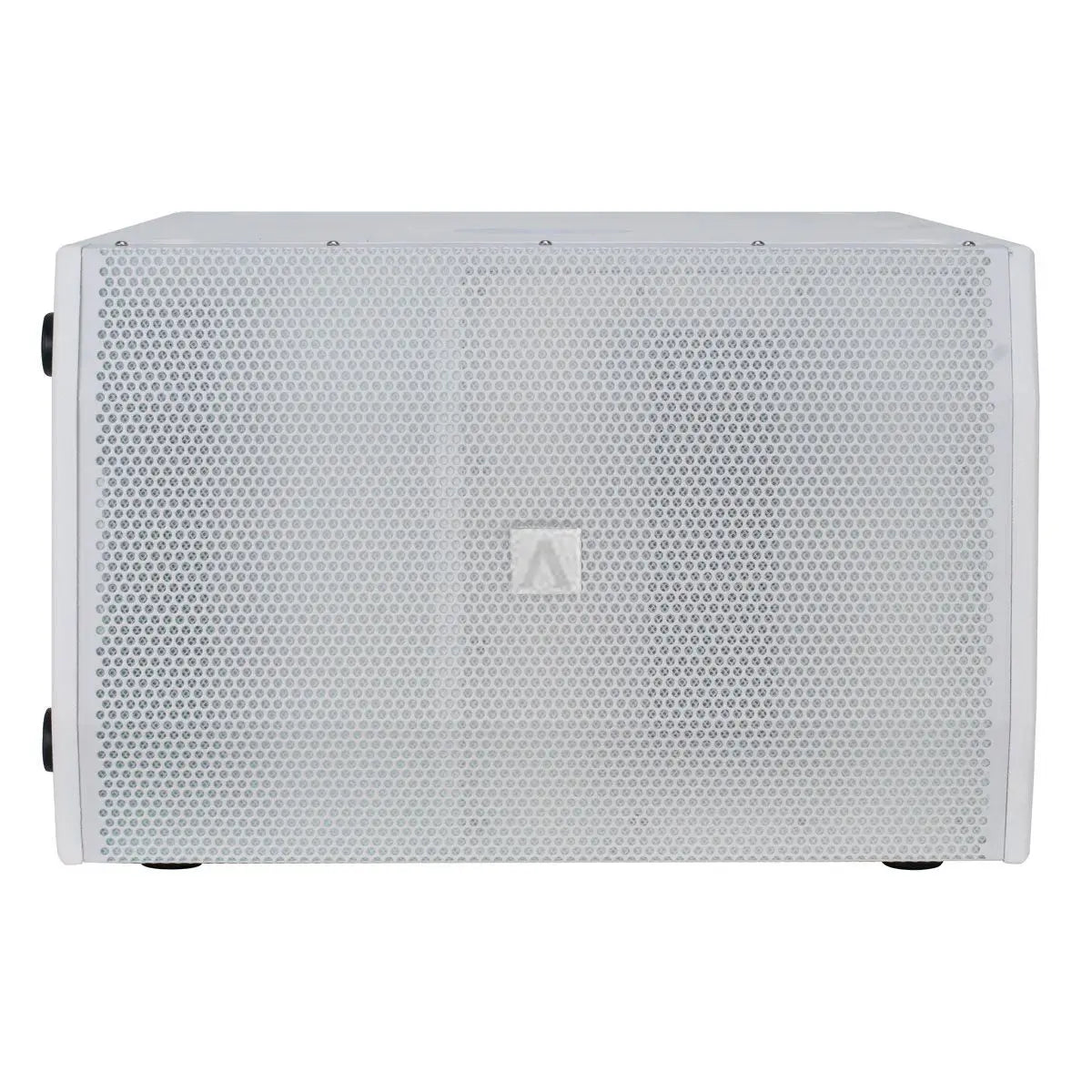

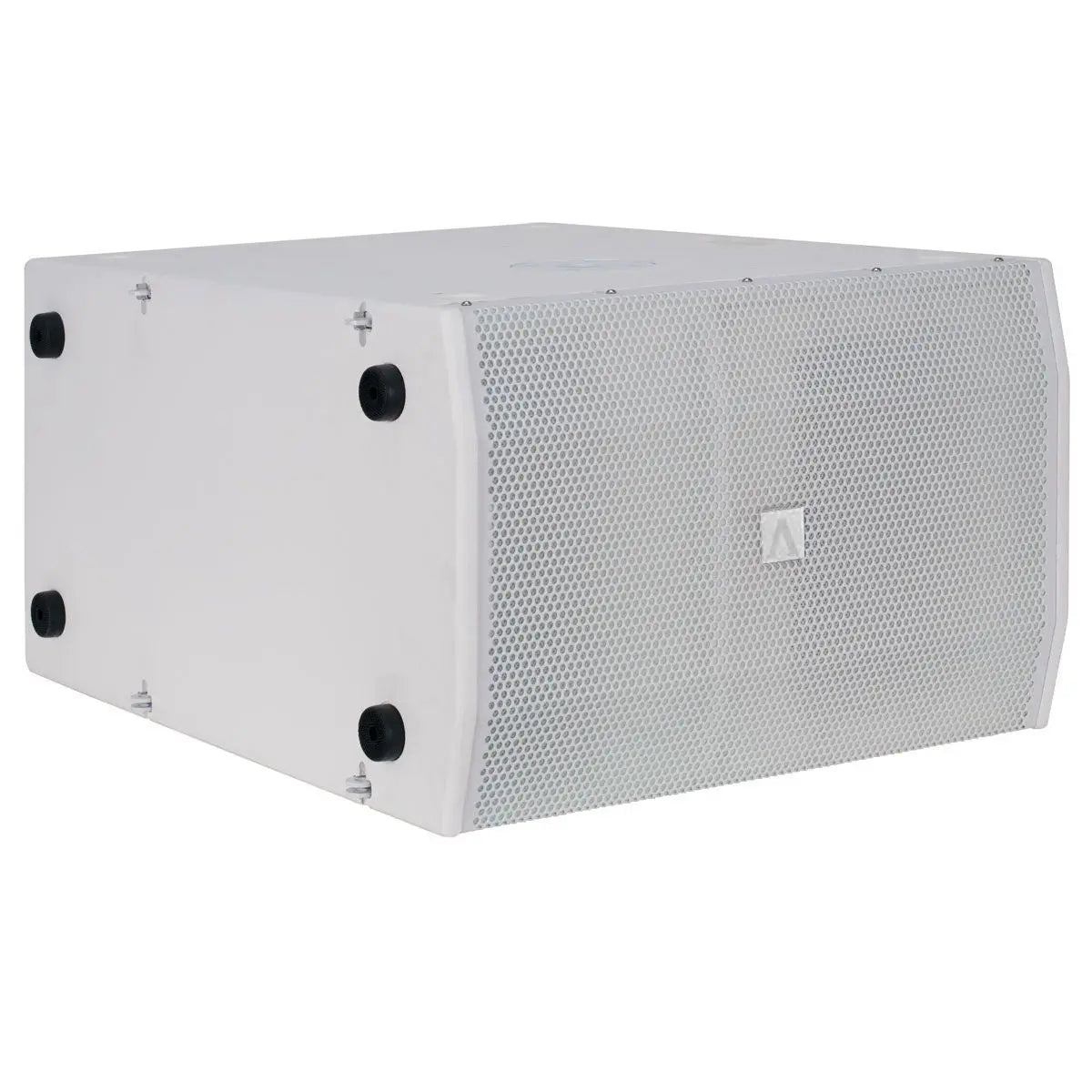

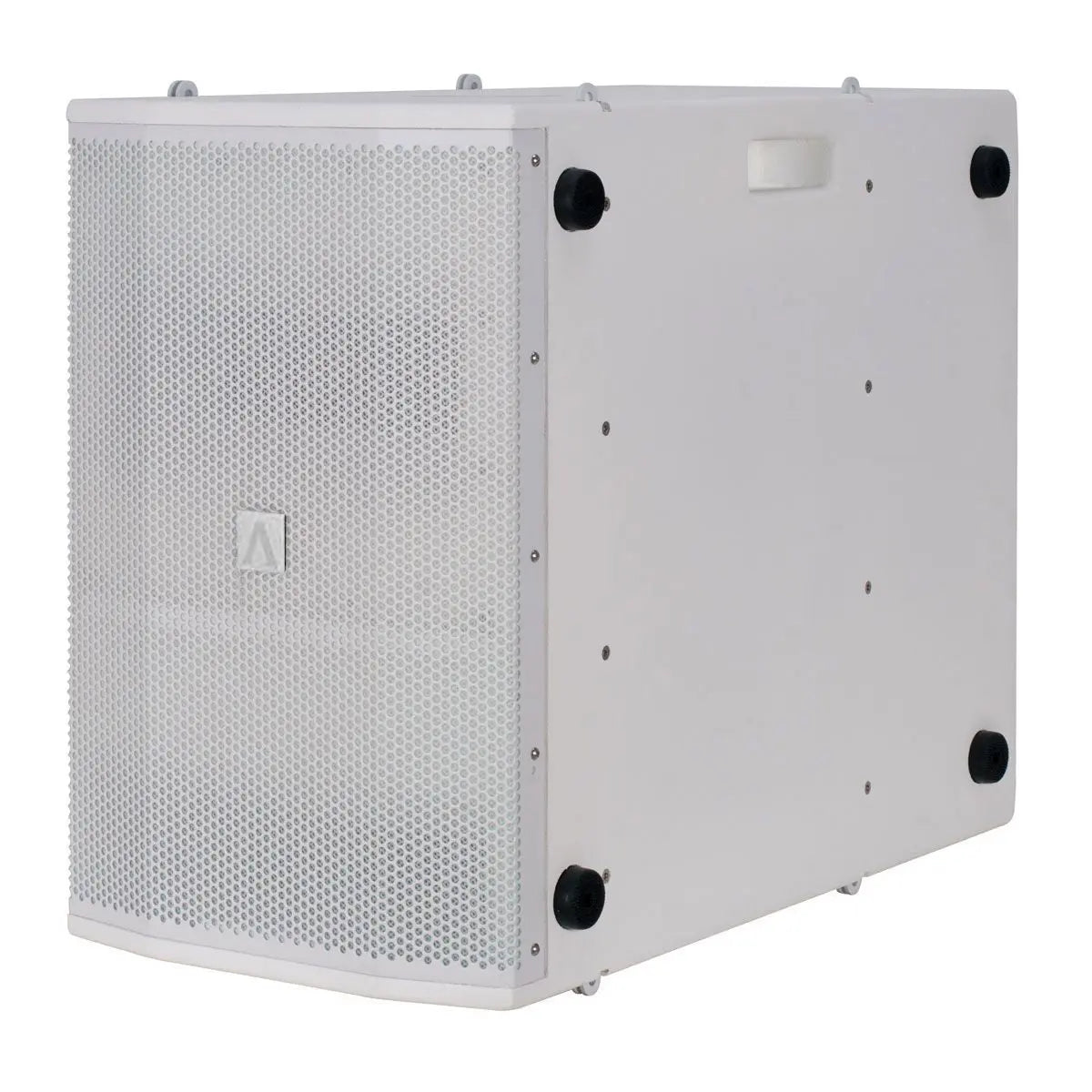

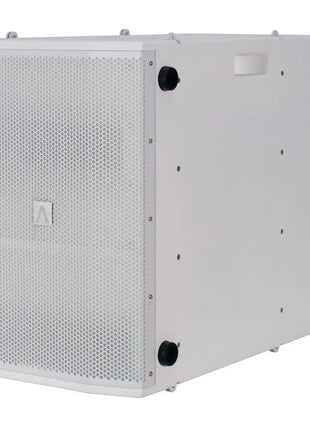

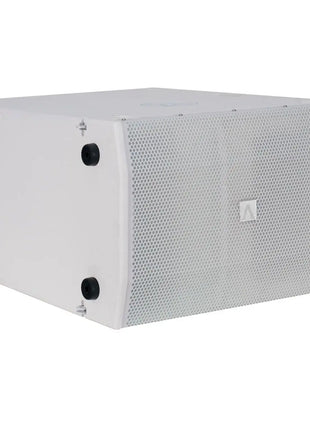

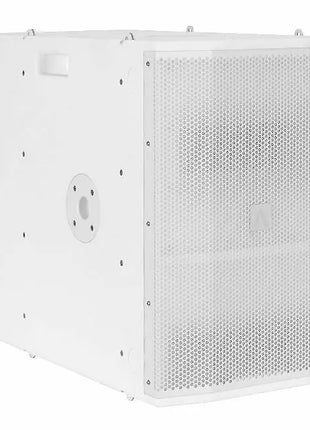

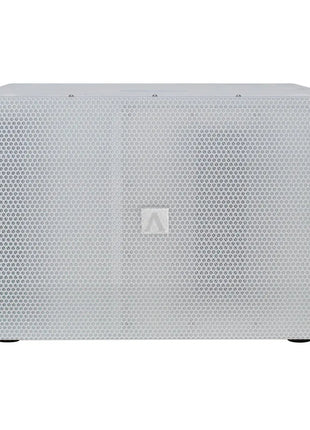

Dual 10-inch woofers with 700 watts RMS class D power amplifier. Part of the Imperio Mini Line Array System White.
Avante Audio's Imperio mini line array system is a great solution for small to mid-sized venues and can be expanded by adding additional Imperio units as your needs require. The Imperio system consist of the Imperio mid/high unit which features dual 4.75" woofers and 6 inverted dome tweeters (IDVAT - Inverted Dome Vertical Array Technology) HF drivers a 240 watt RMS class D power amplifier and 24 bit DSP the Imperio sub which has a 10" woofer along with a 350 watt RMS class D power amplifier and for when more bass is required we recommend the Imperio SUB210 which features dual 10" woofers with 700 watts RMS (2 x 350 watt RMS 2100 watt peak) class D power amplifier
Imperio accessories include: Imperio Flybar Lg White Imperio Flybar Small White Imperio Pole w/mounting bracket White LinkPin Kit4
Specifications :
Speaker
• Dual 10-inch Active Subwoofer
• Driver Information: Two 10" woofers with 2.5” Voice Coils
• Max Output SPL: 124dB
Coverage
• Frequency Range: 40Hz – 150Hz
• 6th Order Bandpass Design
Construction
• Cabinet: Plywood white finish
• Grill: 1.2mm steel

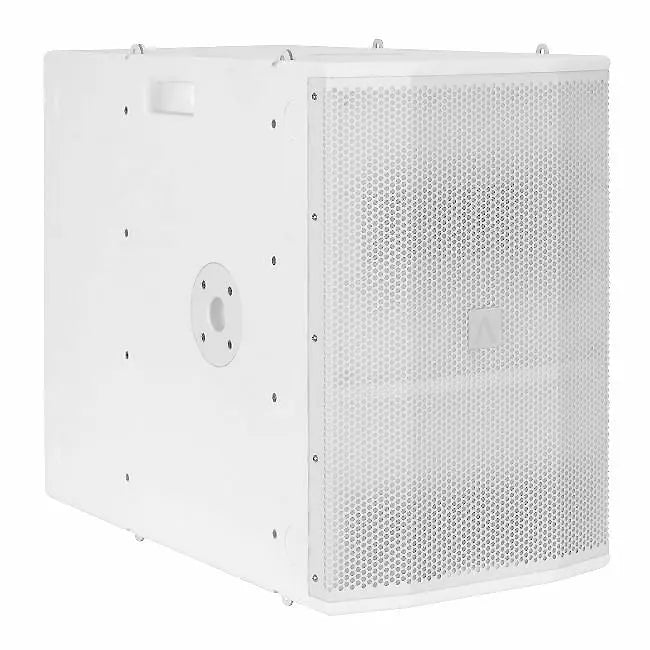

• 2x M20 Screw Pole Mount (Can be used vertically or horizontally)
• Flyable with optional flybar

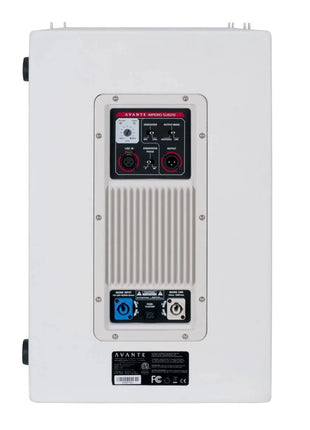

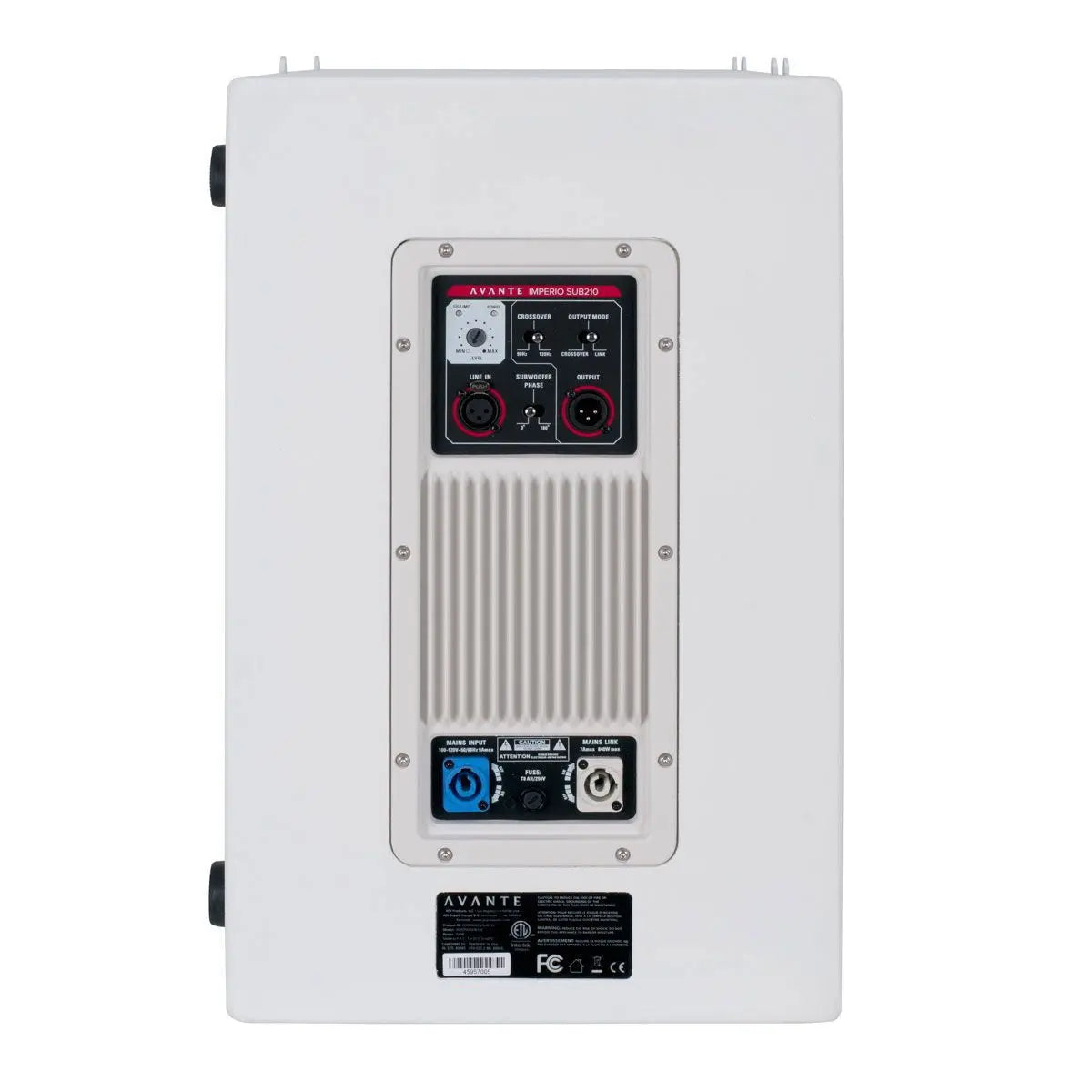

Amplification
• 2x 350W Class D Amplifier Module 1400W Peak
• LED Power / Signal / Clip Indicator
• Phase Switchable (0 / 180)
• Internal Selectable X-Over (90Hz or 120Hz)
• Volume Control Dial
• Impedance: 8 Ohm
Connections
• Signal Input/Output : Locking 3pin XLR
• Power Input/Output: Locking Power
Electrical
• 100-120V / 220-240V ~ 50/60Hz (country specific)
Dimensions & Weight
• Dimensions: (W x D x H) 670 x 362 x 575mm
• Weight: 345 kg
