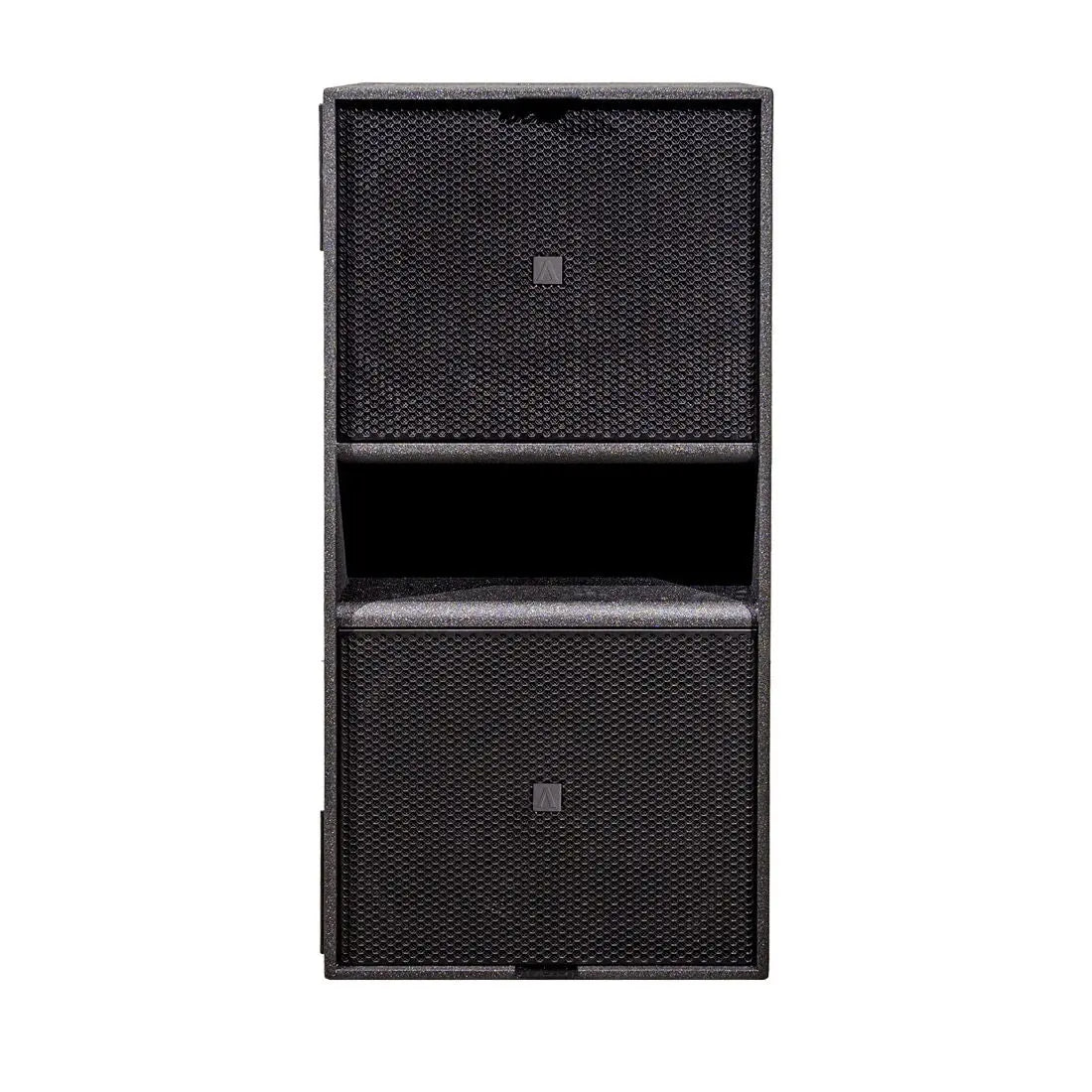

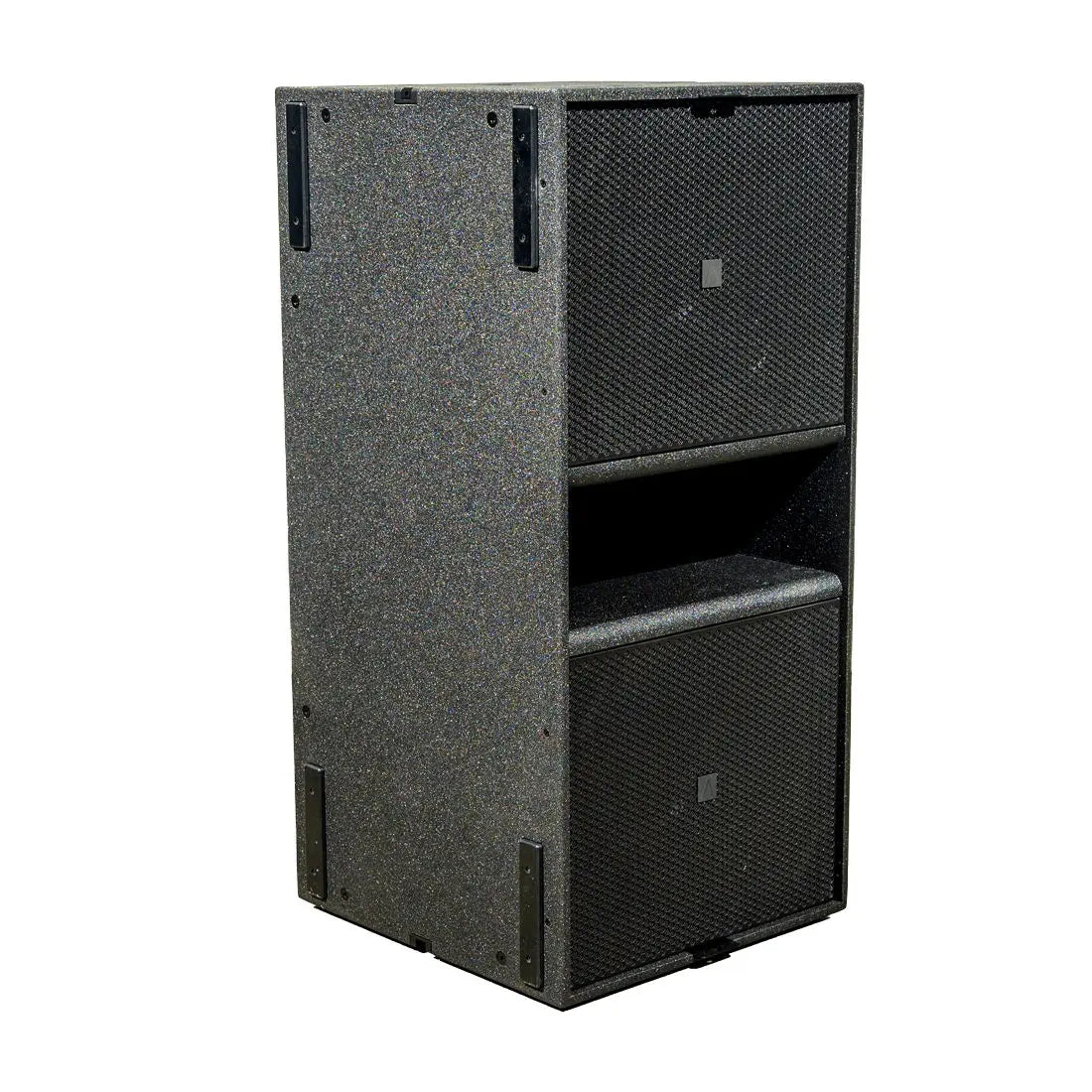

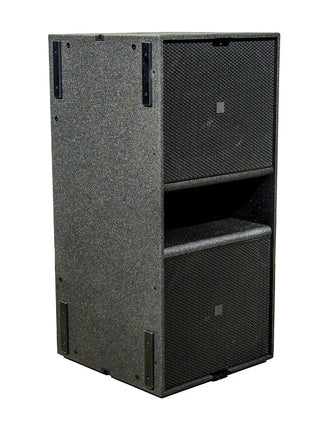

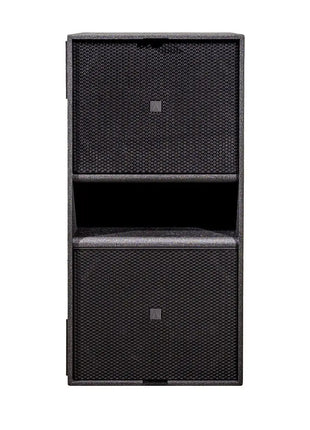

The Avante Tour series ATS218 is a high-output dual 18-inch active subwoofer engineered for medium to the largest events and pairs nicely with the Avante ATL328 line array.
Please note: Shipping charges may applySpecifications
TECHNICAL DATA:
Speaker Type: 1-Way Active 2x18" Subwoofer Milan certified
ACOUSTICAL DATA:
Frequency Response: 35 - 200 Hz Max SPL: 132 dB LF: 2 x 18" (4" voicecoil) - Ferrite
AMPLIFIER:
Amplifier: 1200-Watts RMS / 2400-Watts Program / 4800-Watts Peak Cooling: Convection Internal fan Power Supply: Auto switching 100V-240V 50-60Hz Protection: Thermal DC Offset Output Short
PROCESSOR:
Controller: 64-bit multimode with Milan AD/DA Converter: 96 kHz Limiter: Multiband compressor Peak Limiter Processing (filters): 10-band IIR
INPUT:

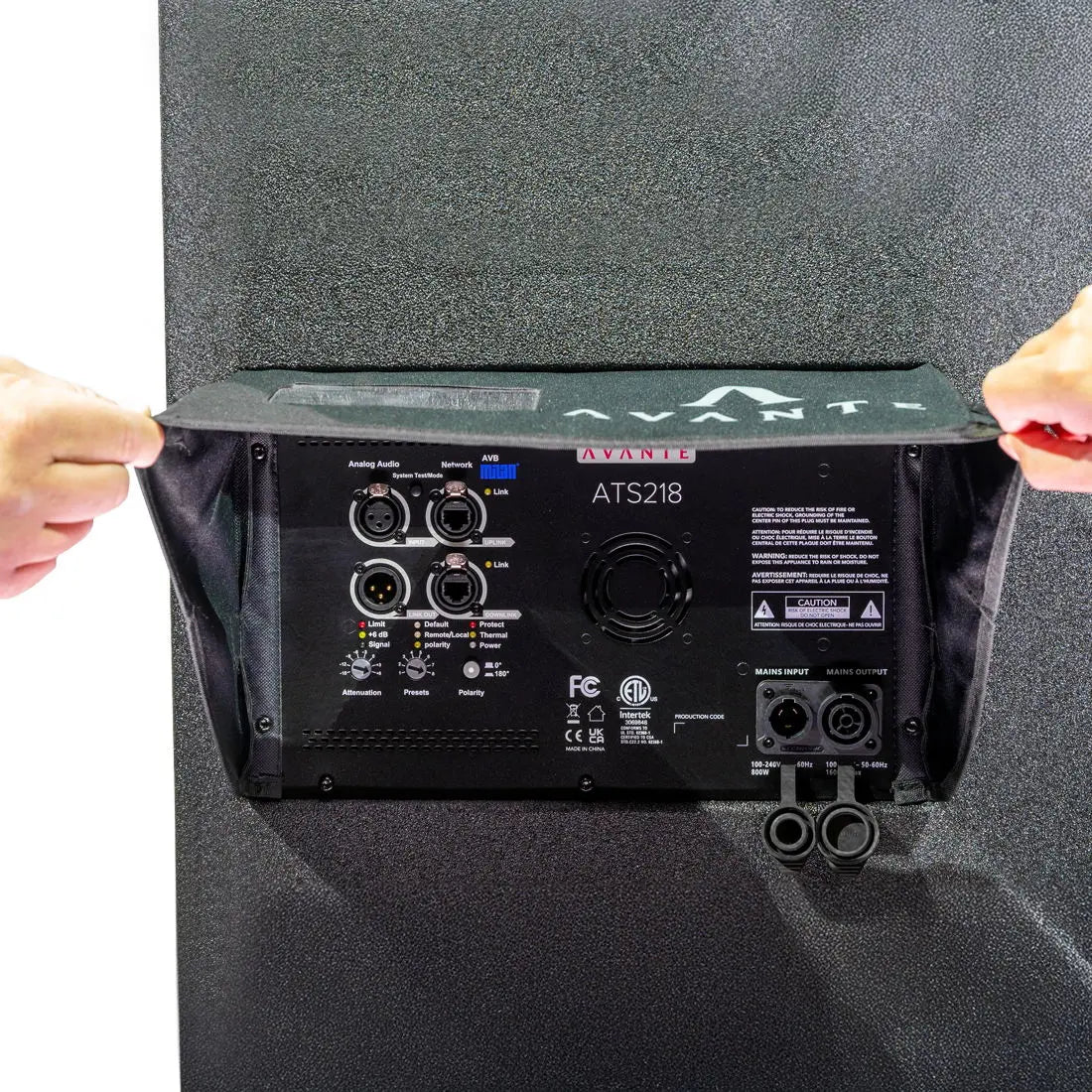

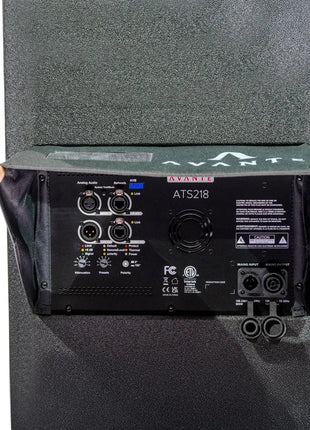

Signal In/Out (analogue): 3-pin XLR Power Socket: IP65 Locking Power In/Out Network: Locking RJ45 In/Out for control and Milan Controls: 1 x Input Attenuation (-15dB - +6dB); 1 x System Test and Reset Button Special Features: Frontal LED Identification System
CONSTRUCTION:

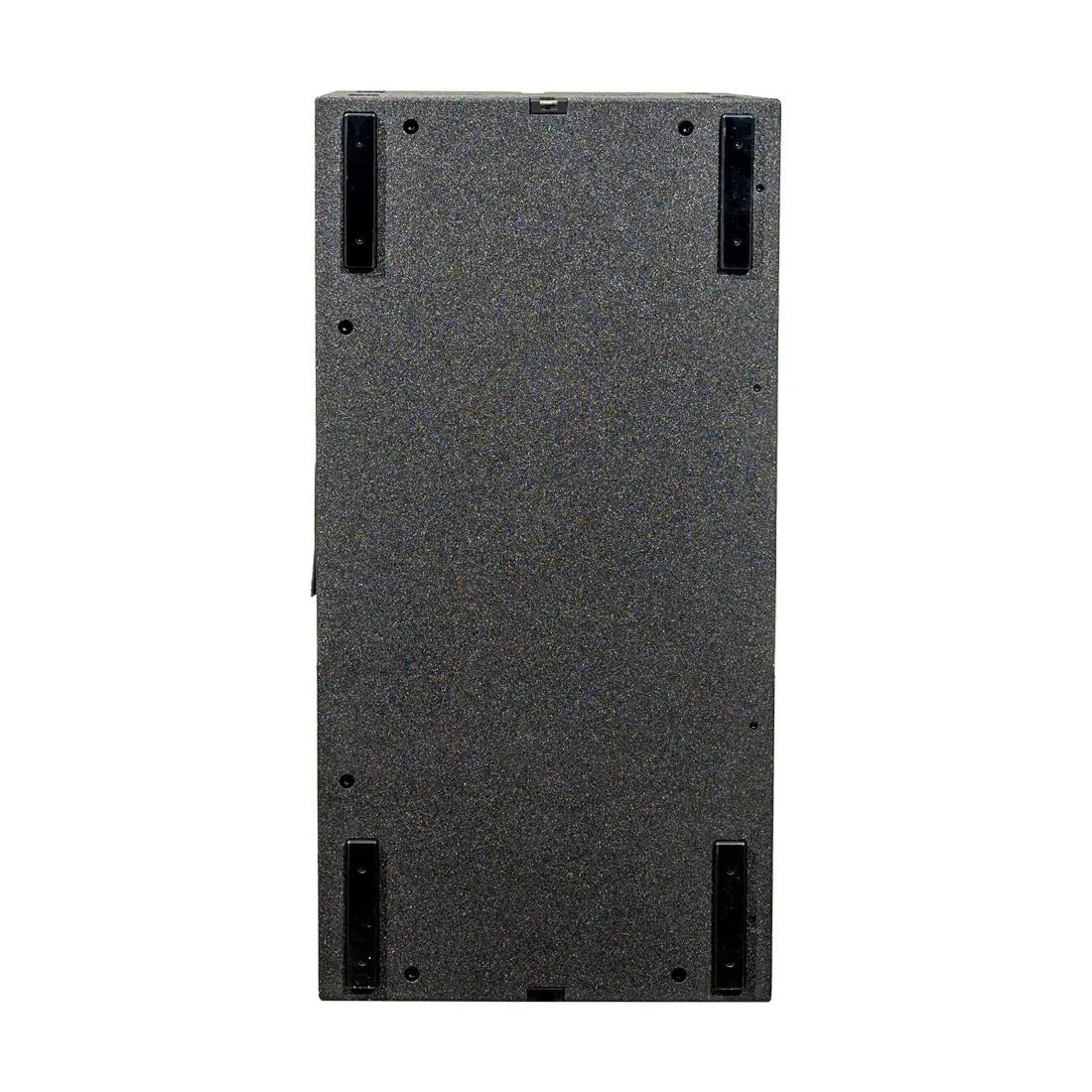

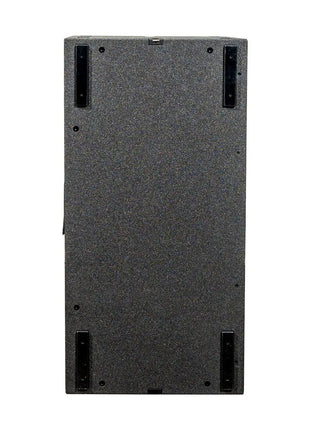

Housing: Multiplex plywood - Polyurea painting Handles: 4 x handles (2 on each side) Rain Cover: Included fixed Rigging Points: Fixation holes to attach AFB328 Flybar Dimensions (LxWxH): 1219x575x575mm Weight: 79 kg
ACCESSORIES:
CVR218 Protective cover for one ATS218 ADB218 Transport 2-way Dolly Board for up to two ATS218 ASB218 Stabilizer Bars for ATS218 (2-piece set)
