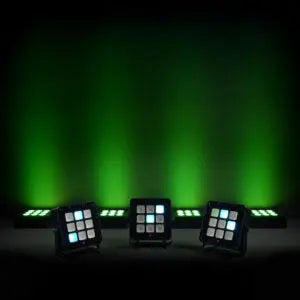

Ape Labs MARVEL | 162W Professional Pixel LED Wash
Twice the power, infinite control. The Ape Labs MARVEL is a professional-grade, battery-powered LED fixture engineered for the most demanding production environments. Featuring 9 x 18W Quad Power LEDs (Total 162W), the MARVEL is available in two specialized optic versions: a 15° Spot for long-throw architectural highlights and a 150° Flood for seamless wall washing. With its advanced RGBLwWcW 6-colour engine (adding Lime, Warm White, and Cool White), it delivers ultra-accurate colour mixing and natural whites with a professional CRI of 90. Built with an IP65 weatherproof housing and integrated 96Wh battery, the MARVEL offers the ultimate combination of high-output performance and wireless freedom.
Why Choose the Ape Labs MARVEL?
-
Massive Output: 9 powerful 18W LEDs deliver 162 Watts of total power, making it the brightest fixture in the Ape Labs ecosystem.
-
Dual Optic Options: Choose the Spot (15°) for focused beams and long-range highlights or the Flood (150°) for smooth, shadow-free wall washing.
-
Elite Colour Mixing: The 6-colour chip (RGB + Lime + 2700K Warm White + 6000K Cool White) allows for immensely nuanced shades and a CRI of 90.
-
9-Zone Pixel Control: Every LED is independently controllable, allowing for fluid pixel-mapped gradients, chases, and spectral effects.
-
Flicker-Free "Dual Drive": Advanced technology eliminates PWM (Pulse Width Modulation), ensuring perfect, flicker-free results for high-speed cameras and video recording.
-

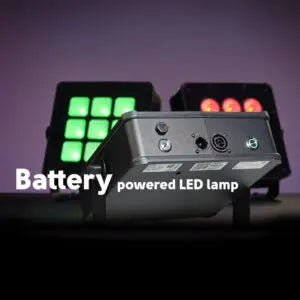

14-Hour Battery Life: High-capacity Li-Ion battery provides up to 14 hours of run time (at 70% brightness), with a power-save mode extending this to 48 hours.
-
Integrated Theft Protection: Built-in motion sensors with an audible alarm protect your investment during outdoor or public installations.
Professional Reliability for Global Stages

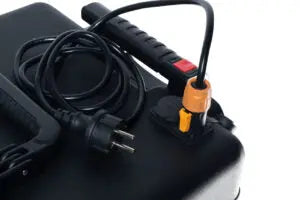

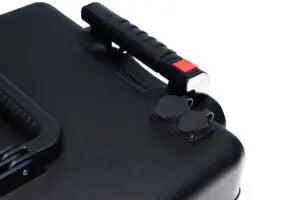

Seamless Power Management The MARVEL is designed for continuous reliability. It features a TRUE1 Loop input for permanent mains operation, but it also acts as a built-in power-fail backup—if the mains power is cut, the fixture automatically switches to battery power without interrupting your show.

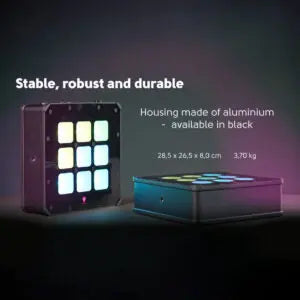

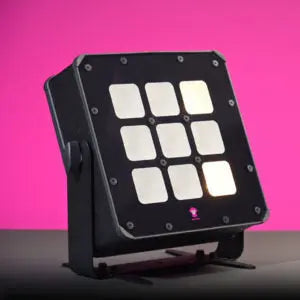

Precision Mounting and Handling Housed in a rugged aluminum and stainless steel frame, the MARVEL features a unique 360° infinitely rotatable bracket with fold-out locking feet. This allows for effortless positioning as a floor-standing uplight or as a truss-mounted wash. It also includes an M6 eyelet for secondary safety or custom rigging.
Advanced Wireless Architecture Like the rest of the Ape Labs "Universe," the MARVEL features an automatic signal repeater. Each unit receives the wireless control signal and boosts it to the next lamp, allowing for rock-solid connectivity across venues as large as 1,200 metres.
Technical Specifications
-
LED Engine: 9 x 18W (162W Total) 6-in-1 RGBLwWcW
-
Beam Angle: 15° (Spot) or 150° (Flood)
-
Colour Rendering: CRI 90
-
Colour Temperature: 2700K to 6000K (Adjustable)
-
Battery: Li-Ion 96Wh (Approx. 14 hours runtime @ 70%)
-
DMX Modes: 6, 7, 12, 36, or 54 Channels
-
Wireless Protocols: 2.4GHz (App/Remote) and CRMX (LumenRadio)
-

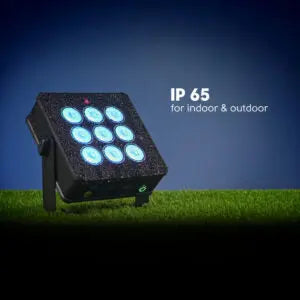

IP Rating: IP65 (Outdoor use / Weatherproof)
-
Power Connection: TRUE1 Loop Socket (100-240 VAC)
-
Weight: 3.7 kg
-
Dimensions: 285 x 265 x 80 mm
Frequently Asked Questions

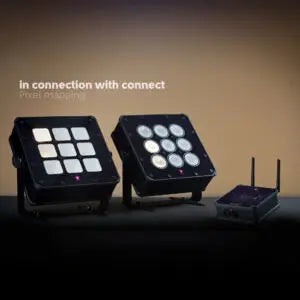

Can I control individual LEDs? Yes. To access the 9-pixel mapping features, you can use a DMX controller (via CRMX or the CONNECT hub) or the Ape Labs mobile app. This allows you to create sophisticated chasing effects and multicolour gradients within a single lamp.
Is it silent? Absolutely. The MARVEL uses a fanless, passive convection cooling system. It runs completely silently, making it ideal for broadcast studios, theatres, and intimate restaurants where ambient noise must be minimized.
What is the benefit of the "Lime" LED? The inclusion of a Lime-coloured LED allows for much brighter, more vibrant "daylight" whites and far more accurate pastel colours that standard RGBW lights cannot replicate.
What is In The Box?
