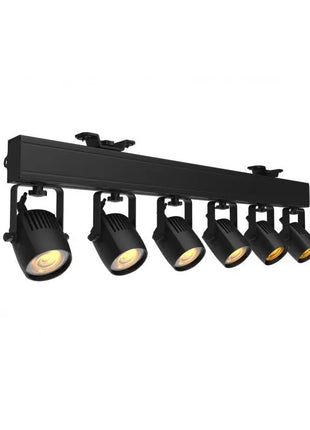

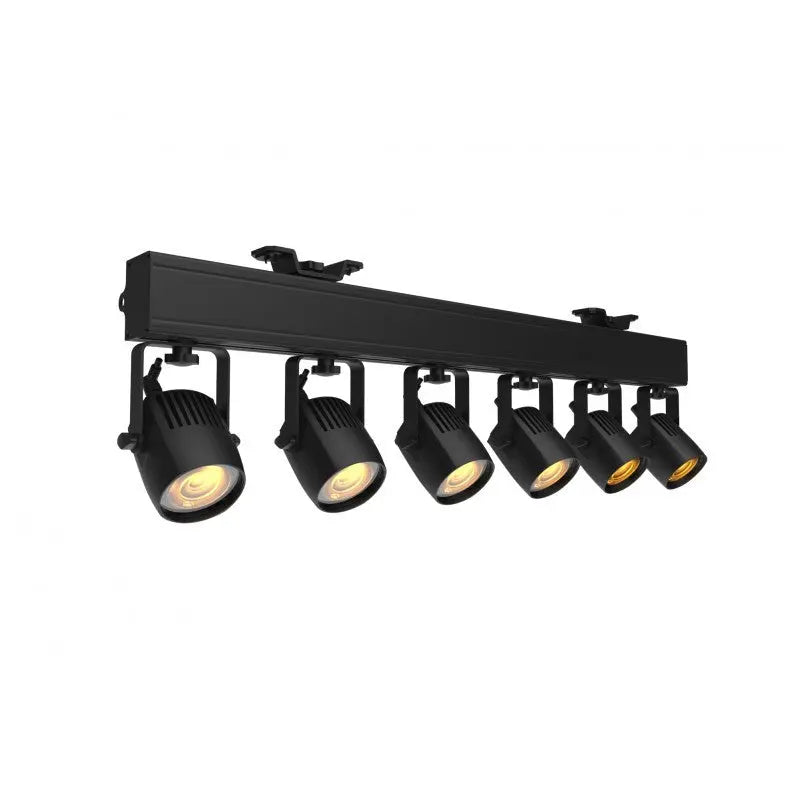

ADJ Saber Bar 6 - 6-Head Warm White Pinspot Lighting System
The ADJ Saber Bar 6 is a versatile 6-head pinspot lighting system, mounted on a 1-meter linear base with built-in power and DMX connections. Each pinspot features a 15W Warm White LED (3100K) and an ACL lens, producing a razor-sharp 4-degree beam. Ideal for performance stages, installations, table spotting, and retail store lighting, the Saber Bar 6 offers individual manual adjustment of each fixture's XY axis for precision angling and multiple control options for dynamic lighting designs.
Key Features
-

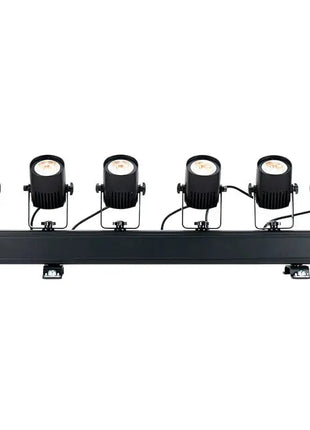

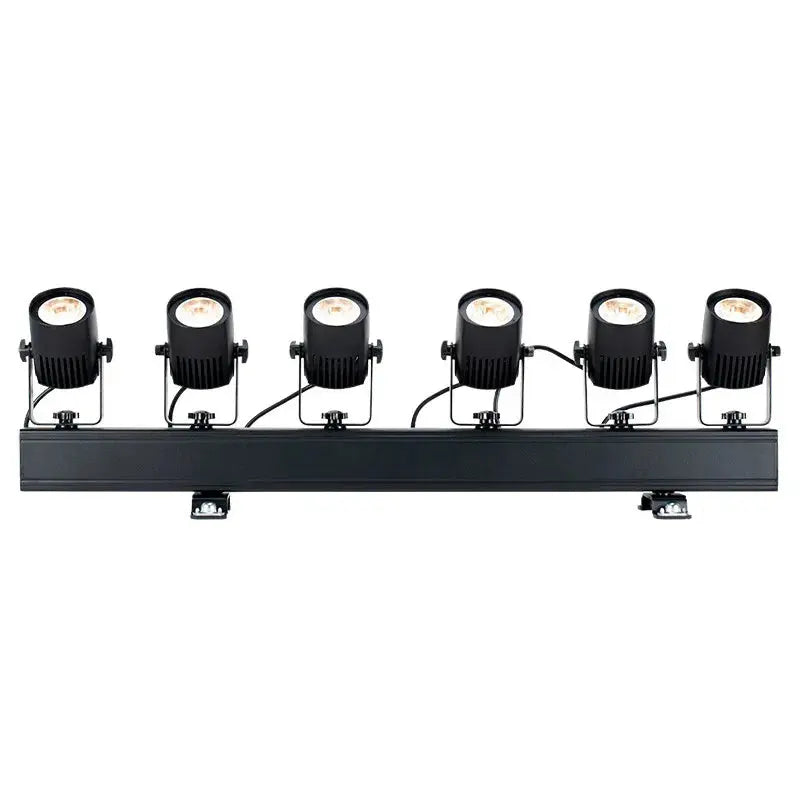

6-Head Pinspot System: Features 6 individual pinspots on a 1-meter linear base.
-
Powerful Warm White LEDs: Each pinspot is similar to the Saber Spot WW with a 15W Warm White LED (3100K).
-
Razor Sharp Beams: ACL lens produces a razor-sharp 4-degree beam.
-
Individual Manual Adjustment: Each fixture's XY axis may be individually adjusted manually for precision angling of the beams.
-

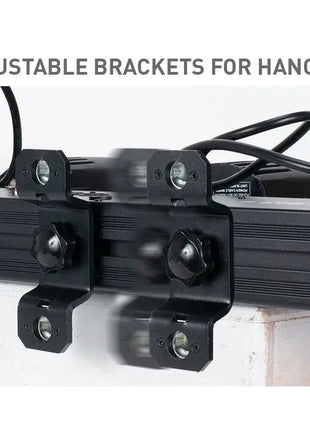

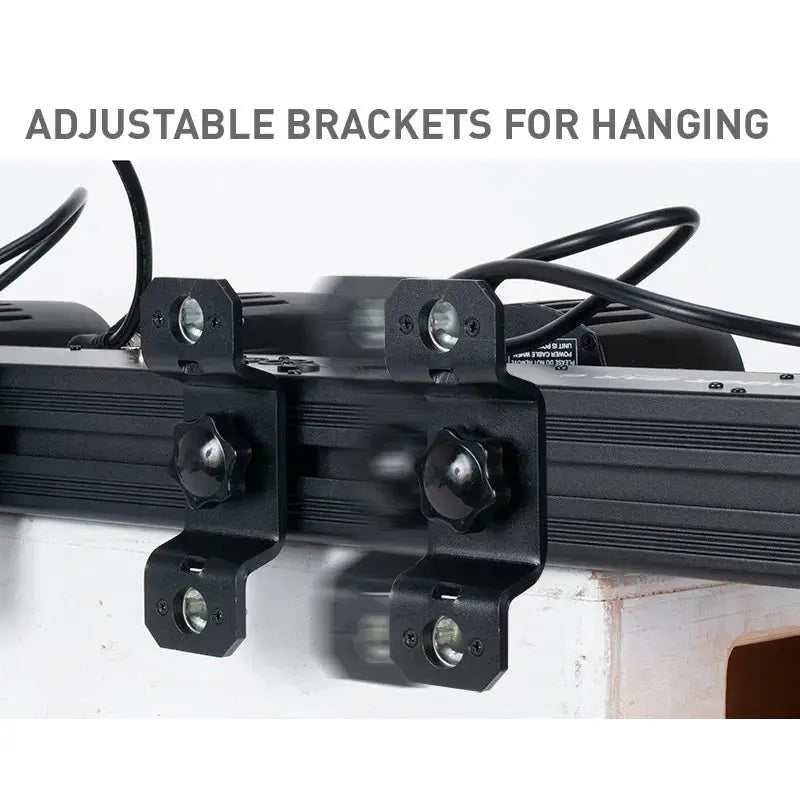

Versatile Mounting: Includes two heavy-duty adjustable brackets to mount the fixture to a ceiling or truss.
-
Multiple DMX Modes: Offers multiple DMX channel modes to choose from.
-
Built-in Programs: Features built-in programs for easy operation.
-
Dimming Curve Modes: Includes 6 dimming curve modes.
-
Daisy Chain Connectivity: Built-in power and DMX connections (3-pin and 5-pin DMX In/Out, power locking In/Out) allow for daisy chaining data and power.
-
User-Friendly Interface: Rear panel features a display with function buttons.
Technical Specifications
-
Light Source: 6 x 15W Warm White LEDs (3100K).
-
Beam Angle: 4-degree.
-
Control: DMX.
-
DMX Connectivity: 3-pin and 5-pin DMX In/Out.
-
Power Connectivity: Power locking In/Out.
-
Dimming: 6 dimming curve modes.
-
Fixture Adjustment: Manual XY axis adjustment per pinspot.
-
Mounting: 2 x heavy-duty adjustable brackets.
Suitable For
- Performance stages.
- Installations.
- Table spotting.
- Lighting in retail stores.
