Professional 3-Channel Mixing Performance
Next-Generation 3-Channel Performance Mixer: Refined Sound, Wireless Freedom

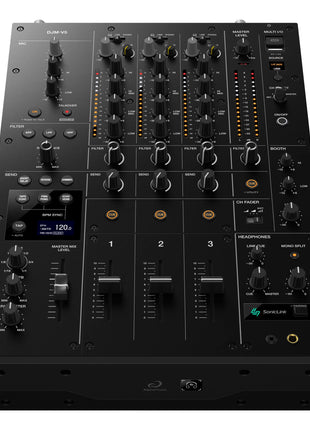

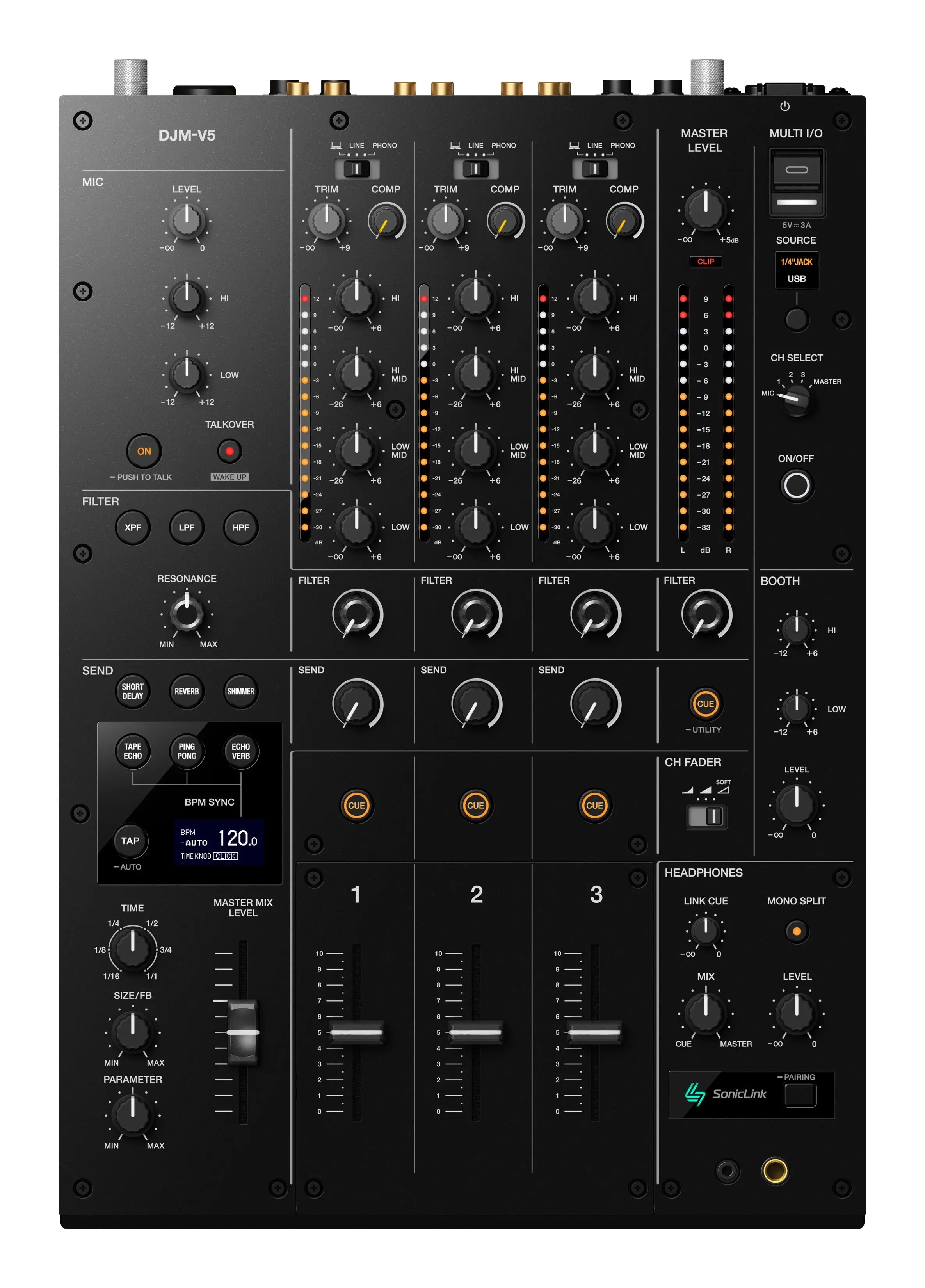

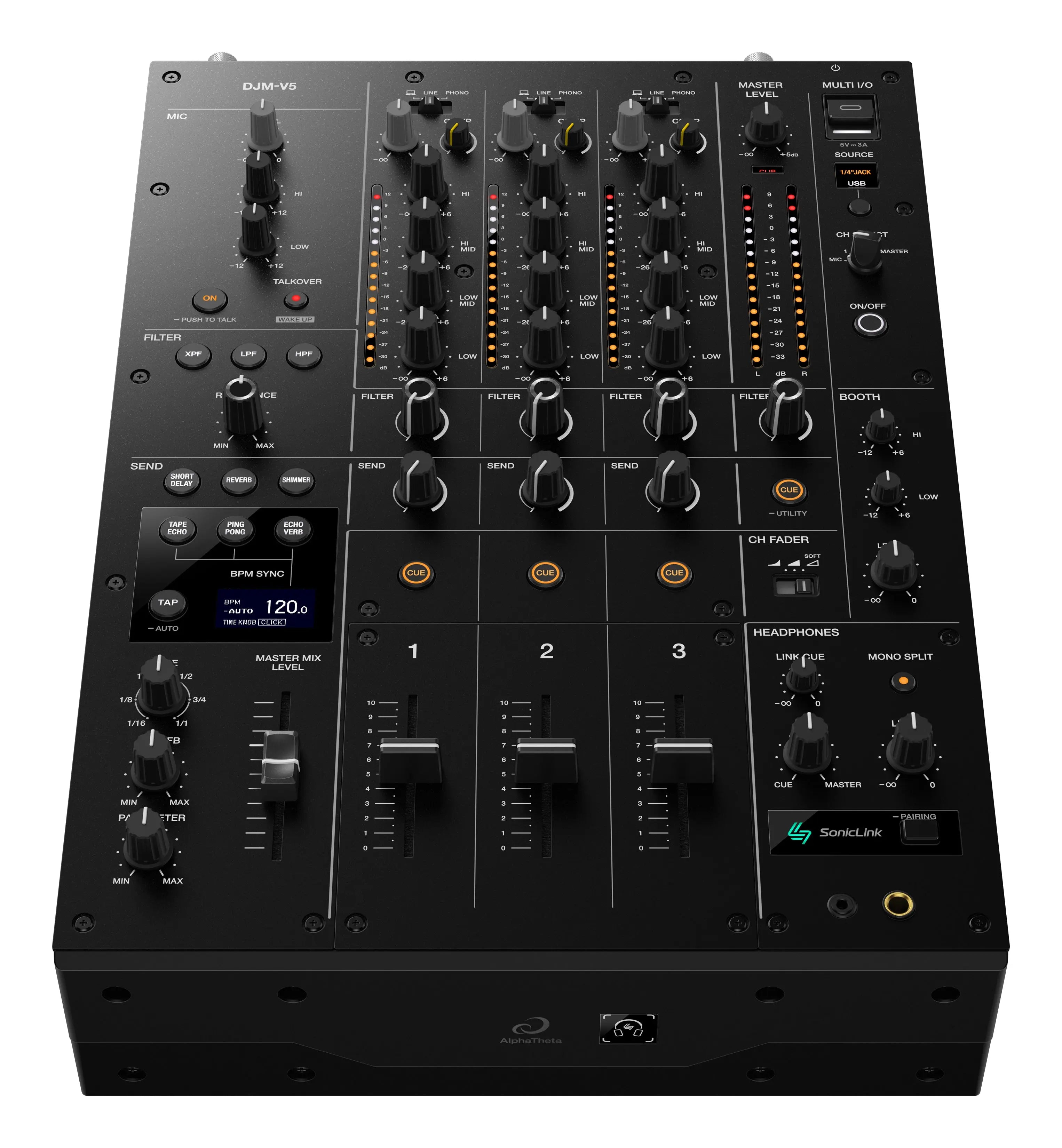

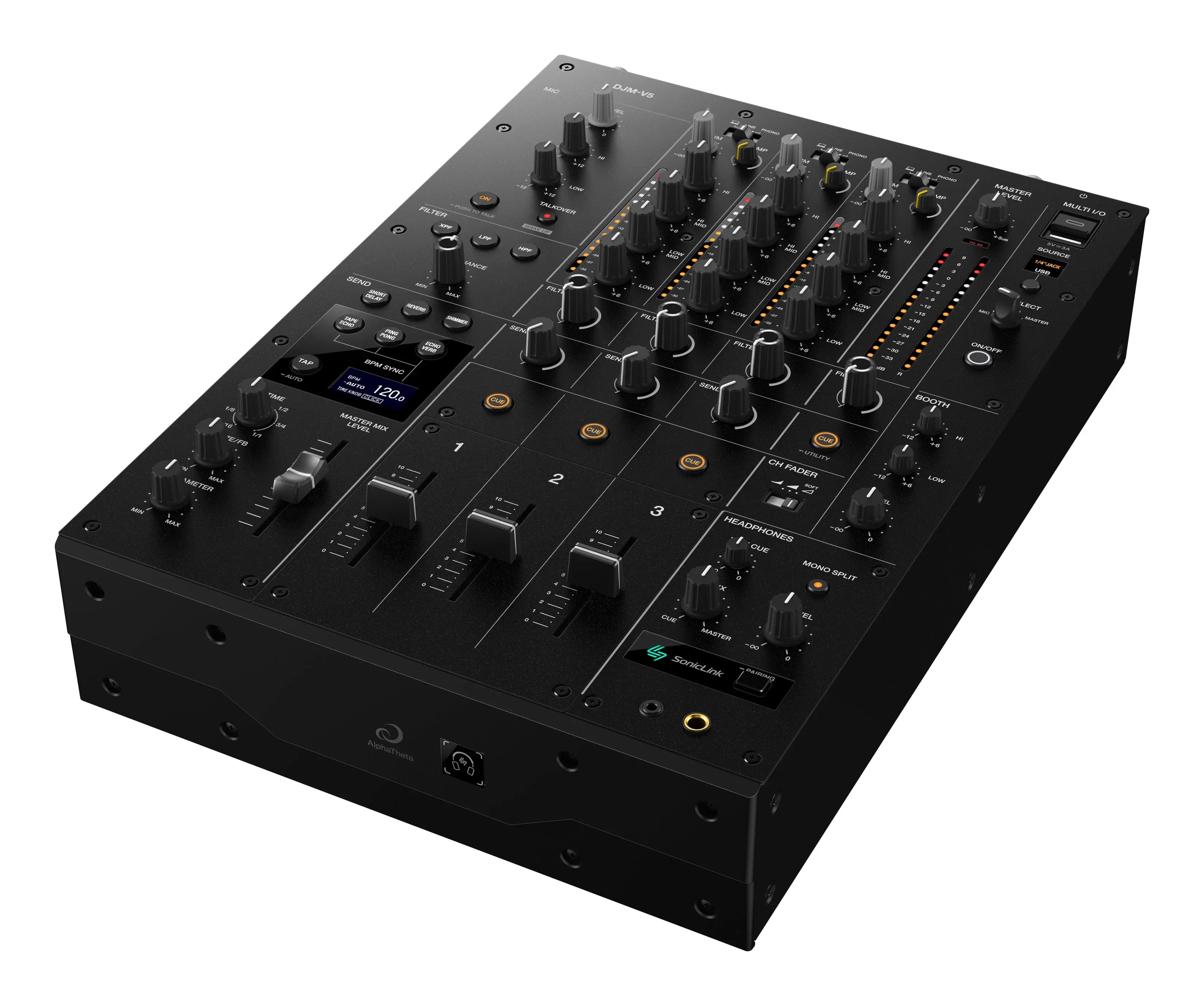

The AlphaTheta DJM-V5 is a revolutionary 3-channel mixer that distills the elite DNA of the flagship DJM-V10 into a compact, innovative format. Designed for professional DJ booths where space is at a premium, the V5 is 30% smaller than its predecessor but retains the surgical 4-band EQ, compressor, and premium sound architecture that "V-Series" users demand.
As the first mixer in the world to feature a built-in SonicLink transmitter, the DJM-V5 ushers in a new era of cable-free performance, allowing for ultra-low-latency wireless monitoring when paired with compatible headphones like the HDJ-F10.
Key Features
-
Pro-Level Control in a Compact 3-Channel Layout: Inherits the tactile feel of the V10 with 60-mm long-throw channel faders. The new Soft Mix Curve fader mode automatically applies subtle high-frequency attenuation during transitions for the smoothest, most natural blends imaginable.
-
The "V" Signature Sound: Experience studio-grade 96 kHz / 64-bit DSP processing. Featuring high-performance 32-bit A/D and D/A converters from ESS Technology on both inputs and master outputs, the V5 delivers an immersive, energetic sound that highlights the silence between notes as clearly as the music itself.
-
Surgical 4-Band EQ & Compressor: Shape your mix with absolute precision using the 4-band EQ and individual channel compressors—perfect for bringing life to older tracks or taming aggressive modern masters.
-
Innovative Cross-Pass Filter: In addition to the classic High-Pass and Low-Pass modes, the V5 introduces the Cross-Pass Filter. This allows you to filter mids and highs while retaining the bass energy, enabling entirely new styles of vocal and melodic performance.
-
Tactile Send FX: Choose from 6 expressive effects: Short Delay, Reverb, Shimmer, Tape Echo, PingPong, and Echo-Verb. The Time knob features a unique clicking mechanism that locks to BPM for rhythmic effects while remaining smooth for atmospheric ones.
-

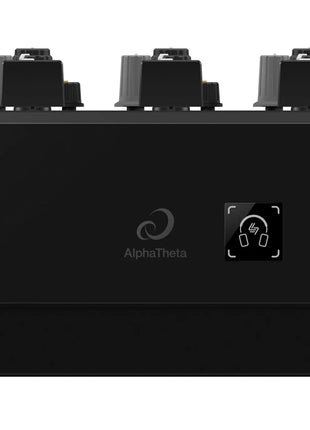

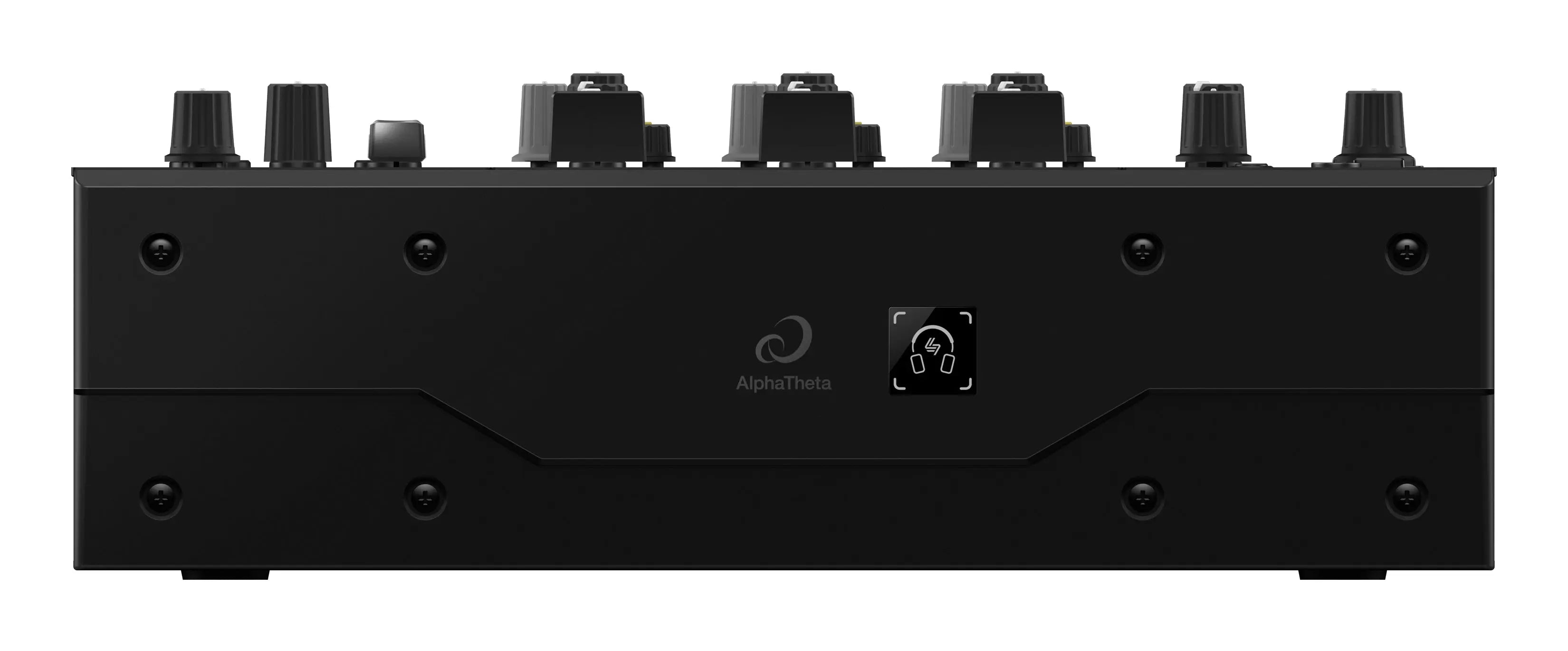

SonicLink Wireless Monitoring: Say goodbye to tangled headphone cables. The built-in SonicLink transmitter provides near-instant wireless audio. Future compatible headphones will even support Touch-to-Pair technology—simply touch the front panel of the mixer to connect.
Technical Specifications
| Feature |
Details |
| Channels |
3 Audio Channels + Mic |
| Sound Quality |
96 kHz / 64-bit Mixing DSP |
| Converters |
ESS Technology 32-bit A/D & D/A |
| Faders |
60-mm Long-Throw (inherited from V10-LF) |
| Wireless |
Built-in SonicLink Transmitter (for HDJ-F10 and future models) |
| EQ |
4-Band EQ per channel |

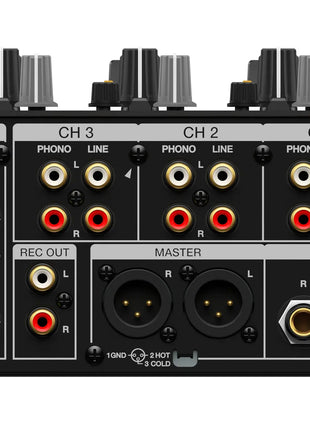

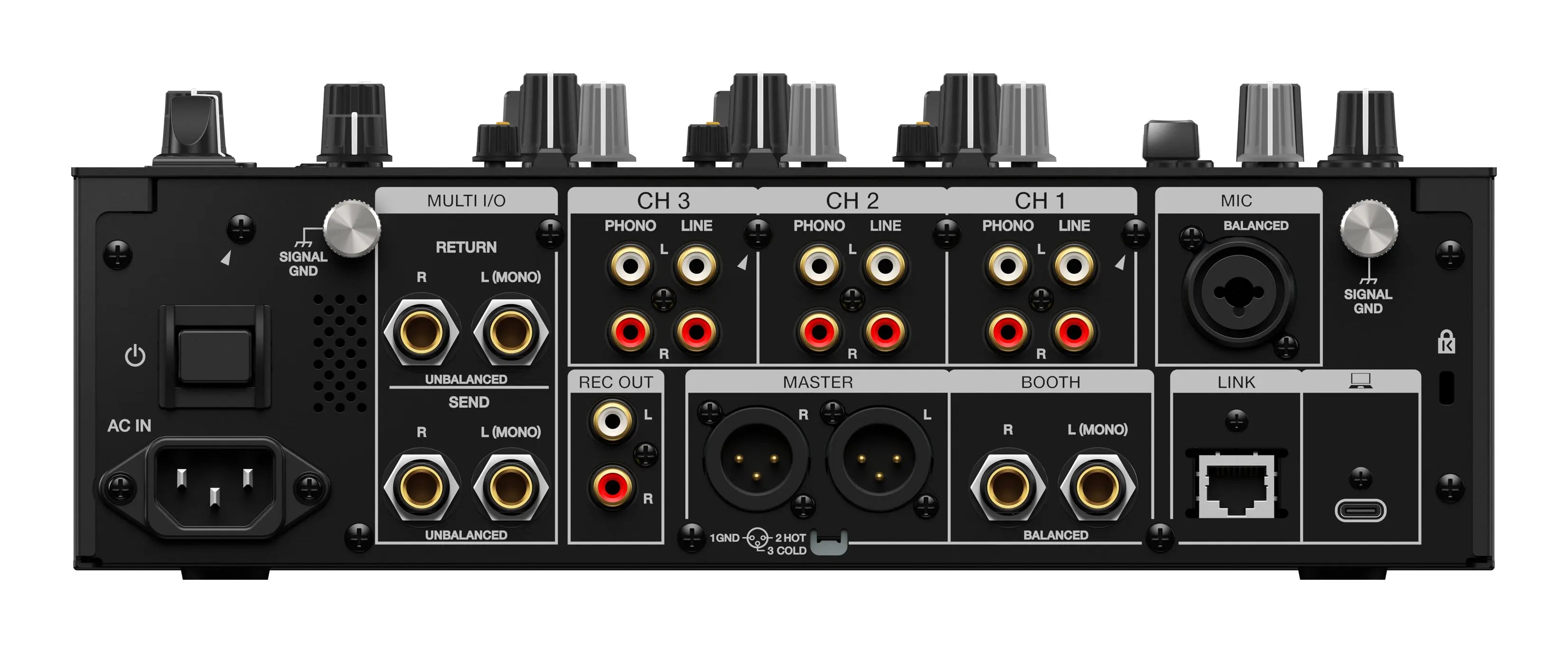

| Inputs |
Phono, Line, Mic, USB-C |
| Connectivity |
Pro DJ Link, Multi I/O (USB Send/Return for RMX-IGNITE), Analog Insert |
| Software |
rekordbox (Mac/Windows), Serato DJ Pro compatible |
