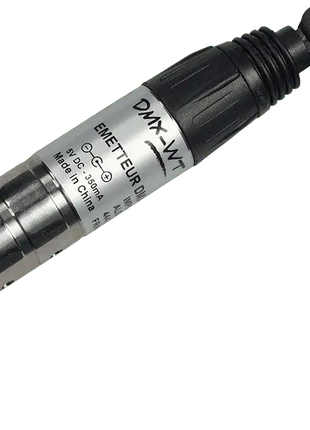

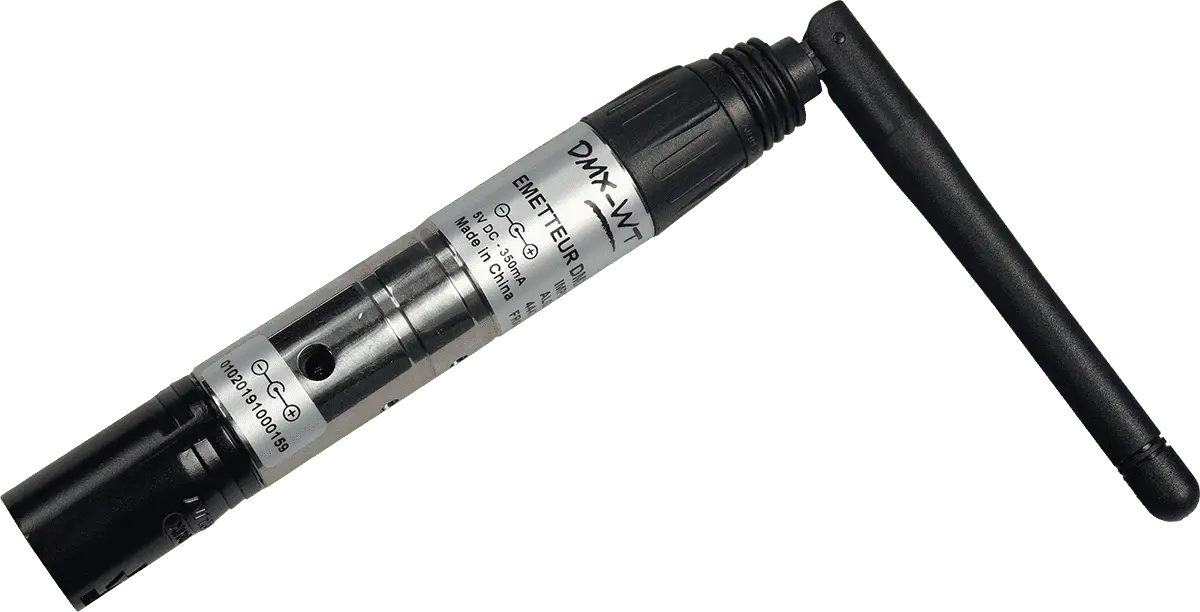

Algam Lighting W-DMX 3pin - Wireless DMX Transmitter/Receiver
The Algam Lighting W-DMX 3pin is a versatile wireless DMX transmitter and receiver system, designed for remote control of lighting equipment that lacks a built-in wireless DMX module. Extremely easy to set up, a single receiver connected to the first device in a chain can control an entire series of machines remotely. This system offers pairing memory and wireless transmission of up to 512 DMX channels and unlimited groups, operating on a 2.4GHz ISM band with an impressive maximum range of 400 meters.
Key Features
-
Wireless DMX Functionality: Acts as both a transmitter and receiver for remote control of lighting equipment.
-
Easy Setup: A single receiver can control a whole series of machines remotely when connected to the first device in the DMX chain.
-
Broad Compatibility: Ideal for lighting equipment without an integrated wireless DMX module.
-
High Channel Capacity: Supports wireless transmission of up to 512 DMX channels per group.
-
Unlimited Groups: Allows for unlimited grouping of devices.
-
Pairing Memory: Features a pairing memory for convenient reconnection.
-
Extended Range: Boasts a maximum range of 400 meters.
-
Robust Wireless Protocol: Operates on a 2.4GHz ISM band with FHSS (Frequency Hopping Spread Spectrum) technology at 1100 hops/sec for stable data transfer.
Technical Specifications
-
Type: Wireless DMX transmitter (also functions as receiver).
-
Frequency: 2.4GHz (ISM band).
-
Extended Spectrum: FHSS, 1100 hops/sec.
-
Data Transfer: DMA - 32-bit ARM.
-
Frequency Band: 2402 - 2480MHz.
-
Maximum Range: 400 meters.
-
DMX Connection: XLR 3-pin male.
-
DMX Channels: 512 / group.
-
Power Supply: 5V DC.
-
Power Consumption: 350mA.
-
Weight: 210g.
Suitable For
- Lighting engineers.
- DJs and mobile entertainers.
- Installations where cable runs are impractical or undesirable.
- Controlling lighting equipment that lacks built-in wireless DMX.
What's in the box
- Algam Lighting W-DMX 3pin Unit (Transmitter/Receiver).
- 5V DC power supply.
