Description

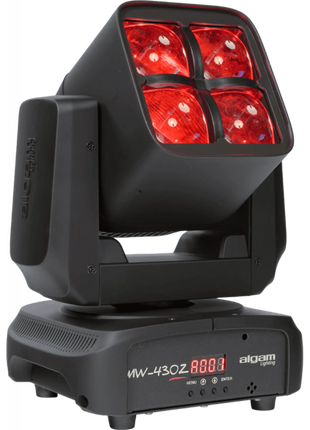

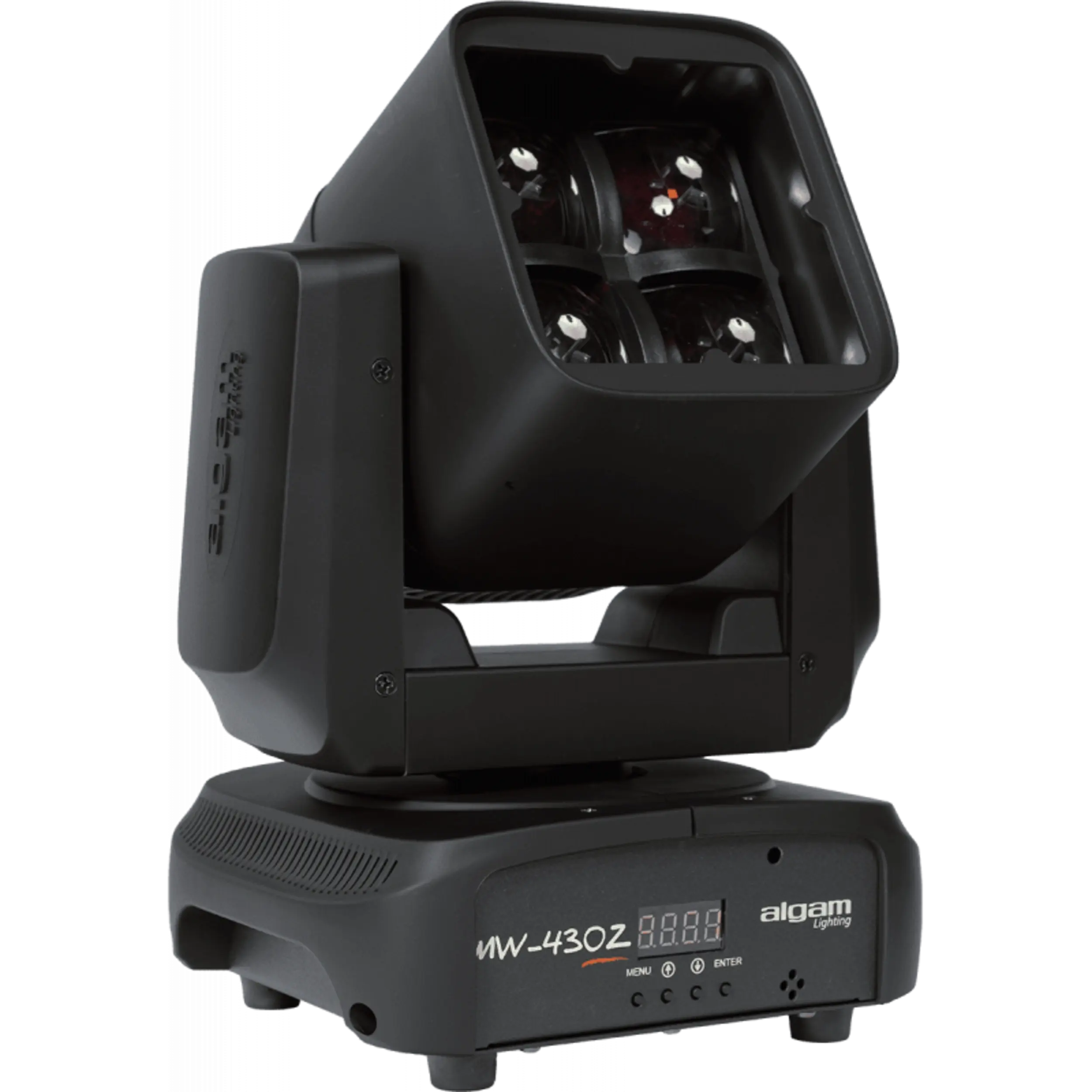

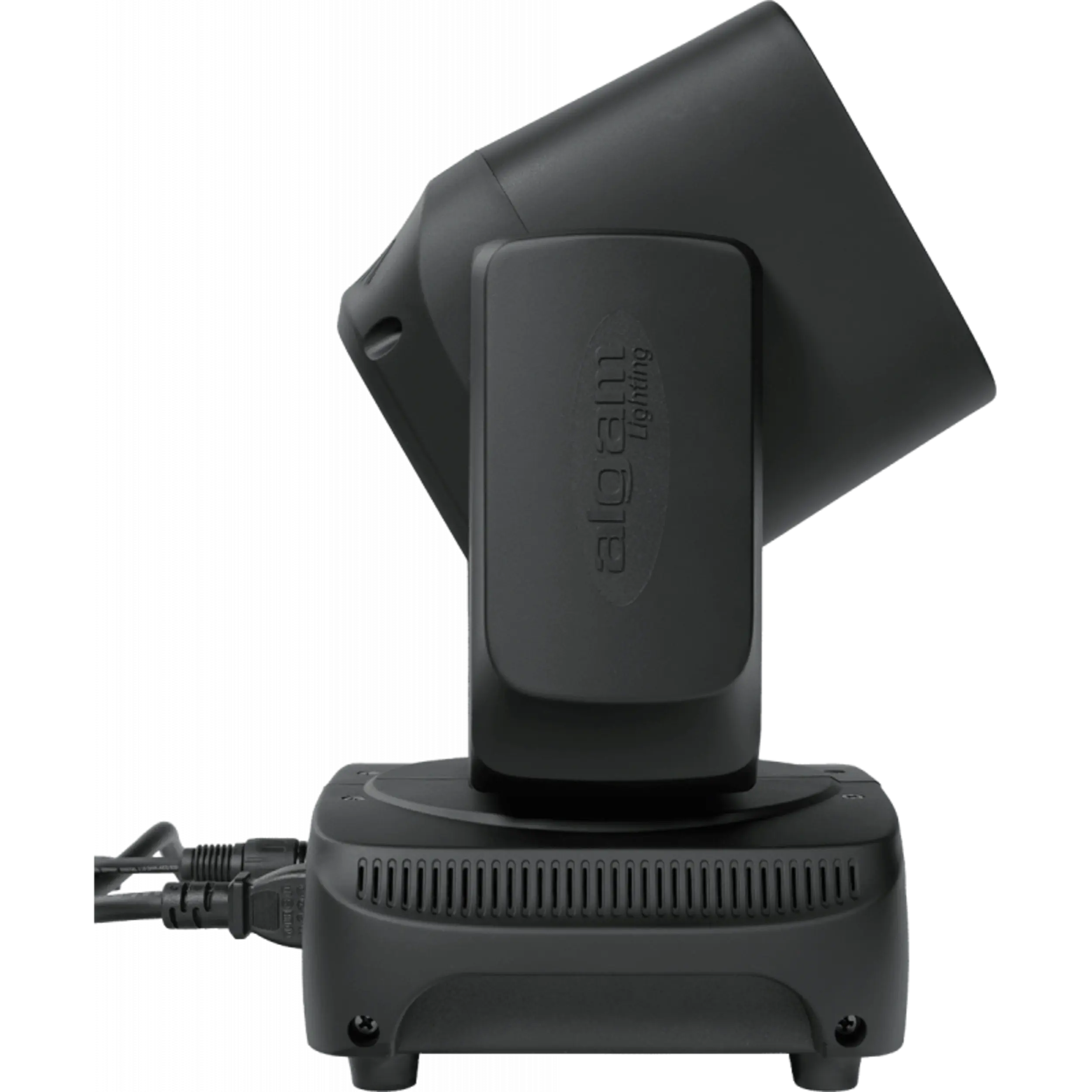

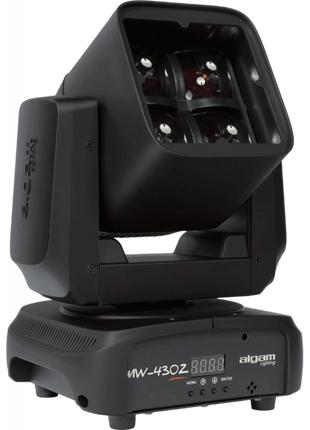

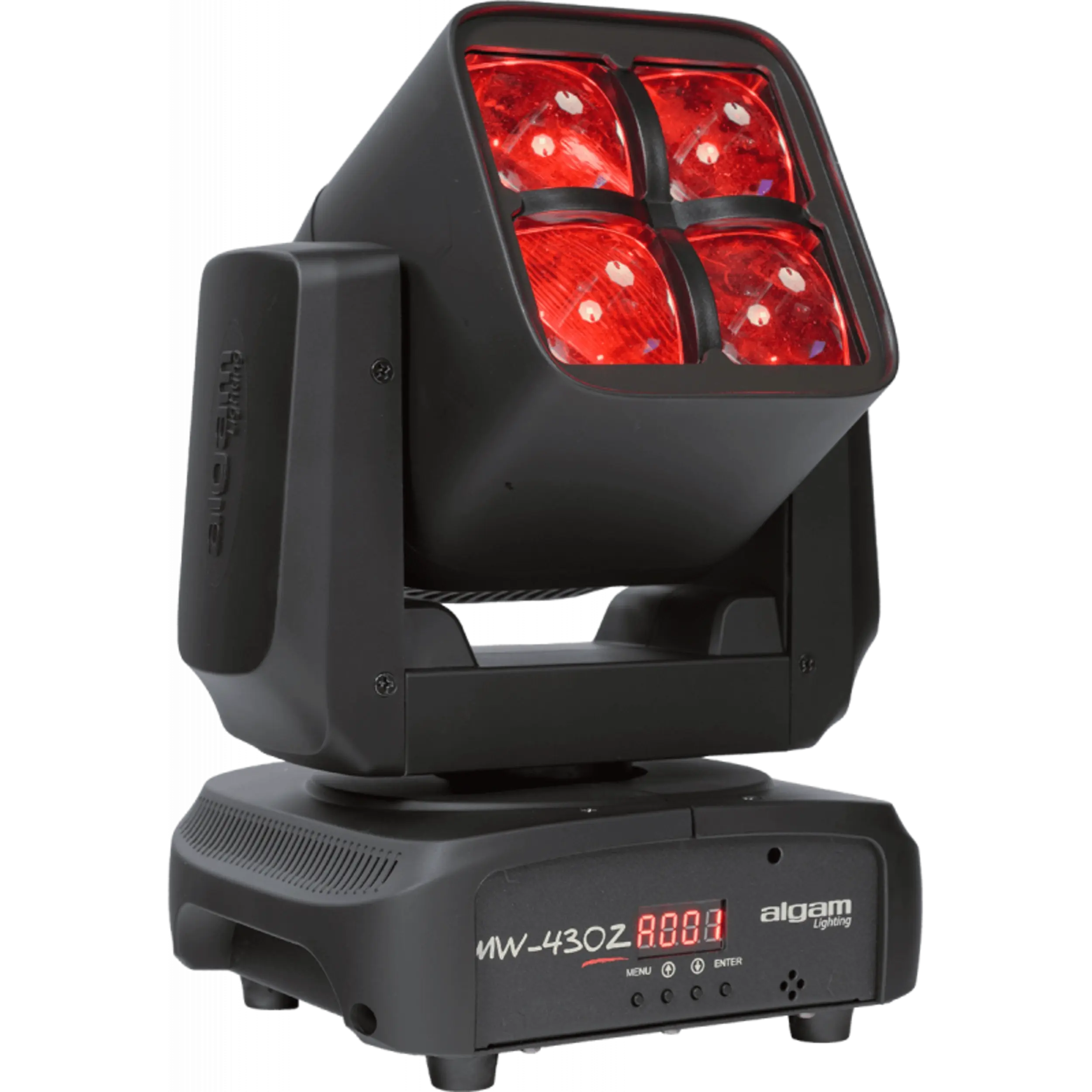

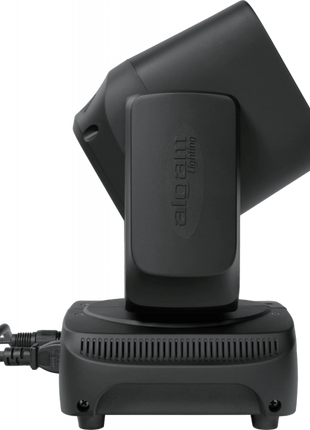

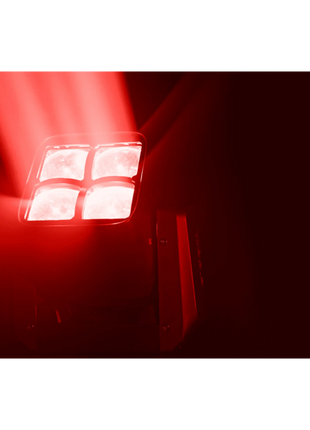

Algam Lighting MW430Z - Compact RGBW LED Wash Moving Head with Zoom
With unprecedented power for its compact size, the Algam Lighting MW430Z is a wash moving head equipped with 4 OSRAM 30W RGBW LEDs, capable of meeting all your color requirements. Its motorized zoom offers projection angles ranging from 10° to 60°, while responsive and quiet pan and tilt movements ensure a wide range of impressive effects. DMX controllable or configurable via its integrated control panel, this moving head also operates in automatic, music-controlled, or master/slave mode, making it versatile for various lighting applications.
Key Features
-
Powerful OSRAM RGBW LEDs: Features 4 x OSRAM 30W RGBW LEDs for rich and vibrant color output.
-
Motorized Zoom: Offers variable projection angles from 10° to 60°.
-
Dynamic & Quiet Movement: Responsive and silent pan (up to 540°) and tilt (up to 200°) movements for impressive effects.
-
Multiple Operating Modes: Operates in Auto, Music-controlled, Master/Slave, and DMX modes.
-
Flexible DMX Control: Offers 14 or 16 DMX channels for extended possibilities.
-
Compact & Lightweight: Weighs only 3.0kg.
-

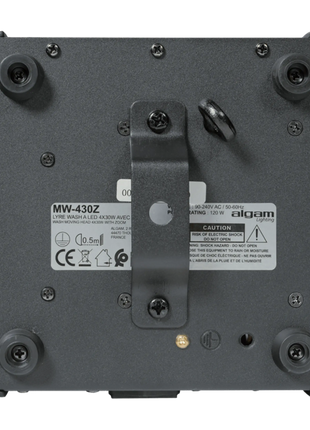

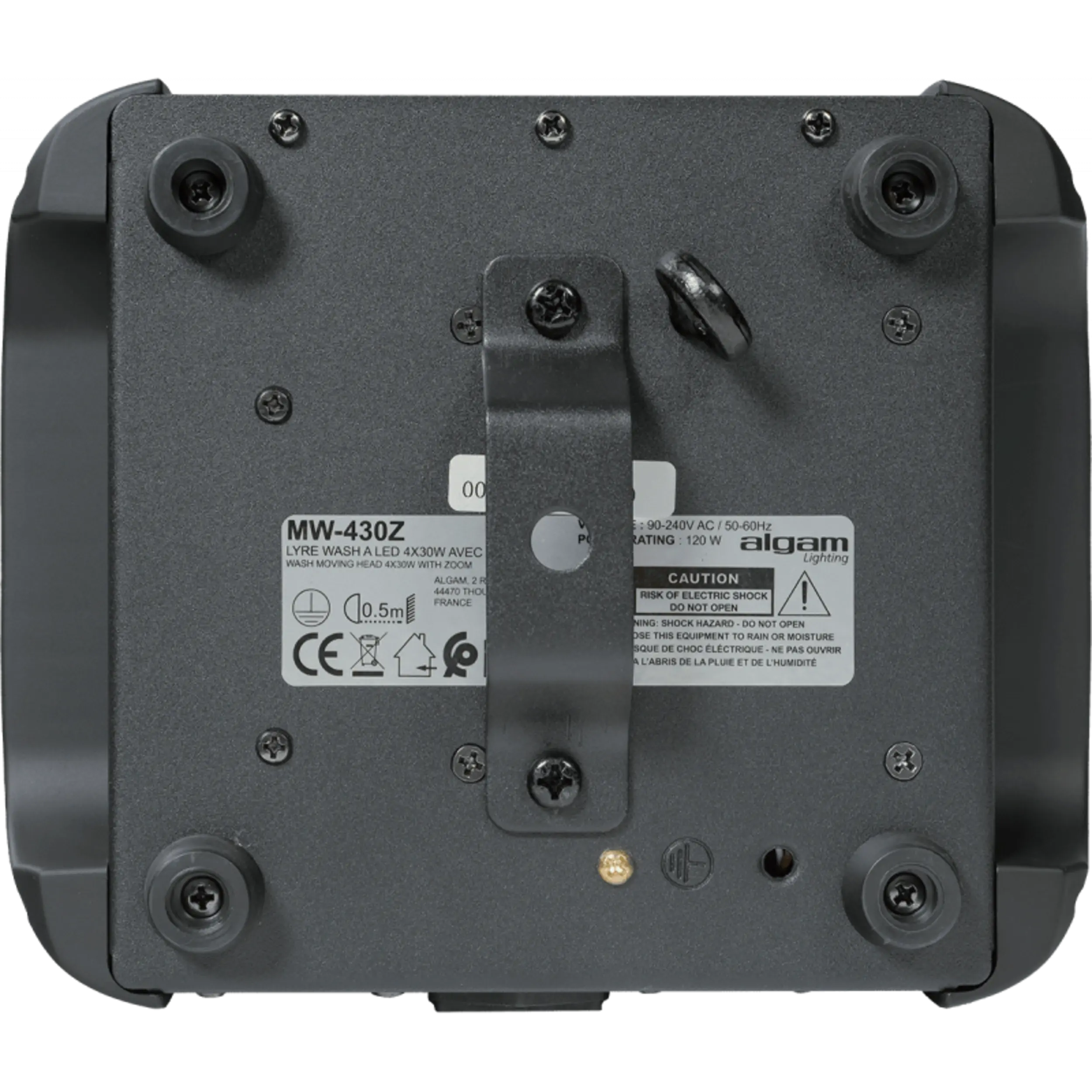

Safe Installation: Has a removable base plate system for safe head-down installations.
-
User-Friendly Control: Configurable via the integrated digital display with 4 control buttons.
-
Durable Frame: Made from plastic.
Technical Specifications
-
Light Sources: 4 x OSRAM 30W RGBW LEDs + zoom.
-
Beam Angle: 10°-60°.
-
Movements: PAN up to 540° / TILT up to 200°.
-
Modes: Auto, Music-controlled, Master/Slave, and DMX.
-
Number of DMX Channels: 14 or 16.
-

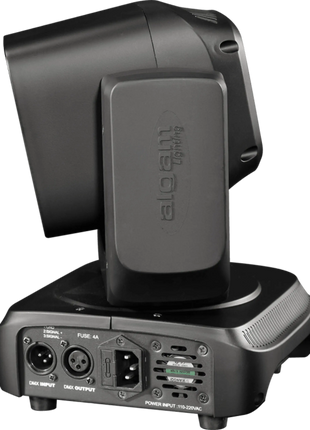

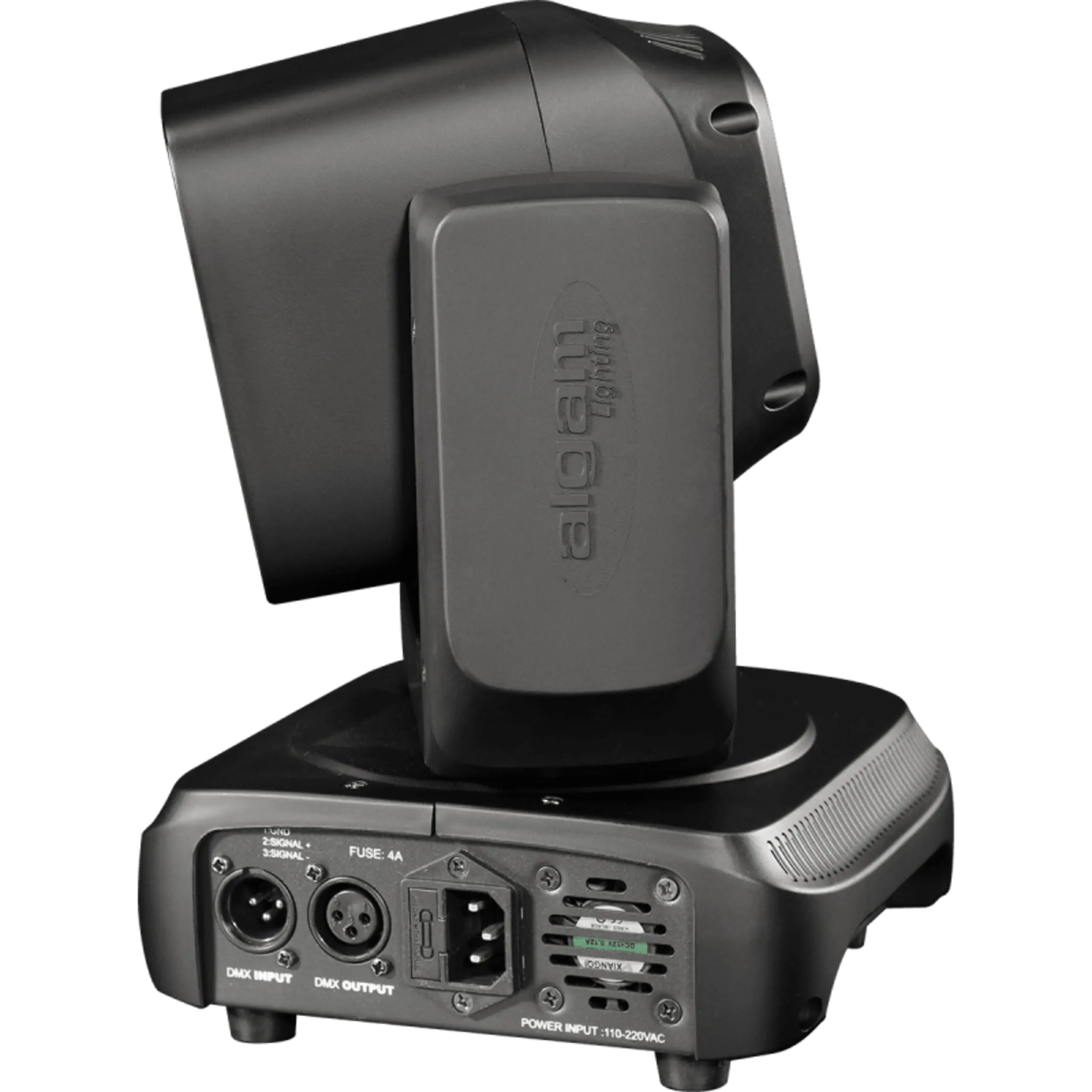

DMX Input/Output: XLR 3-pin.
-
Display: Digital display with 4 control buttons.
-
Frame Material: Plastic.
-
Supply Voltage: 100-240V, 50/60Hz.
-
Power Consumption: 120W.
-
Weight: 3.0kg.
-
Dimensions: 195 x 170 x 280mm.
-
Protection Class: IP20 (indoor use).
Suitable For
- DJs.
- Bars.
- Clubs.
- Events requiring versatile wash effects with zoom capabilities.

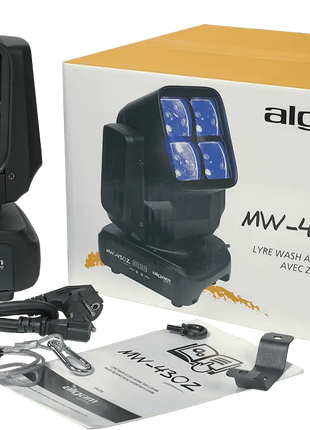

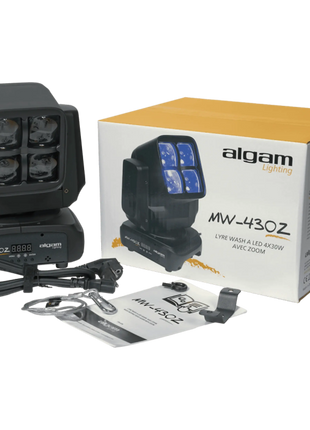

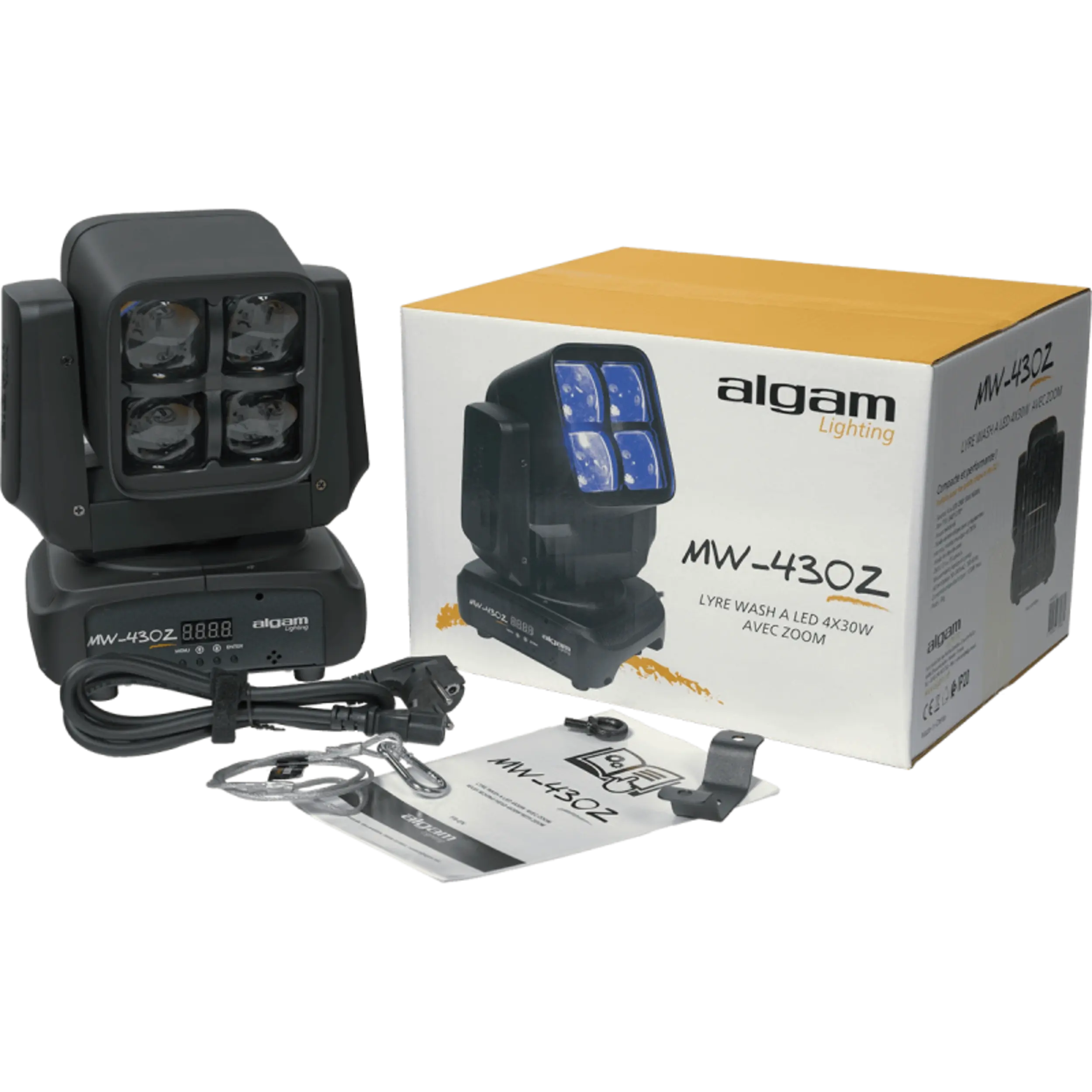

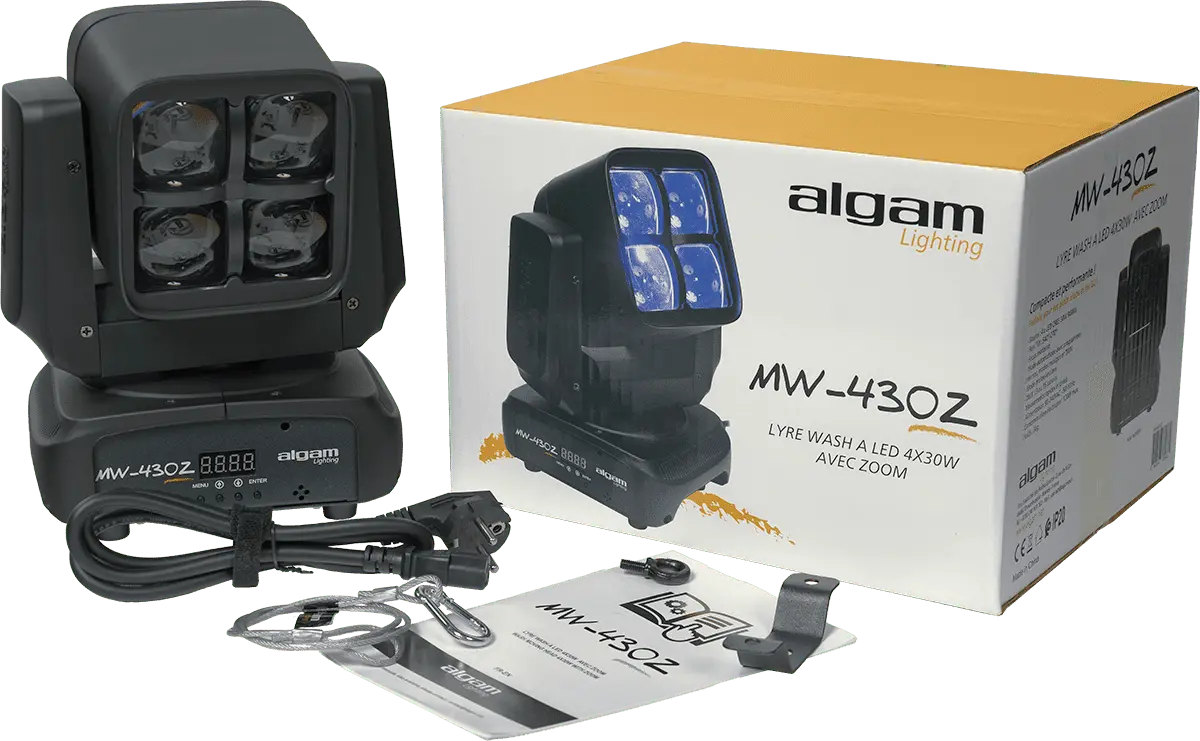

What's in the box
- Algam Lighting MW430Z Wash Moving Head.
- Power cable.
- Velcro cable tie.
- Yoke mounting bracket.
- Safety sling.
