Description
Algam Lighting MB80 - 80W White LED Beam Moving Head
The Algam Lighting MB80 is a highly powerful 80W white LED beam projector, delivering bluffing efficiency for its compact size. It features an 8-gobo wheel, an 8-colour palette, and a double rotating prism (6 or 12 facets) to project attractive light beams and patterns. Developed by a team of enthusiasts, the MB80's quiet motorization ensures smooth and dynamic panning up to 540° and tilting up to 230°, making it compatible with a wide range of fixed or mobile applications.
Key Features
-
Powerful 80W White LED: Projects a formidable beam for its class.
-
Versatile Gobo & Color Wheels: Features a wheel of 8 gobos and an 8-colour palette for diverse patterns and hues.
-
Double Rotating Prism: Includes both a 6-facet and a 12-facet rotating prism for multi-beam effects.
-
Dynamic Movement: Quiet motorization allows smooth PAN up to 540° and TILT up to 230° with striking dynamism.
-
Multiple Operating Modes: Operates in Auto, Music-controlled, Master/Slave, and DMX mode.
-
Flexible DMX Control: DMX controllable through 11 or 13 channels for extended possibilities.
-
User-Friendly Control Panel: Configurable via the integrated digital display with 4 control buttons.
-
Compact & Lightweight: Weighs only 3.0kg, making it easy to transport and install.
-
Safe Installation: Features a removable base plate system for safe head-down installations.
-
Diverse Effects: Includes color, 1/2 color, and strobe effects.
-
Linear Dimmer: Offers 0-100% dimming with a linear curve.
Technical Specifications
-
Light Sources: 1 x 80W white LED spotlight (colour effects, rainbow, strobe).
-
Movements: PAN up to 540° / TILT up to 230°.
-
Gobo Wheel: 12 gobos.
-
Colour Wheel: 8 colors.
-
Prism: Double 6-facet rotating prism + 12-facet rotating prism.
-
Dimmer: 0-100%, linear curve.
-
Modes: Auto, Music-controlled, Master/Slave, and DMX.
-
Number of DMX Channels: 11 or 13.
-
DMX Input/Output: XLR 3-pin.
-
Display: Digital display with 4 control buttons.
-
Frame Material: Plastic.
-
Supply Voltage: 100-240V, 50/60Hz.
-
Power Consumption: 120W.
-
Weight: 3.0kg.
-
Dimensions: 195 x 170 x 280mm.
-
Protection Class: IP20 (indoor use).
Suitable For
- DJs.
- Fixed installations.
- Mobile applications.
- Anyone needing powerful beam effects with versatile patterns and colors.

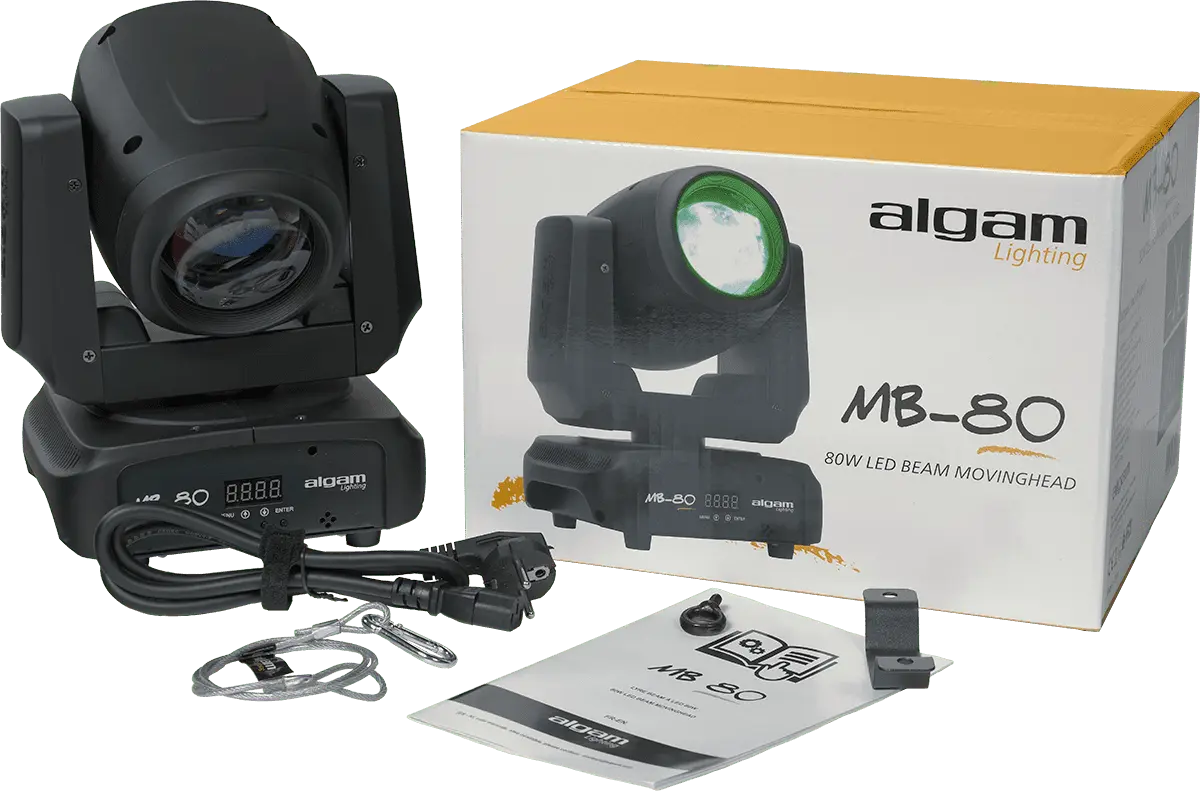

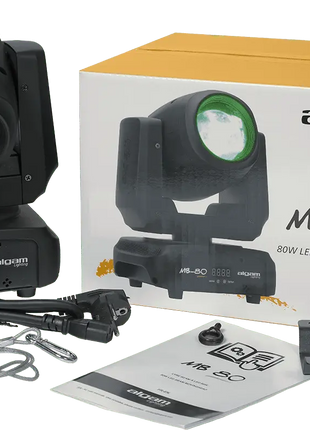

What's in the box
- Algam Lighting MB80 Beam Moving Head.
- Power cable.
- Velcro cable tie.
- Yoke mounting bracket.
- Safety sling.
