Description

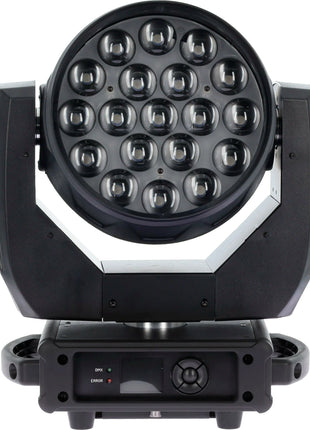

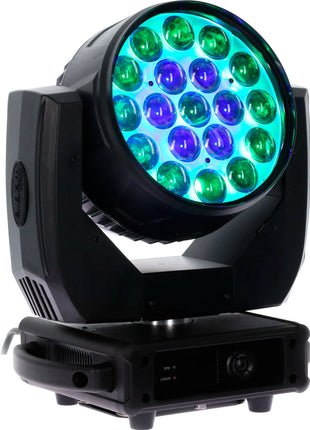

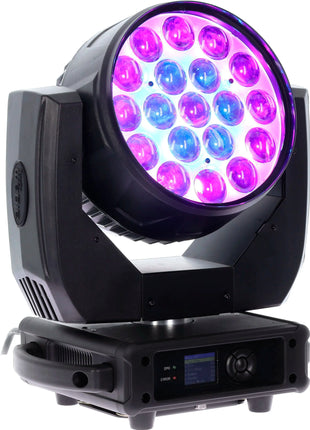

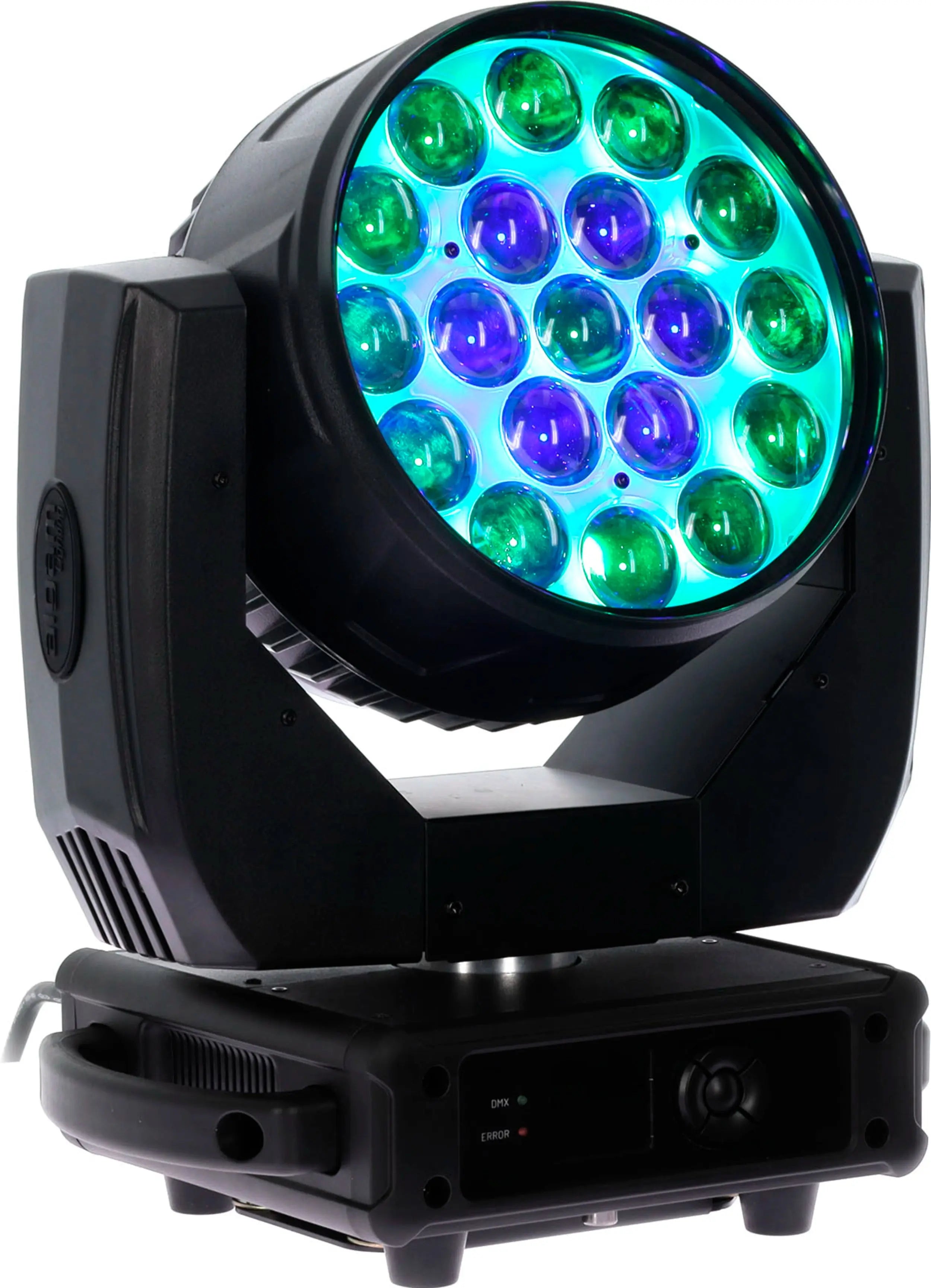

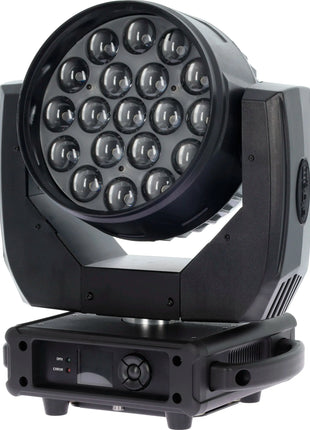

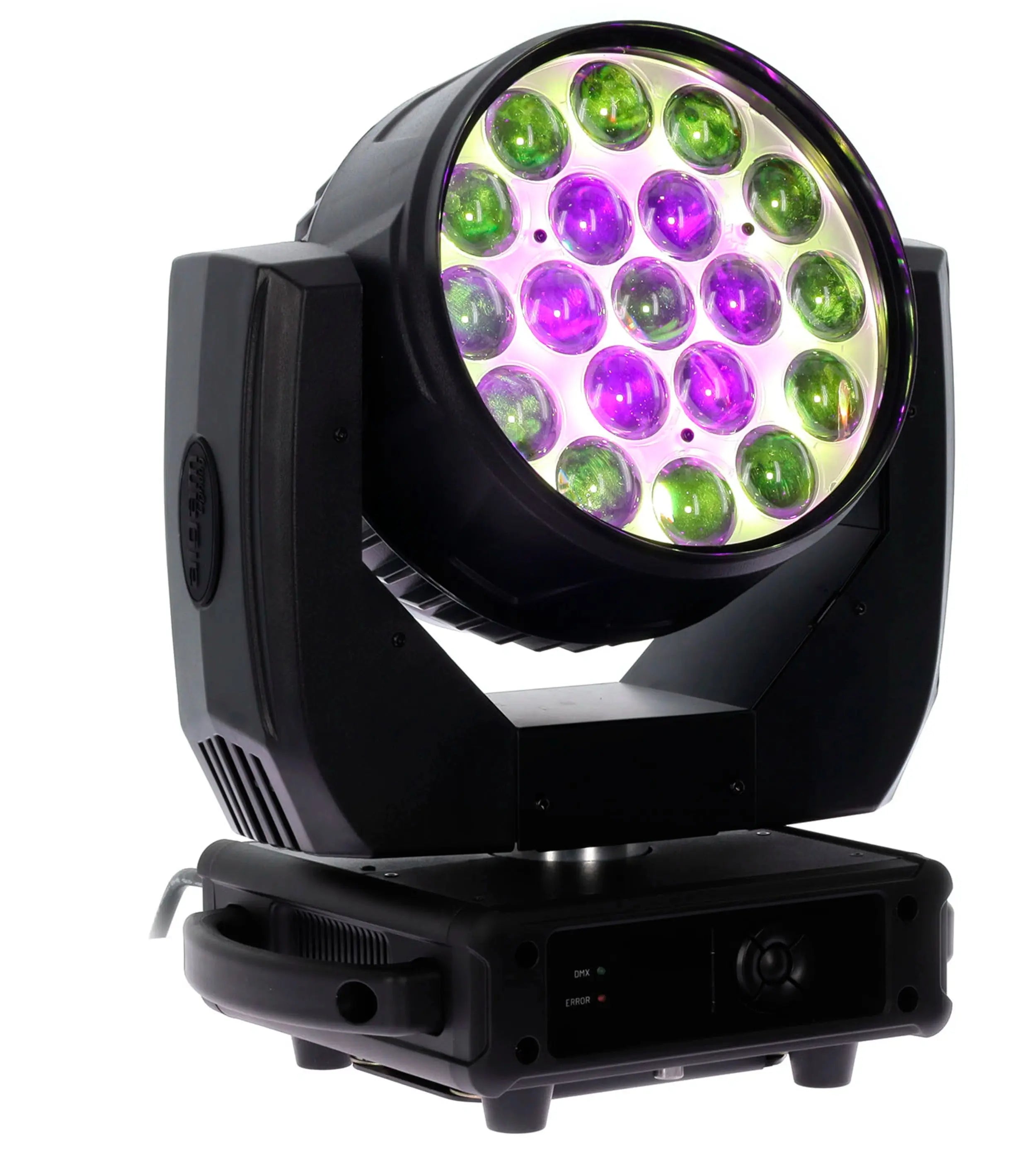

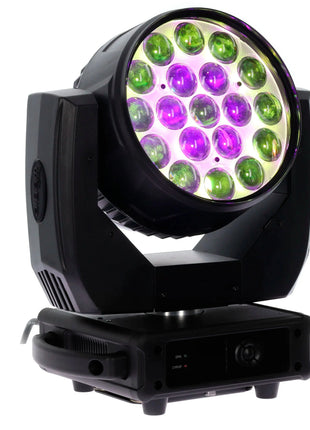

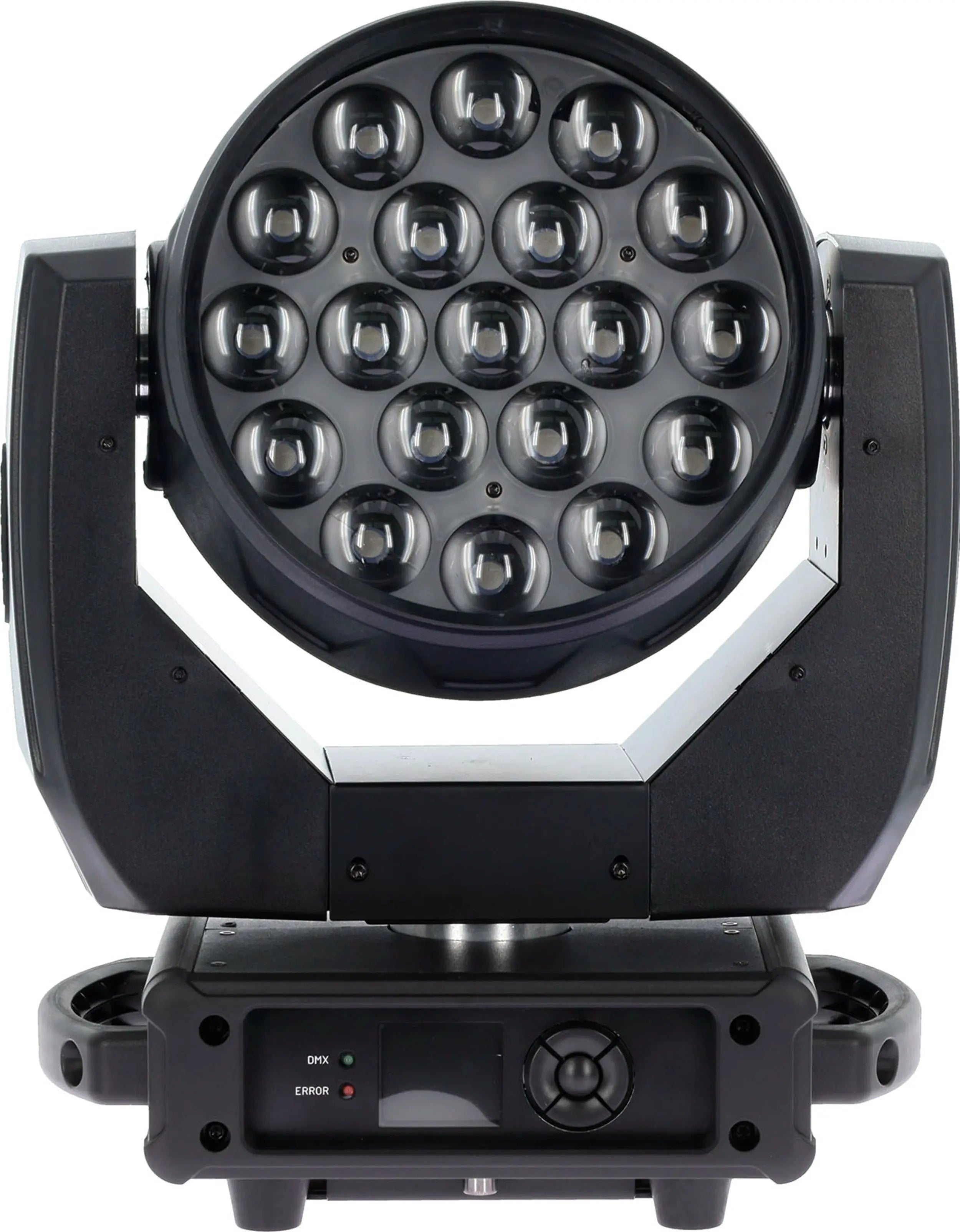

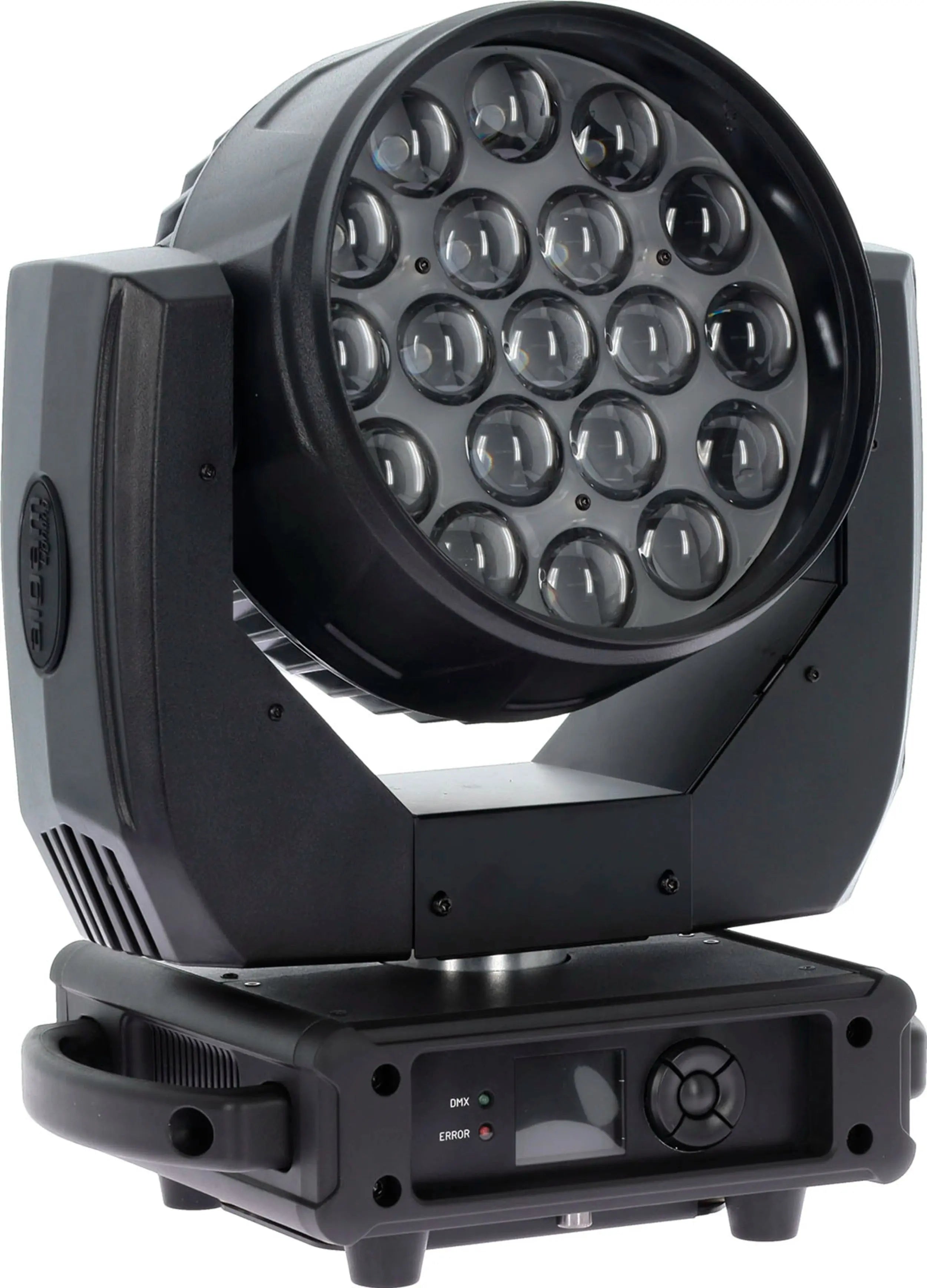

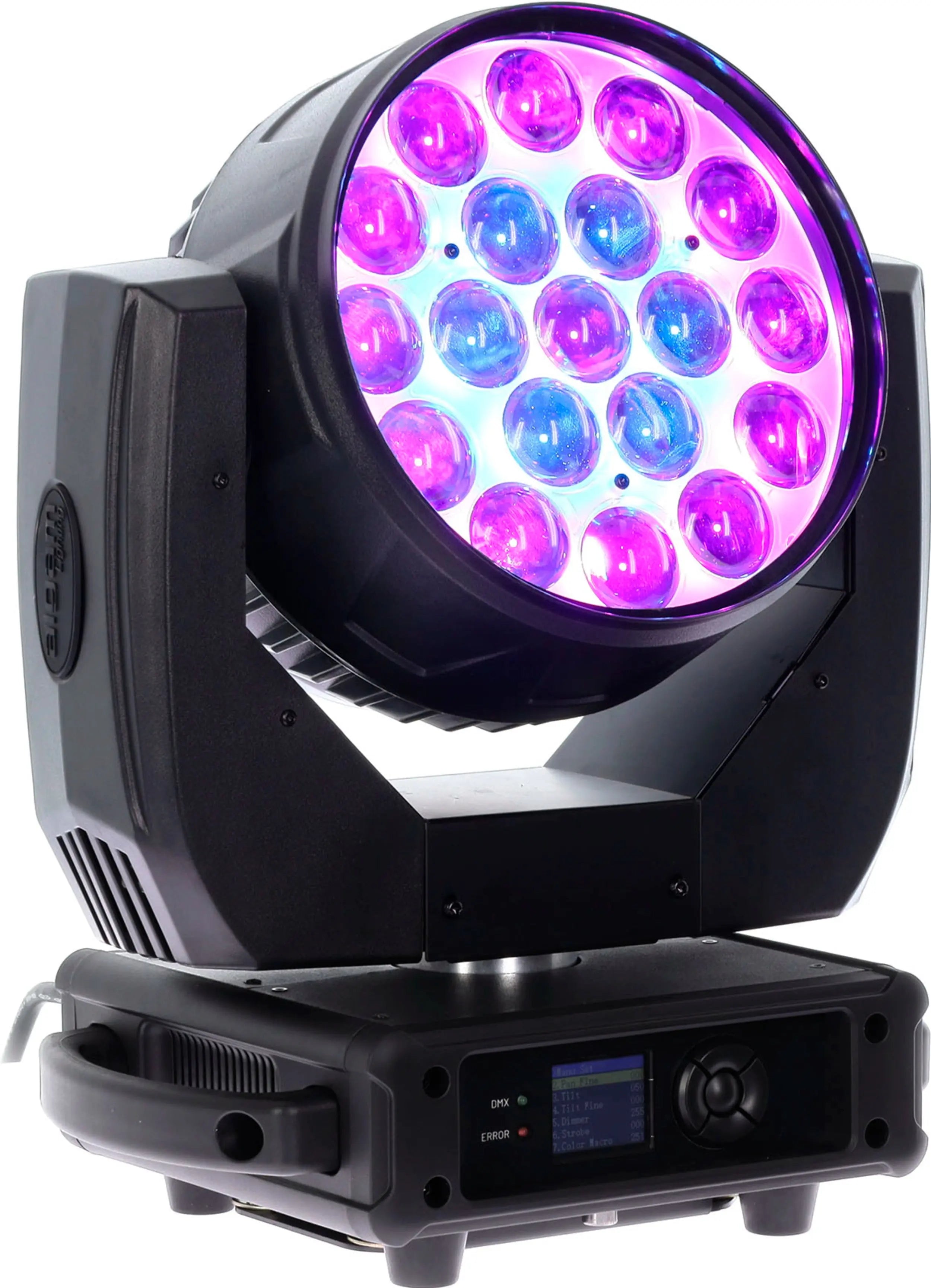

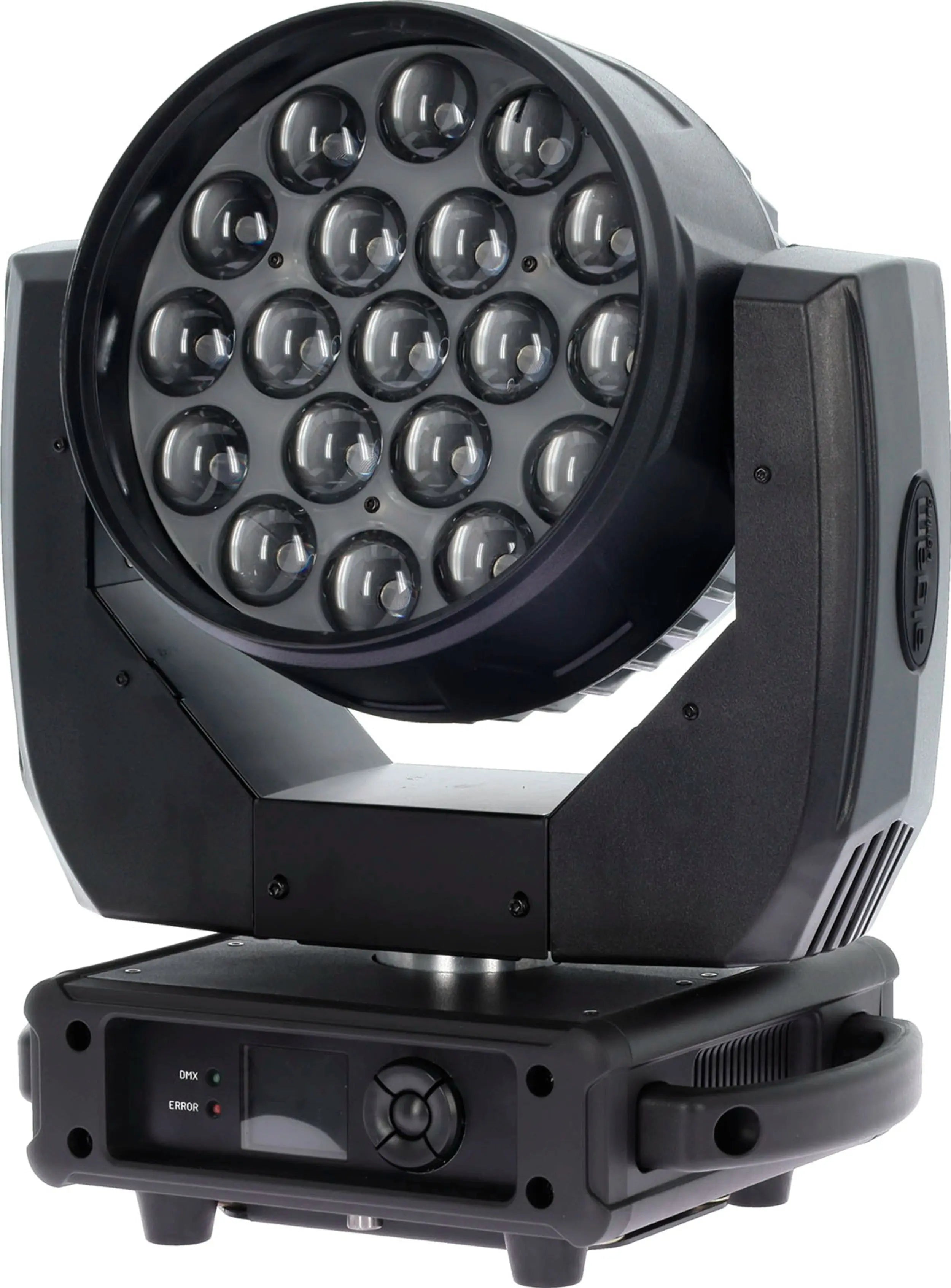

Algam Lighting MW19X15Z - RGBW LED Wash Moving Head with Zoom
The Algam Lighting MW19X15Z is a powerful wash moving head featuring 19 x 15W RGBW LEDs, delivering striking color effects within a neatly designed frame. This projector boasts a motorized zoom covering angles from 6° to 50°, making it compatible with a wide range of professional applications. Its quiet motorization ensures fluid and responsive panning up to 540° and tilting up to 270°. Developed for lighting professionals, the MW19X15Z offers DMX control, integrated configuration, and various operating modes, with Powercon input/output for easy power chaining and OMEGA sockets for safe installation.
Key Features
-
Powerful RGBW LED Source: Equipped with 19 x 15W RGBW LEDs for rich and striking color effects.
-
Motorized Zoom: Covers a versatile beam angle from 6° to 50°.
-
Dynamic & Fluid Movement: Quiet motorization allows PAN up to 540° and TILT up to 270° with remarkable fluidity and responsiveness.
-
Flexible Control Options: Controllable by DMX (15 or 23 channels) or configurable via the integrated LCD control panel with 5 buttons.
-
Multiple Operating Modes: Operates in Auto, Music-controlled, Random, and DMX modes.
-
Professional Power Connectivity: Power supply with Powercon input and output for chaining devices.
-
Secure Installation: Includes 2 OMEGA sockets with quarter turn locking for safe installations.
-
Long LED Lifespan: Average life span of 50,000 hours.
-
Linear Dimmer: 0-100% linear curve dimmer.
Technical Specifications
-
Light Sources: 19 x 15W RGBW LEDs.
-
Average Life Span: 50,000 hours.
-
Dimmer: 0-100%, linear curve.
-
Beam Angle: 6° to 50°.
-
Movements: PAN up to 540° / TILT up to 270°.
-
Modes: Auto, Music-controlled, Random and DMX.
-
Number of DMX Channels: 15 or 23.
-

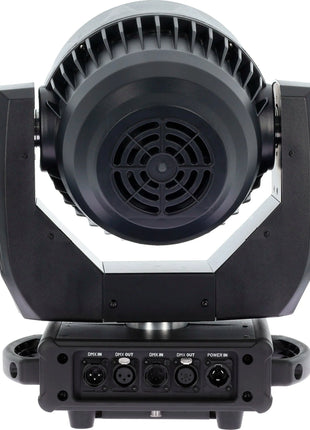

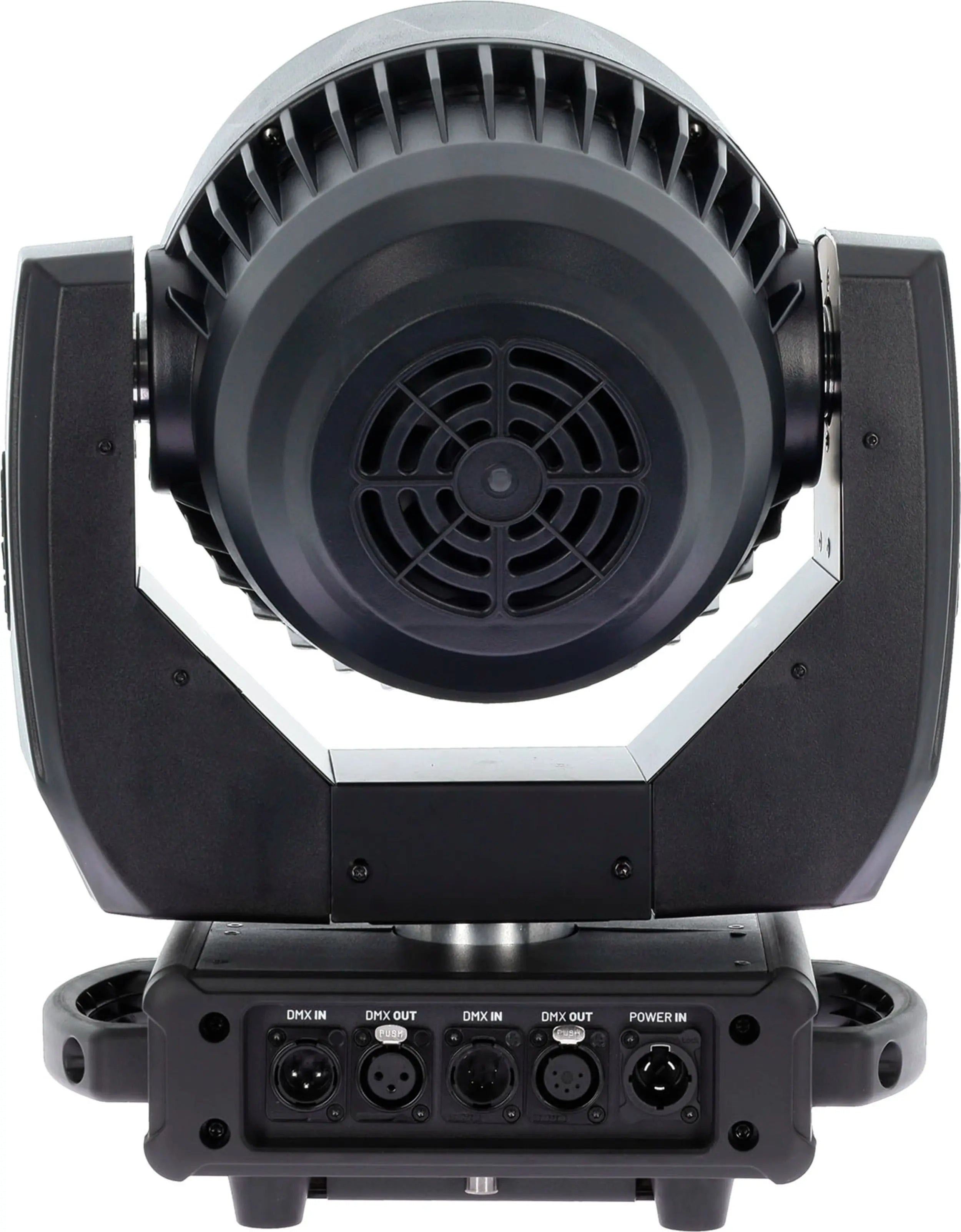

DMX Input/Output: XLR 3-pin.
-

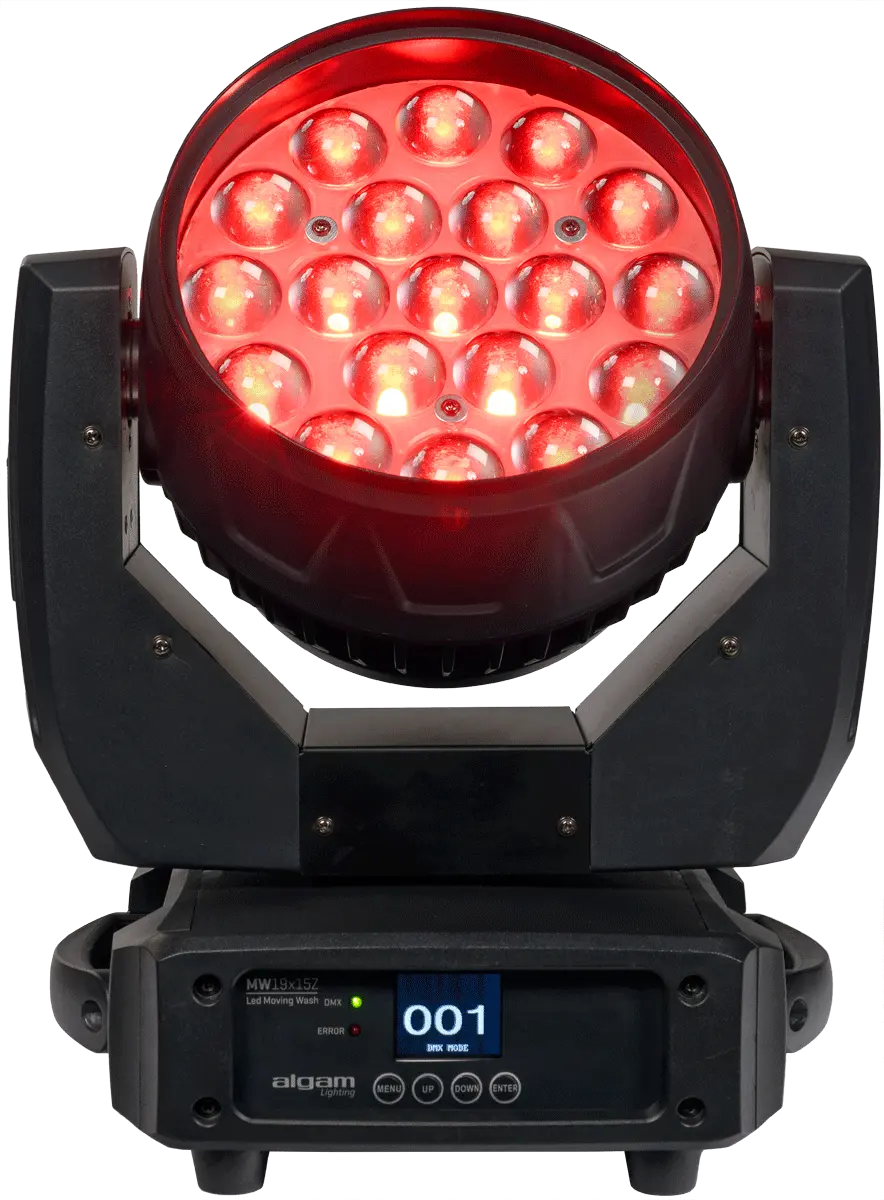

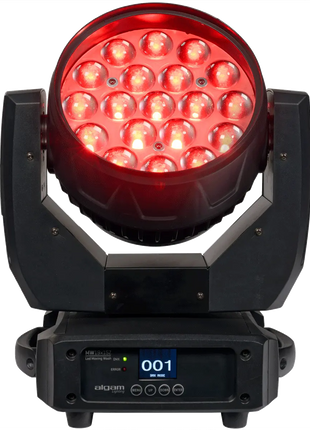

Display: LCD screen with 5 control buttons.
-
Frame Material: Plastic.
-
Installation and Fixings: 2 OMEGA sockets with quarter turn locking.
-
Power Connector: Locking socket (input/output).
-
Supply Voltage: 100-240V, 50/60Hz.
-
Power Consumption: 300W.
-
Weight: 8.5kg.
-
Dimensions: 325 x 188 x 395mm.
-
Protection Class: IP20 (indoor use).
Suitable For
- Lighting professionals.
- Clubs.
- Bars.
- Concerts.
- Events requiring powerful and versatile wash effects with zoom.
What's in the box
- Algam Lighting MW19X15Z Moving Head.
- Power cable.
- Yoke mounting bracket.
- Safety sling.
