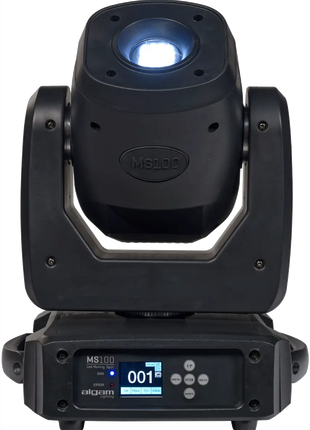

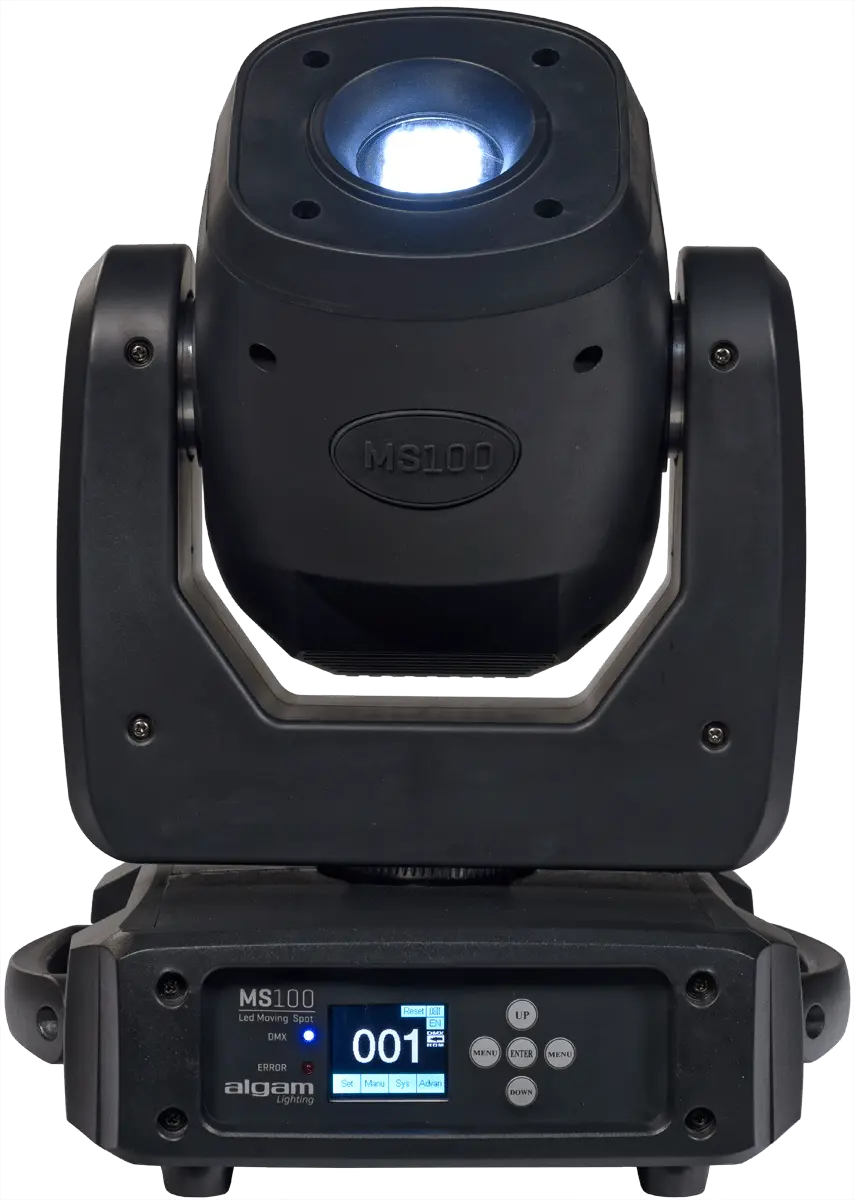

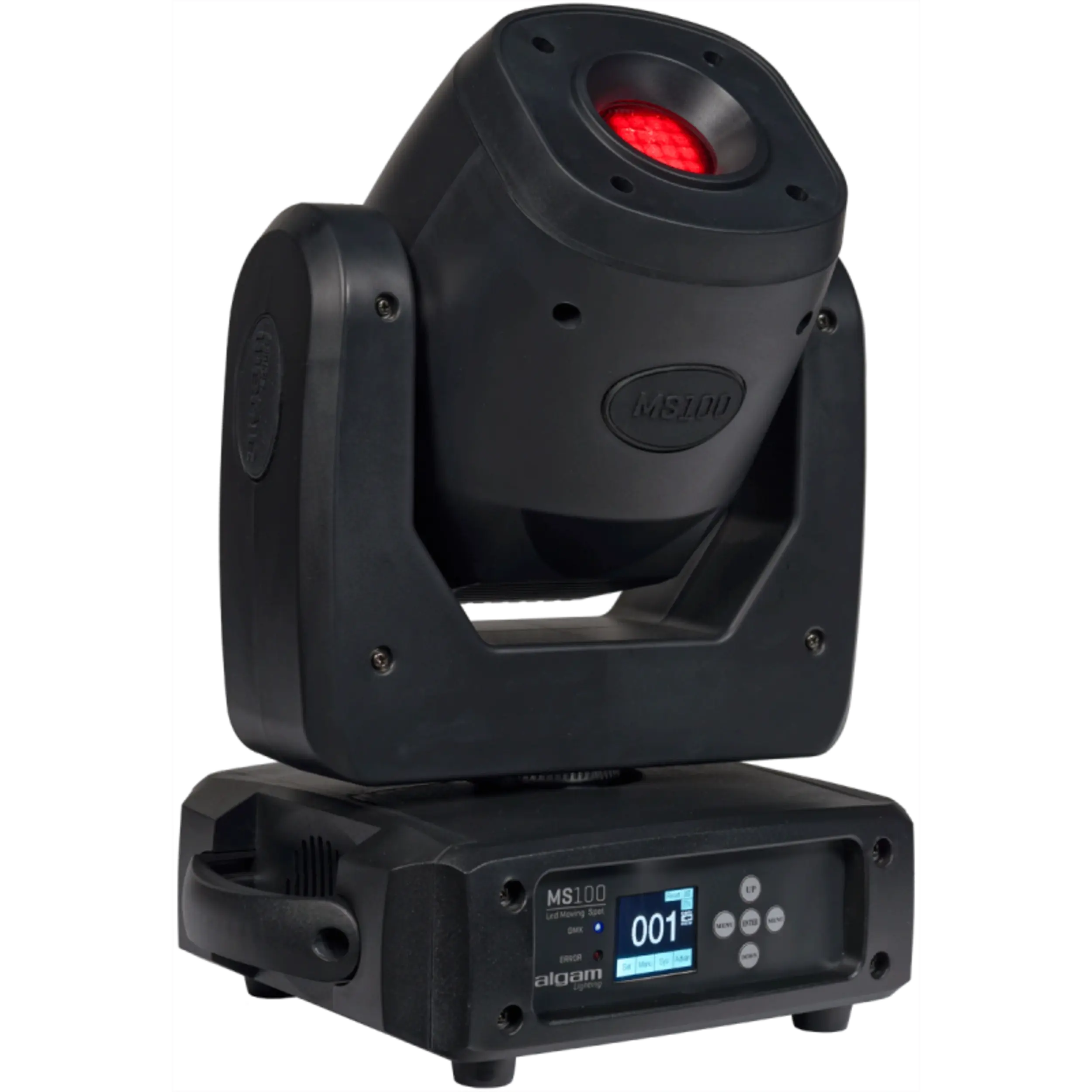

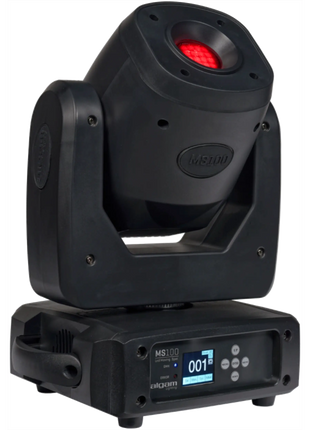

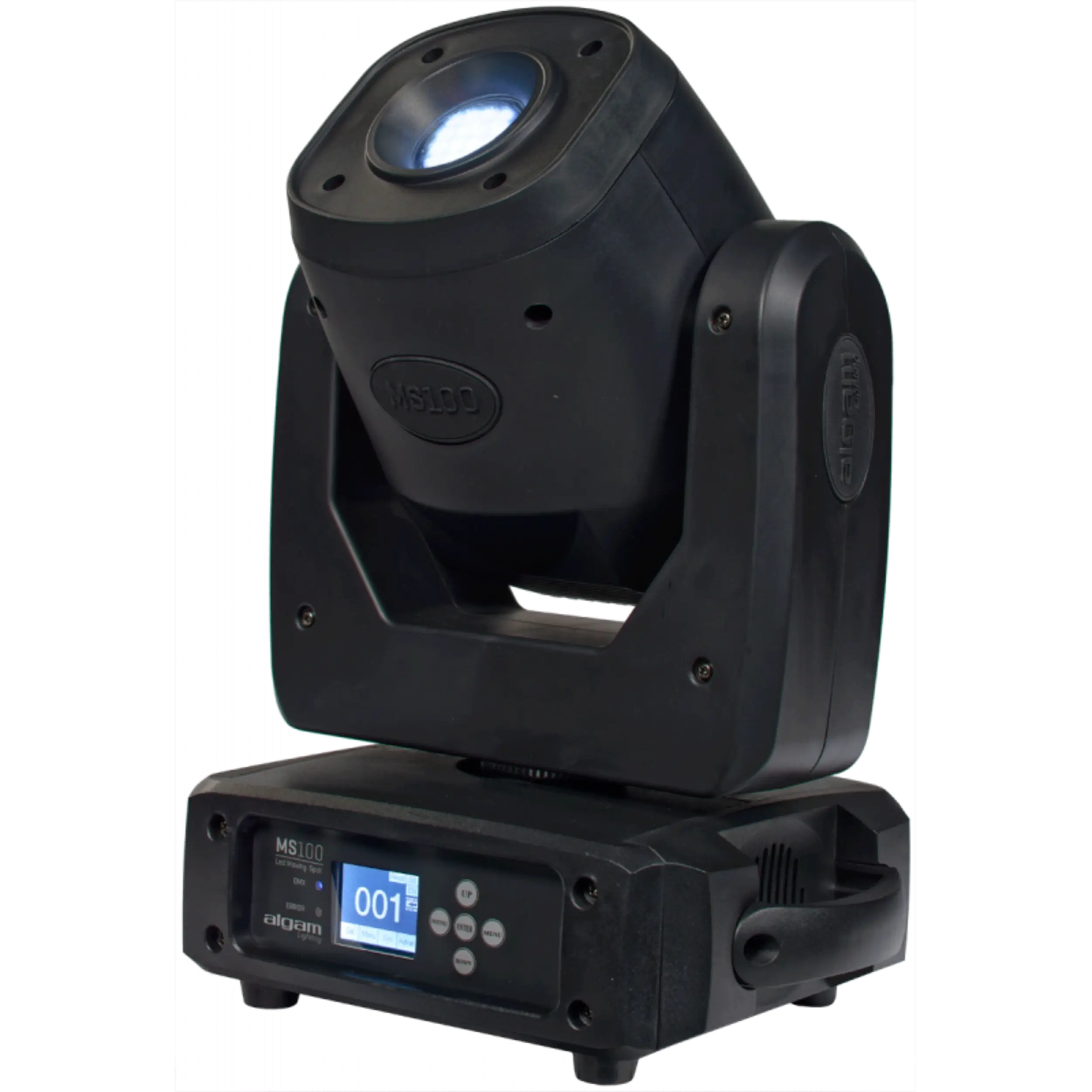

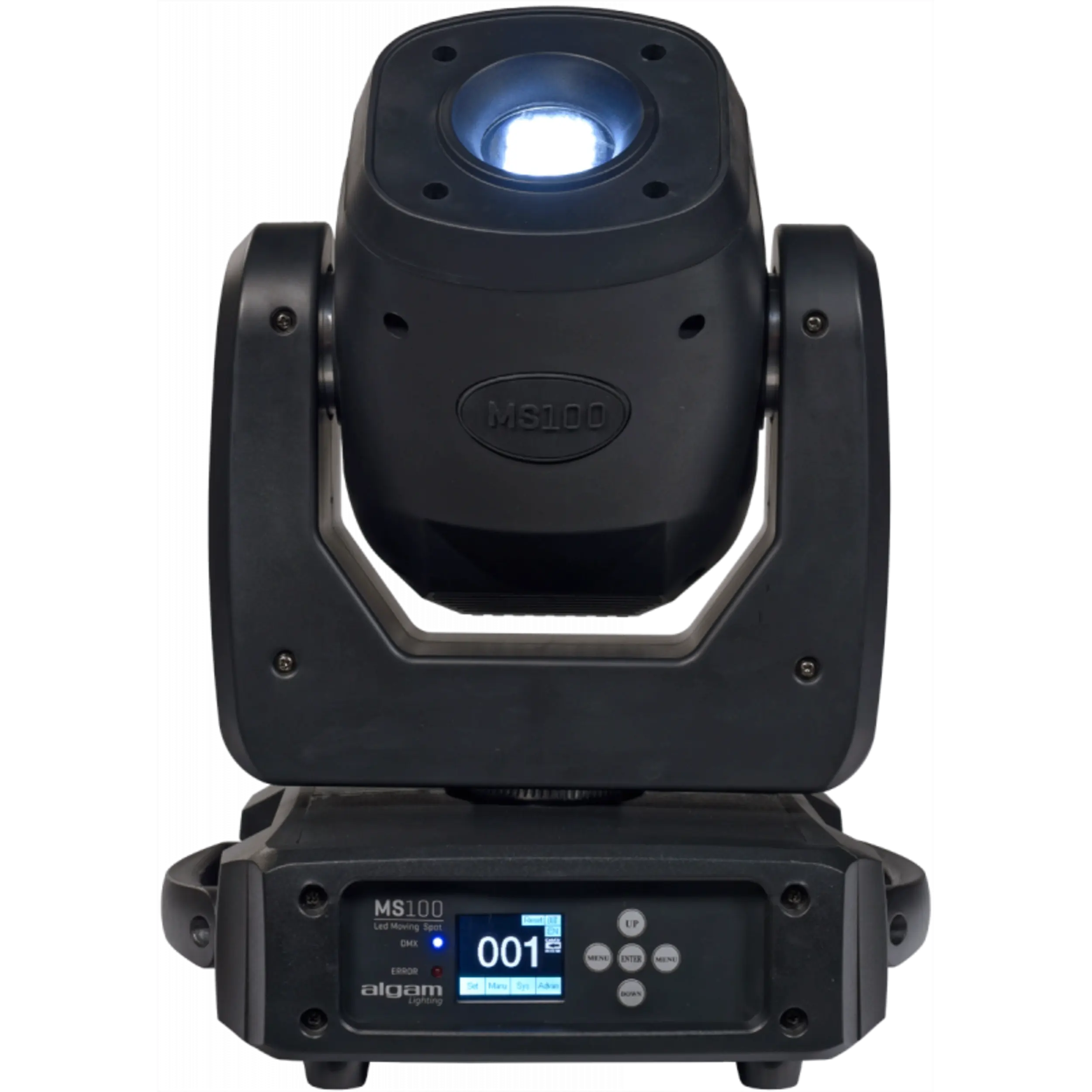

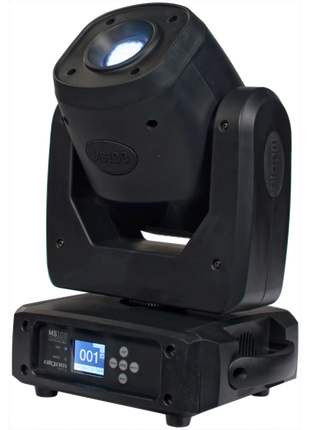

Algam Lighting MS100 - 100W White LED Spot Moving Head
The Algam Lighting MS100 is a professional spot moving head, featuring a powerful 100W white LED light source to create a wide range of impressive effects within a well-designed frame. This lightweight yet resource-packed device (5.9kg) is developed for lighting professionals, offering a motorized focus, a 6-facet variable speed prism, and two gobo wheels (one fixed, one rotating). Its quiet motorization provides tremendous flexibility with 540° pan and 270° tilt, making it suitable for a wide range of fixed and mobile applications.
Key Features
-
Powerful White LED Light Source: Features a 1 x 100W white LED spotlight for striking effects.
-
Dual Gobo Wheels: Includes one fixed gobo wheel (7 gobos + open, with wheel rotation and SHAKE effect) and one rotating gobo wheel (6 gobos + open, with wheel rotation, gobo rotation, and SHAKE effect).
-
Colour Wheel: Offers a 7-colour wheel + white, with half colours and rainbow effect for a wide range of hues.
-
Motorized Focus: Allows for precise beam adjustment.
-
6-Facet Variable Speed Prism: Creates dynamic multi-beam effects.
-
Dynamic Movement: Quiet motorization enables flexible and fast pan up to 540° and tilt up to 270°.
-
Multiple Operating Modes: Can be controlled by DMX (14 channels) or configured via the integrated control panel; also operates in automatic, music-controlled, and Random modes.
-

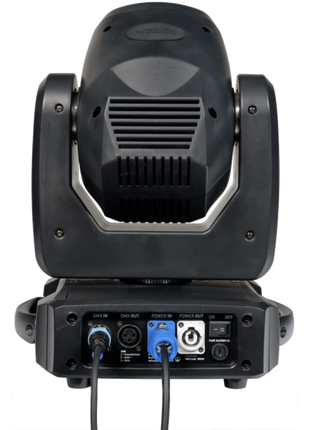

Professional Power Connectivity: Features Powercon input and output for chaining devices.
-
Secure Installation: Equipped with 1 OMEGA socket with quarter turn locking for safe installations.
-
Long LED Lifespan: Average life span of 50,000 hours.
-
Linear Dimmer: Offers 0-100% linear curve dimming.
Technical Specifications
-
Light Sources: 1 x 100W white LED spotlight.
-
Average Life Span: 50,000 hours.
-
Colour Temperature: 7000 K - 7500 K.
-
Dimmer: 0-100%, linear curve.
-
Beam Angle: 15°.
-
Movements: PAN up to 540° / TILT up to 270°.
-
Focus: Motorised.
-
Fixed Gobo Wheel: 7 gobos + open, wheel rotation and SHAKE effect.
-
Rotating Gobo Wheel: 6 gobos + open, wheel rotation, gobo rotation and SHAKE effect.
-
Colour Wheel: 7-colour wheel + white, half colours and rainbow effect.
-
Prism: 6 facets with variable rotation speed.
-
Modes: Auto, Music-controlled, Random and DMX.
-
Number of DMX Channels: 14.
-

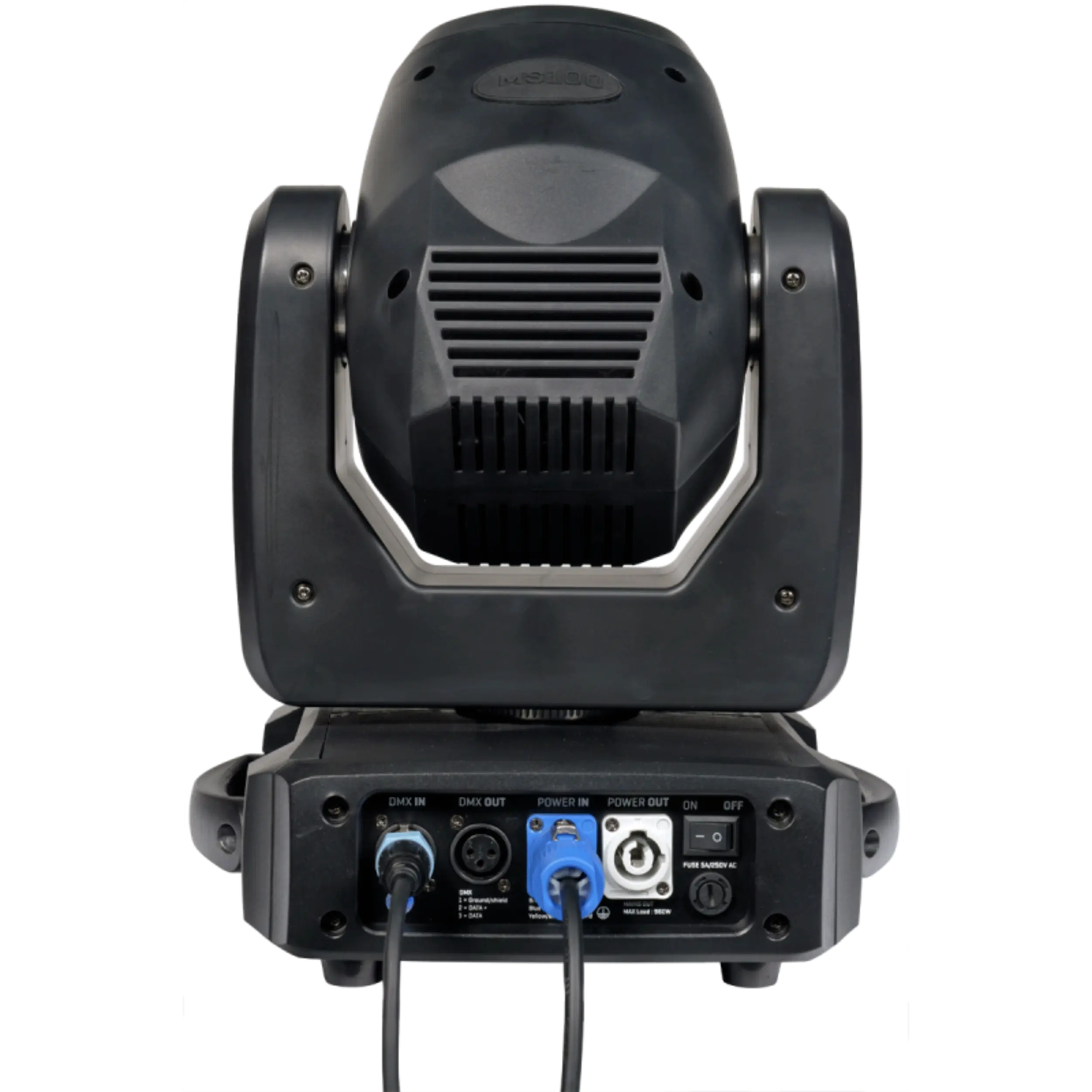

DMX Input/Output: XLR 3-pin.
-

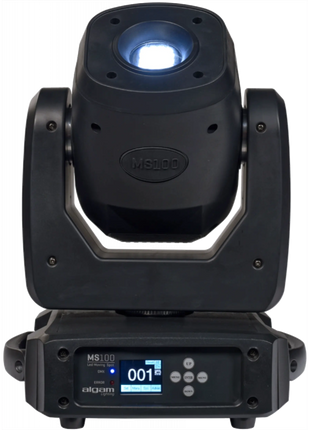

Display: LCD screen with 5 control buttons.
-
Frame Material: Plastic.
-

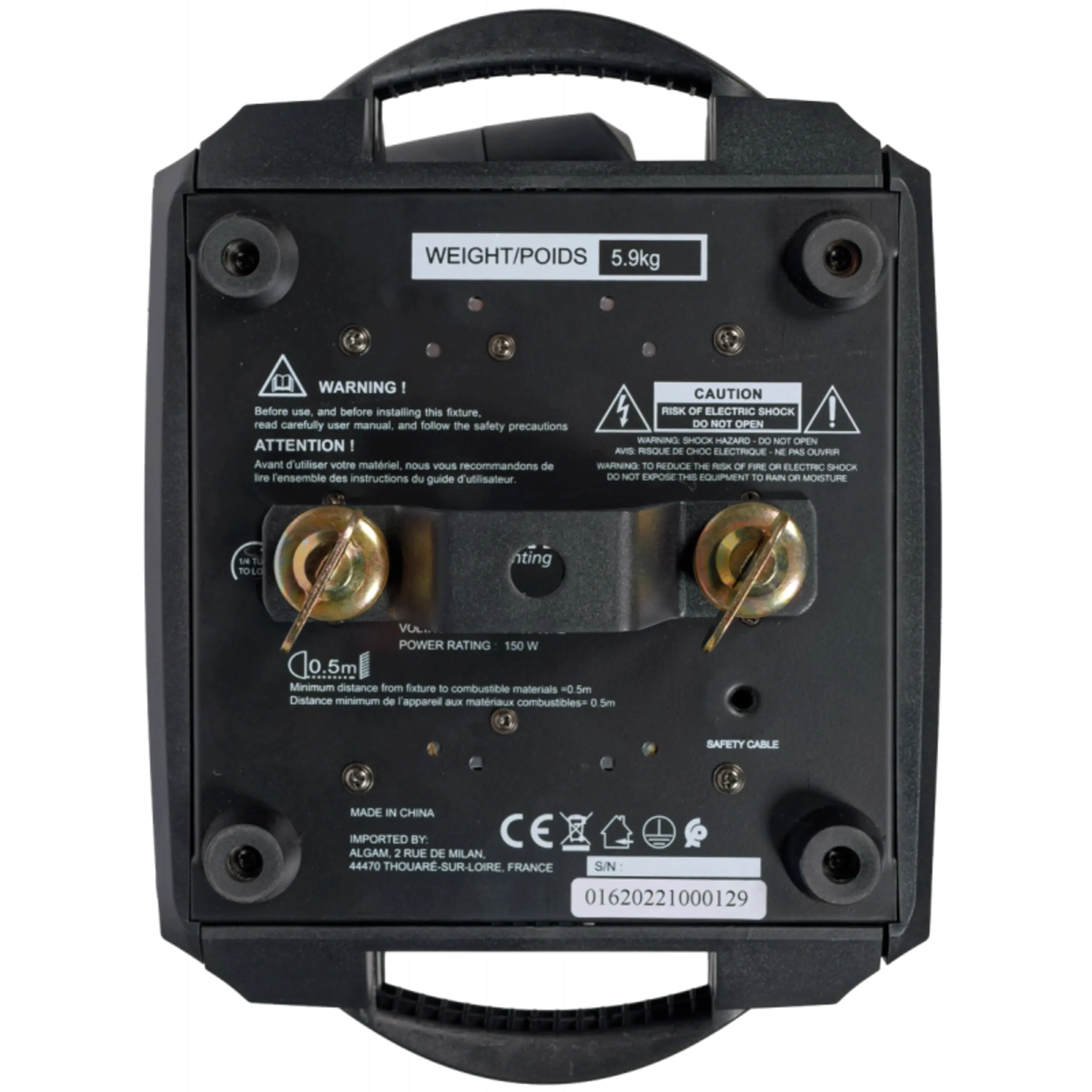

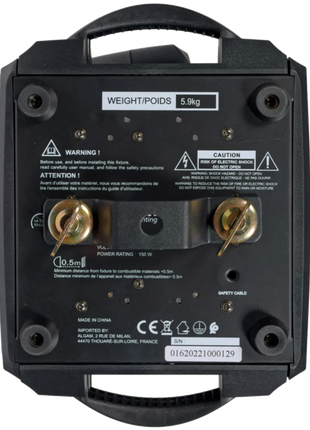

Installation and Fixings: 1 OMEGA socket with quarter turn locking.
-
Power Connector: Locking socket (input/output).
-
Supply Voltage: 100-240V, 50/60Hz.
-
Power Consumption: 150W.
-
Weight: 5.9kg.
-
Dimensions: 280 x 215 x 370mm.
-
Protection Class: IP20 (indoor use).
Suitable For
- Lighting professionals.
- Fixed installations.
- Mobile applications.
- Events requiring versatile and impressive spot effects.
What's in the box
- Algam Lighting MS100 Moving Head.
- Power cable.
- Velcro cable tie.
- Yoke mounting bracket.
- Safety sling.
