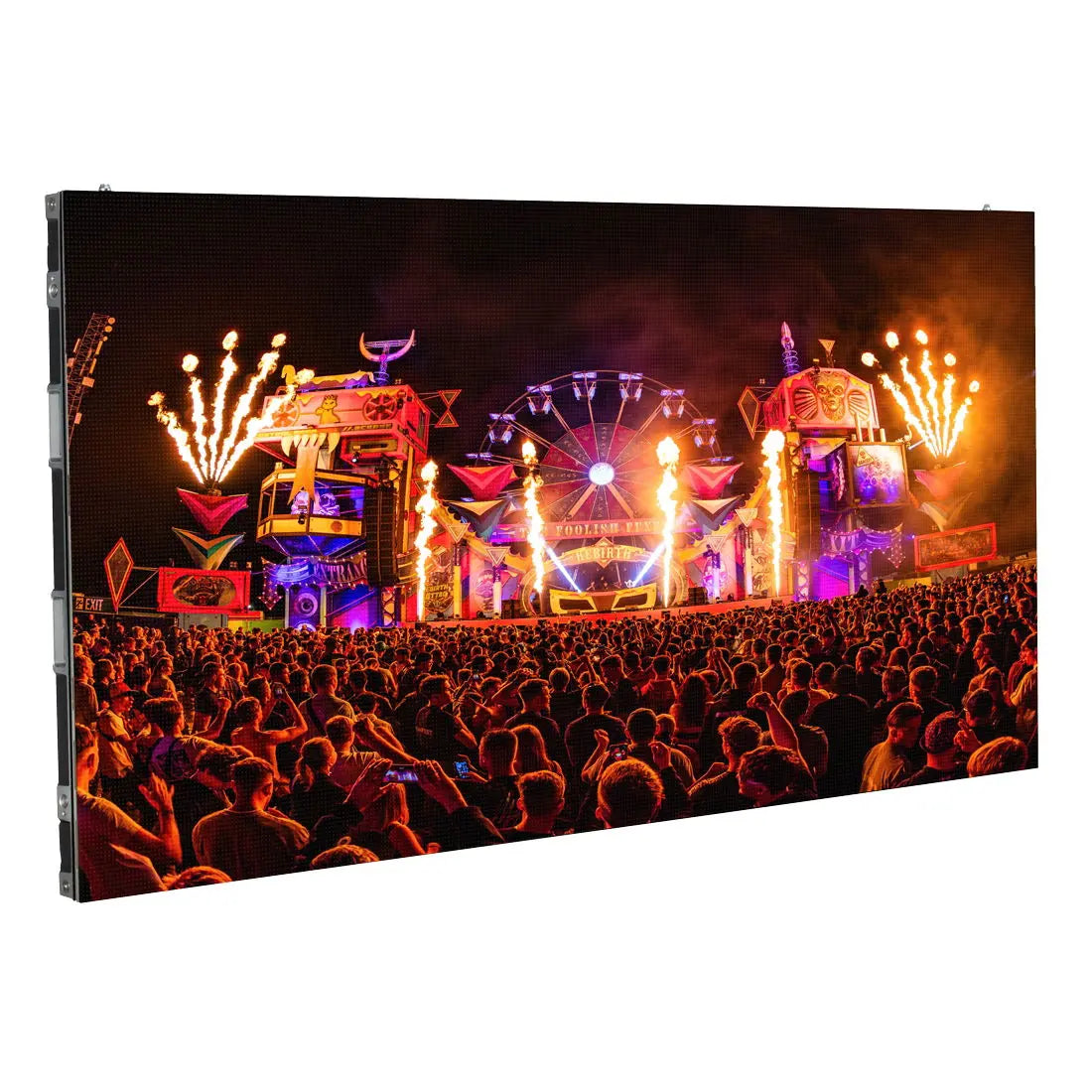

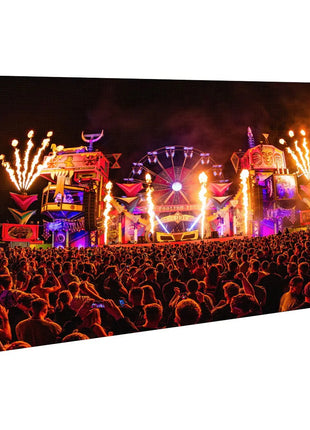

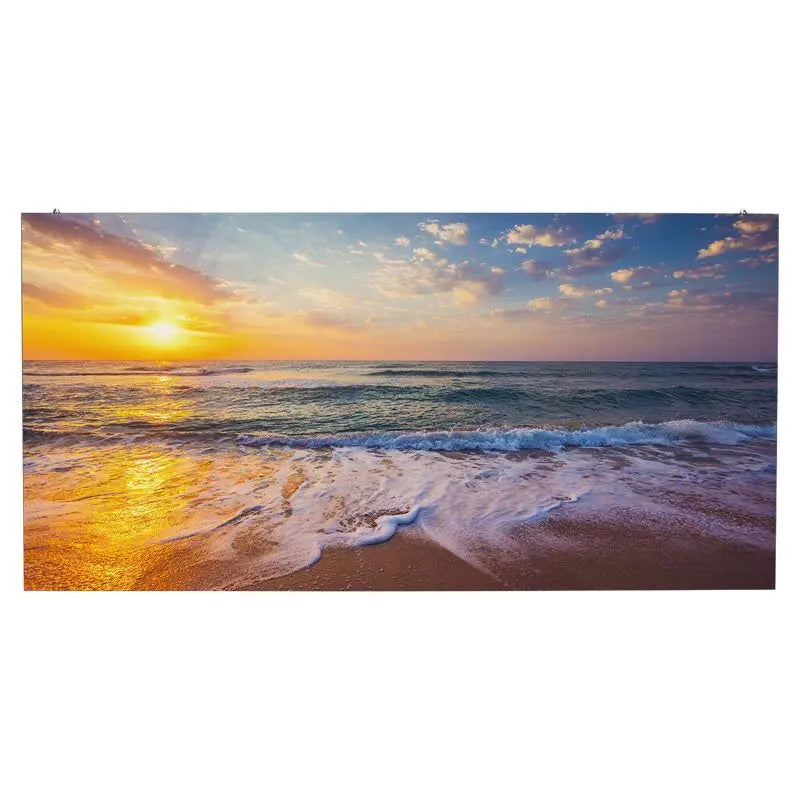

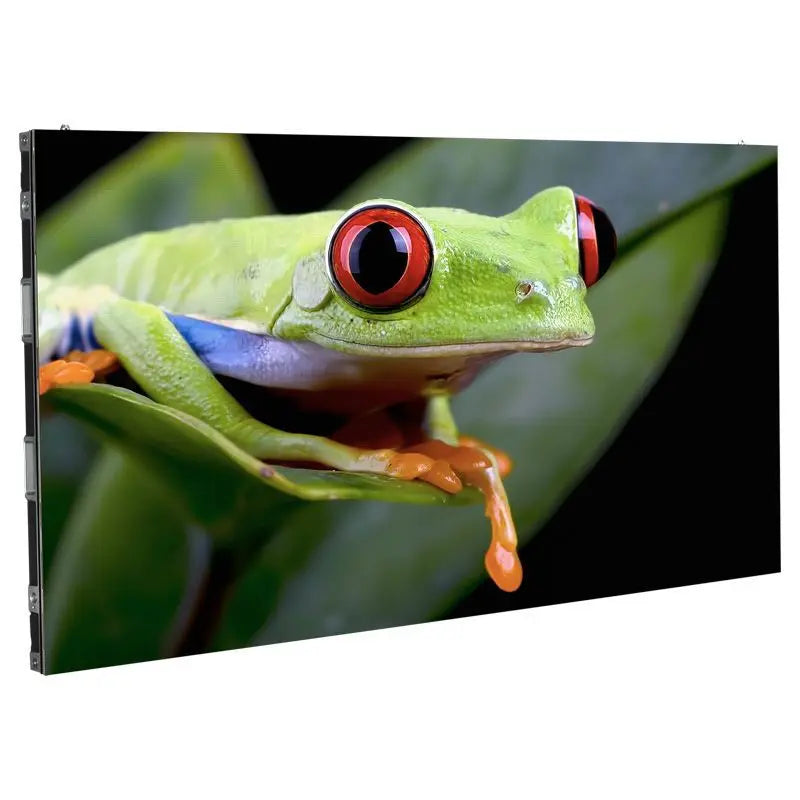

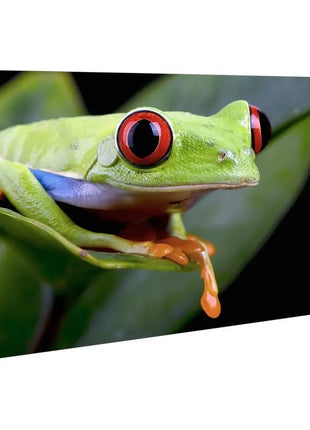

Discover the cutting-edge ADJ WMS2 LED Video Panel – a pinnacle in high-resolution display technology designed for seamless integration into a diverse array of projects. Expanding ADJ’s professional LED video panel portfolio the WMS2 stands out as the company’s highest resolution offering to date. Perfectly suited for integration applications including shop window displays museums boardrooms digital signage and entertainment venues this video panel is a versatile solution for immersive visual experiences.
Boasting a pixel pitch of 2.6mm and a pixel density of 147456/m2 the WMS2 guarantees exceptional definition even at close viewing distances. The RGB SMD1515 colour mixing LEDs produce a vibrant spectrum supported by a brightness of 800 NITS. With a wide viewing angle of 160° (horizontal) by 140° (vertical) and a rapid refresh rate of 3840Hz this video panel ensures a captivating and smooth visual performance.

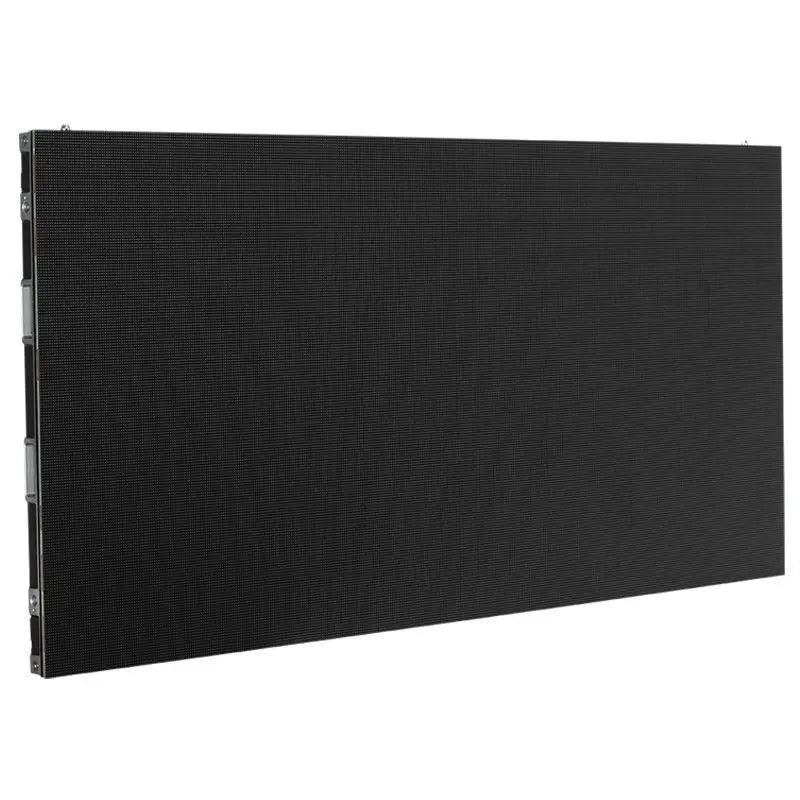

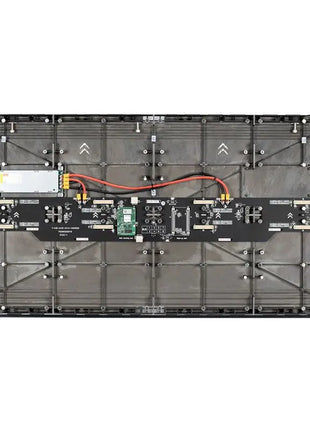

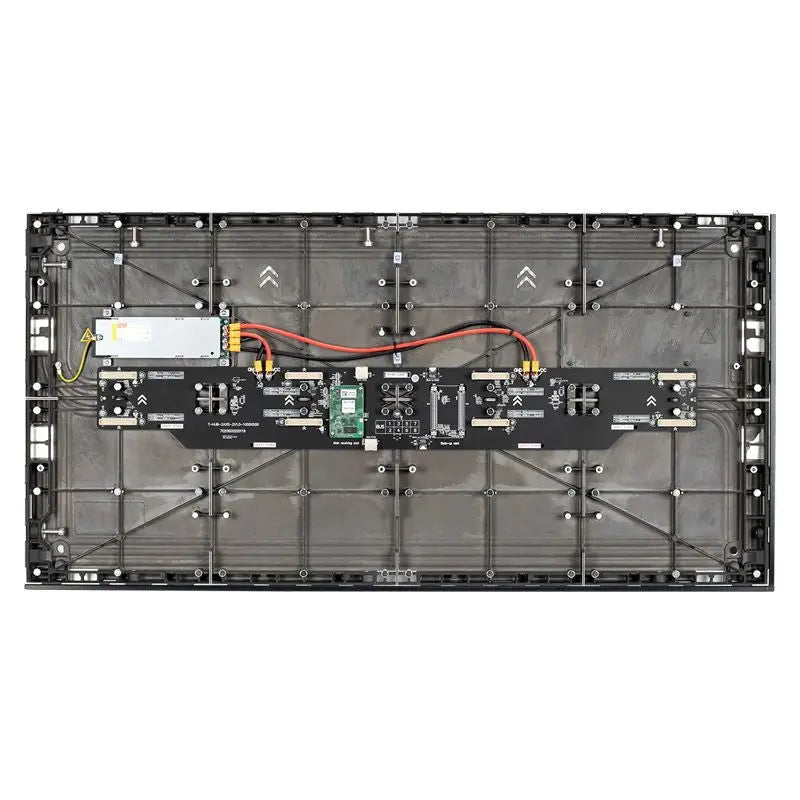

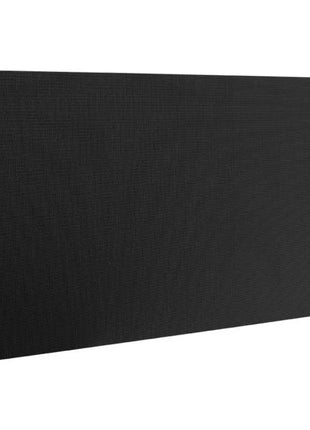

Measuring 1000mm x 500mm the WMS2 consists of eight individual modules each with 96 x 96 pixels offering flexibility in arrangement. The panel’s frame assembly features a secure locking mechanism allowing for the seamless joining of adjacent panels. Installation is simplified with mounting points for direct wall installation. The front-serviceable design enables easy module replacement ensuring uninterrupted operation.

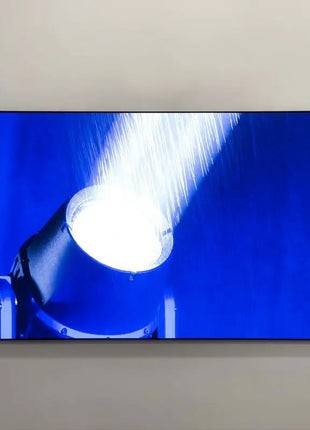

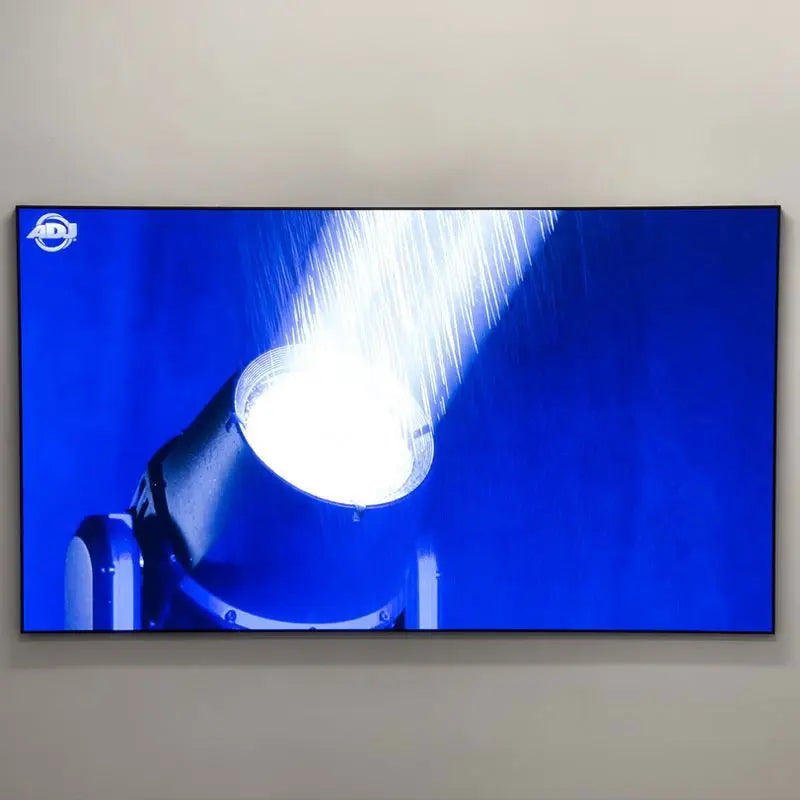

With a slim 33mm thickness and a weight of 9.5 kgs. the WMS2 is a lightweight and compact solution. Its versatility extends to wall-mounting or hanging catering to various installation preferences. Join the LED video panel revolution with ADJ’s crystal clear and incredibly vibrant WMS2.
Configuration:
Pixel Pitch (mm): 2.6mm Pixel Density: 147456 pixels/m2 Resolution: 384 x 192 pixels/panel LED sealing Type: SMD1515 Kinglight Copper Module Size (mm x mm): 250 x 250 Module Resolution: 96 x 96 pixels Average Life (Hours): 50000H
Features:
Installation Method: Hang or Wall Mount Maintenance: Front Serviceable
Optical Ratings:
Brightness: 800 NITS Horizontal Viewing Angle (Deg): 160° Vertical Viewing Angle (Deg): 140° Grey Scale (Bit): ≥14 CFD435 Refresh Rate (Hz): 3840Hz
Power Supply:
Input Voltage (V): 100-240VAC Max Power Dissipation (W/m²): 350 Average Power consumption (W/m²): 140
Control System:
Receiving Card: Novastar A8s-N
Environmental:
Working Environment: Indoor Waterproof Level: IP20 Working Temperature: -20°C ~ +40°C Storage temperature range: -40°C ~ +80°C Operation humidity (RH): 10%~90%
Weight / Dimensions:
Cabinet Size (mm x mm): 1000 x 500mm Cabinet Weight: 9.5 kg Cabinet Thickness (mm): 33mm
Accessories:
EVSVAC (EVSVAC) - Vacuum Tool to Remove Modules WMSHDC (WMS132) - Horizontal Data Cable for WMS Panel Series WMSHPC (WMS106) - Horizontal Power Cable for WMS Panel Series WMSMAT (WMS080) - WMS2 Magnet Adjustment Tool WMSMDC32 (WMS158) - 32-foot MainData Cable for WMS Panel Series WMSMPC16 (WMS145) - 16.4-foot Main Power Input Cable for WMS Panel Series WMSRB1 (WMS015) - Free Hang 1-Meter Rigging Bar (only for landscape orientation) max. 20 panels WMST2X2 (WMS041) - Frame Trim for 2x2 WMS Video Wall WMST3X3 (WMS054) - Frame Trim for 3x3 WMS Video Wall WMST4X4 (WMS067) - Frame Trim for 4x4 WMS Video Wall WMSVDC (WMS119) - Vertical Data Cable for WMS Panel Series WMSVPC (WMS093) - Vertical Power Cable for WMS Panel Series WMSWB1 (WMS028) - 1-Meter Wall Mount Bracket
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!
