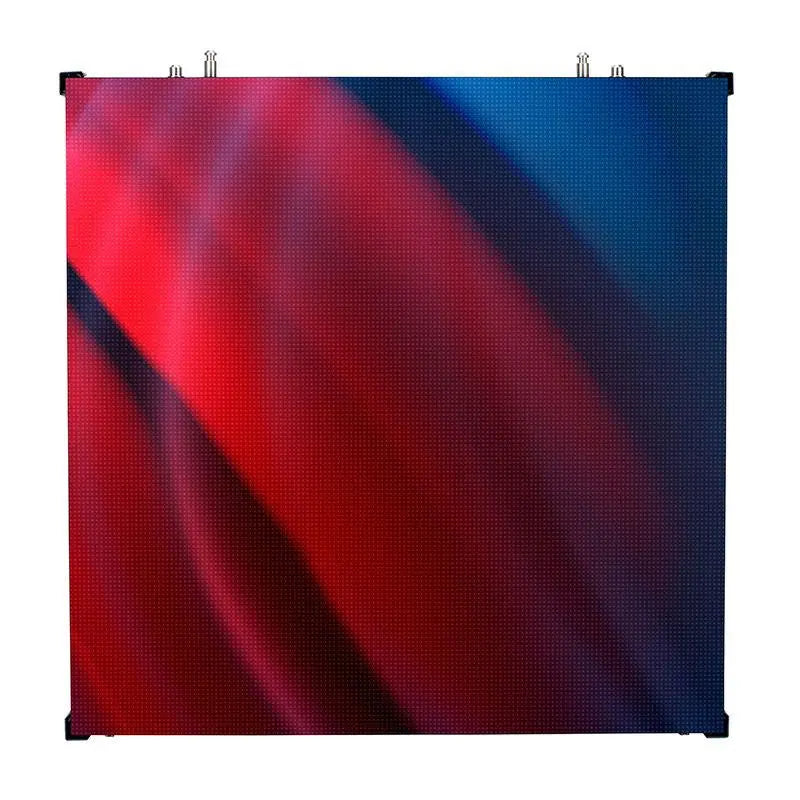

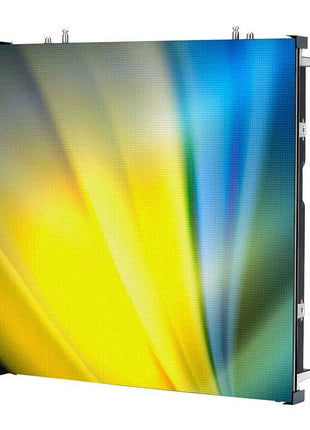

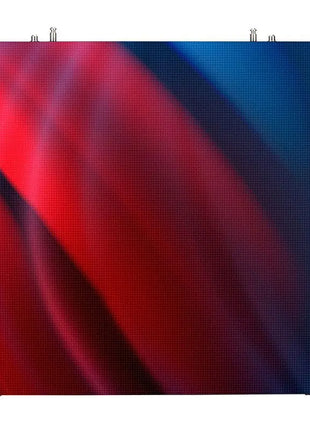

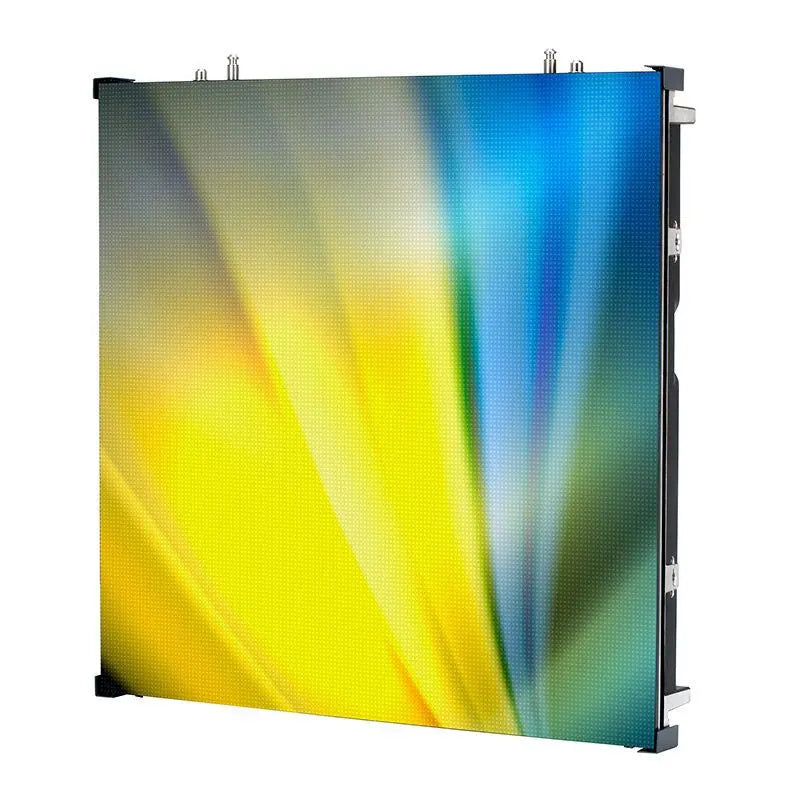

The VS3IP is a high resolution video panel from ADJ. Each panel has a pixel pitch of 3.84mm with a configuration of a 3-in-1 RGB SMD1921 LEDs. The panel is IP65 on the front and IP54 on the back which allows for temporary outdoor use. The brightness is 4500 NITS. The panel also features MOM (Memory On Module) technology and produces a high refresh rate of 3840Hz. The VS3IP includes IP65 locking power in/out connections and locking RJ45 ethernet in/out connections. This panel also features a built-in Novastar A5S receiving card.

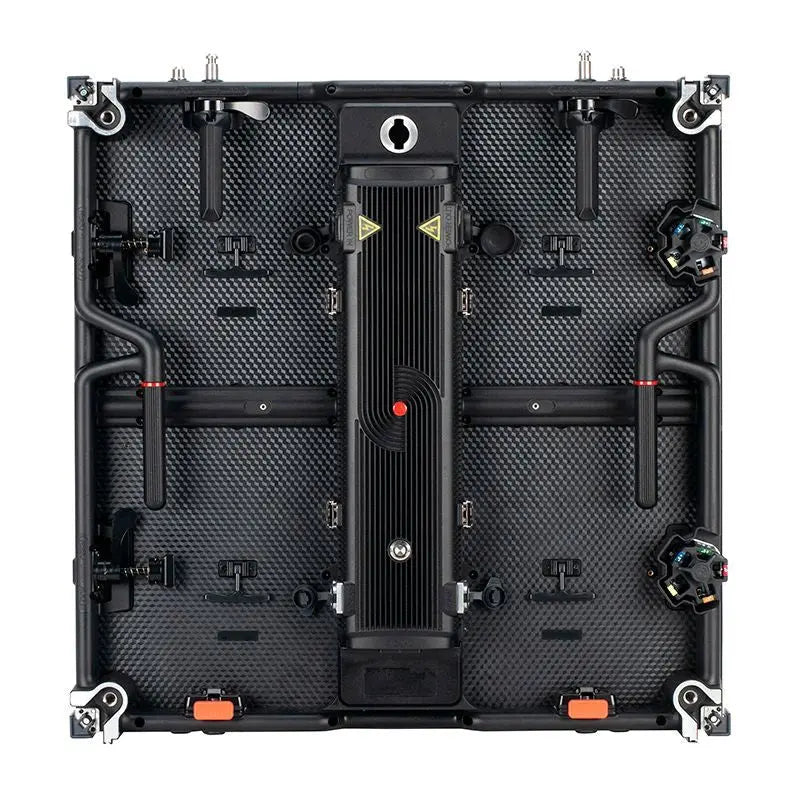

The VS3IP has four individual mini modules and is rear serviceable. The VS3IPRB1 single panel multi-purpose rigging bar may be used to vertically hang up to 20 VS3IP panels or vertically ground stack up to 8 panels. The panel is CE and ETL approved.
The VS3IP is a great video solution for indoor or outdoor use. ADJ offers
accessories such as video processors cabling rigging bars flight cases so that you have everything you need to get up and running.
SPECIFICATIONS:
Source
Light Source: RGB SMD1921 LED Pixel Density: 150x150 per panel; 67816 per square meter Operating Life / MTBF: 50000 Hours / 5000 Hours Pixel Pitch: 3.84mm Gaps<0.5mm
Optics
Brightness: 4500 NITS View Angle: Horizontal 160°/Vertical 140° @ 3m Gray Scale: ≥14-bit Brightness Adjustment: 0~100% 100 Levels Contrast ratio: 5000:1 Display Colour: 256 Processing: 14-bit
Control
Control Mode: Novastar Synchronous System Refresh Rate: 3840Hz Control Distance: Ethernet Cable <120m Optional Novastar Sending Cards and Accessories available Frame Update Frequency: 50-75Hz Brightness Correction: Pixel Module Cabinet
Colours
RGB
Construction

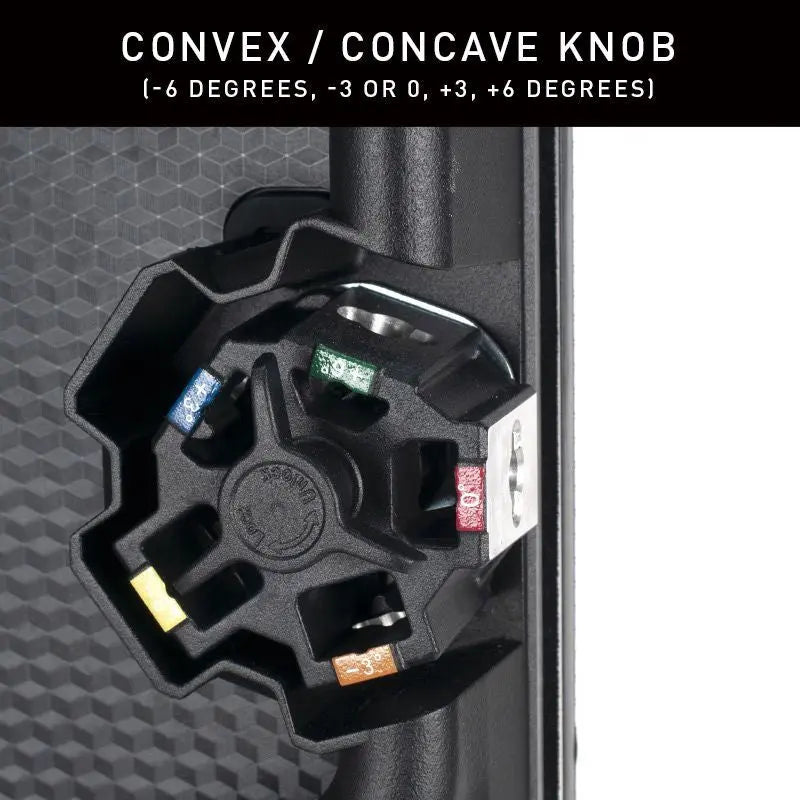

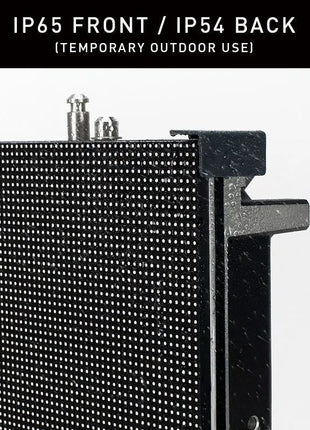

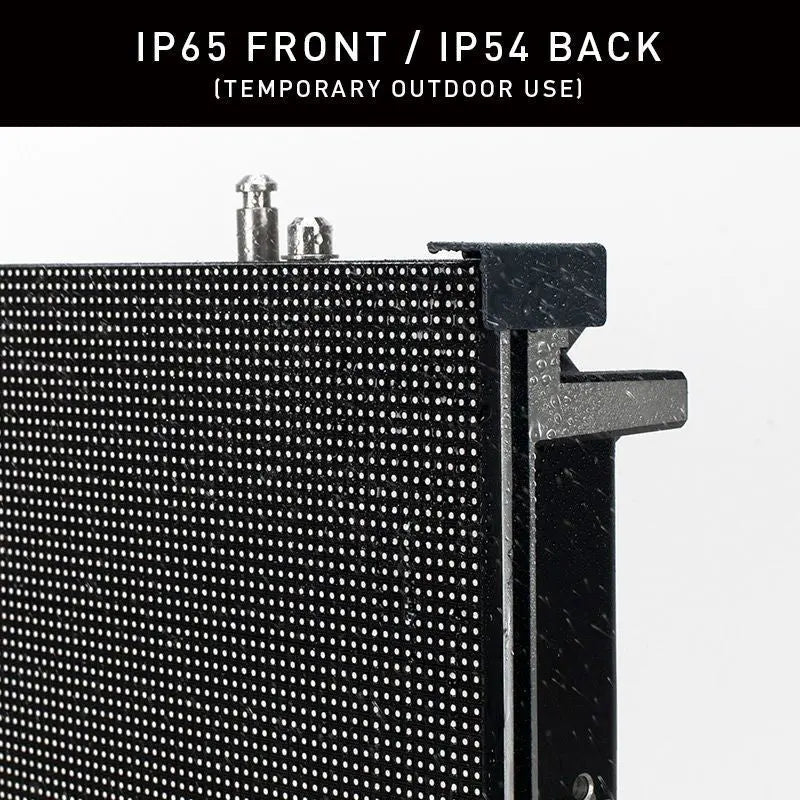

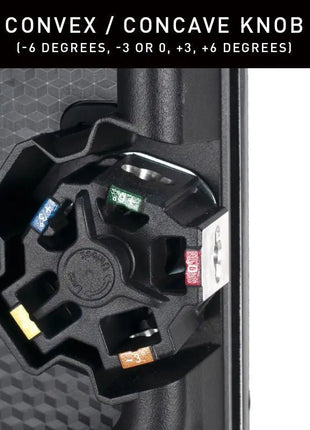

Protection Level: IP65 Front / IP54 Back Aluminium Frame with built-in corner protectors Module Quantity: 4 IP65 Front / IP54 Back (Temporary outdoor use) Curve panels in convex or concave -6 -3 degrees or 0
+3 +6 degrees
Quick lock system to connect panels together Quick release power supply / receiving card module
Electrical
Multivoltage 100-240V 50/60Hz Max. Power Consumption: 210W/per panel Ave. Power Consumption: 84W/per panel Operational temperature: -20 to +40 degrees Operational humidity: 10% — 90% (no condensation)
Connections

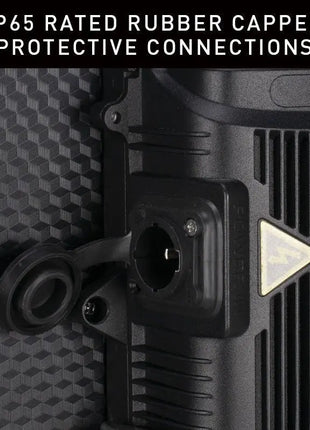

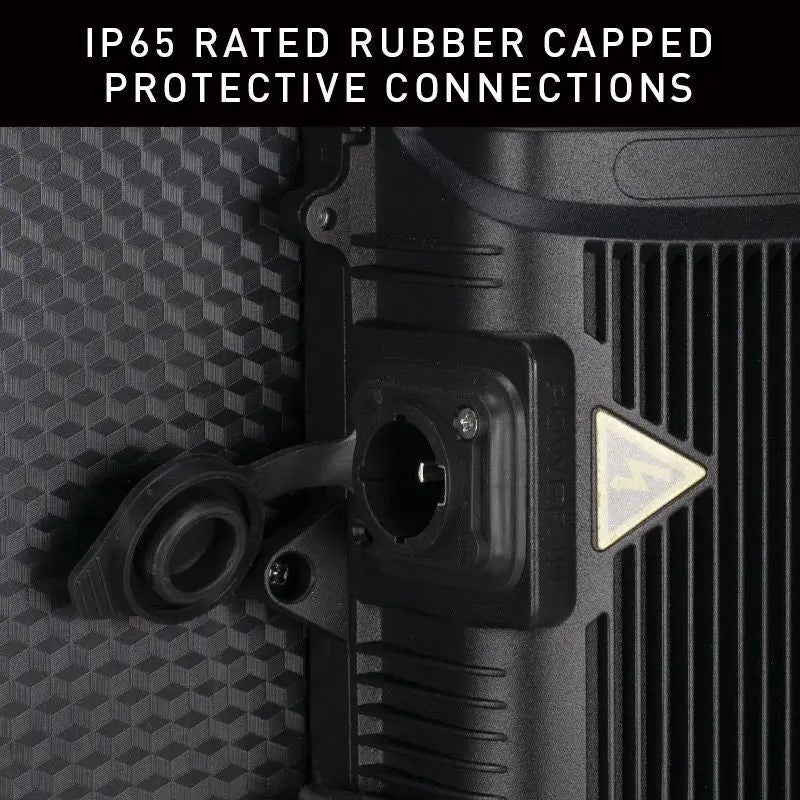

Locking IP65 RJ45 In/Out connectionsLocking IP65 Power In/Out connections
Dimensions & Weight
Dimensions (LxWxH): 576 x 76.8 x 576 mm Weight: 9kg.
What’s included
Locking IP65 RJ45 Cabinet to Cabinet Data Link Cables Locking IP65 Power Link Cables
Optional Accessories
1521000306 ADJ Touring Case 8x VS3IP/AV6: Flight Case – Fits 8 VS3IP Panels 1226300161 VS3IPRB1: Rigging Bar – Hang up to 20 VS3IP Video Panels vertically or ground stack up to 8 VS1RSB Rear Support Bracket for VS Series Panels 1226300156 VSRQR: Quick Rig - Attaches and locks on to the rear of any Vision series panel so it can be fastened to a 2" pipe or truss 1226300067 Novastar VX4S: Video Processor 1226300034 Novastar MCTRL-300: Video Processor Arkaos Media Master: Video Software Arkaos GrandVJ 2.0: Video Software
