ADJ Vizi Xtreme – Ultra-Compact 240W RGBL Moving Head Beam/Wash with RGBW Halo Ring
Buy the ADJ Vizi Xtreme, an ultra-fast, compact moving head beam/wash featuring four 60W primary RGBL LEDs, an outer 48-LED RGBW halo ring, a wide 3° to 45° motorized zoom, and optional 360° continuous pan and tilt rotation. In stock, fast UK delivery.

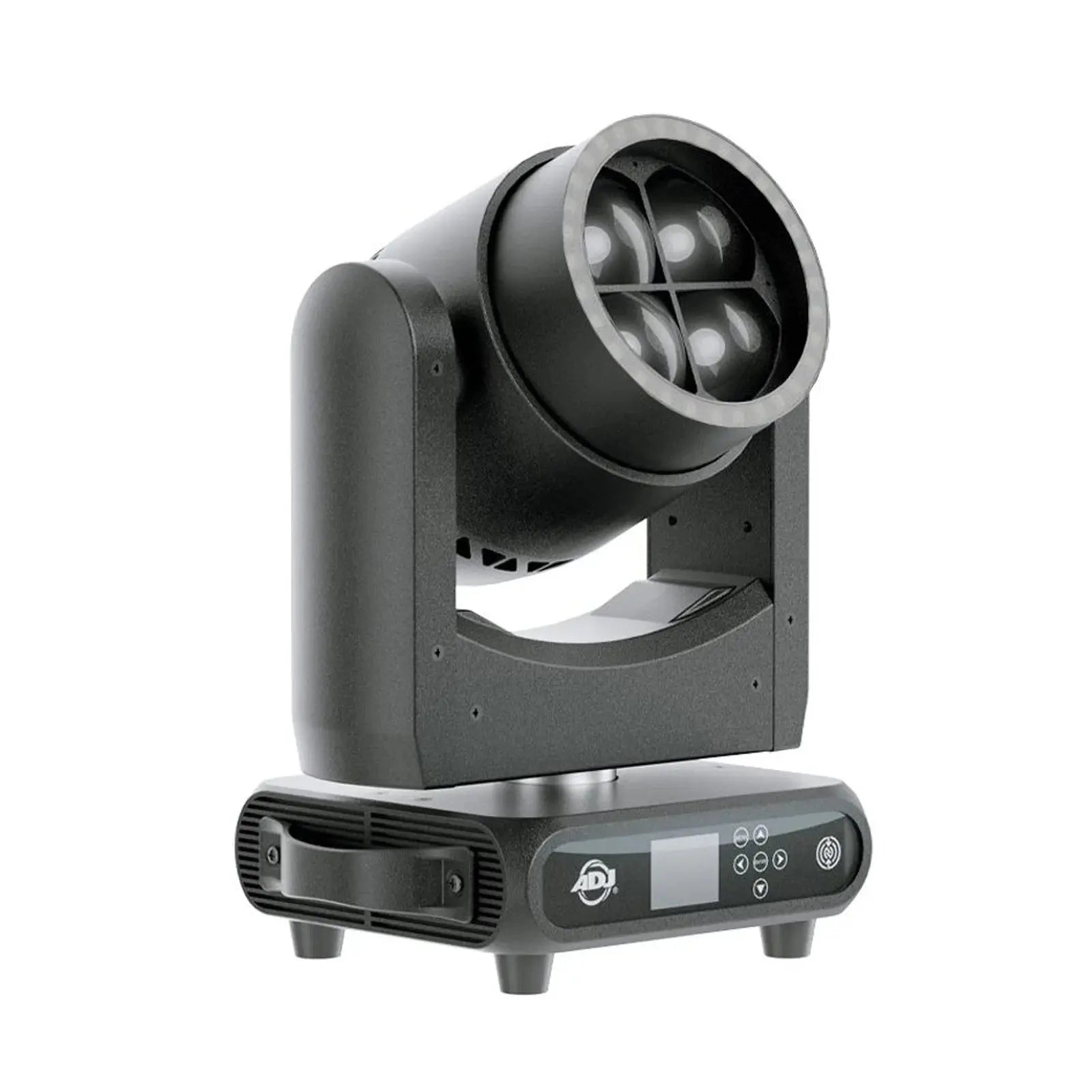

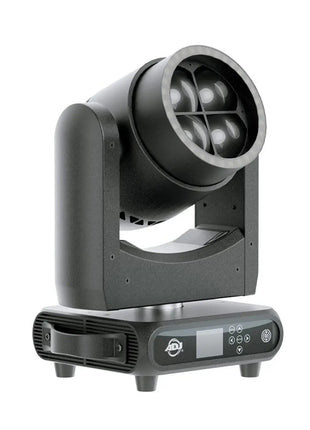

The ADJ Vizi Xtreme is a high-speed, tour-grade compact moving head luminaire engineered for concert staging, festival rigs, nightclubs, broadcast studios, and event production setups. Combining a powerful 240W primary light engine (four 60W Red, Green, Blue, Lime LEDs) with a surrounding eye-candy ring of forty-eight 0.5W RGBW LEDs, the Vizi Xtreme delivers vibrant pastel color mixing, high-output white color temperatures (2700K to 10,000K), and dynamic multi-layer visual effects. Outfitted with a motorized zoom system that transitions smoothly from an ultra-tight 3-degree mid-air beam to a broad 45-degree stage wash, this nimble 7kg fixture is driven by high-speed 3-phase motors capable of standard 540° pan and 270° tilt or infinite 360° continuous pan and tilt rotation. Network-ready with DMX, RDM, Art-Net, sACN, and onboard Aria X2 wireless DMX with NFC configuration, it offers unmatched versatility in a lightweight chassis.
Staff Take: The Expert Verdict
The single strongest selling point of the ADJ Vizi Xtreme is its incredible power-to-weight ratio combined with continuous 360-degree pan/tilt movement. Weighing just 7kg, the standout feature is the combination of individual pixel mapping across the primary 60W RGBL LEDs and 6-zone control over the outer halo ring, allowing lighting designers to generate complex matrix effects without needing heavy fixtures. We highly recommend this fixture for touring lighting directors, festival crews, and venue integrators who want high-velocity beam/wash performance, lime-infused color purity, and Art-Net/sACN network integration in a ultra-portable footprint.
Why Choose the ADJ Vizi Xtreme Moving Head?
-
Primary 240W RGBL light engine: Four 60W Red, Green, Blue, Lime LEDs produce intense output with rich lime-infused primary and pastel color depth.
-

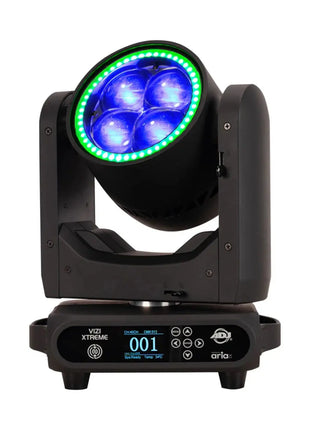

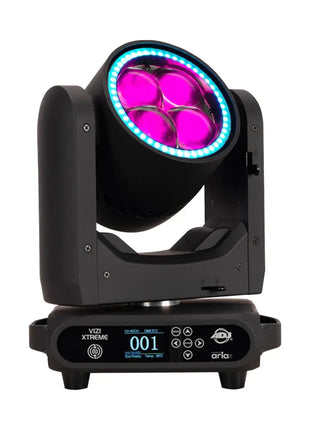

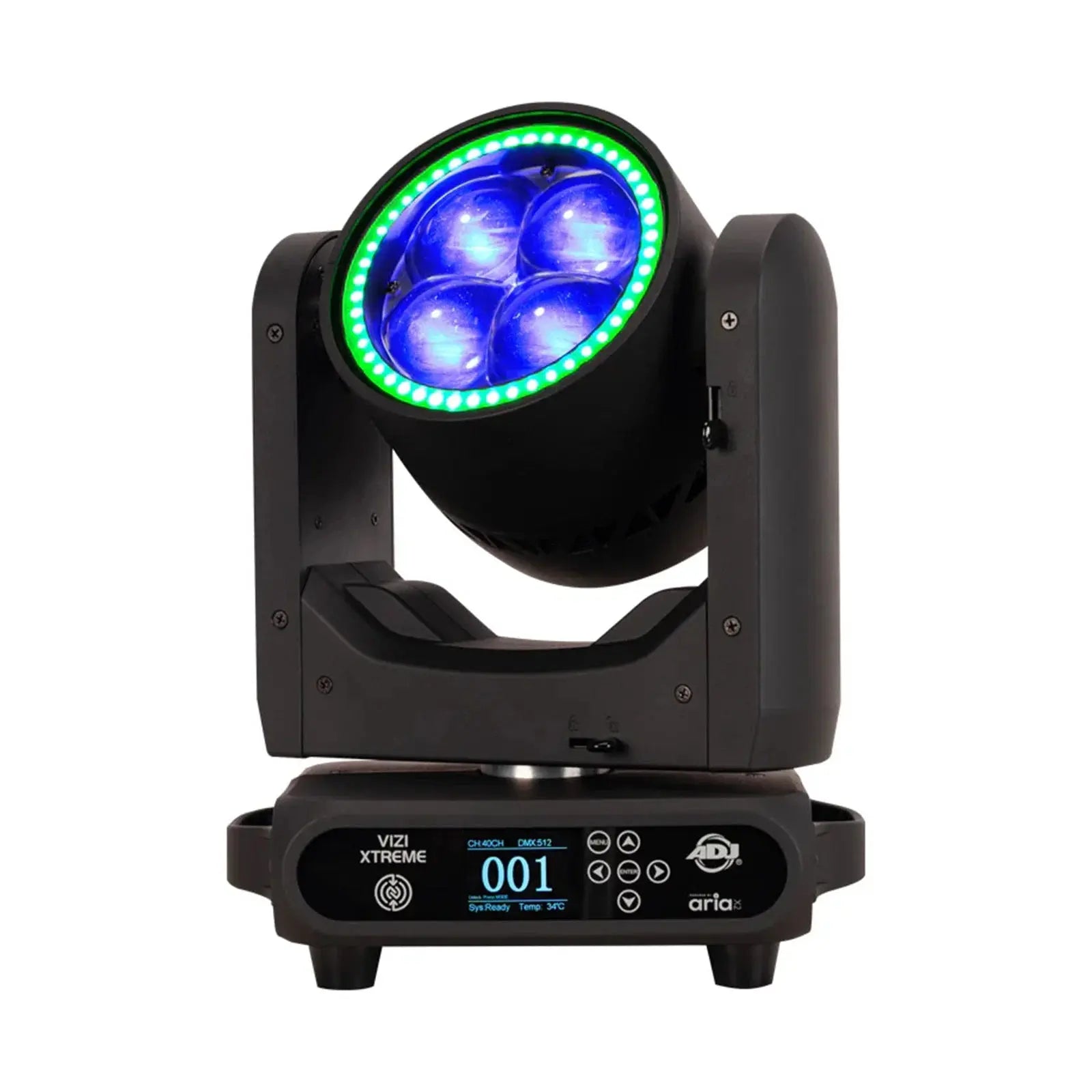

48-LED RGBW outer halo ring: Face is surrounded by forty-eight 0.5W RGBW LEDs divided into 6 independent zones for dynamic eye-candy ring patterns.
-
3° to 45° motorized zoom range: Shifts instantly from a concentrated 3-degree punchy beam to a wide 45-degree stage wash.
-
Optional 360° continuous pan and tilt: High-speed 3-phase motors deliver lightning-fast 540°/270° movement or continuous infinite 360° rotation on both axes.
-
Individual pixel control: Full pixel addressability over all 4 main RGBL LEDs and 6-zone control over the outer LED halo ring.
-

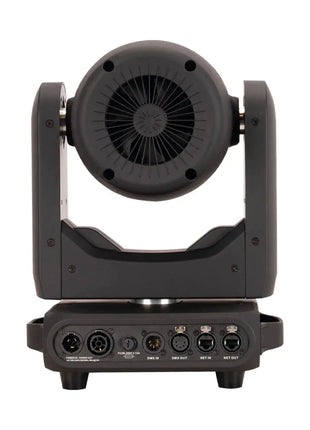

Comprehensive network control: Supports DMX512, RDM, Art-Net, and sACN over locking Seetronic RJ45 etherCON and 5-pin XLR ports.
-
Aria X2 wireless DMX & NFC: Integrated wireless management system with NFC mobile app access for fast remote addressing and OTA firmware updates.
-

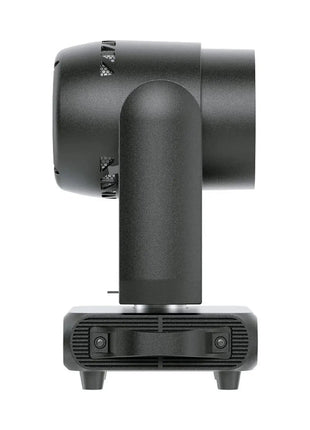

Lightweight, tour-grade build: Weighs only 7kg with mechanical pan/tilt transit locks for effortless handling and road case packing.
Who is the ADJ Vizi Xtreme best suited for?
The ADJ Vizi Xtreme is engineered first and foremost for touring lighting directors, festival staging crews, nightclub designers, and broadcast production teams. Its ultra-compact 7kg frame and rapid continuous 360° movement make it ideal for high-energy dance stages, fast-paced concert backlines, and ceiling grids with tight clearance.
For secondary applications, this compact moving head is an outstanding solution for corporate AV suppliers and mobile entertainment hosts. Onboard color temperature presets (2700K–10,000K) allow technicians to achieve warm, natural wash lighting for speeches, while the halo ring provides dynamic eye-candy effects during evening performances.
ADJ Vizi Xtreme vs Standard Compact Wash Lights — What's Changed?
The primary advantage when stepping up to the ADJ Vizi Xtreme over traditional compact LED wash lights is the inclusion of Lime (RGBL) color mixing alongside infinite continuous movement. Standard RGBW fixtures often struggle to produce natural warm whites and vibrant pastel shades. Adding a lime LED chip expands color rendering capability while generating crisp whites across a 2700K to 10,000K range.
Secondary enhancements focus on optical range and effect layers. While typical compact wash lights feature fixed beam angles or limited 10°–30° zooms, the Vizi Xtreme delivers a wide 3° to 45° zoom ratio. Paired with its 6-zone outer RGBW ring and continuous 360° pan/tilt rotation, a single fixture can execute razor-sharp aerial beam moves, mid-air continuous sweeps, and broad room washes.
How to Set Up the ADJ Vizi Xtreme
-
Mount the fixture to aluminum trussing using the two supplied 107mm Omega quick-release clamps, or place it on a flat stage riser.
-
Always attach a certified safety wire bond through the dedicated safety loop.
-
Disengage the mechanical pan and tilt transit locks on the base and yoke.
-
Connect a 5-pin XLR DMX cable, an RJ45 etherCON cable (for Art-Net/sACN), or activate the internal Aria X2 wireless DMX receiver.
-
Connect an IP65-rated locking power cable to the power IN port, using the loop-thru connection to feed adjacent fixtures.
-
Use the full-color 180° reversible LCD screen (or NFC app) to set the starting address and choose from 5 DMX channel modes (28 to 73 channels).
-
Clear the movement area around the head and launch your automated lighting sequence.
Technical Specifications
| System Feature |
Specification Details |
| Product Category |
Compact RGBL Pixel Beam/Wash Moving Head |
| Primary Light Source |
4 × 60 W RGBL (Red, Green, Blue, Lime) LEDs |
| Halo Ring Light Source |
48 × 0.5 W RGBW LEDs (6 Independent Zones) |
| Motorized Zoom Range |
3° to 45° Beam-to-Wash Zoom |
| Lumens / CRI |
2,700 Lumens / CRI 60 |
| Color Temperature |
Variable Presets from 2,700 K to 10,000 K |
| Pan / Tilt Range |
540°/270° with Optional Continuous 360° Pan & Tilt Rotation |
| Control Protocols |
DMX512, RDM, Art-Net, sACN, Aria X2 Wireless DMX, NFC |
| DMX Channel Modes |
5 Modes (Basic 28, Standard 40, Extended 73, CMY 54, CMY 63) |

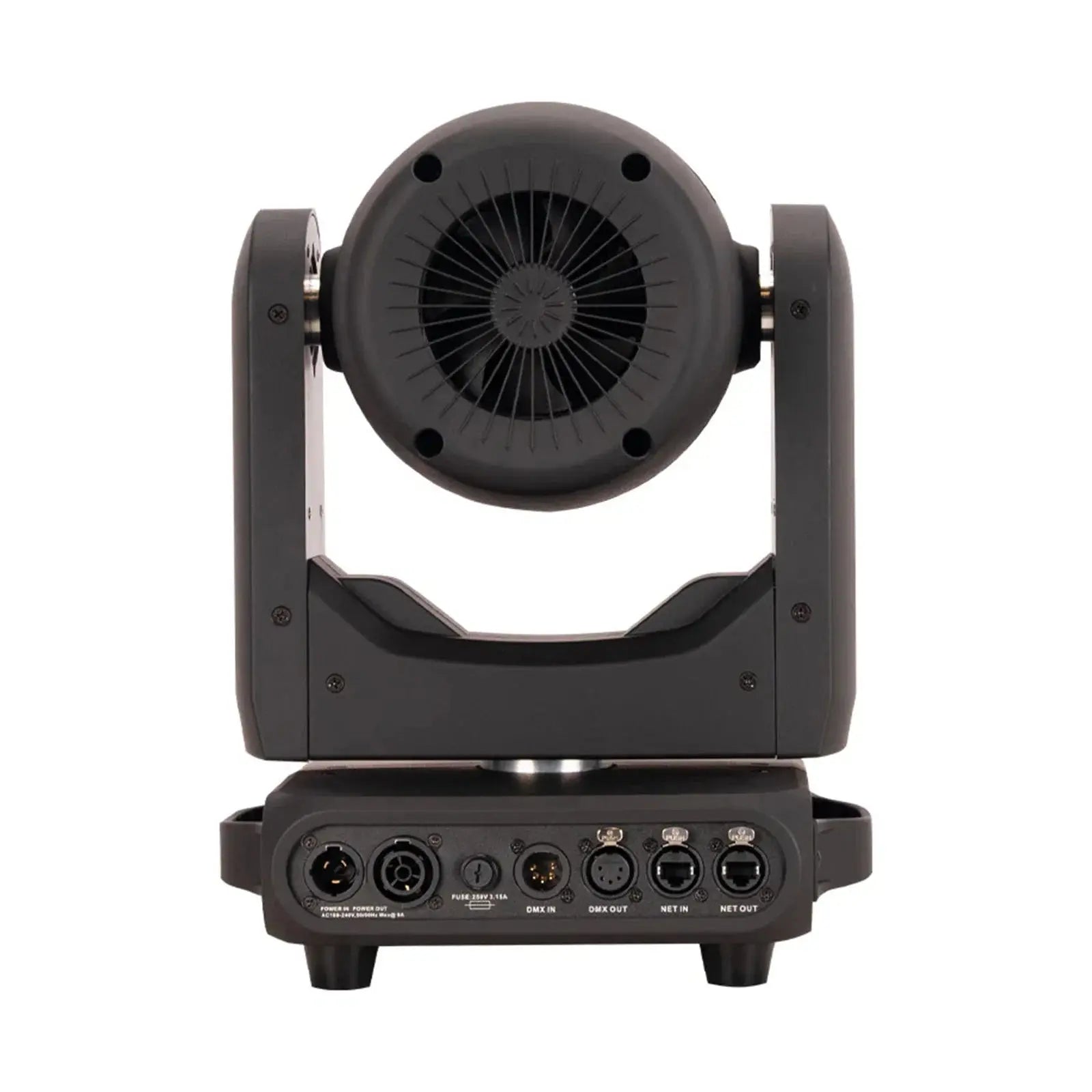

| Data Connections |
IP20 5-Pin XLR DMX In/Out & RJ45 etherCON In/Out |
| Power Connectors |
Seetronic IP65 Locking Power Input & Loop Output |
| Operating Voltage |
AC 100–240 V, 50/60 Hz (Max consumption 675 W) |
| Dimensions (L × W × H) |
276 mm × 200 mm × 364.2 mm |
| Net Hardware Weight |
7.0 kg |
Frequently Asked Questions
What is the advantage of Lime (RGBL) color mixing over standard RGBW?
Adding a dedicated Lime LED chip increases total lumen output and fills gaps in the color spectrum. This allows the Vizi Xtreme to blend richer pastels, accurate warm white tones, and brighter primary colors compared to conventional RGBW fixtures.
Can the fixture rotate continuously without hitting physical end stops?
Yes. In addition to standard 540° pan and 270° tilt, you can enable continuous 360° rotation mode on both the pan and tilt axes for non-stop aerial rotation effects.
Can I control the primary LEDs and the outer halo ring independently?
Yes, absolutely. The four 60W primary LEDs offer individual pixel mapping, while the surrounding 48-LED RGBW halo ring is divided into 6 independently controllable zones (8 LEDs per zone).
Does the Vizi Xtreme support Art-Net and sACN network control?
Yes. The fixture includes Seetronic RJ45 etherCON input and pass-through ports, supporting direct Art-Net and sACN ethernet lighting network protocols alongside standard 5-pin DMX.
What's In The Box?
-
1 × ADJ Vizi Xtreme RGBL Moving Head Fixture
-
2 × 107mm Quick-Release Omega Brackets
-
1 × 2m Outdoor Locking Power Cable
-
1 × 3mm Safety Cable (0.6m)
-
1 × Operational User Manual & Setup Guide
